Horse Flat Details

PropertyValue
Rupture Count399
Ruptures Above Sect Min Mag397
Ruptures w/ Nonzero Rates26
Magnitude Range[6.90, 8.12]
Length Range[23, 348] km
Total Rate5.3346295E-5 /yr
Multi-Fault Rate5.3346295E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults38

Table Of Contents

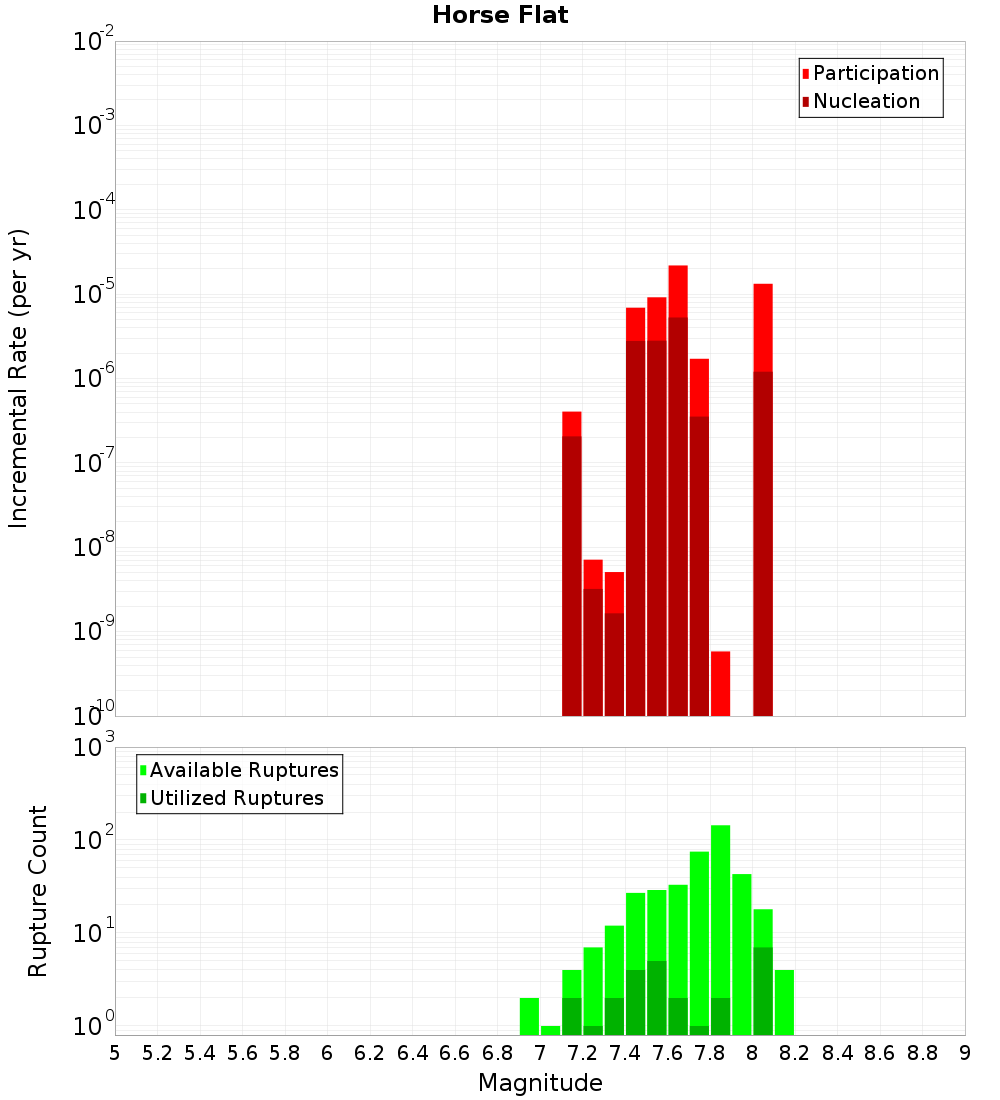

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

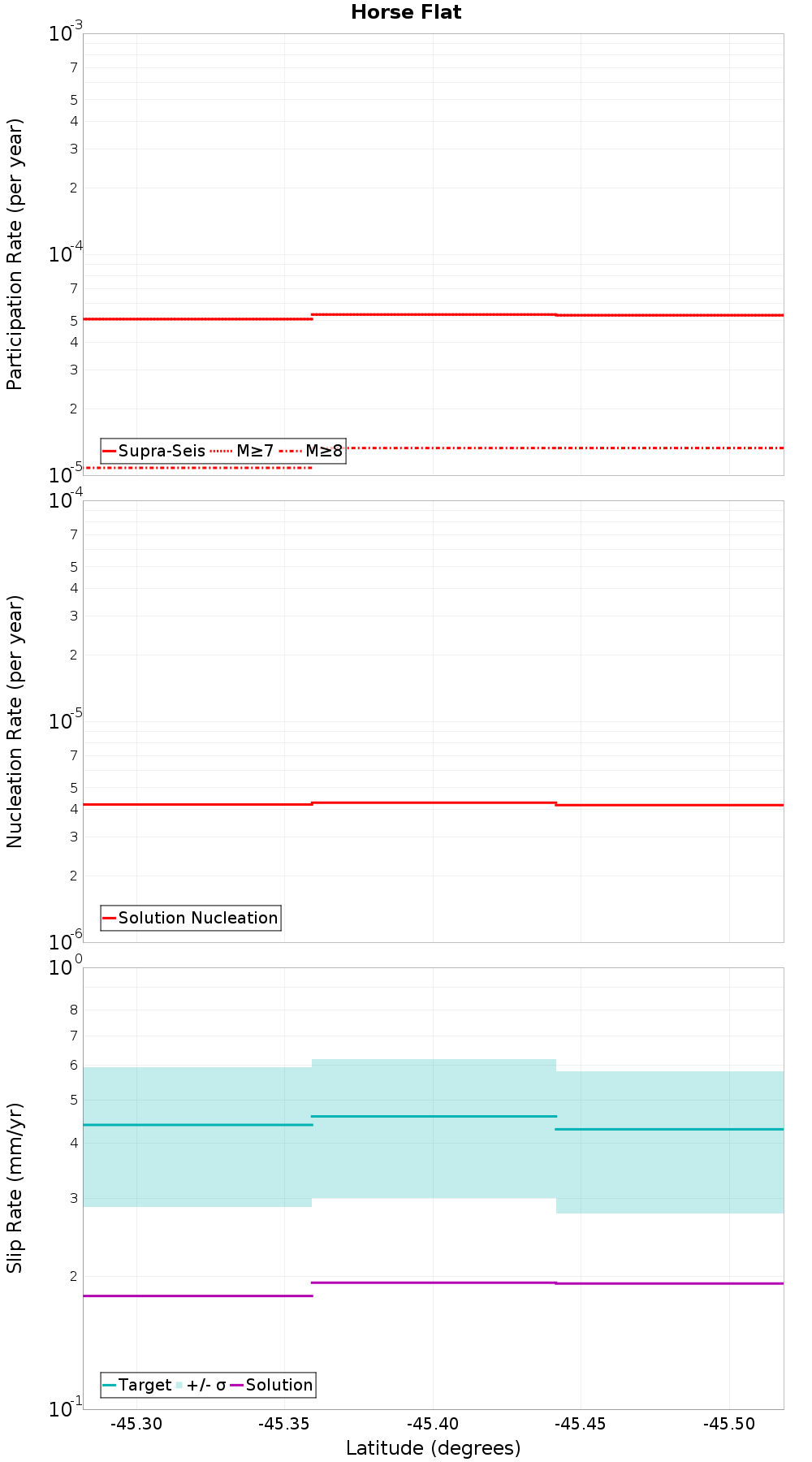

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ranfurly, 0.11 km away
Waipiata, 0.28 km away
Pylap, 0.46 km away
Billys Ridge, 2.27 km away
Waihemo, 2.81 km away
Logan Burn, 4.1 km away
Murphys Creek, 5.19 km away
Hyde North, 6 km away
Long Valley, 7.21 km away
Cross Eden, 7.35 km away
Dunback Hill, 9.22 km away
Nichols Rock, 12.83 km away
Flat Stream - Glenpark, 13.14 km away

Ranfurly, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count91
Co-rupture Rate3.94752E-5

Waipiata, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.167872E-9

Pylap, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate2.4025165E-5

Billys Ridge, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate3.0011575E-9

Waihemo, 2.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Logan Burn, 4.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate2.8898487E-5

Murphys Creek, 5.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate4.0243611E-7

Hyde North, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate1.7209558E-8

Long Valley, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate1.3268923E-5

Cross Eden, 7.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate1.14883005E-5

Dunback Hill, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
