Kaikoura - Mangamaunu Details

PropertyValue
Rupture Count6,746
Ruptures Above Sect Min Mag6,729
Ruptures w/ Nonzero Rates128
Magnitude Range[6.44, 8.41]
Length Range[13, 850] km
Total Rate1.1608045E-4 /yr
Multi-Fault Rate1.1608045E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults163

Table Of Contents

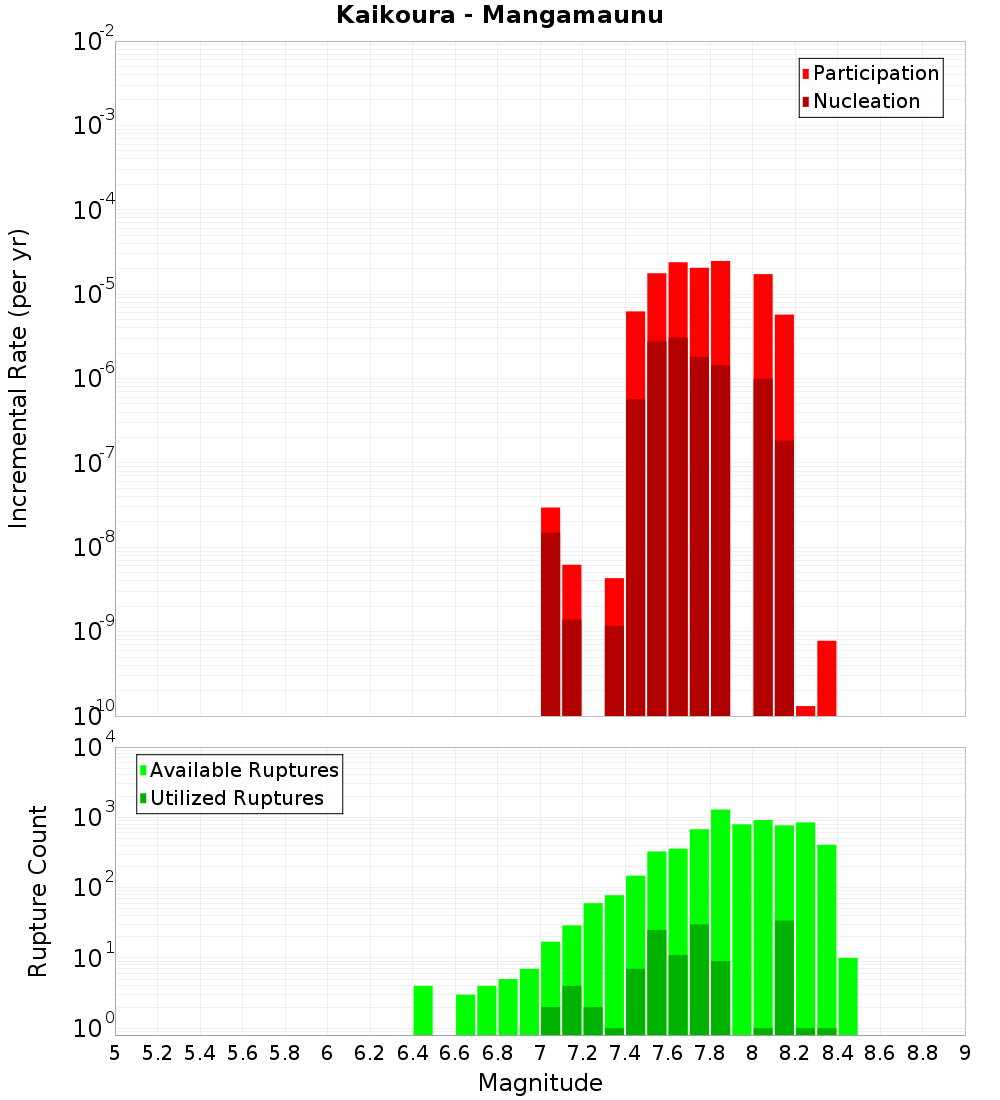

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

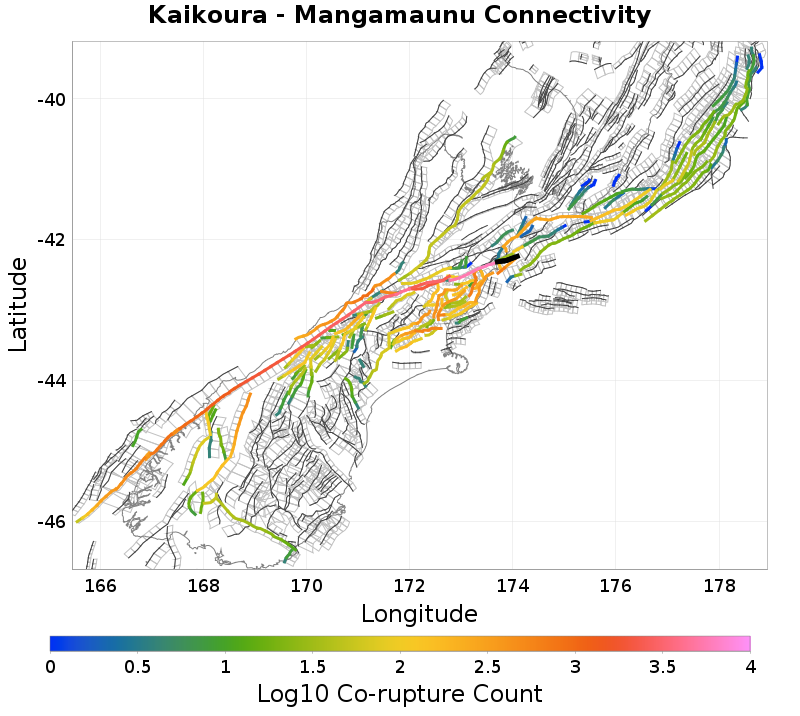

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Offshore Splay Thrust, 0.05 km away
Hope: Seaward, 1.03 km away
Jordan, 2.75 km away
Hope: Conway, 3.18 km away
Papatea, 3.56 km away
Kaikoura 2, 3.59 km away
Upper Kowhai - Manakau, 3.98 km away
Kowhai, 5.92 km away
Upper Slope, 6.47 km away
Kekerengu Bank, 7.75 km away
Hope: Te Rapa, 8.9 km away
Marlborough Slope 2, 11.74 km away
Marlborough Slope 4, 13.21 km away

Offshore Splay Thrust, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate4.9023725E-5

Hope: Seaward, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate1.4652219E-11

Jordan, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Hope: Conway, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count6,031
Co-rupture Rate6.703361E-5

Papatea, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate0.0

Kaikoura 2, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count150
Co-rupture Rate1.1968455E-6

Upper Kowhai - Manakau, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowhai, 5.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate0.0

Hope: Te Rapa, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate1.7290398E-5

Marlborough Slope 2, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate0.0

Marlborough Slope 4, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
