North Mernoo Fa-1 Details
| Property | Value |
|---|---|
| Rupture Count | 134 |
| Ruptures Above Sect Min Mag | 119 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.55, 7.49] |
| Length Range | [17, 144] km |
| Total Rate | 4.328181E-11 /yr |
| Multi-Fault Rate | 4.328181E-11 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 10 |
Table Of Contents
Along-Strike Values

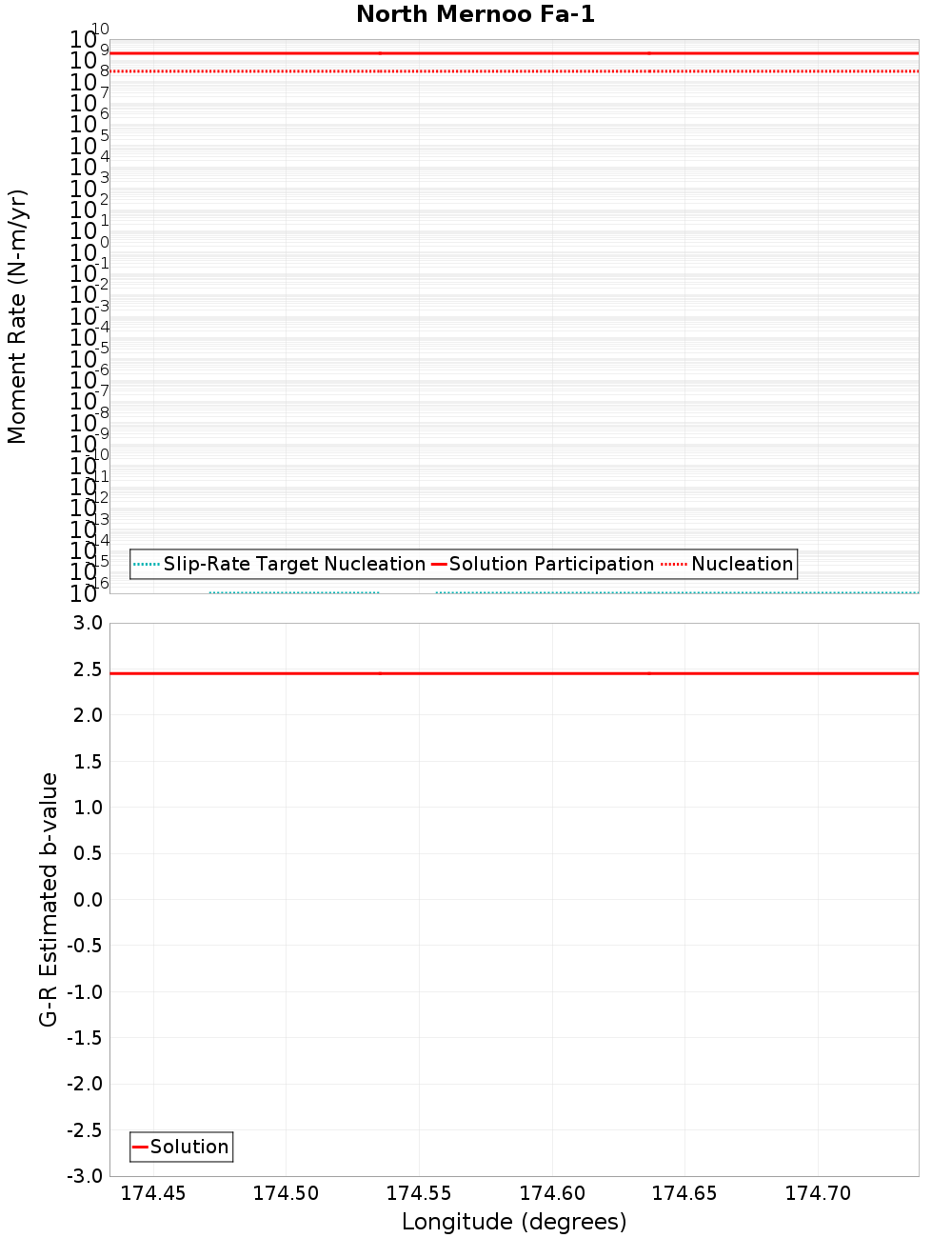

Moment-Rates and b-Values

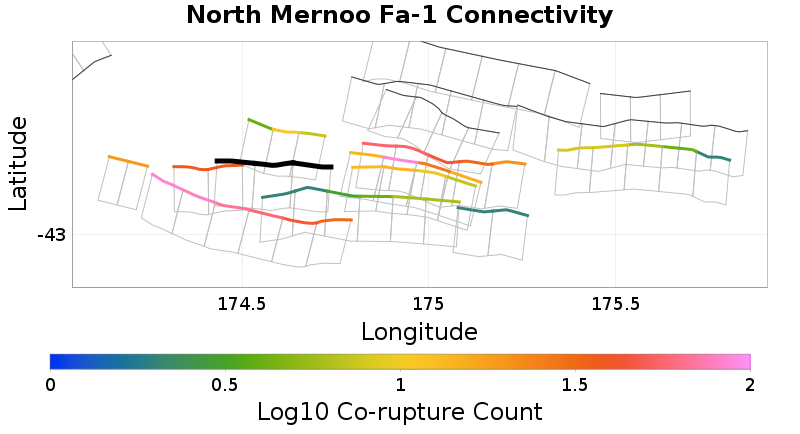

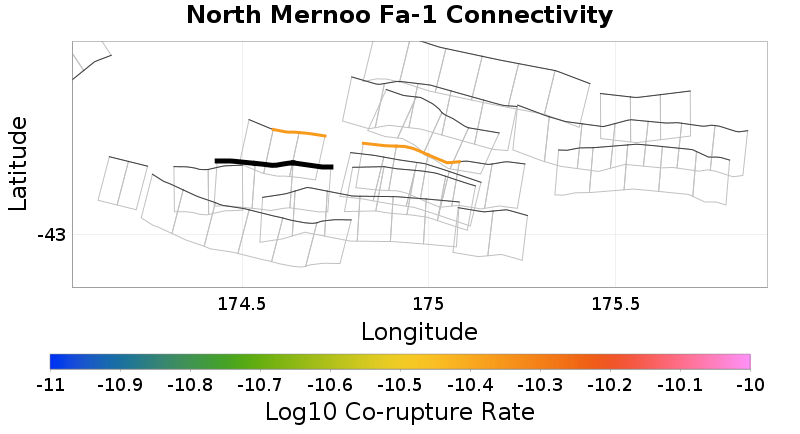

Connectivity
 |  |
|---|
Nearby Sections
North Mernoo Fa-2, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 37 |
| Co-rupture Rate | 0.0 |
North Mernoo G, 3.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
North Mernoo H, 3.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 87 |
| Co-rupture Rate | 0.0 |
North Mernoo F1, 3.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
North Mernoo 15, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 4.328181E-11 |
North Mernoo E2-1, 7.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 0.0 |
North Mernoo I, 7.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 55 |
| Co-rupture Rate | 4.328181E-11 |
