Raukumara 17 Details

PropertyValue
Rupture Count13
Ruptures Above Sect Min Mag11
Ruptures w/ Nonzero Rates10
Magnitude Range[6.63, 7.44]
Length Range[11, 71] km
Total Rate7.559732E-5 /yr
Multi-Fault Rate7.559732E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults9

Table Of Contents

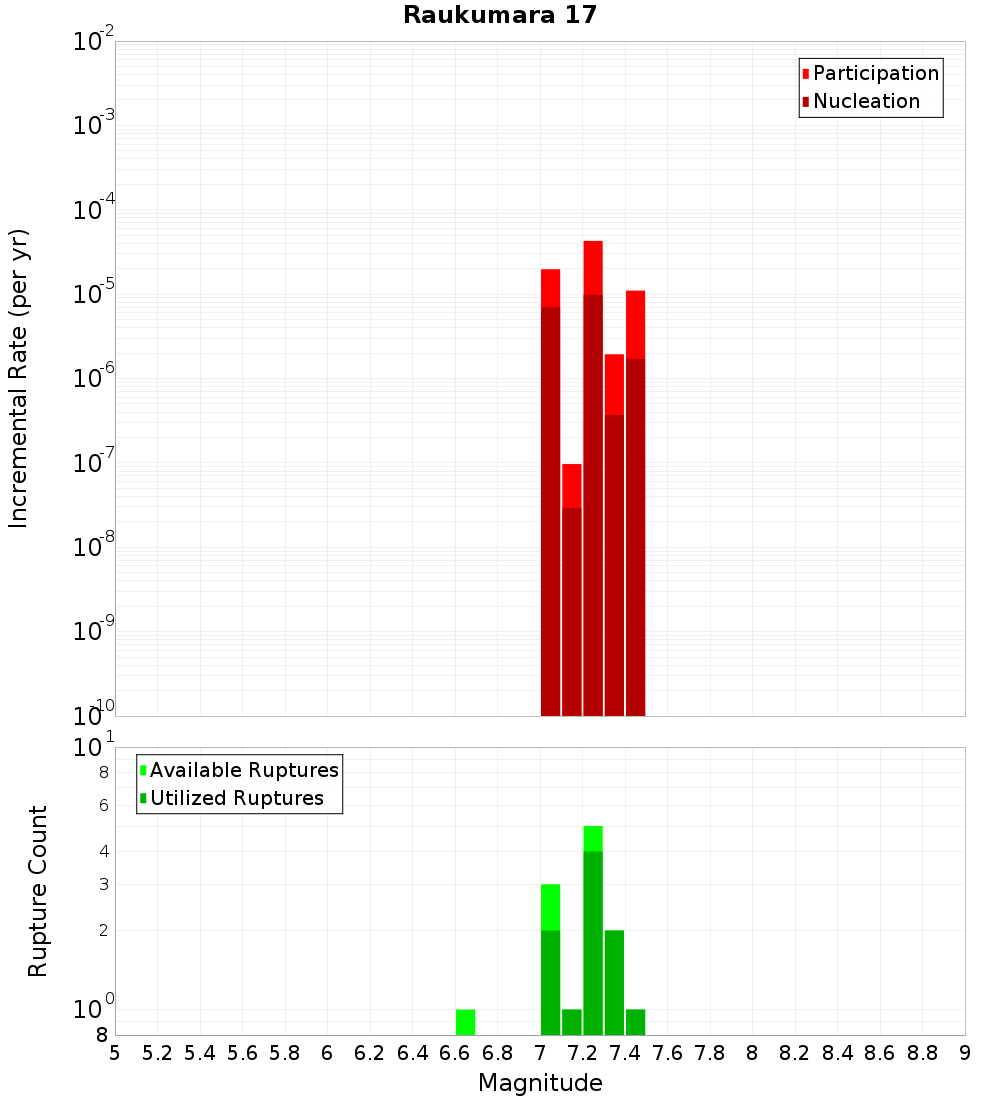

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opape 1, 0.22 km away
Raukumara 18, 1.72 km away
Motu, 2.76 km away
Ohae 3, 3.41 km away
Motu River, 3.93 km away
Ohae 2, 6.5 km away
Raukumara 20, 6.52 km away
Tirohanga, 7.42 km away
Raukumara 21, 9.96 km away
Ohae 1, 10.25 km away
Raukumara 16, 10.43 km away
Raukumara 25, 11.39 km away

Opape 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.9819788E-5

Raukumara 18, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu, 2.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate6.9615794E-7

Ohae 3, 3.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.6374835E-7

Motu River, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate3.577754E-5

Ohae 2, 6.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.0165045E-8

Tirohanga, 7.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 21, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.3958592E-5

Ohae 1, 10.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 16, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 25, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.5687283E-5
