Waikaia Details

Property	Value
Rupture Count	13,850
Ruptures Above Sect Min Mag	13,848
Ruptures w/ Nonzero Rates	80
Magnitude Range	[7.05, 8.46]
Length Range	[28, 856] km
Total Rate	5.038216E-5 /yr
Multi-Fault Rate	5.038216E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

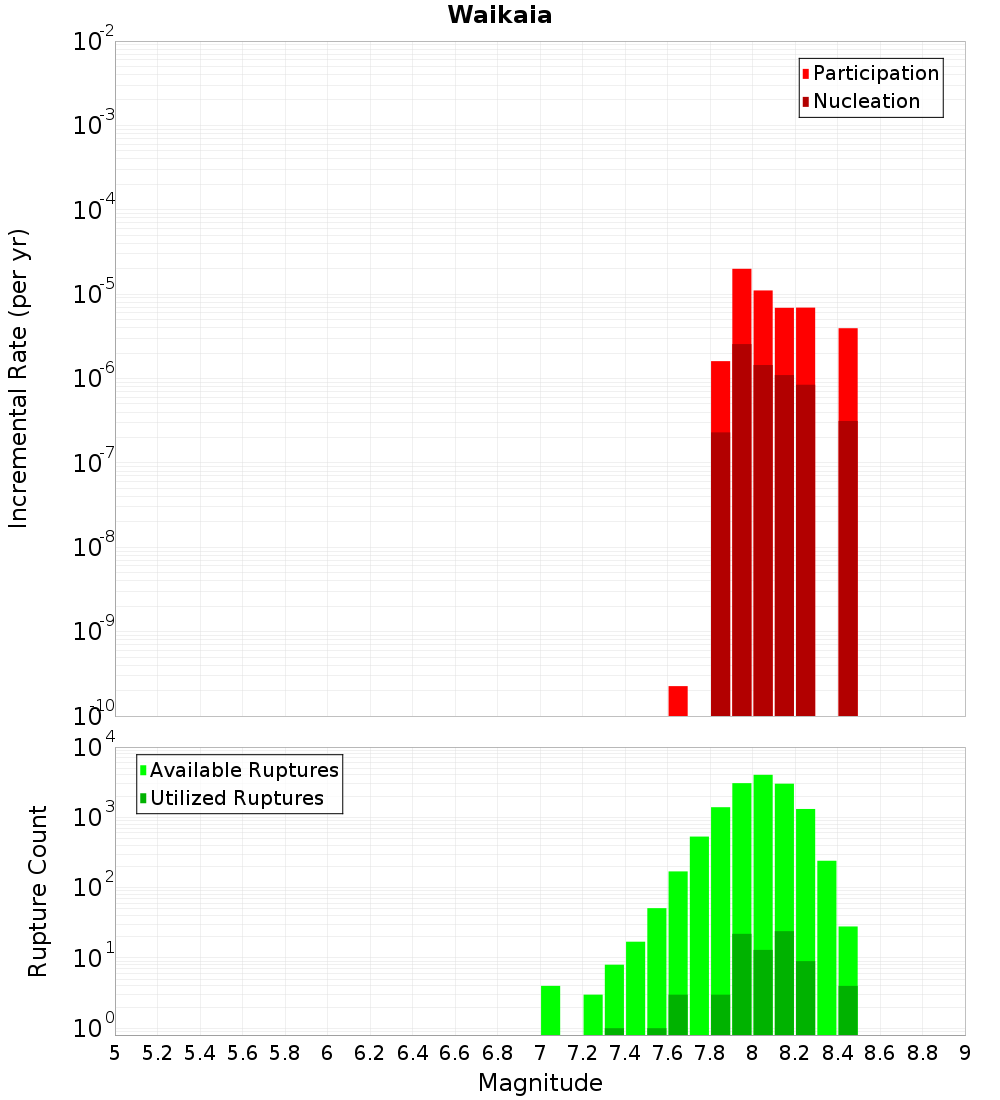

Magnitude-Frequency Distribution

Incremental	Cumulative

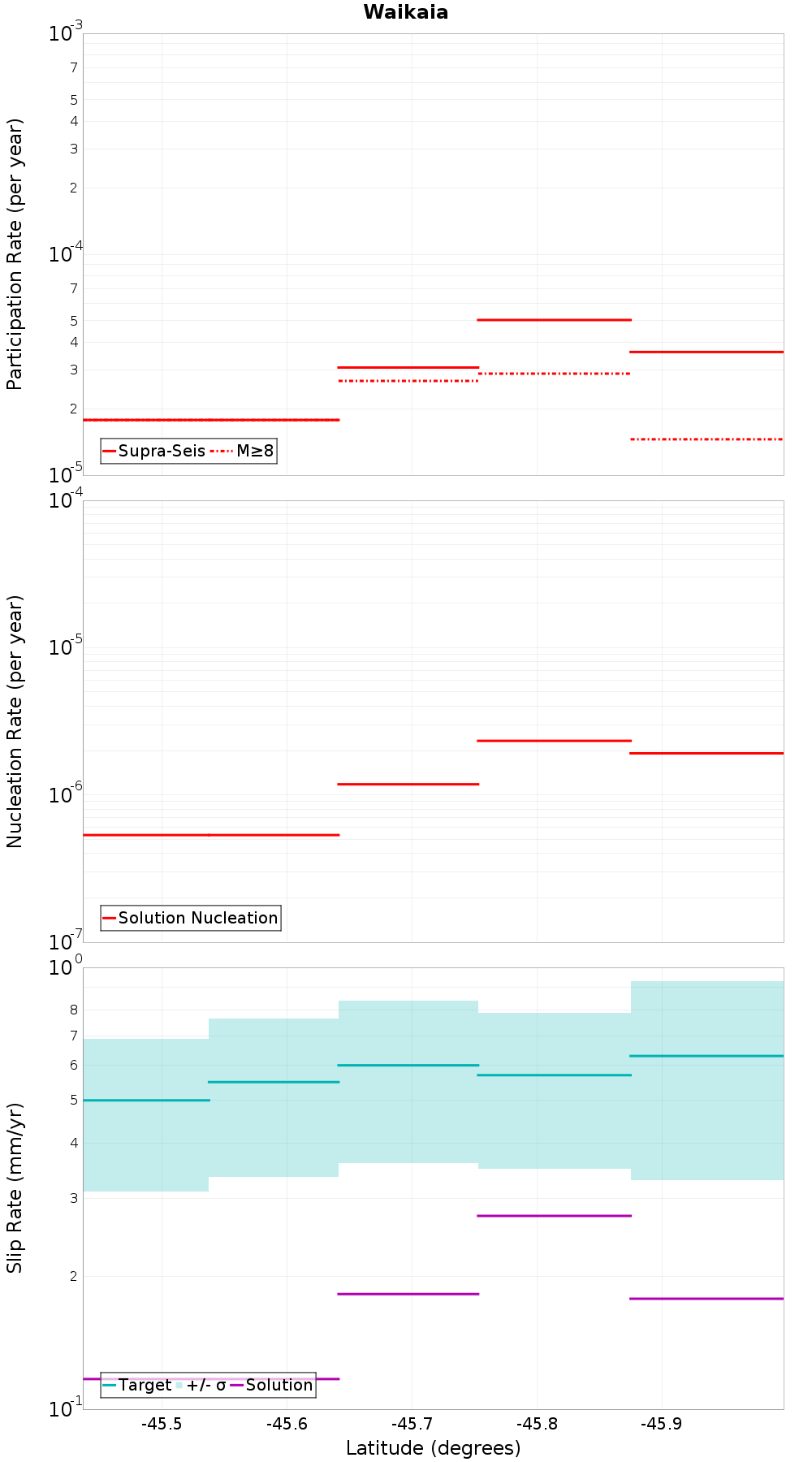

Along-Strike Values

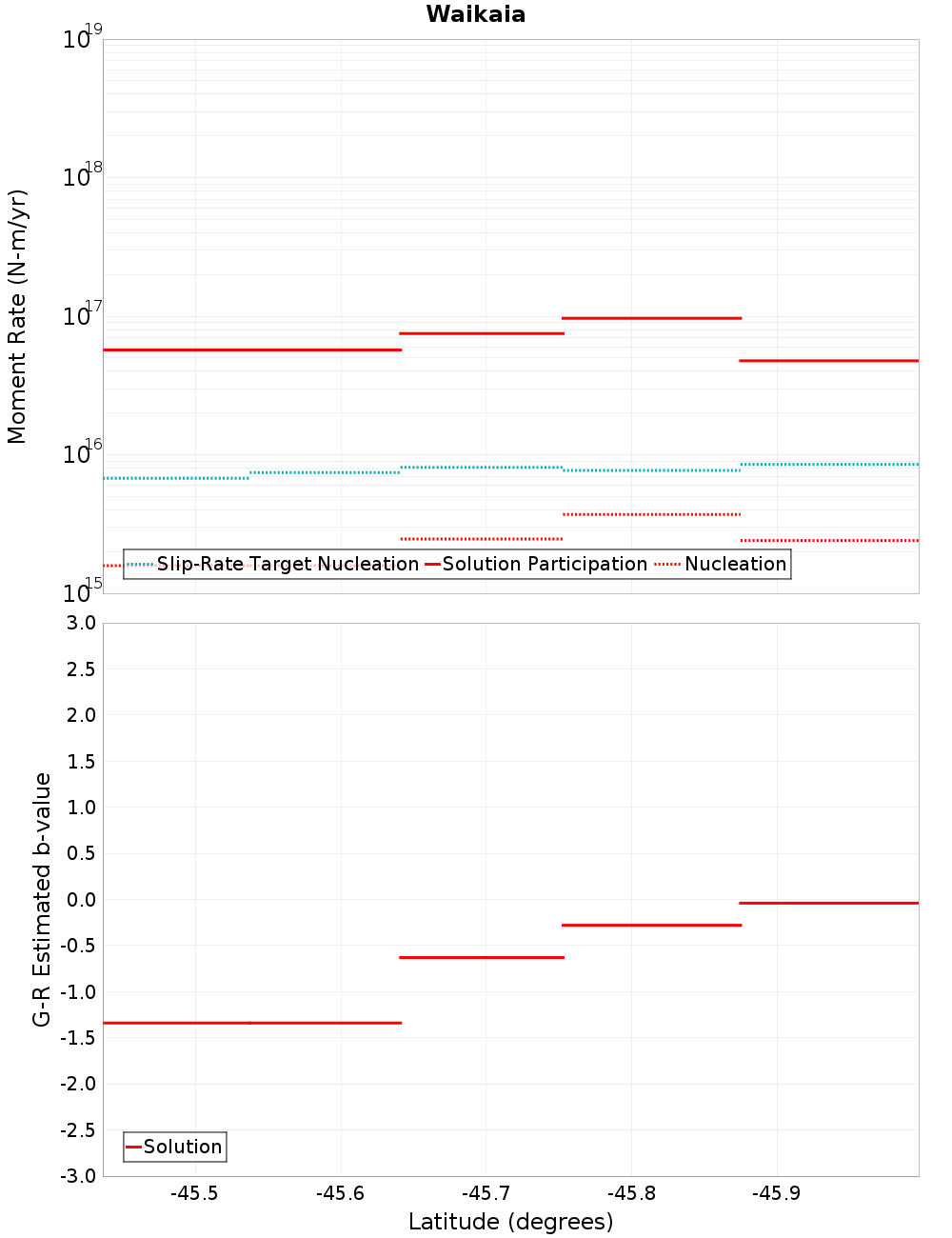

Moment-Rates and b-Values

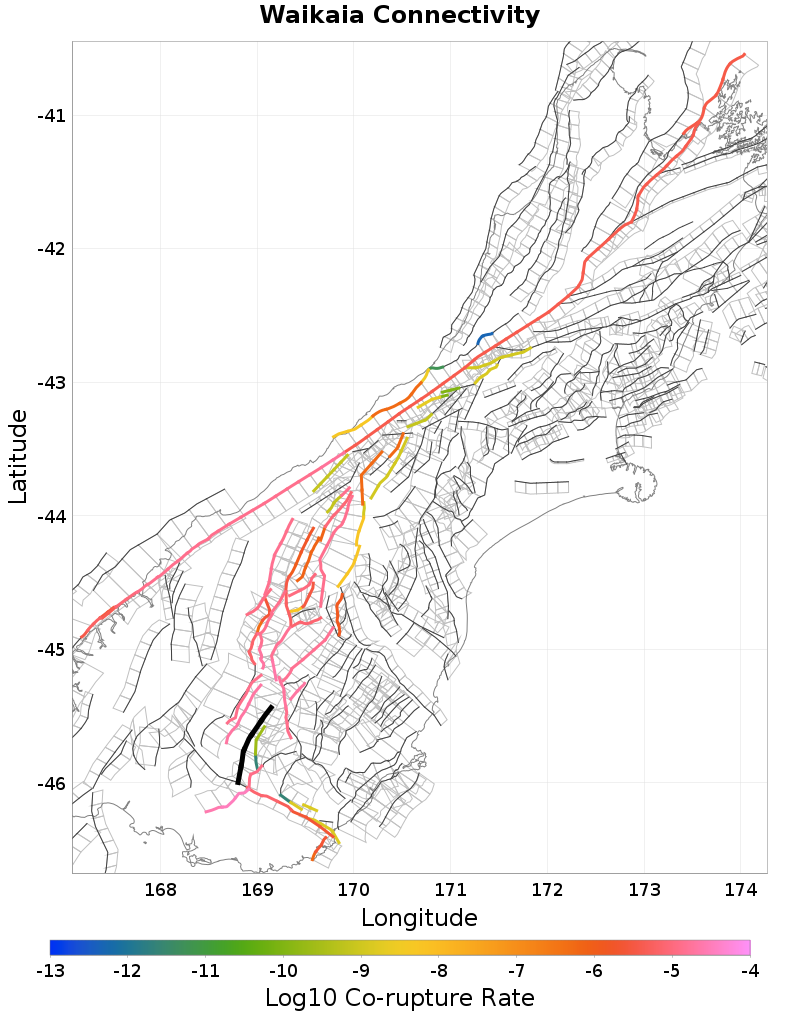

Connectivity

Nearby Sections

Fault Section
Waikaka, 0.07 km away
Old Man, 0.22 km away
Teviot, 0.26 km away
Hokonui, 0.29 km away
Hedgehope, 0.35 km away
Garvie, 1.79 km away
Wendon Valley, 4.03 km away
Hillfoot, 4.34 km away
Roaring Lion, 6.18 km away
Galloway, 7.24 km away
Lake Onslow, 9.64 km away
Backbone, 13.79 km away
Galloway Shanty, 14.6 km away

Waikaka, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,375
Co-rupture Rate	1.1815378E-5

Old Man, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	12,476
Co-rupture Rate	3.069976E-5

Teviot, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,338
Co-rupture Rate	0.0

Hokonui, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	269
Co-rupture Rate	0.0

Hedgehope, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,570
Co-rupture Rate	3.2946038E-5

Garvie, 1.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,431
Co-rupture Rate	1.9680741E-5

Wendon Valley, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	417
Co-rupture Rate	2.2498678E-10

Hillfoot, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	4,731
Co-rupture Rate	7.2476796E-6

Roaring Lion, 6.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	false
Co-rupture Count	903
Co-rupture Rate	1.2943526E-5

Galloway, 7.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	false
Co-rupture Count	985
Co-rupture Rate	0.0

Lake Onslow, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway Shanty, 14.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	false
Co-rupture Count	604
Co-rupture Rate	1.9680088E-5
