Calypso 2 Details

PropertyValue
Rupture Count295
Ruptures Above Sect Min Mag292
Ruptures w/ Nonzero Rates65
Magnitude Range[6.62, 8.15]
Length Range[14, 504] km
Total Rate1.3071363E-4 /yr
Multi-Fault Rate1.3071363E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

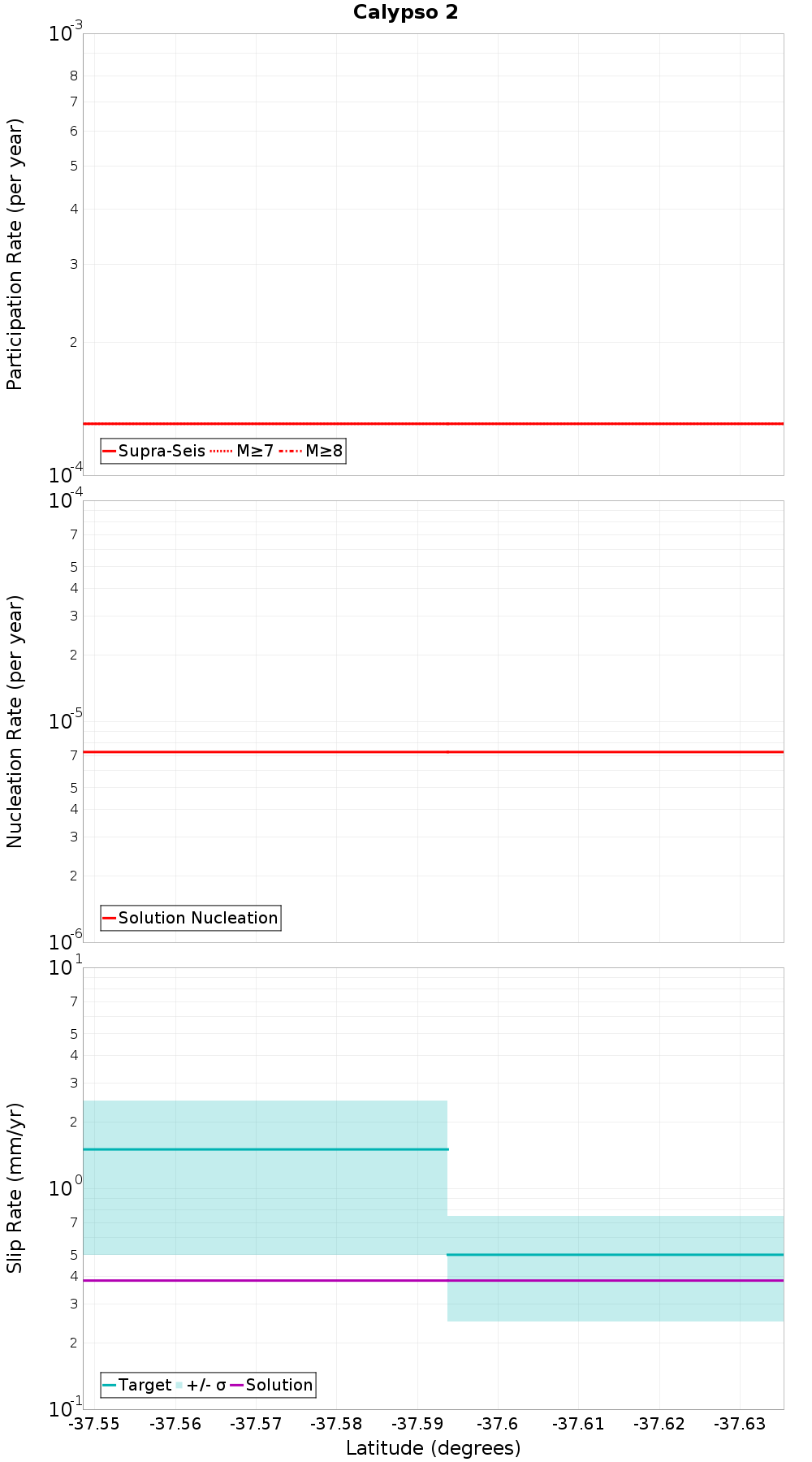

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

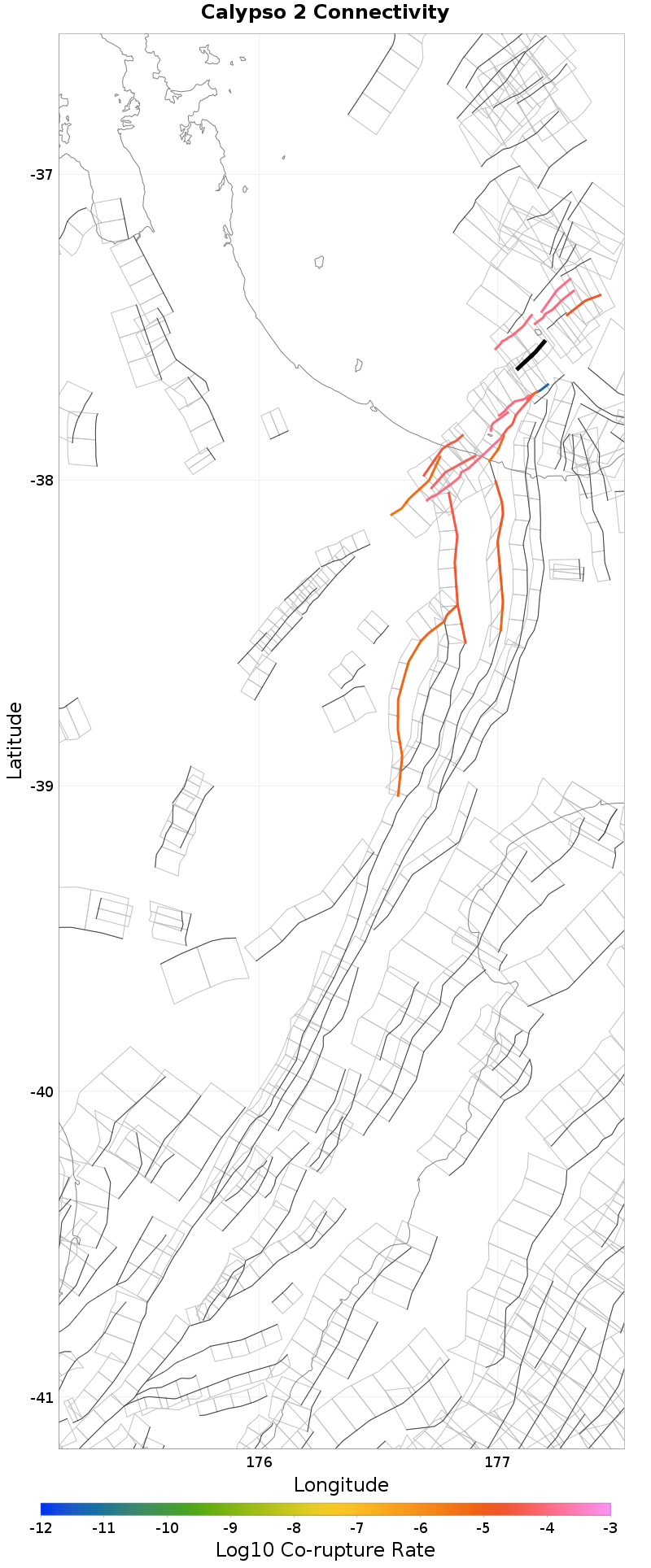

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakaari 4, 0.2 km away
Te Arawa 1, 1.54 km away
Tuatoru 1, 3.86 km away
Te Arawa 2, 6.95 km away
Rangitaiki 2, 8.01 km away
Ohiwa 1, 8.32 km away
White Island 1, 8.92 km away
Volkner 3, 9.06 km away
White Island 2, 10.04 km away
Volkner 4, 11.97 km away
Tuatoru 2, 12.9 km away
Rangitaiki 1, 14.65 km away
Waimanawa - Waikaremoana, 14.94 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate9.3724615E-5

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count128
Co-rupture Rate9.593566E-5

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 6.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate1.1532147E-4

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate1.09027664E-4

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate7.5563075E-6

White Island 1, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate1.4989657E-4

Volkner 3, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate0.0

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Volkner 4, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate1.5518874E-5

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count149
Co-rupture Rate9.620829E-5

Waimanawa - Waikaremoana, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
