Karamea Details
| Property | Value |
|---|---|
| Rupture Count | 283 |
| Ruptures Above Sect Min Mag | 282 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.91, 8.32] |
| Length Range | [25, 721] km |
| Total Rate | 2.444303E-5 /yr |
| Multi-Fault Rate | 2.444303E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 51 |
Table Of Contents

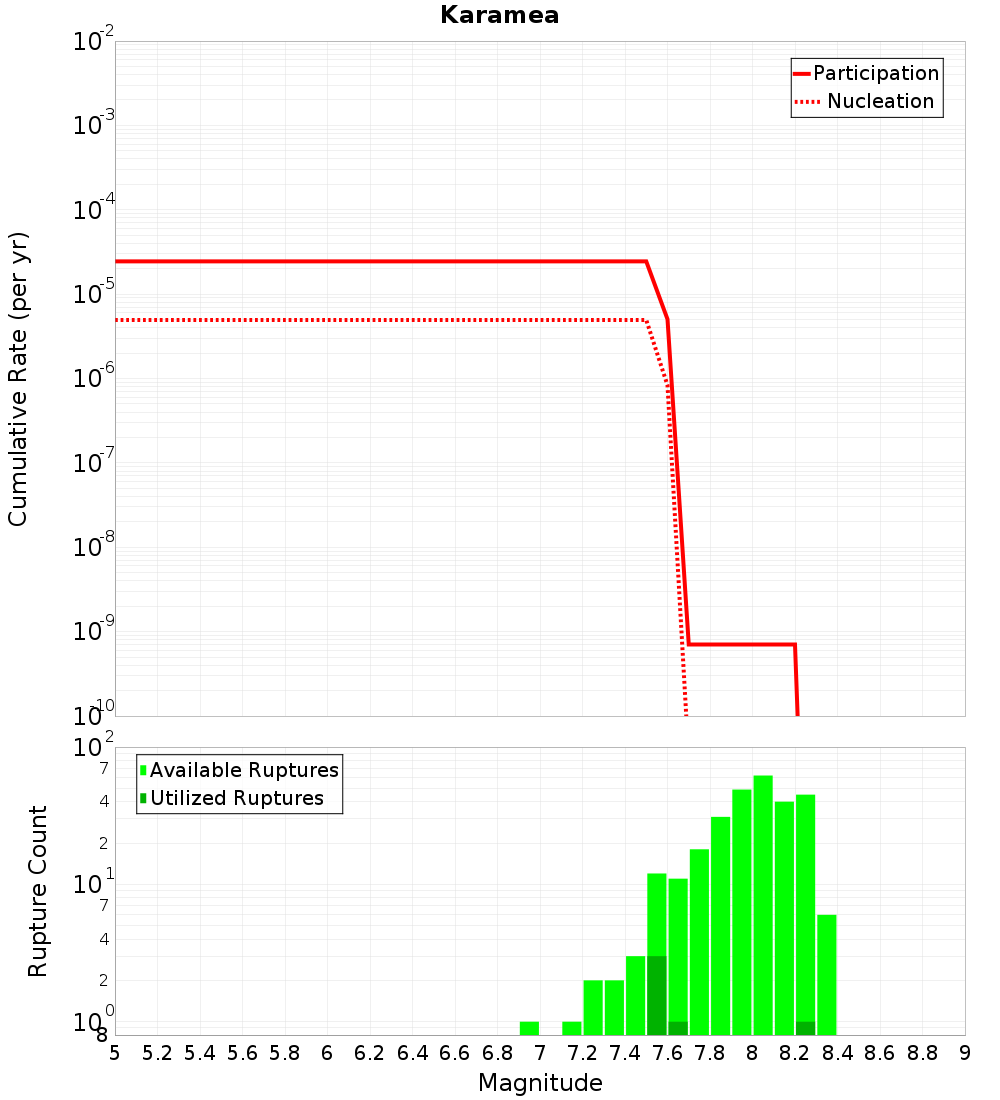

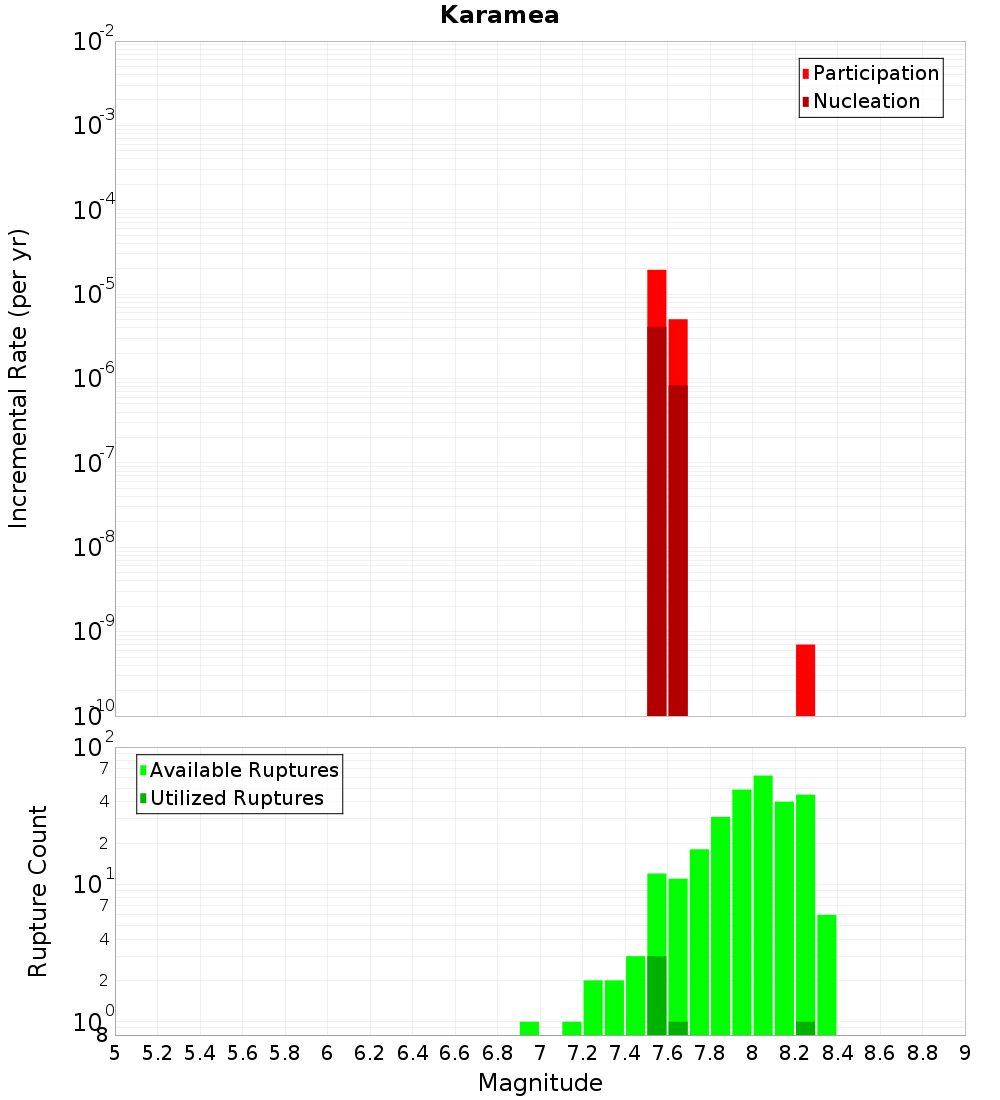

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

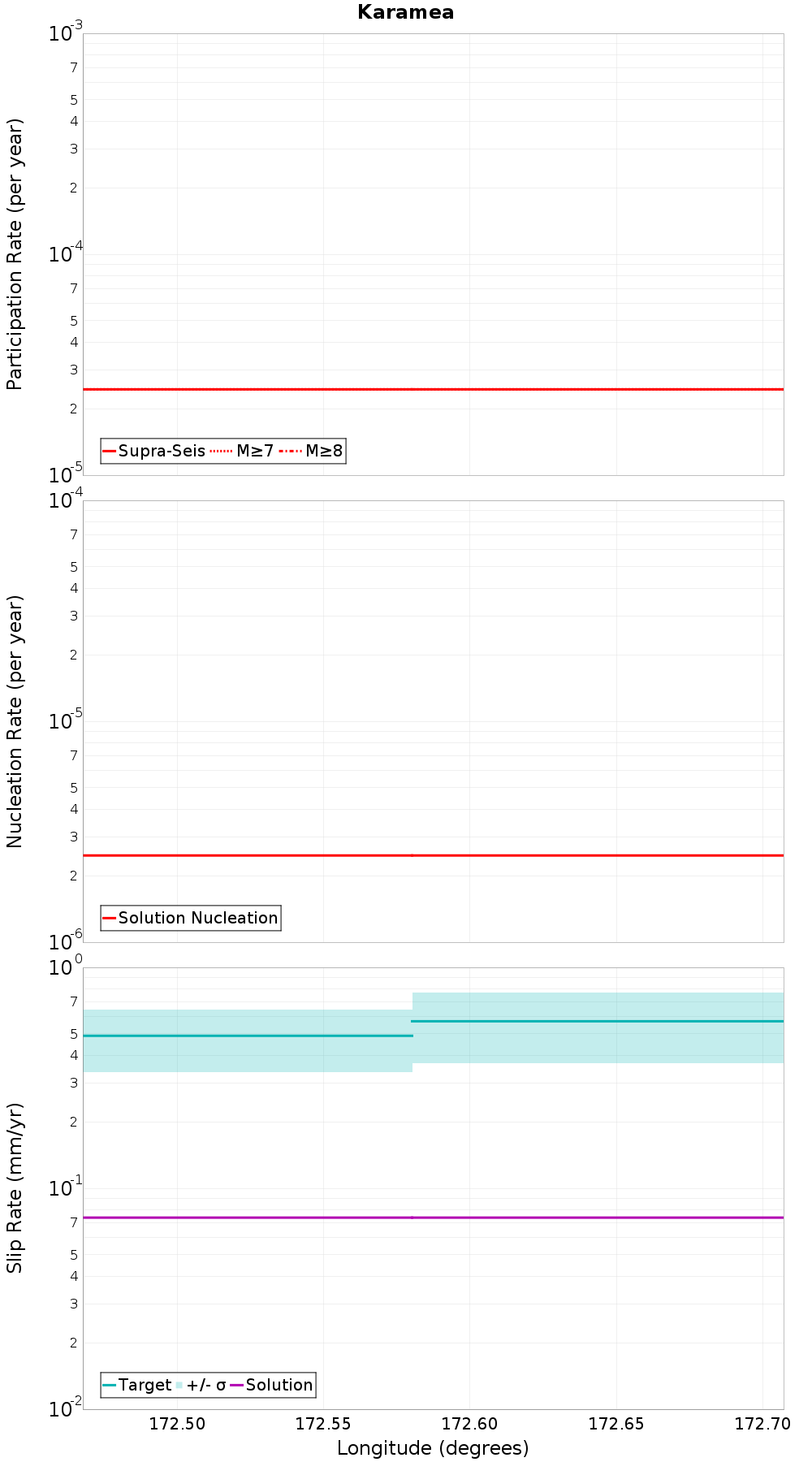

Along-Strike Values
Moment-Rates and b-Values

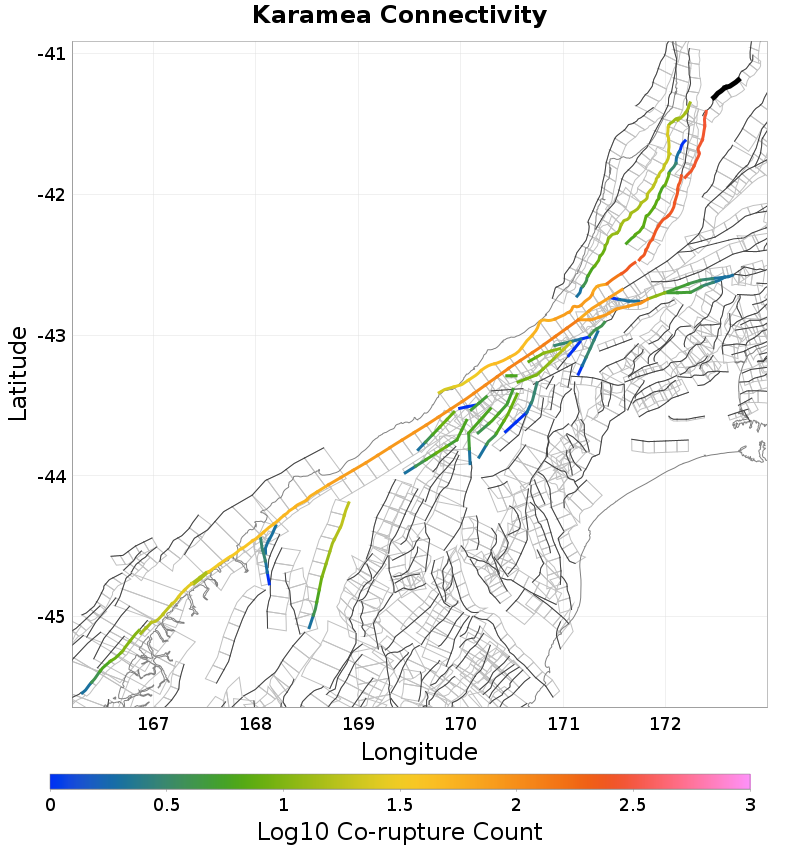

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Karamea South, 0 km away |
| Karamea North, 0 km away |
| Matiri West, 12.45 km away |
Karamea South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Karamea North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Matiri West, 12.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 282 |
| Co-rupture Rate | 2.444303E-5 |
