Ruahine: Central Details

Property	Value
Rupture Count	22,728
Ruptures Above Sect Min Mag	22,725
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.86, 8.44]
Length Range	[22, 940] km
Total Rate	1.2683698E-4 /yr
Multi-Fault Rate	1.2683698E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	117

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

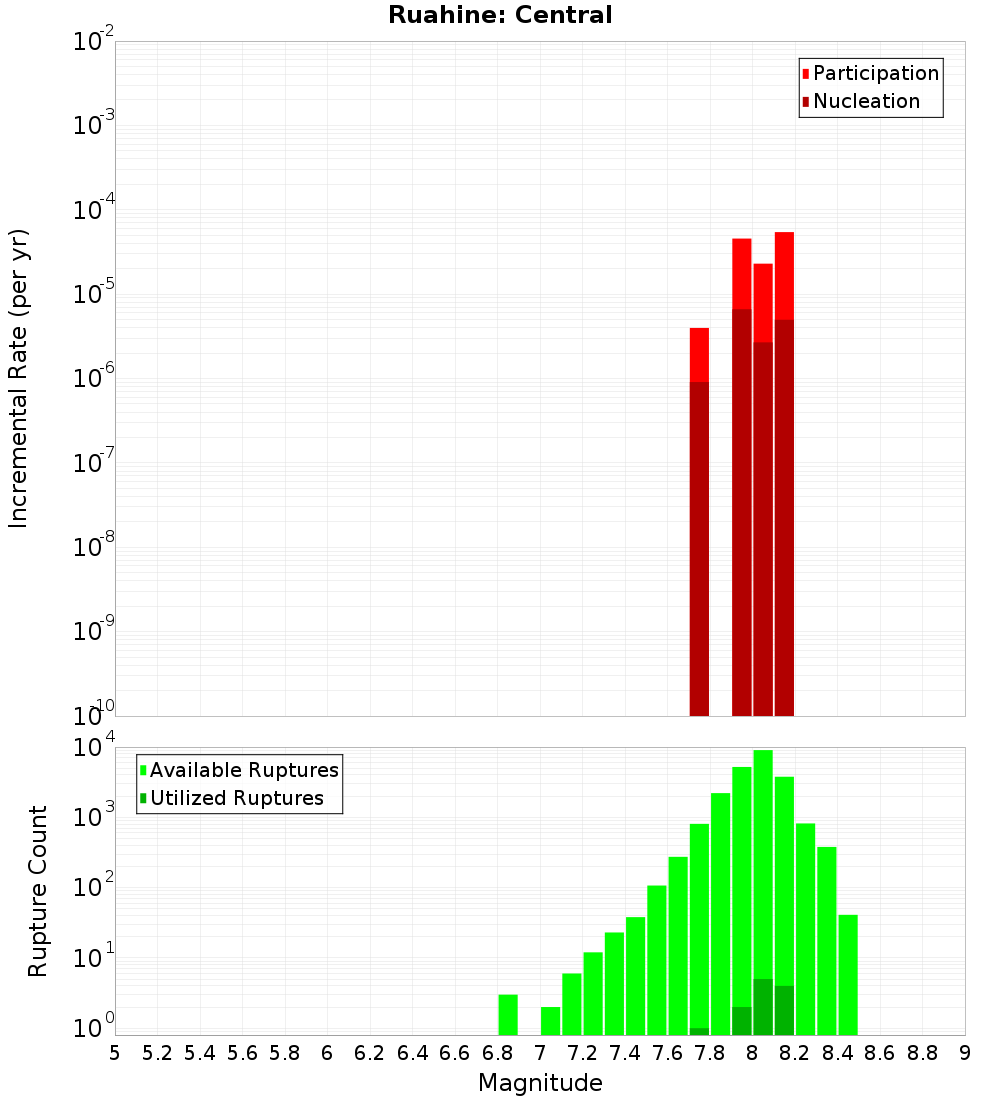

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ruahine: North, 0 km away
Wakarara, 0.11 km away
Rangefront, 0.14 km away
Ruahine: South, 0.16 km away
Mohaka: South, 2.68 km away
Mohaka: North, 7.58 km away
Ruataniwha, 9.91 km away
Patoka - Rangiora, 12.67 km away

Ruahine: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	true
Co-rupture Count	20,523
Co-rupture Rate	1.2683698E-4

Wakarara, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	true
Co-rupture Count	145
Co-rupture Rate	0.0

Rangefront, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	3.9747233E-6

Ruahine: South, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	true
Co-rupture Count	15,161
Co-rupture Rate	1.2076204E-4

Mohaka: South, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	true
Co-rupture Count	6,819
Co-rupture Rate	2.1002138E-6

Mohaka: North, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 9.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	3.9747233E-6

Patoka - Rangiora, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
