Straight Creek Details

PropertyValue
Rupture Count14,649
Ruptures Above Sect Min Mag14,647
Ruptures w/ Nonzero Rates6
Magnitude Range[6.67, 8.34]
Length Range[13, 733] km
Total Rate6.9129674E-5 /yr
Multi-Fault Rate6.9129674E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults162

Table Of Contents

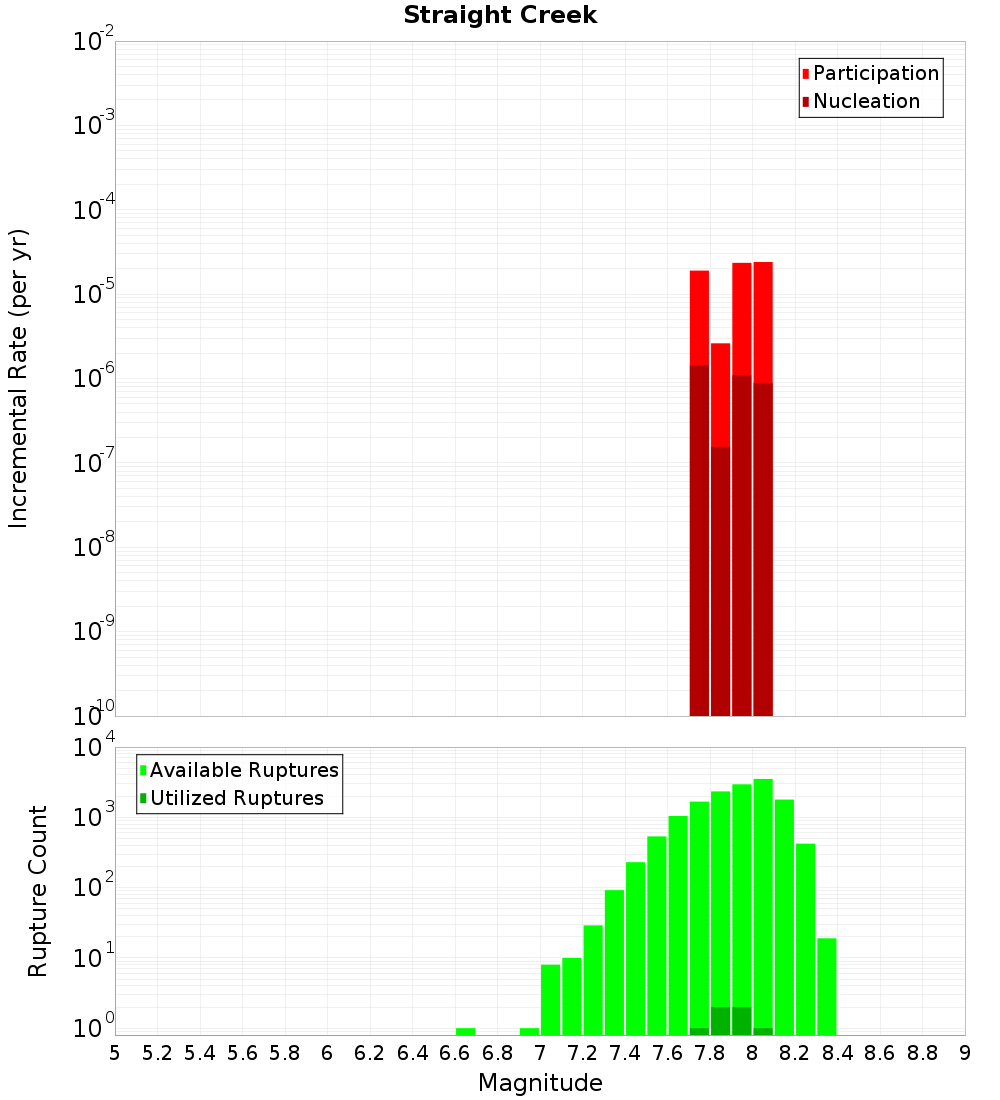

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mt Roon, 0.12 km away
Black Blob - Haast Ridge, 0.22 km away
Murchison 1 - Ice Lake, 0.23 km away
Liebig North, 0.33 km away
McKerrow - Douglas Duplex, 1.75 km away
Alpine: Jacksons to Kaniere, 2.64 km away
Karangarua, 4.85 km away
Landsborough 2, 9.31 km away
Great Groove, 10.34 km away
Hohonu South, 10.89 km away
Macaulay 2, 13.4 km away
Lilybank, 14.07 km away

Mt Roon, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Black Blob - Haast Ridge, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murchison 1 - Ice Lake, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count12,324
Co-rupture Rate4.913924E-5

Liebig North, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count1,117
Co-rupture Rate1.9003819E-5

McKerrow - Douglas Duplex, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count9,334
Co-rupture Rate5.0125855E-5

Alpine: Jacksons to Kaniere, 2.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count5,691
Co-rupture Rate4.4121698E-5

Karangarua, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count1,378
Co-rupture Rate0.0

Landsborough 2, 9.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count2,795
Co-rupture Rate2.4021363E-5

Great Groove, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count3,021
Co-rupture Rate0.0

Hohonu South, 10.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count7,242
Co-rupture Rate0.0

Macaulay 2, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Lilybank, 14.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
