Wheao: South Details

PropertyValue
Rupture Count14,162
Ruptures Above Sect Min Mag14,150
Ruptures w/ Nonzero Rates24
Magnitude Range[6.68, 8.40]
Length Range[19, 843] km
Total Rate1.5650525E-4 /yr
Multi-Fault Rate1.5650525E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults107

Table Of Contents

Magnitude-Frequency Distribution

(top)

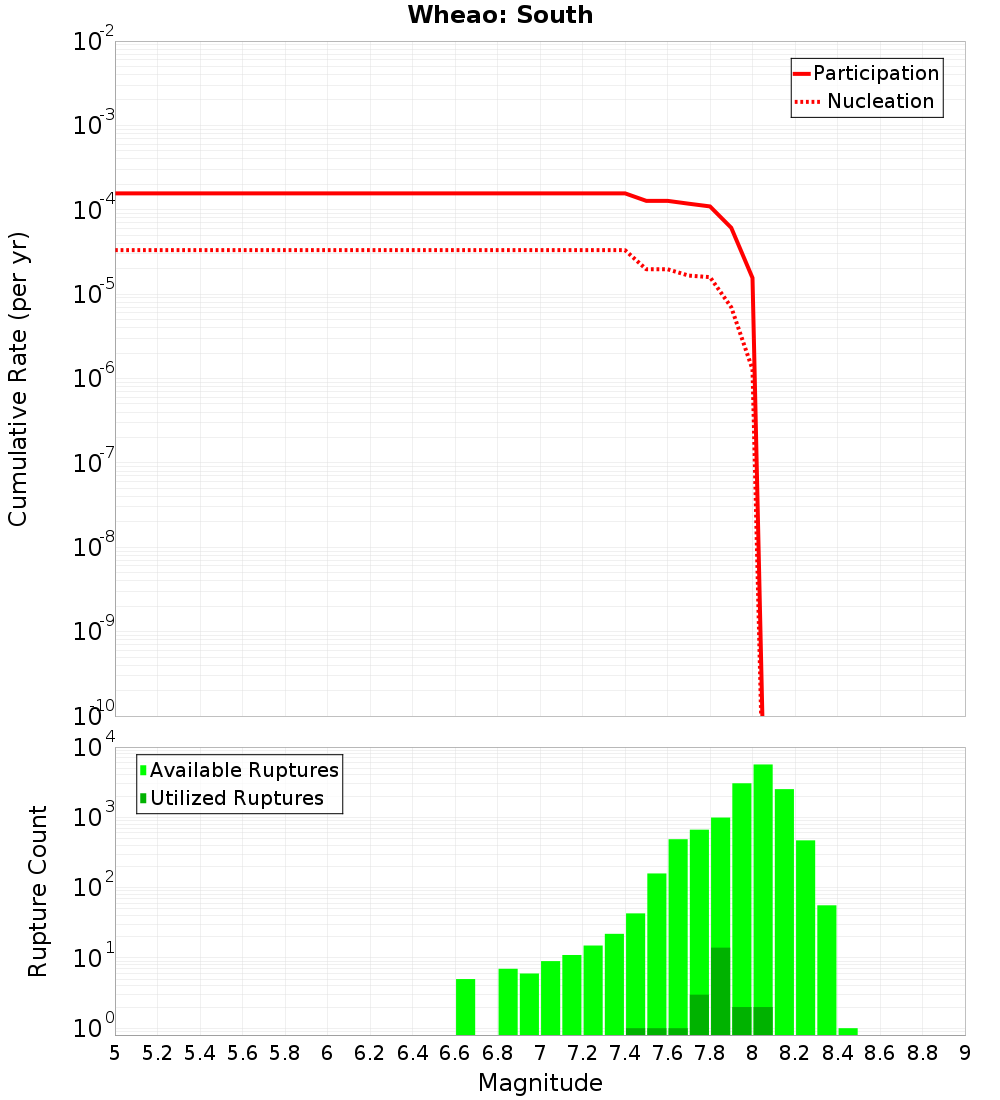

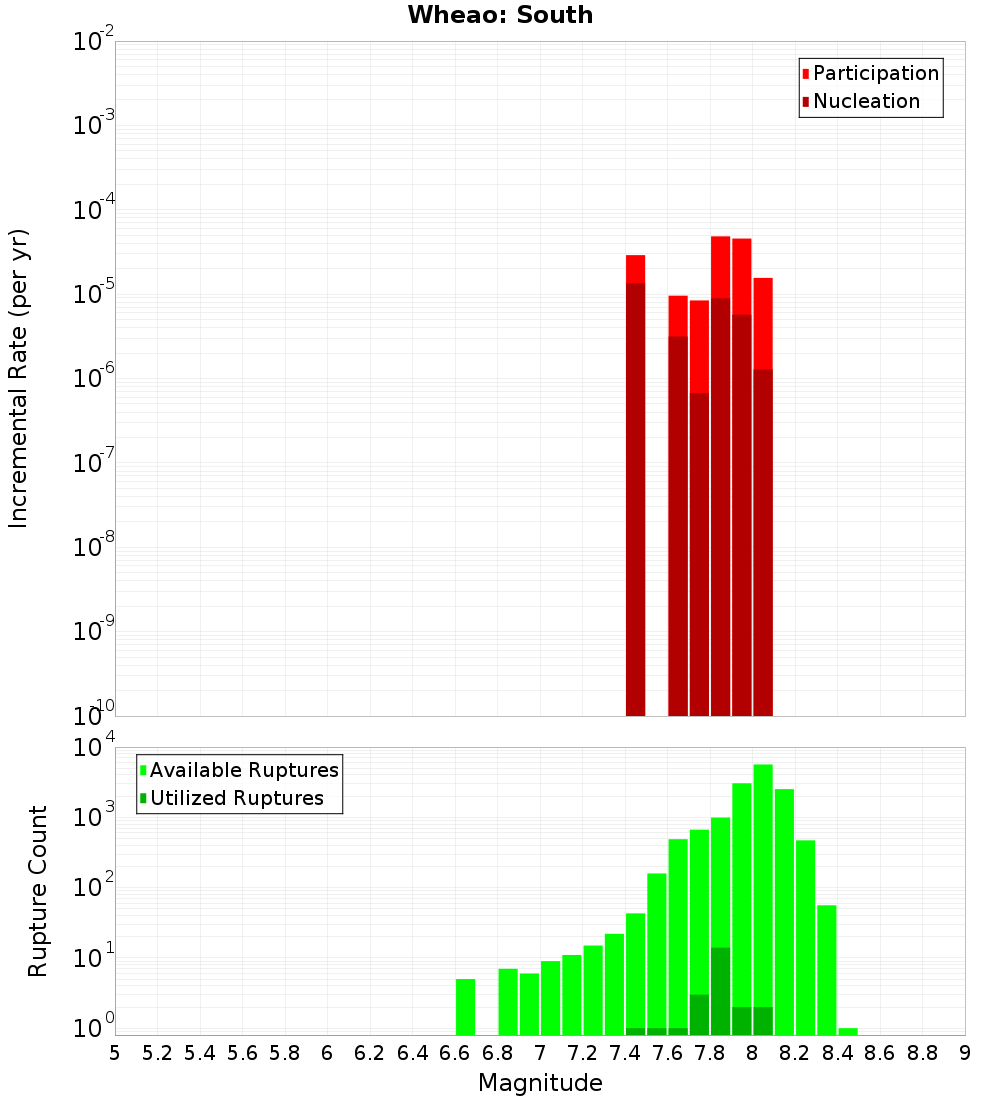

IncrementalCumulative
Incremental PlotCumulative Plot

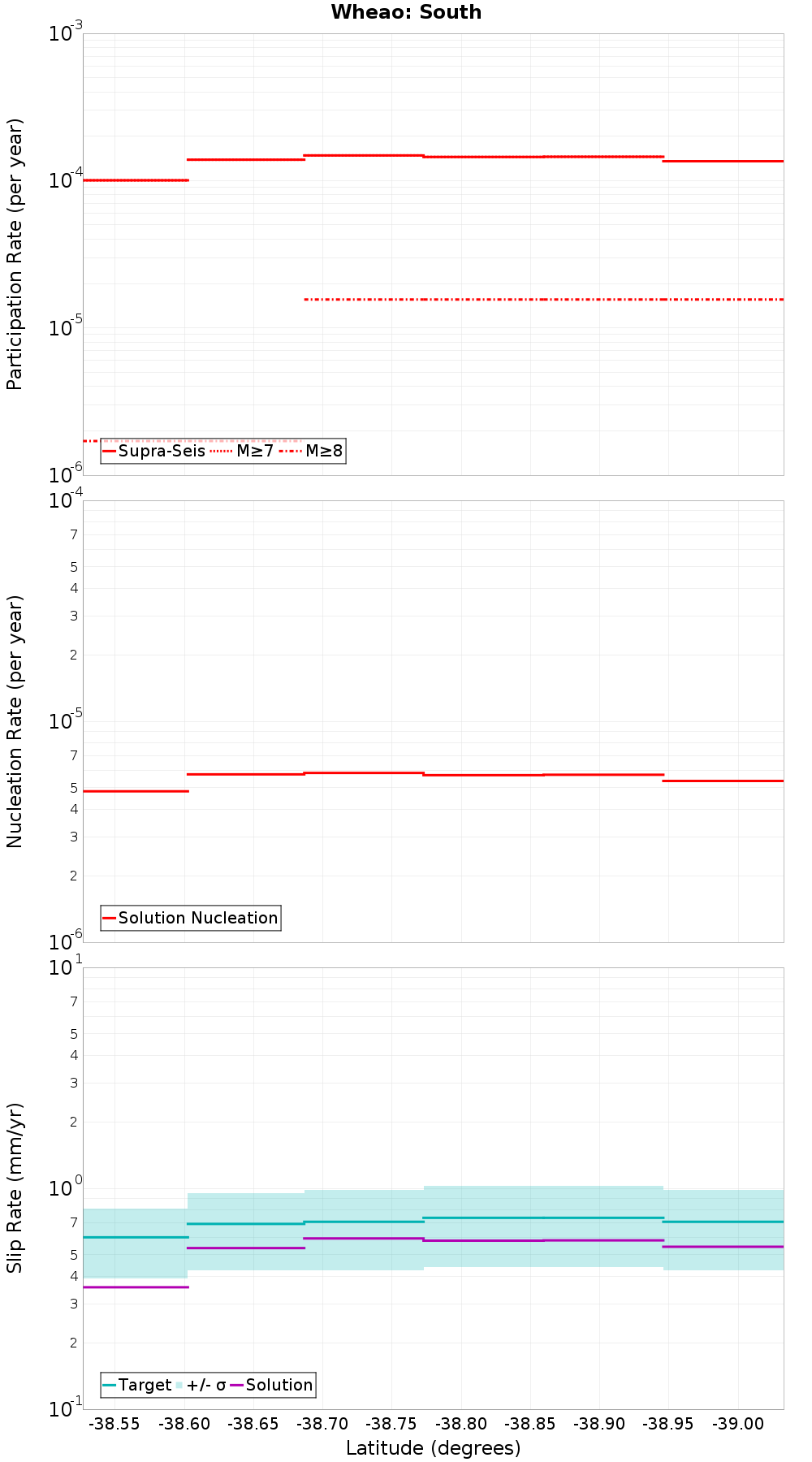

Along-Strike Values

(top)

Along-strike plot

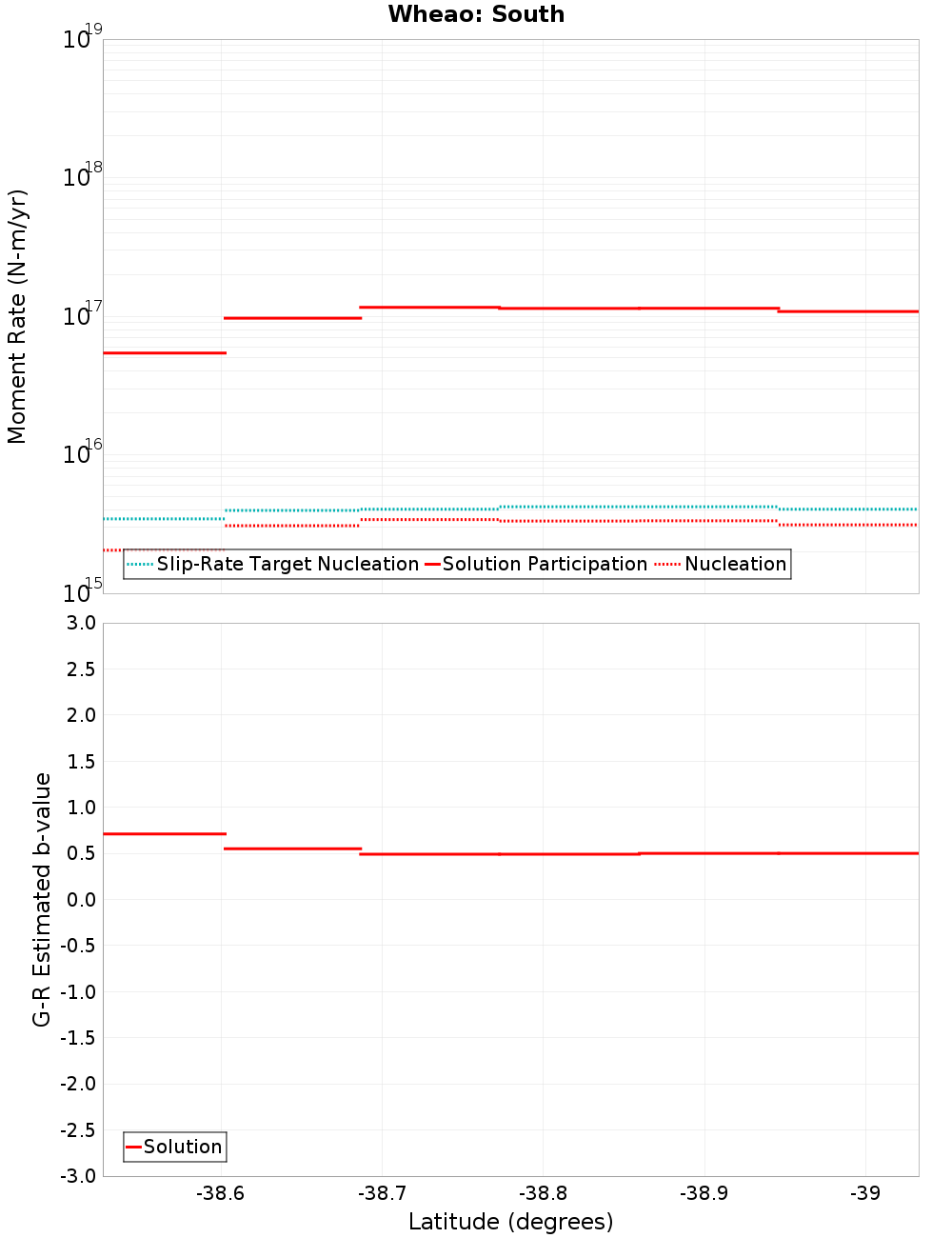

Moment-Rates and b-Values

(top)

Along-strike plot

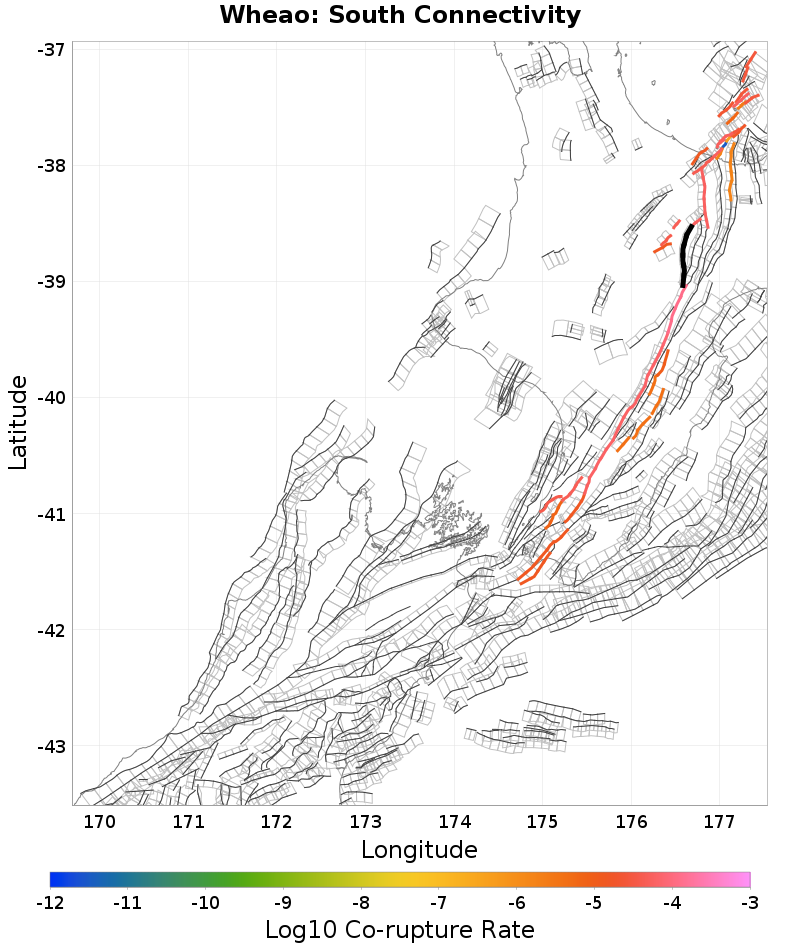

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.29 km away
Te Whaiti South, 0.47 km away
Ruahine: North, 2.72 km away
Kaingaroa 1, 4.7 km away
Te Whaiti North, 11.12 km away
Waiohau: North, 11.62 km away
Kaingaroa 3, 12.85 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.53 km away
Waimana: South, 14.54 km away
Kaingaroa 2, 14.76 km away

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count9,441
Co-rupture Rate5.4543903E-5

Waiohau: South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Te Whaiti South, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count413
Co-rupture Rate0.0

Ruahine: North, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count12,476
Co-rupture Rate1.2292665E-4

Kaingaroa 1, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count341
Co-rupture Rate1.3864289E-5

Te Whaiti North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate0.0

Waiohau: North, 11.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count8,763
Co-rupture Rate5.4543903E-5

Kaingaroa 3, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate4.581272E-5

Mohaka: North, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count904
Co-rupture Rate0.0

Whakatane: South, 14.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?false
Co-rupture Count1,156
Co-rupture Rate0.0

Kaingaroa 2, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODMuMHJDVW16
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate3.8309718E-5
