Alpine: Caswell Details

Property	Value
Rupture Count	66,977
Ruptures Above Sect Min Mag	66,974
Ruptures w/ Nonzero Rates	111
Magnitude Range	[6.91, 8.58]
Length Range	[22, 1,083] km
Total Rate	6.8977627E-4 /yr
Multi-Fault Rate	6.8977627E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	193

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

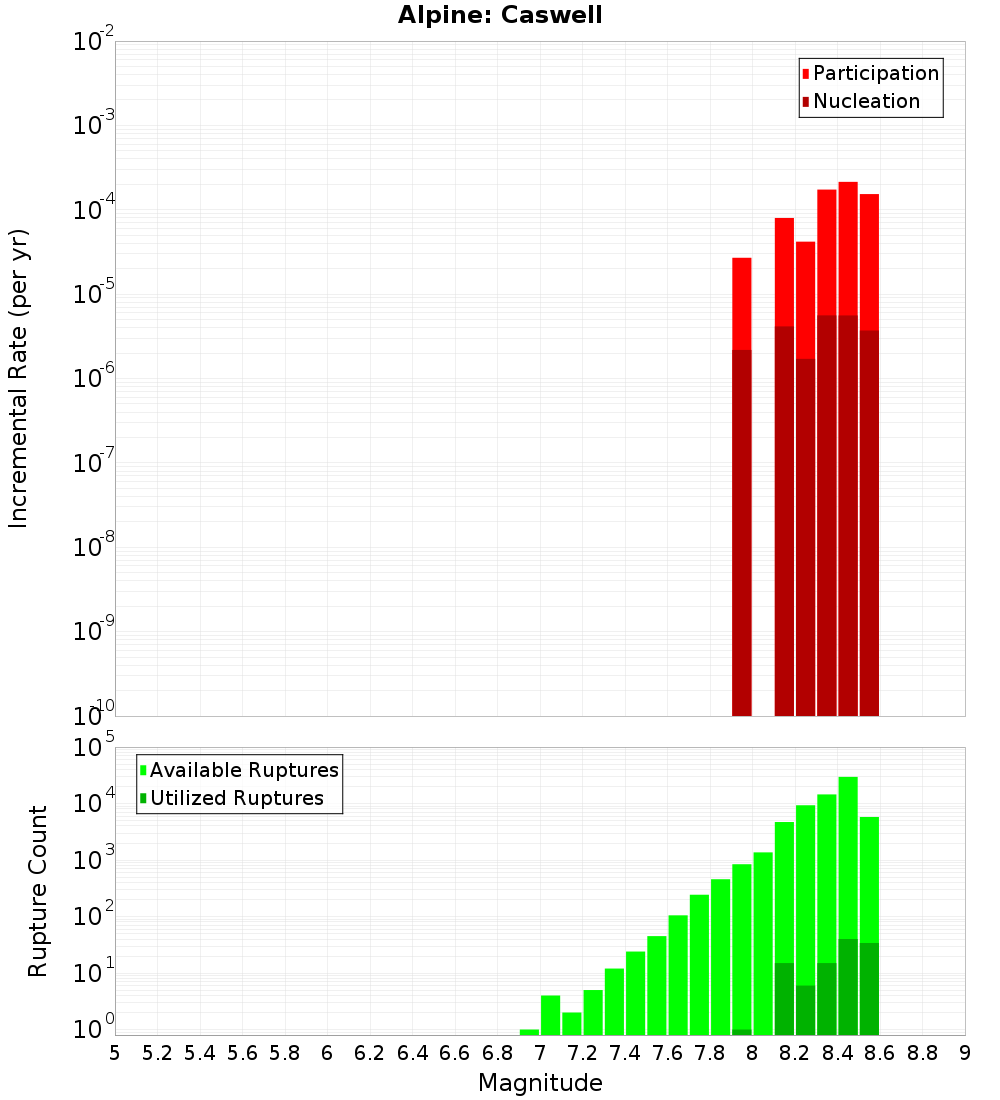

Magnitude-Frequency Distribution

Incremental	Cumulative

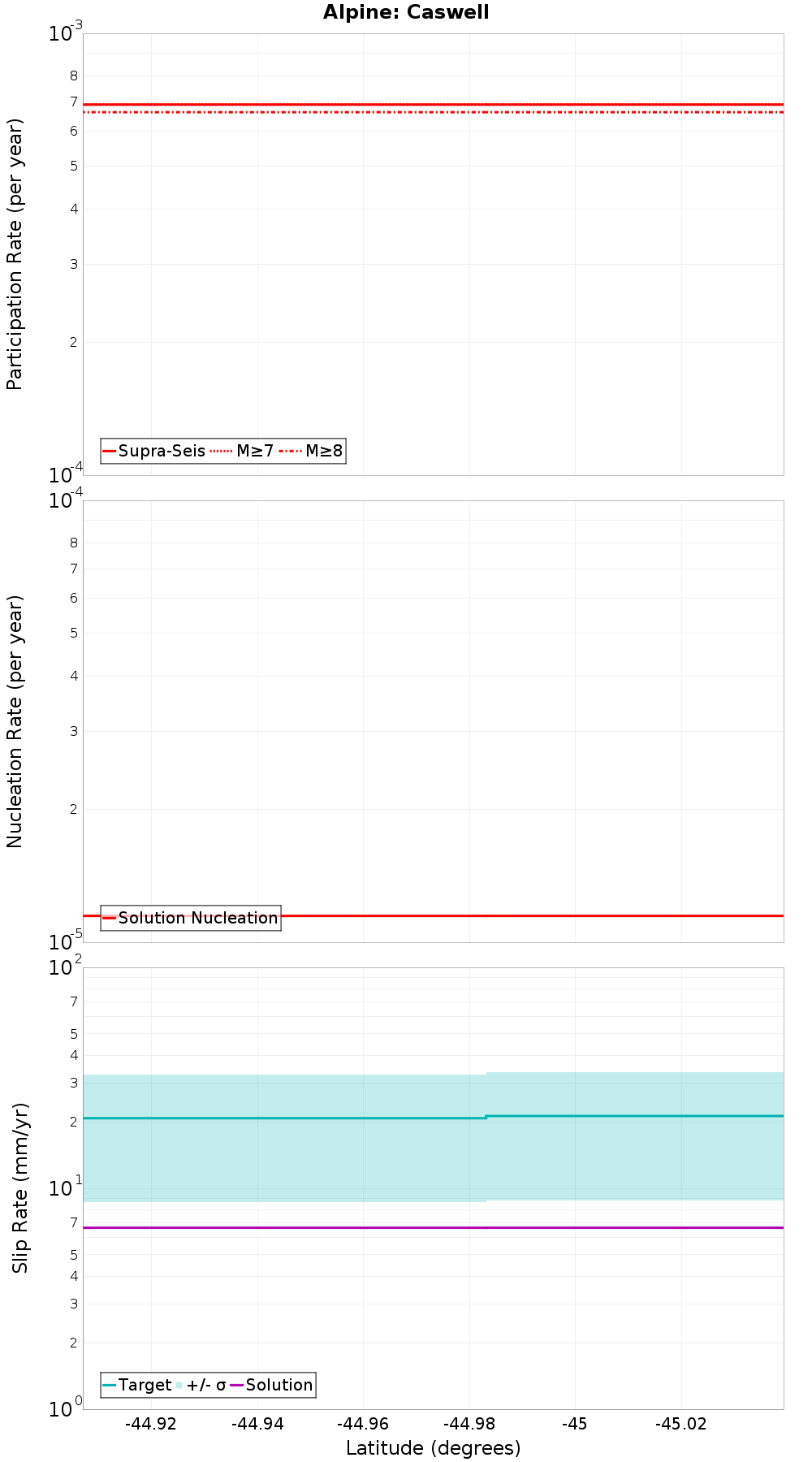

Along-Strike Values

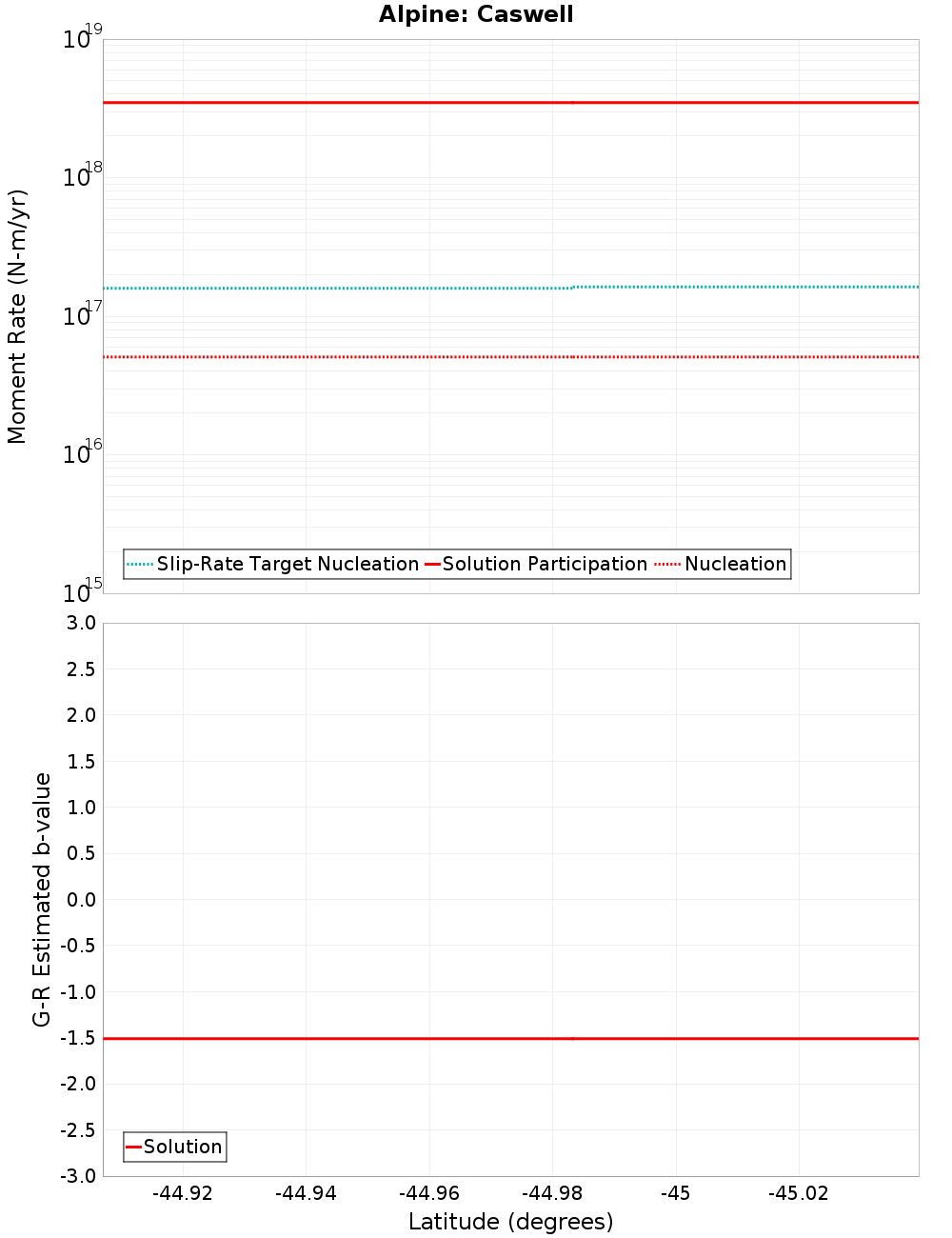

Moment-Rates and b-Values

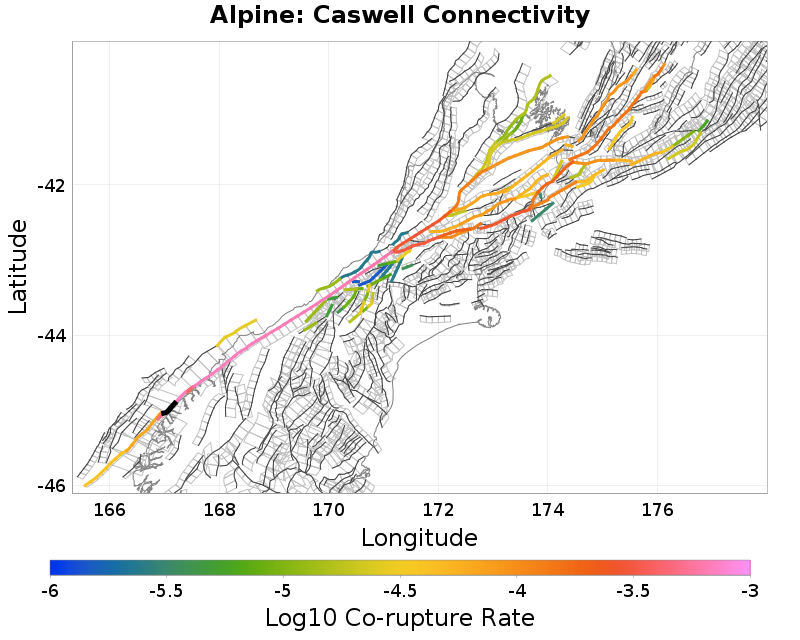

Connectivity

Nearby Sections

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.12 km away
South Wedge 2, 0.26 km away
Central Wedge 4 - South Wedge 411, 0.32 km away
Alpine: Resolution - Charles, 3.33 km away
Alpine: Resolution - Dagg, 11.17 km away

Alpine: Nancy, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	37,899
Co-rupture Rate	5.073143E-4

Alpine: Caswell - South George, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	66,772
Co-rupture Rate	6.8977627E-4

Central Wedge 1 & 2 & 3, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	215
Co-rupture Rate	0.0

South Wedge 2, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Charles, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	25,236
Co-rupture Rate	8.647784E-5

Alpine: Resolution - Dagg, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	56,313
Co-rupture Rate	6.4956075E-5
