Boby Stream Details
| Property | Value |
|---|---|
| Rupture Count | 19,074 |
| Ruptures Above Sect Min Mag | 19,073 |
| Ruptures w/ Nonzero Rates | 21 |
| Magnitude Range | [6.90, 8.38] |
| Length Range | [18, 732] km |
| Total Rate | 1.4343175E-4 /yr |
| Multi-Fault Rate | 1.4343175E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 95 |
Table Of Contents

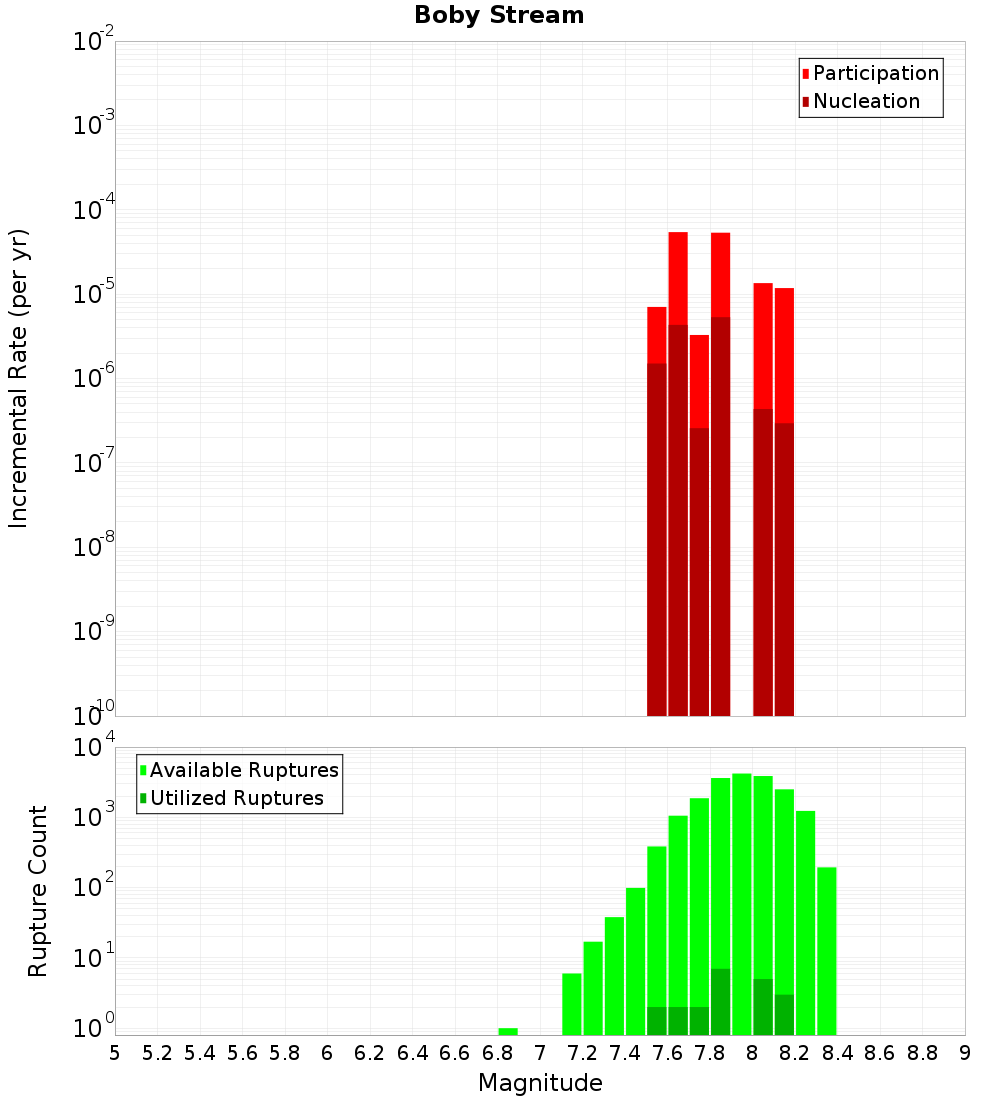

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

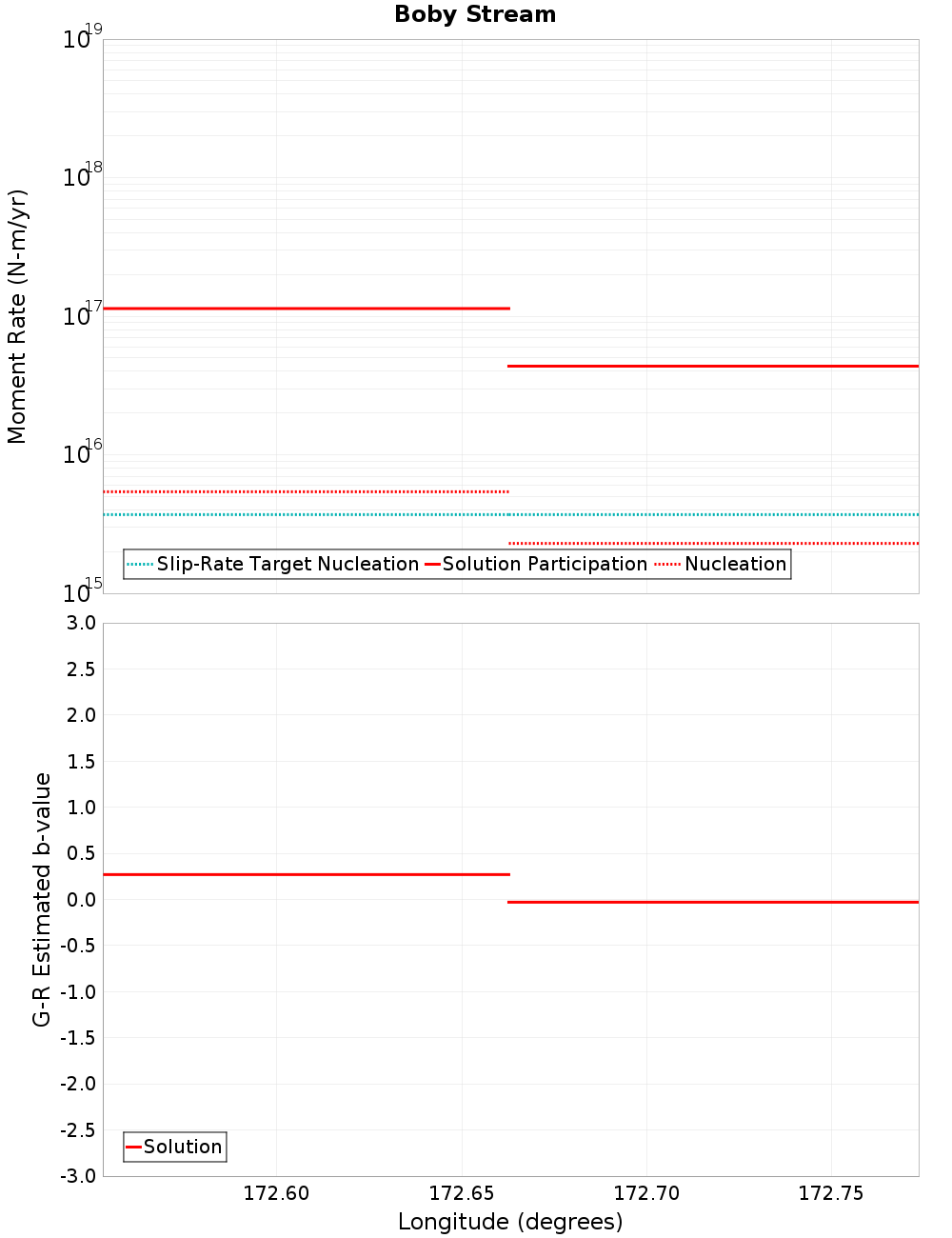

Moment-Rates and b-Values

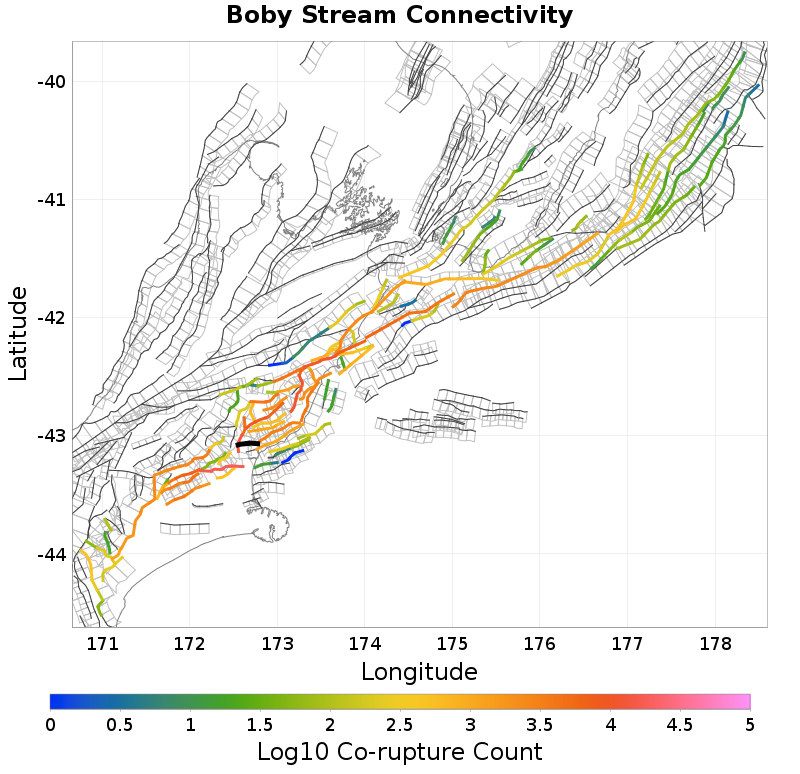

Connectivity
 |  |
|---|
Nearby Sections
Doctors, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14,486 |
| Co-rupture Rate | 8.2824175E-5 |
Starvation - Ashley, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18,318 |
| Co-rupture Rate | 1.0160555E-4 |
OmihiLwrHuru, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,628 |
| Co-rupture Rate | 6.1135615E-5 |
AmberBlyth, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,556 |
| Co-rupture Rate | 3.6532642E-6 |
Mt Lawry, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 343 |
| Co-rupture Rate | 4.1826206E-5 |
Kaiwara South, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,147 |
| Co-rupture Rate | 2.635501E-5 |
Mt Arden, 6.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Springbank, 9.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 493 |
| Co-rupture Rate | 2.2173715E-5 |
Pancake, 9.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lees Valley, 10.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,755 |
| Co-rupture Rate | 4.7475984E-5 |
Lowry, 10.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8,731 |
| Co-rupture Rate | 5.42317E-5 |
Alexander, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 740 |
| Co-rupture Rate | 3.207316E-5 |
Motunau, 13.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 265 |
| Co-rupture Rate | 0.0 |
Knowles Top, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 0.0 |
North Canterbury Shelf 2, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leithfield - NCVI - NCVII, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 55 |
| Co-rupture Rate | 0.0 |
