Jordan Details

Property	Value
Rupture Count	52,095
Ruptures Above Sect Min Mag	52,095
Ruptures w/ Nonzero Rates	26
Magnitude Range	[7.15, 8.57]
Length Range	[29, 1,083] km
Total Rate	2.8024896E-4 /yr
Multi-Fault Rate	2.8024896E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	250

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

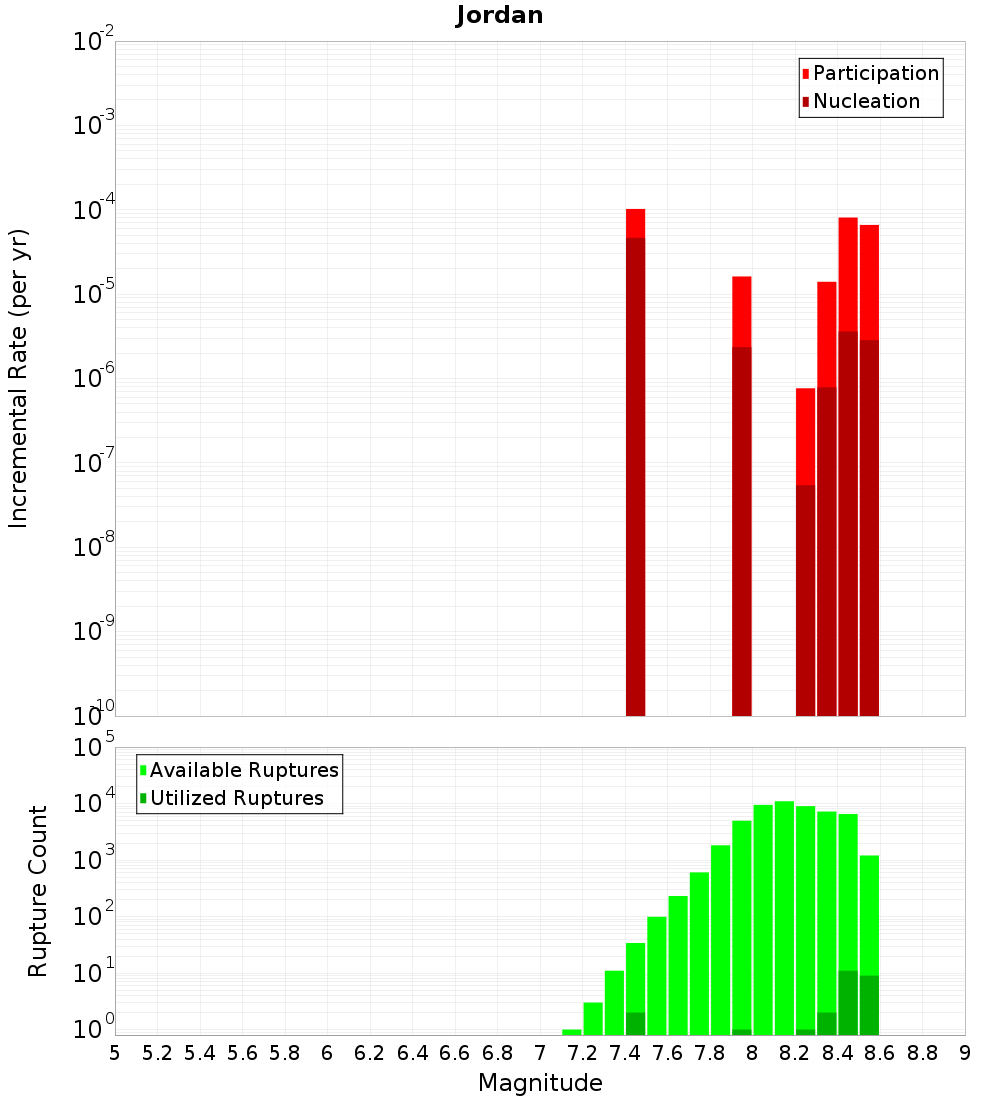

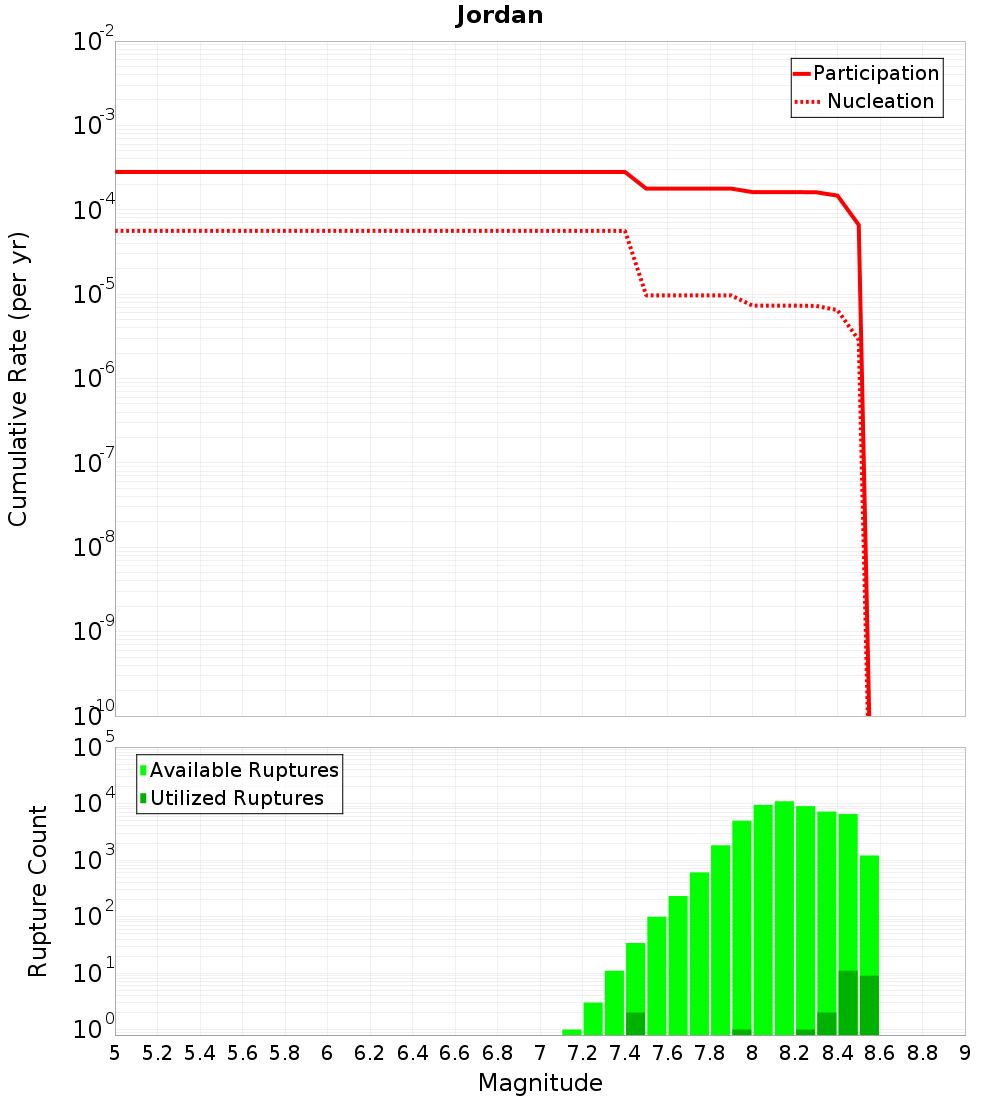

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

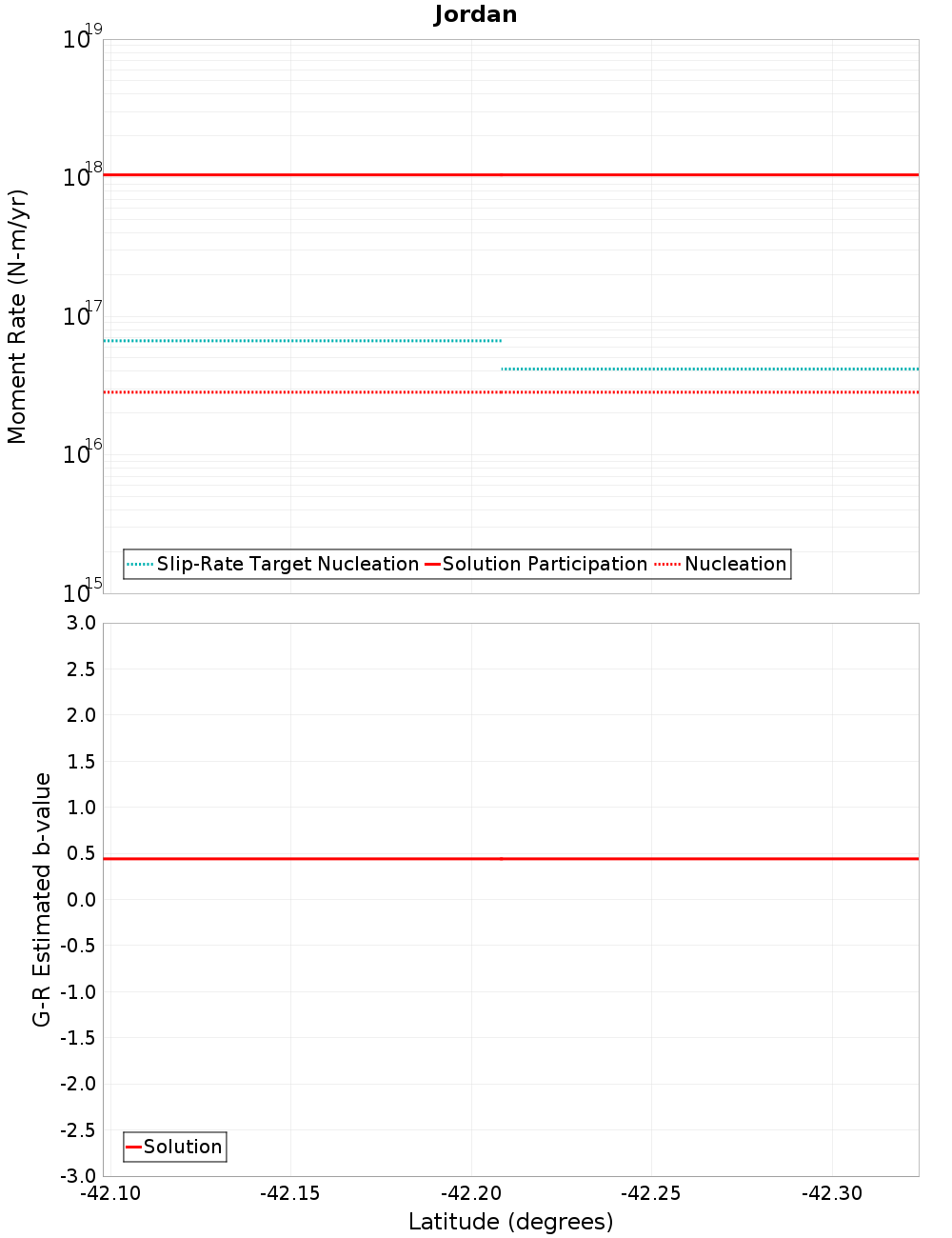

Moment-Rates and b-Values

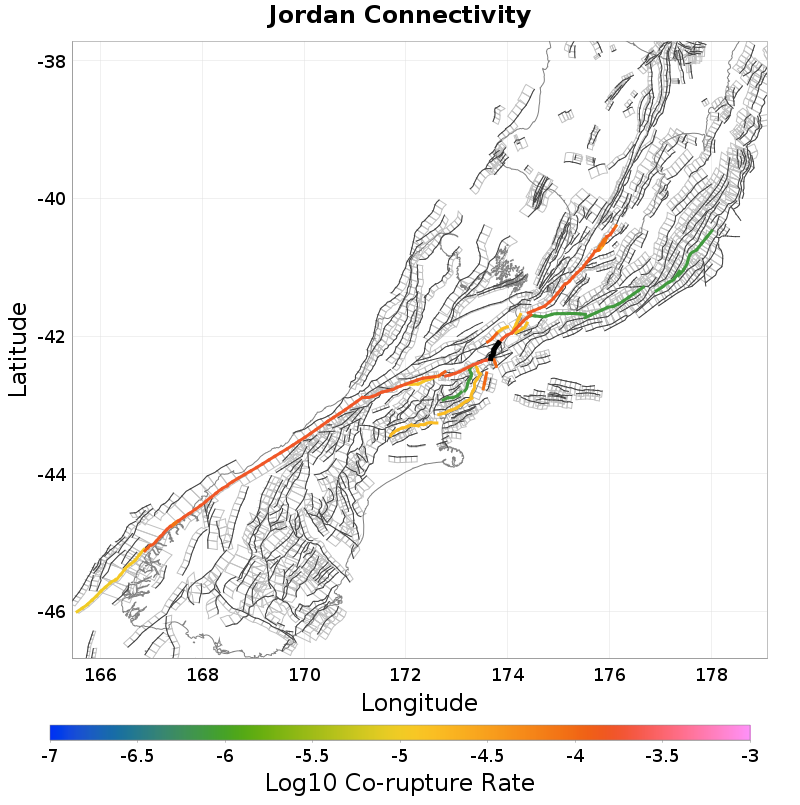

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Papatea, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Kowhai, 0.03 km away
Upper Kowhai - Manakau, 0.2 km away
Clarence: Northeast, 0.4 km away
Kaikoura - Mangamaunu, 2.75 km away
Kaikoura 2, 5.37 km away
Clarence: Central, 7.28 km away
Offshore Splay Thrust, 7.78 km away
Elliott, 9.95 km away
Awatere: Northeast 1, 12.41 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	50,244
Co-rupture Rate	1.779825E-4

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	46,703
Co-rupture Rate	1.6178431E-4

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	0.0

Kowhai, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	0.0

Upper Kowhai - Manakau, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,441
Co-rupture Rate	1.18464646E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Kaikoura 2, 5.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,072
Co-rupture Rate	1.0226646E-4

Clarence: Central, 7.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	191
Co-rupture Rate	0.0

Offshore Splay Thrust, 7.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Elliott, 9.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	0.0

Awatere: Northeast 1, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
