Landsborough 2 Details

Property	Value
Rupture Count	26,782
Ruptures Above Sect Min Mag	26,778
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.79, 8.47]
Length Range	[19, 783] km
Total Rate	7.22201E-5 /yr
Multi-Fault Rate	7.22201E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	240

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

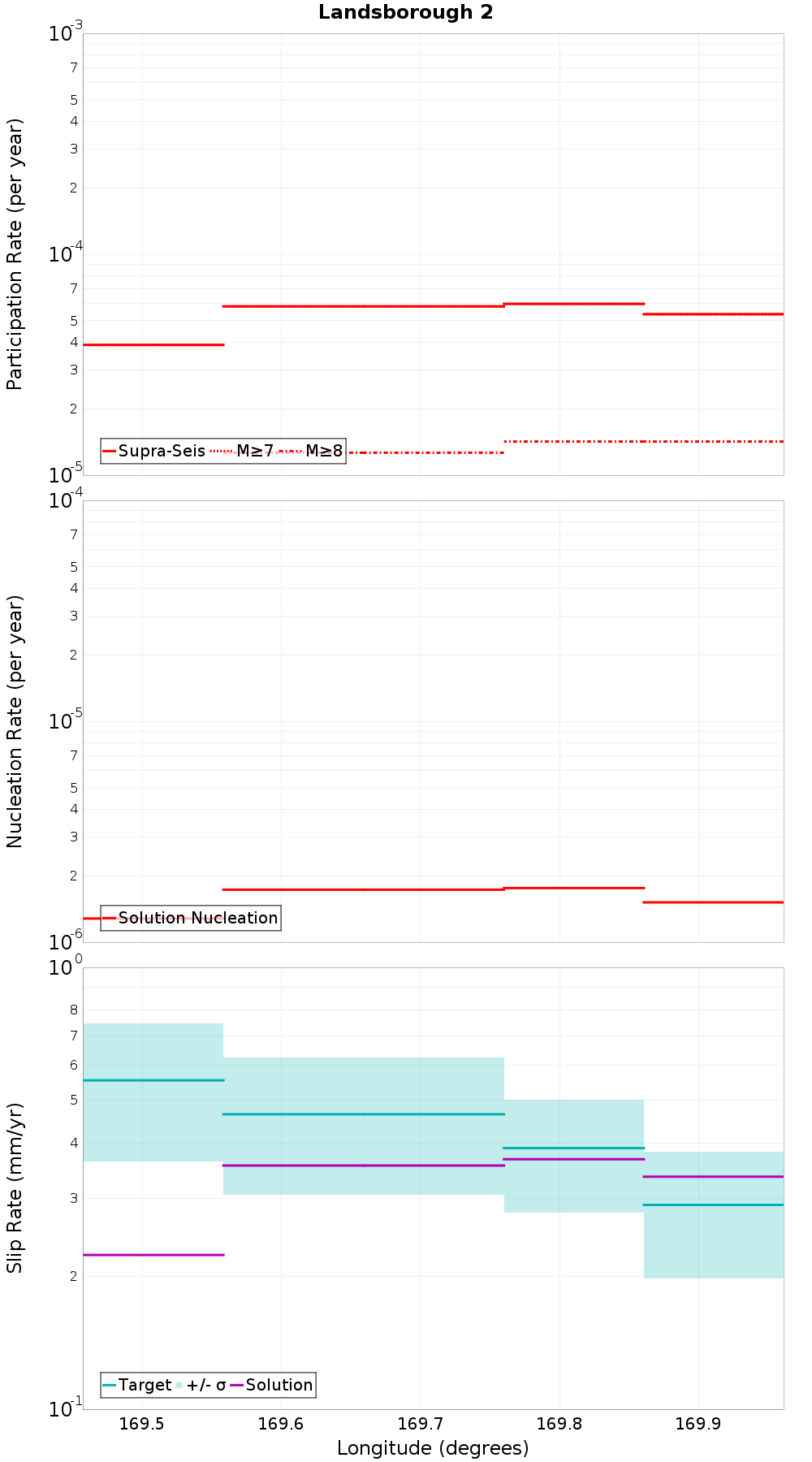

Along-Strike Values

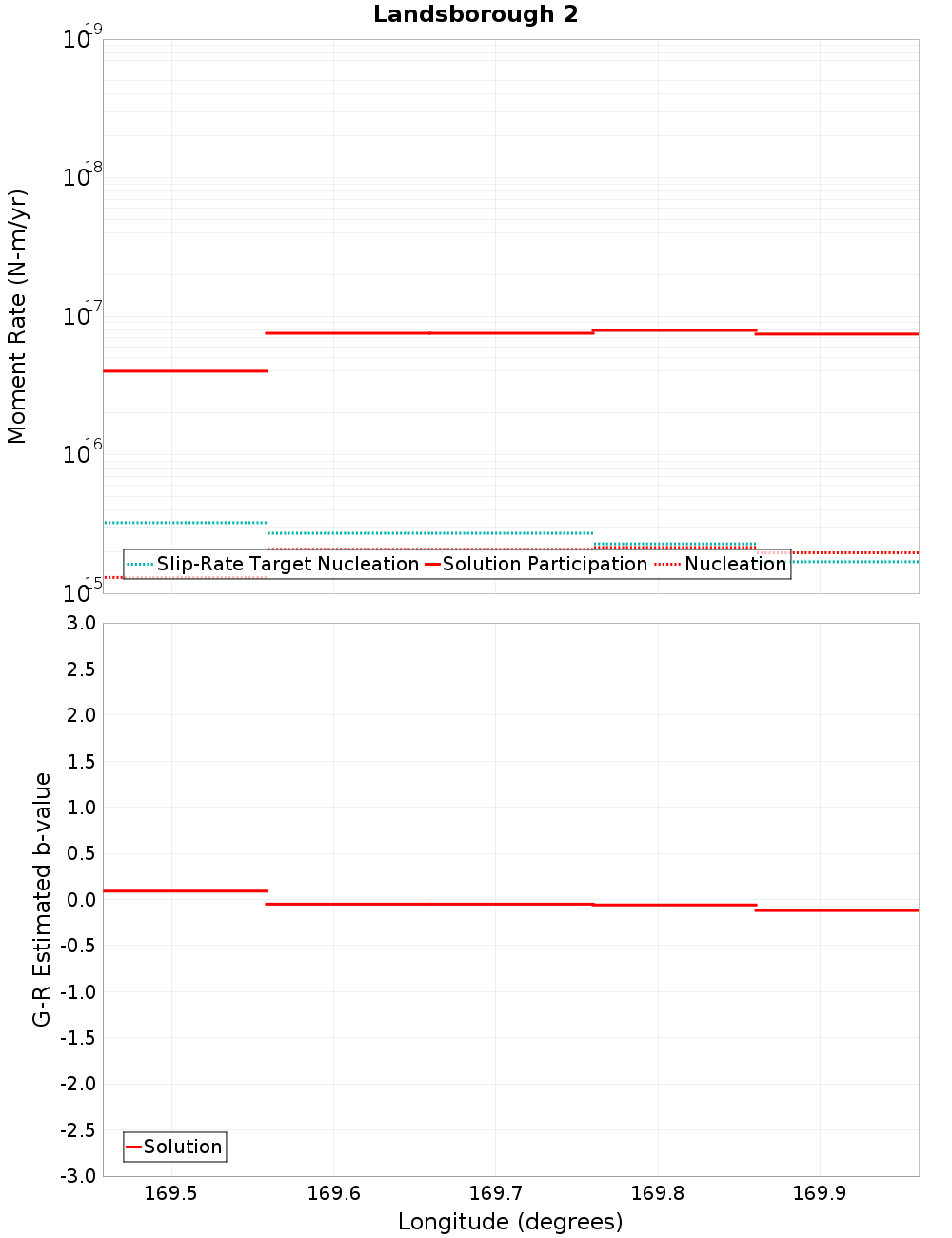

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
McKerrow - Douglas Duplex, 0 km away
Great Groove, 0.23 km away
Huxley, 0.41 km away
Hopkins, 1.13 km away
Karangarua, 3.37 km away
Barrier Range, 4.34 km away
Alpine: Jacksons to Kaniere, 4.68 km away
Wanaka, 8.15 km away
Ostler North, 9.22 km away
Straight Creek, 9.31 km away
Black Blob - Haast Ridge, 9.83 km away
Liebig North, 10.63 km away
Hunter Valley, 10.99 km away
Murchison 1 - Ice Lake, 13.81 km away

McKerrow - Douglas Duplex, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	9,759
Co-rupture Rate	1.4189675E-5

Great Groove, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	7,142
Co-rupture Rate	6.117705E-6

Huxley, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,154
Co-rupture Rate	4.047554E-5

Hopkins, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,775
Co-rupture Rate	1.4189675E-5

Karangarua, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	5,311
Co-rupture Rate	1.2623606E-5

Barrier Range, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,174
Co-rupture Rate	1.2994422E-5

Alpine: Jacksons to Kaniere, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	10,304
Co-rupture Rate	4.5036006E-5

Wanaka, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,133
Co-rupture Rate	1.4189675E-5

Ostler North, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	391
Co-rupture Rate	0.0

Straight Creek, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,795
Co-rupture Rate	1.4189675E-5

Black Blob - Haast Ridge, 9.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	6,803
Co-rupture Rate	6.117705E-6

Liebig North, 10.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	455
Co-rupture Rate	0.0

Hunter Valley, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	0.0

Murchison 1 - Ice Lake, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	6,623
Co-rupture Rate	2.030738E-5
