Paparoa West Details

Property	Value
Rupture Count	8,732
Ruptures Above Sect Min Mag	8,721
Ruptures w/ Nonzero Rates	20
Magnitude Range	[6.76, 8.56]
Length Range	[18, 998] km
Total Rate	1.0760756E-4 /yr
Multi-Fault Rate	1.0760756E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	69

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

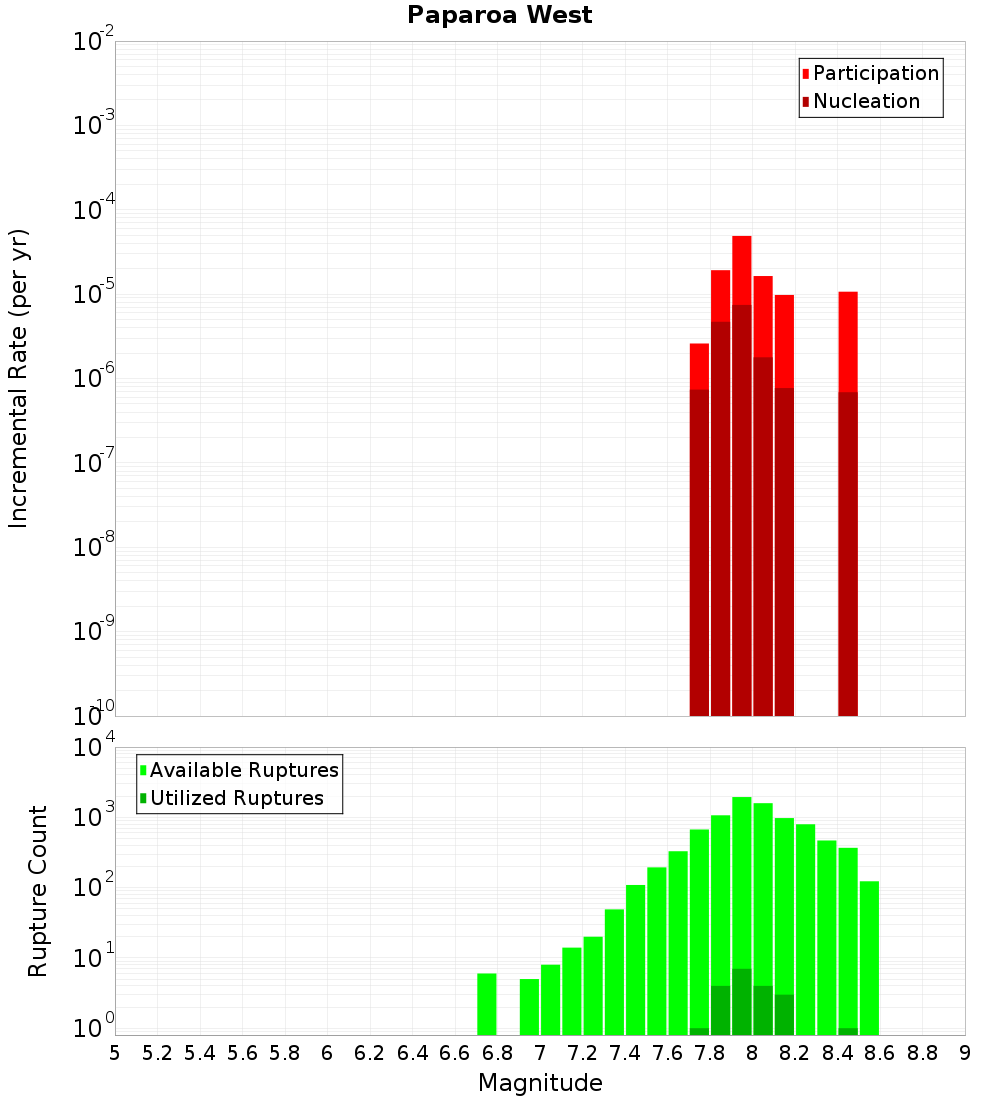

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Paparoa West: North, 0 km away
Maimai, 0.12 km away
Maimai: South, 0.18 km away
Inangahua, 1.16 km away
Maimai: North, 1.84 km away
Cape Foulwind 1, 4.61 km away
Maimai: Brunner Anticline, 7.72 km away
Cape Foulwind 2, 8.1 km away

Paparoa West: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,831
Co-rupture Rate	6.9097056E-5

Maimai, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,193
Co-rupture Rate	2.614958E-5

Maimai: South, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,485
Co-rupture Rate	1.5640715E-5

Inangahua, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	4,501
Co-rupture Rate	5.079171E-5

Maimai: North, 1.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,018
Co-rupture Rate	3.8605413E-5

Cape Foulwind 1, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,819
Co-rupture Rate	3.1598247E-5

Maimai: Brunner Anticline, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	676
Co-rupture Rate	0.0

Cape Foulwind 2, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	4.7551553E-6
