Te Arawa 2 Details

PropertyValue
Rupture Count2,632
Ruptures Above Sect Min Mag2,631
Ruptures w/ Nonzero Rates152
Magnitude Range[6.82, 8.31]
Length Range[16, 549] km
Total Rate2.0425254E-4 /yr
Multi-Fault Rate2.0425254E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults66

Table Of Contents

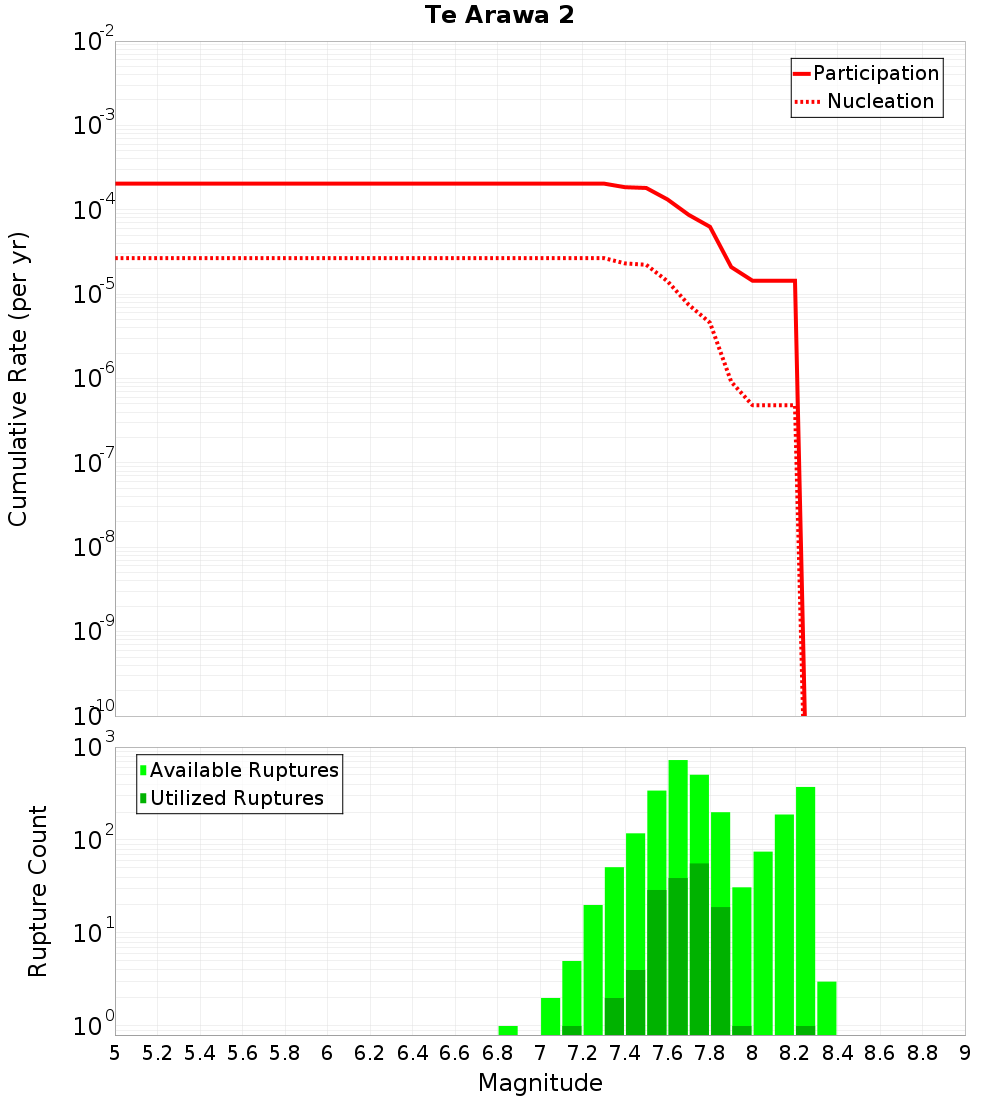

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

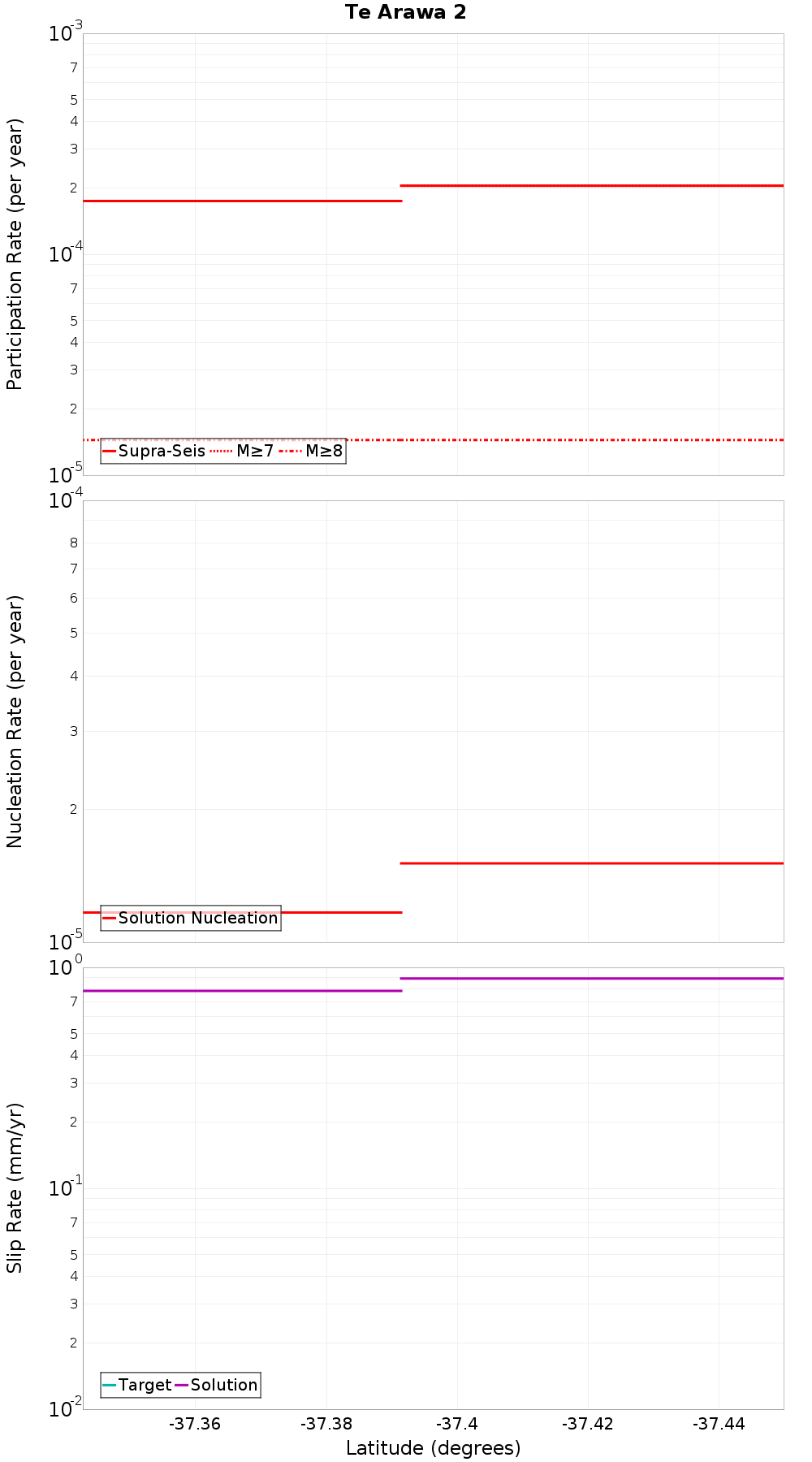

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.12 km away
Te Arawa 1, 1.19 km away
Te Arawa 3, 1.68 km away
Whakaari 4, 3.86 km away
Volkner 4, 4.02 km away
Tuatoru 1, 4.63 km away
Hariki, 5.14 km away
Volkner 3, 6 km away
Calypso 2, 6.95 km away
Otara West 1, 7.42 km away
Otara East 1, 7.74 km away
White Island 2, 9.98 km away
Otara West 2, 11.66 km away
Opotiki 3, 14.46 km away
Ohiwa 1, 14.86 km away

Tuatoru 2, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?true
Co-rupture Count765
Co-rupture Rate6.4135274E-5

Te Arawa 1, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?true
Co-rupture Count1,532
Co-rupture Rate1.357044E-4

Te Arawa 3, 1.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Whakaari 4, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?true
Co-rupture Count1,574
Co-rupture Rate1.2931184E-4

Volkner 4, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Tuatoru 1, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate3.9173337E-5

Hariki, 5.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Volkner 3, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Calypso 2, 6.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate1.0052291E-4

Otara West 1, 7.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Otara East 1, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count252
Co-rupture Rate1.10525925E-5

White Island 2, 9.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count1,009
Co-rupture Rate4.6792484E-5

Otara West 2, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODguMFlqdmNp
Connected?true
Directly Connected?false
Co-rupture Count297
Co-rupture Rate2.533334E-5
