Hunters Details

Property	Value
Rupture Count	3,717
Ruptures Above Sect Min Mag	3,708
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.77, 8.07]
Length Range	[21, 356] km
Total Rate	1.10568464E-4 /yr
Multi-Fault Rate	1.10568464E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	42

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

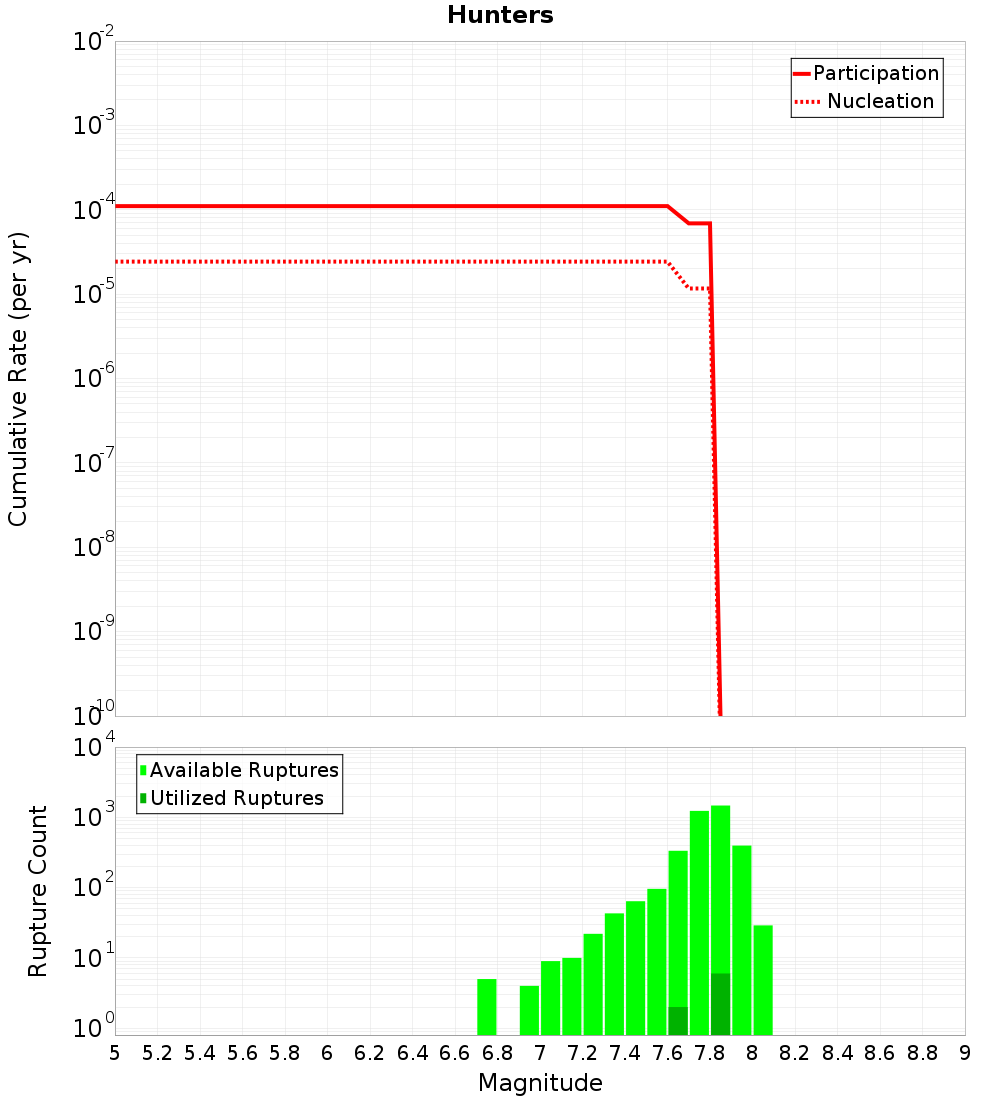

Magnitude-Frequency Distribution

Incremental	Cumulative

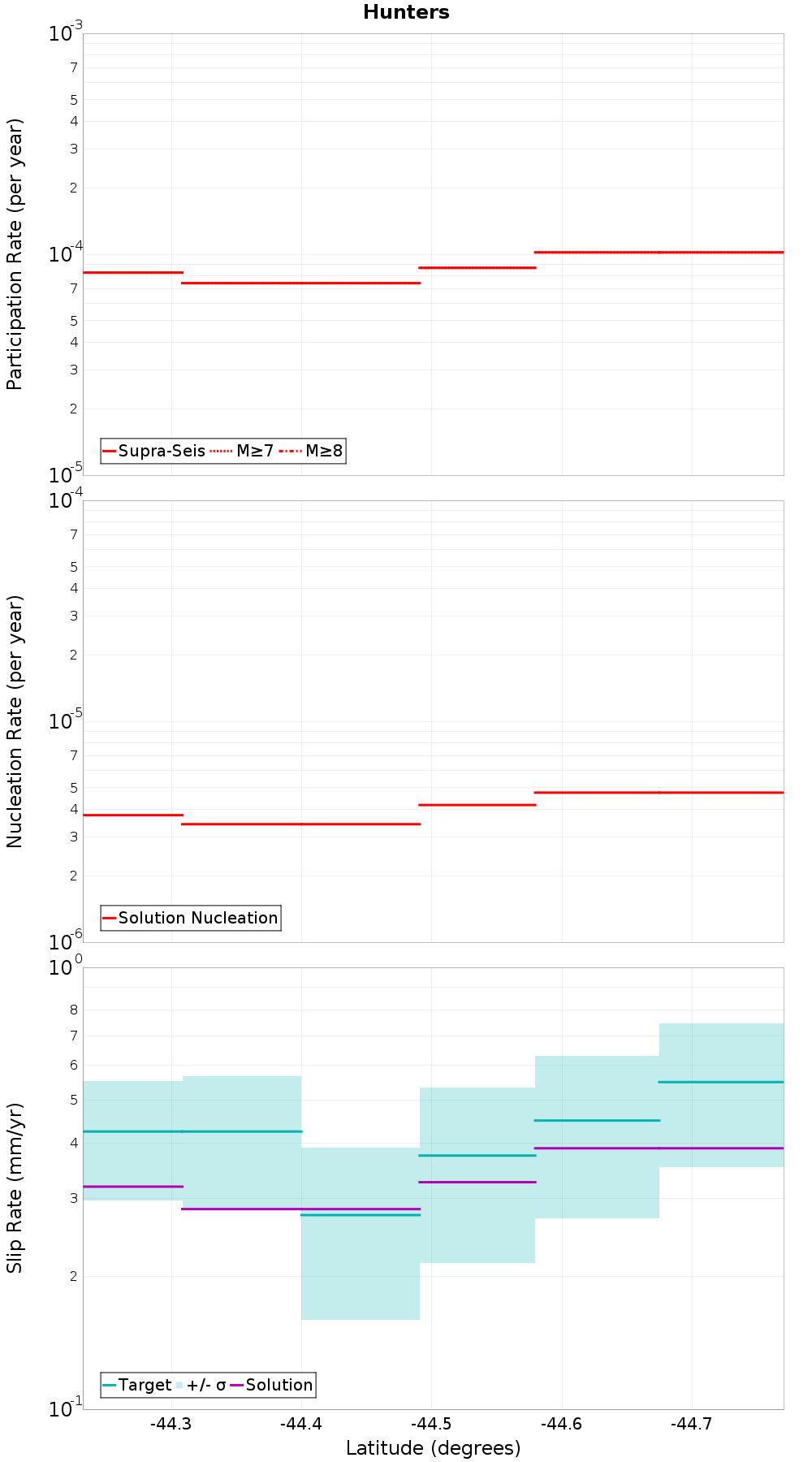

Along-Strike Values

Moment-Rates and b-Values

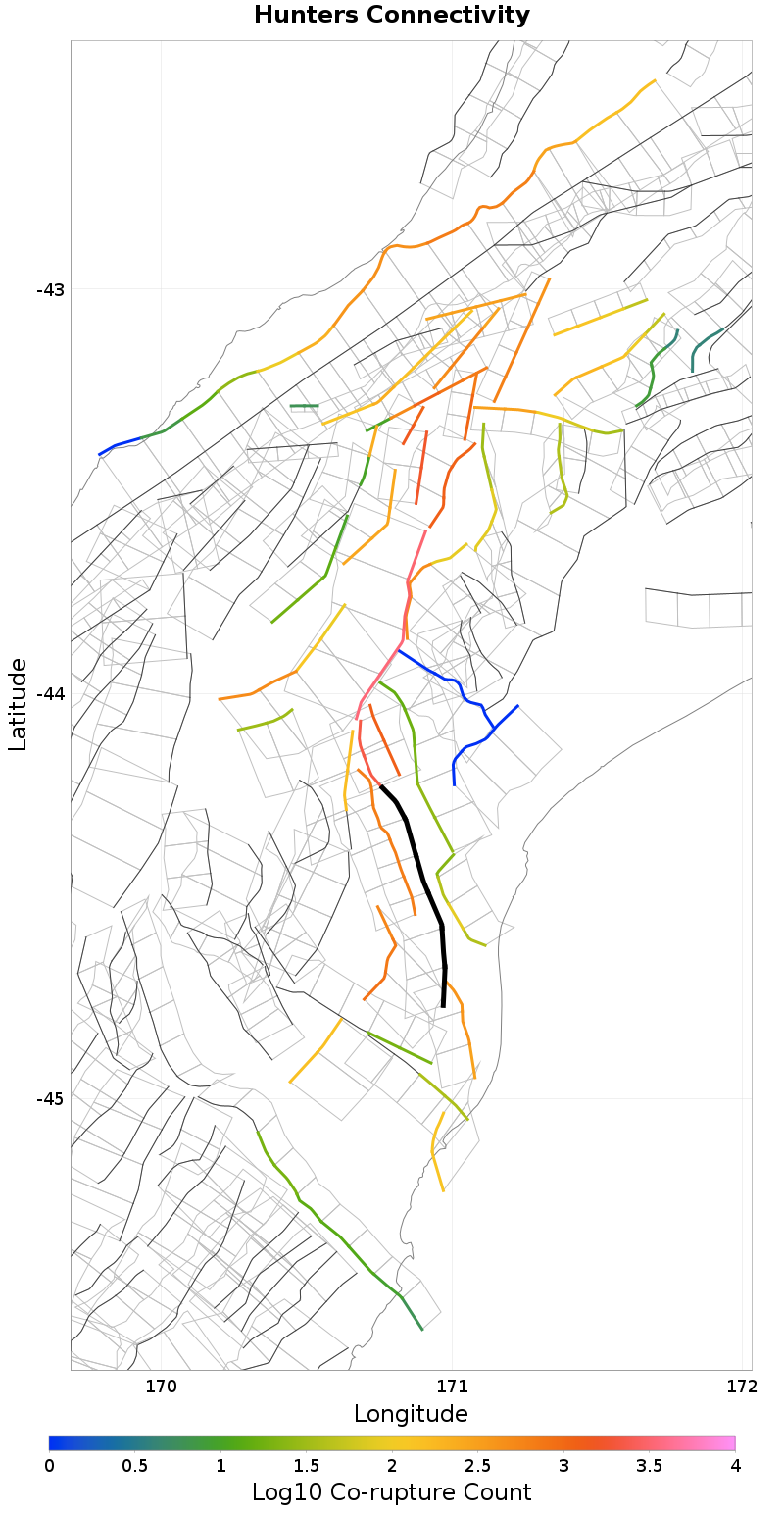

Connectivity

Nearby Sections

Fault Section
Campbell Hills, 0.1 km away
Stonewall, 0.28 km away
Opawa, 0.54 km away
Waimate, 0.6 km away
Chamberlain, 2.51 km away
Maungati, 3.56 km away
Albury, 4.79 km away
Brothers, 7.39 km away
Dalgety, 8.73 km away
The Wolds, 9.5 km away
Black Hill, 11.4 km away
Kirkliston, 14.53 km away
Grampian, 14.81 km away

Campbell Hills, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	856
Co-rupture Rate	5.9977945E-5

Stonewall, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	0.0

Opawa, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	2,240
Co-rupture Rate	6.178978E-5

Waimate, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	405
Co-rupture Rate	4.199355E-5

Chamberlain, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	669
Co-rupture Rate	2.8004164E-5

Maungati, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	81
Co-rupture Rate	0.0

Albury, 4.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	1,224
Co-rupture Rate	4.4558008E-5

Brothers, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Dalgety, 8.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	161
Co-rupture Rate	0.0

The Wolds, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	31
Co-rupture Rate	1.2817636E-5

Black Hill, 11.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	146
Co-rupture Rate	4.4791417E-5

Kirkliston, 14.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
