Leader: Central Details

Property	Value
Rupture Count	20,506
Ruptures Above Sect Min Mag	20,498
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.32, 8.34]
Length Range	[10, 738] km
Total Rate	1.0099317E-4 /yr
Multi-Fault Rate	1.0099317E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	106

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

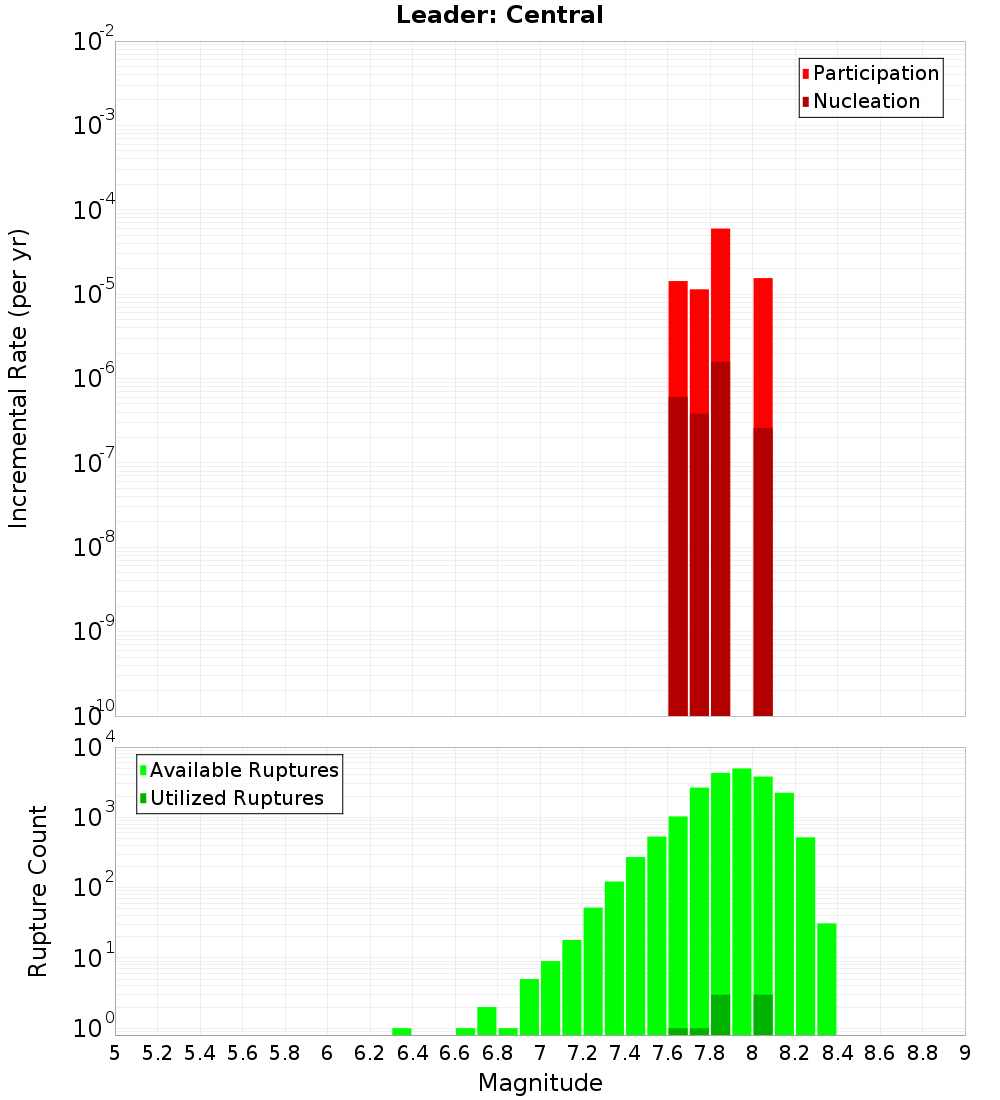

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

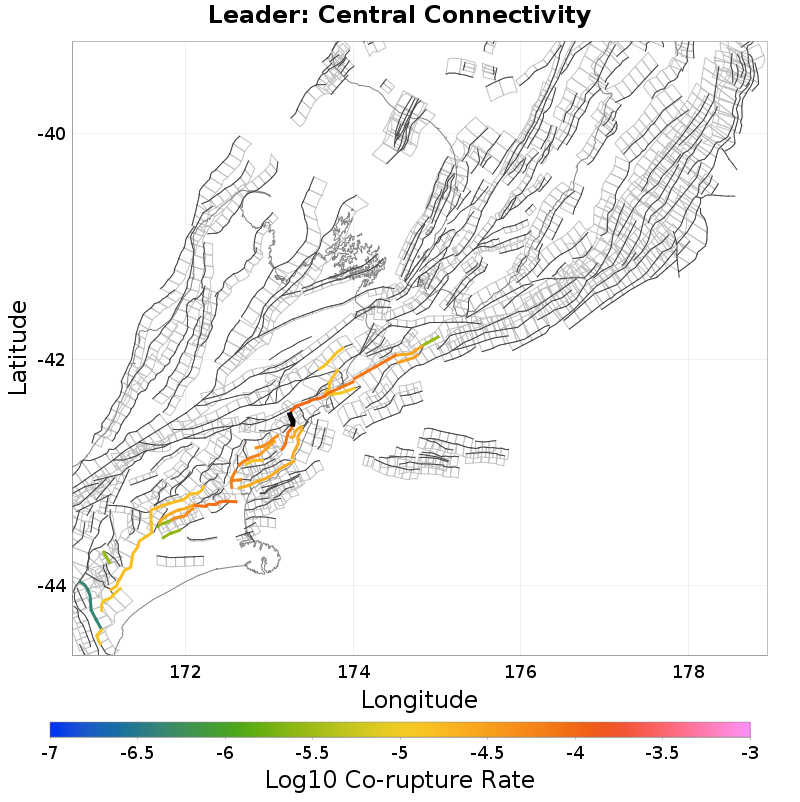

Connectivity

Nearby Sections

Fault Section
Leader: North, 0 km away
Leader: South, 0 km away
Hundalee, 0.25 km away
Kaiwara North, 2.01 km away
The Humps, 2.89 km away
Hope: Conway, 4.85 km away
StoneJug, 9.33 km away
Hawkswood, 10.66 km away

Leader: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	11,430
Co-rupture Rate	1.0099317E-4

Leader: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	0.0

Hundalee, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	2,305
Co-rupture Rate	2.404276E-5

Kaiwara North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	16,985
Co-rupture Rate	7.695041E-5

The Humps, 2.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,343
Co-rupture Rate	0.0

Hope: Conway, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	true
Co-rupture Count	19,572
Co-rupture Rate	1.0099317E-4

StoneJug, 9.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4OTMuMFlqeVJV
Connected?	true
Directly Connected?	false
Co-rupture Count	705
Co-rupture Rate	2.404276E-5
