Awamoa Details
| Property | Value |
|---|---|
| Rupture Count | 235 |
| Ruptures Above Sect Min Mag | 234 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [6.82, 8.05] |
| Length Range | [22, 349] km |
| Total Rate | 6.8355956E-5 /yr |
| Multi-Fault Rate | 6.8355956E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 34 |
Table Of Contents

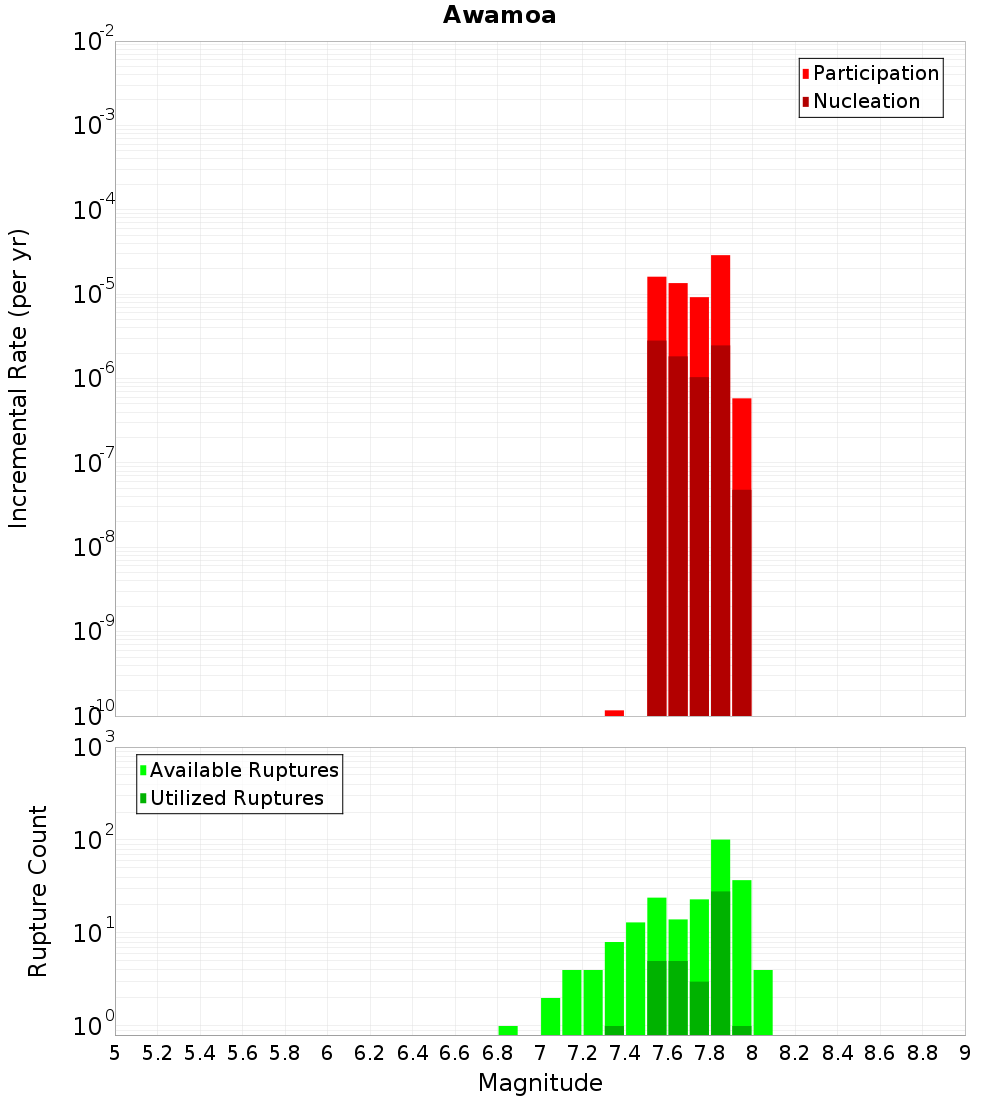

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

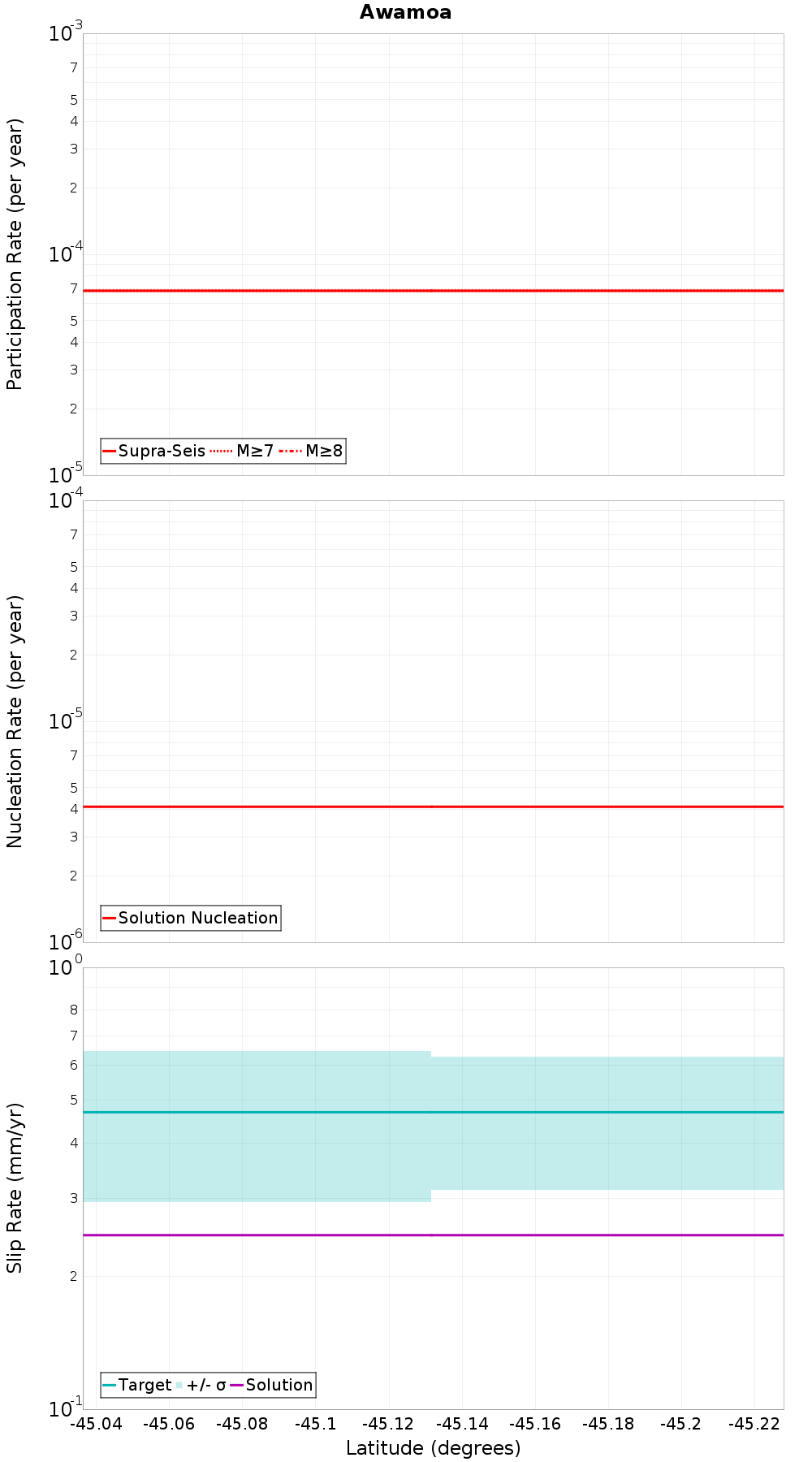

Along-Strike Values
Moment-Rates and b-Values

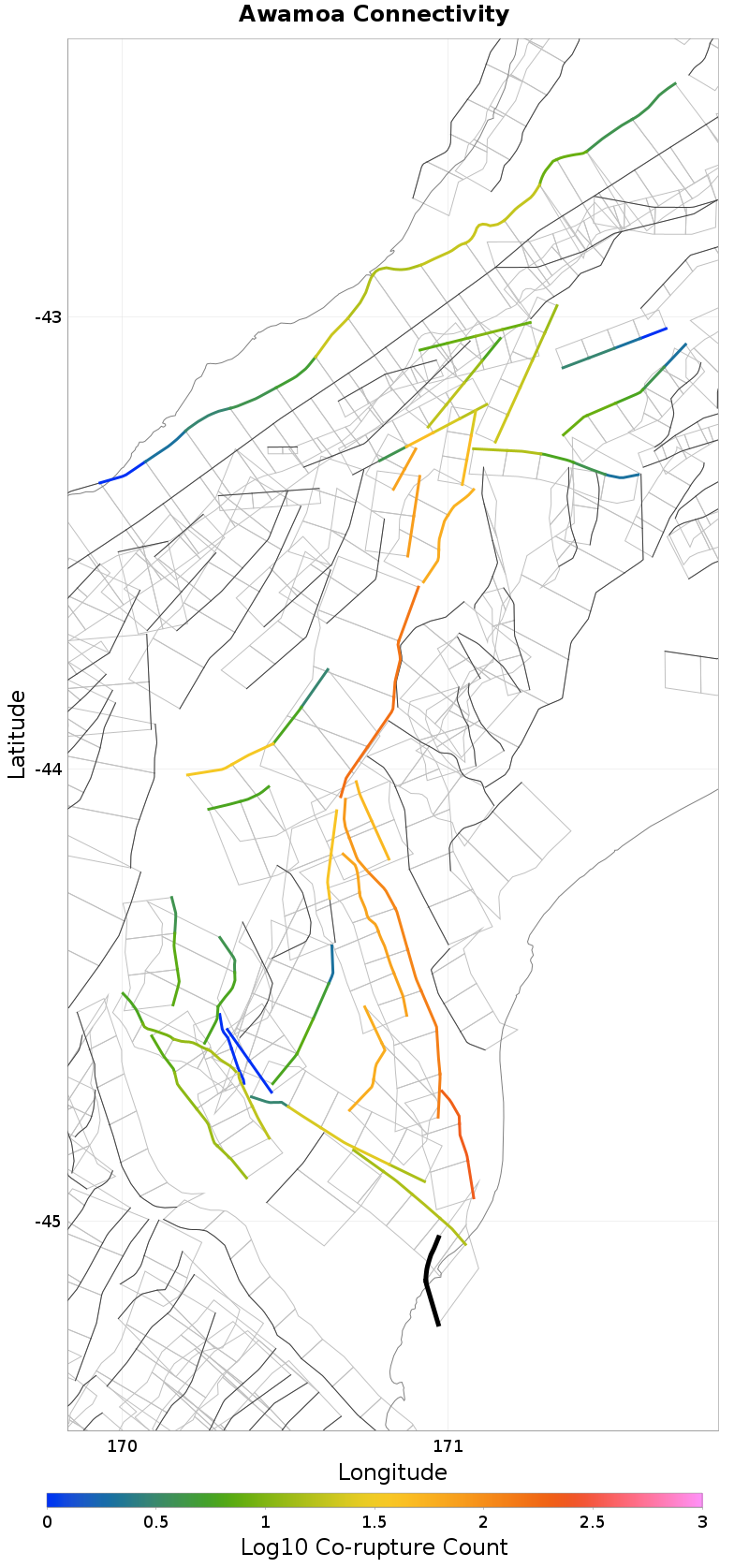

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waitaki, 0.09 km away |
| Waimate, 1.76 km away |
| Stonewall, 12.19 km away |
Waitaki, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 7.685061E-6 |
Waimate, 1.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 218 |
| Co-rupture Rate | 6.0670896E-5 |
Stonewall, 12.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 9.653271E-6 |
