Kelly Details

Property	Value
Rupture Count	201,753
Ruptures Above Sect Min Mag	201,738
Ruptures w/ Nonzero Rates	850
Magnitude Range	[6.61, 8.51]
Length Range	[17, 1,083] km
Total Rate	5.22637E-4 /yr
Multi-Fault Rate	5.22637E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	264

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

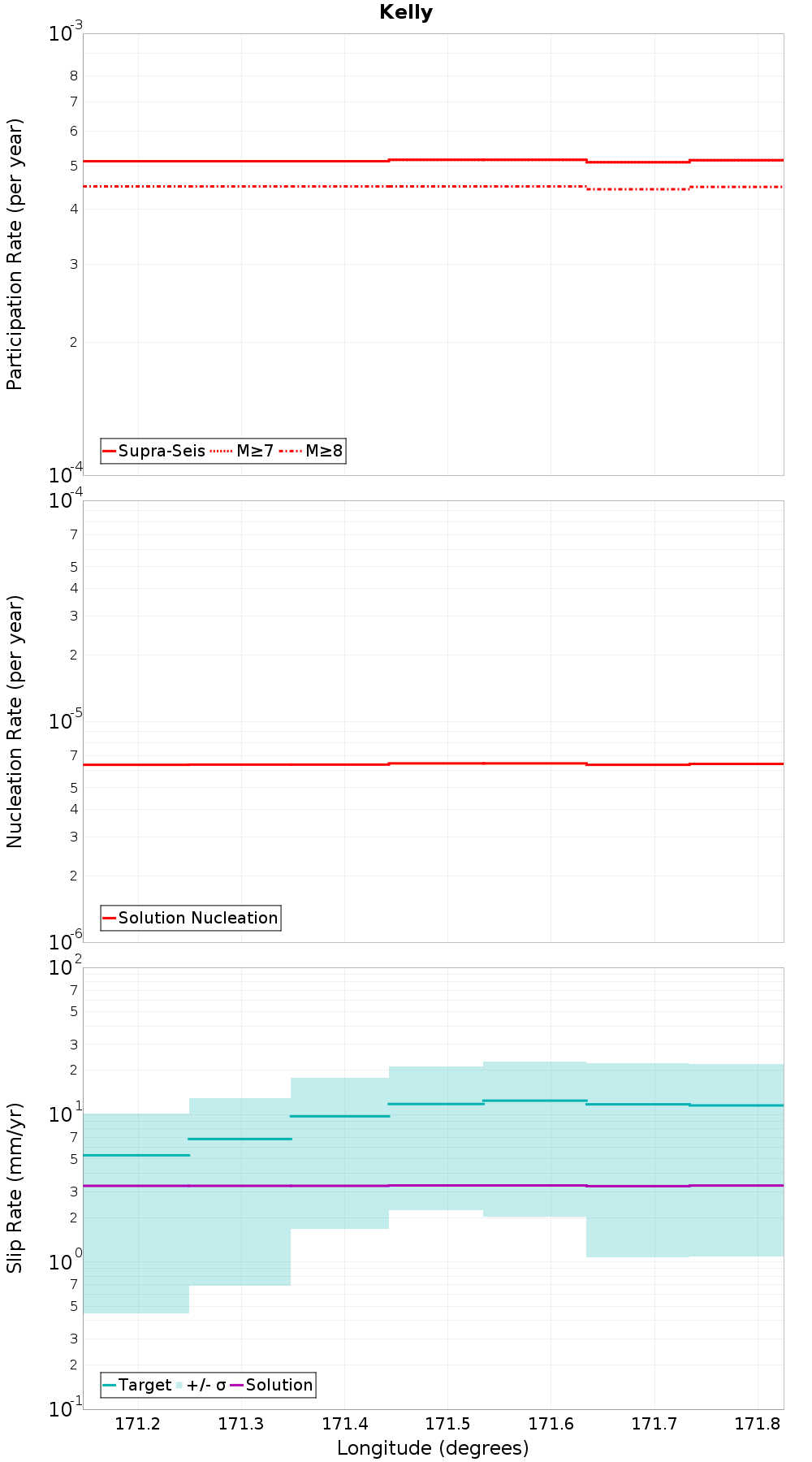

Along-Strike Values

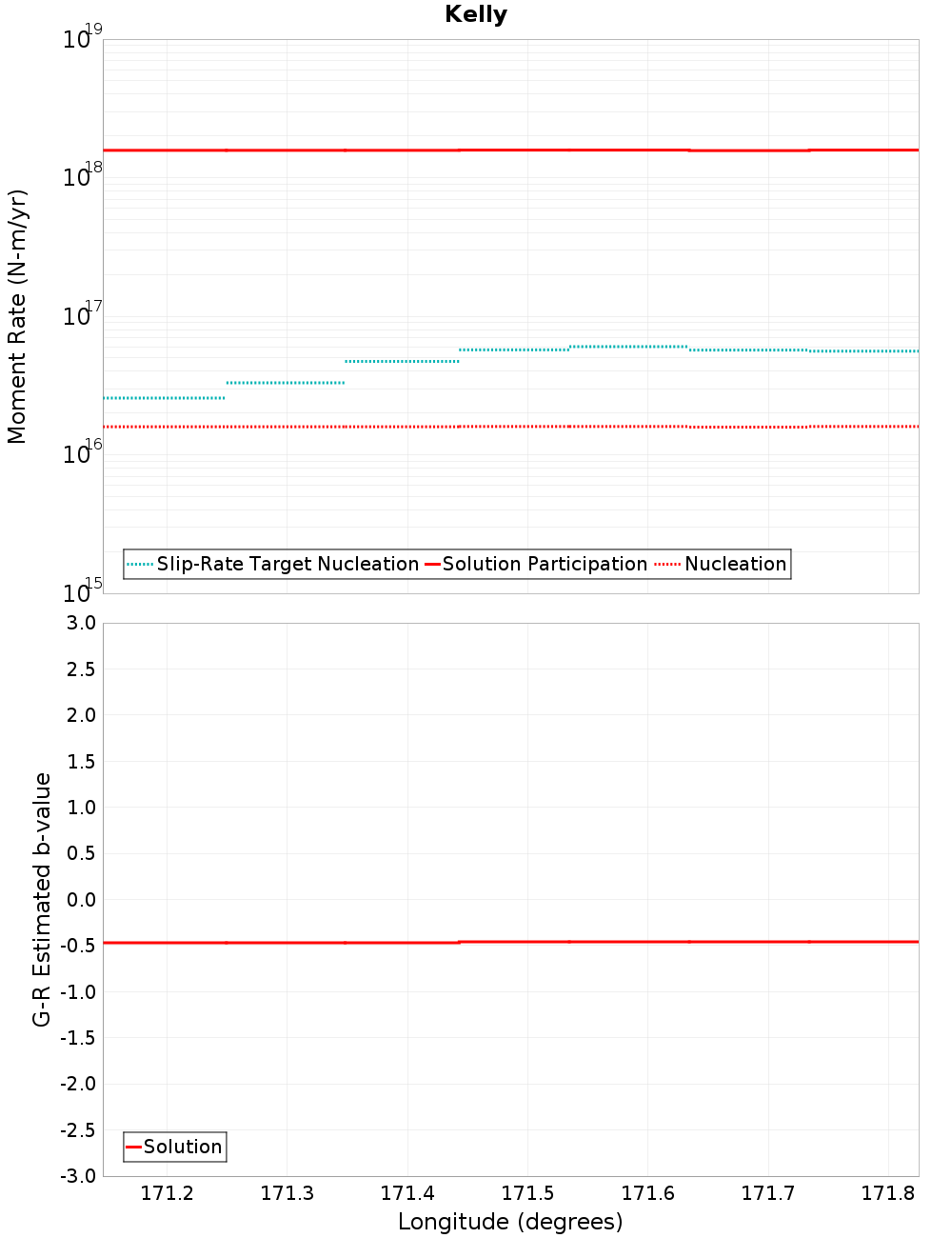

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Hohonu North, 0.14 km away
Hohonu South, 0.29 km away
Hohonu, 0.43 km away
Poulter, 9.5 km away
Mistake - Rolleston, 10.23 km away
Cape Foulwind 1, 11.54 km away
Clarence: Southwest, 13.14 km away
Mungo, 13.58 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	165,080
Co-rupture Rate	5.185812E-4

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	144,501
Co-rupture Rate	4.9288274E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	18,061
Co-rupture Rate	5.3729777E-6

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	49,963
Co-rupture Rate	3.113075E-5

Browning Pass, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,850
Co-rupture Rate	1.9380049E-9

Hohonu North, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	24,137
Co-rupture Rate	2.2918863E-5

Hohonu South, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	true
Co-rupture Count	26,244
Co-rupture Rate	5.3417684E-6

Hohonu, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	7,058
Co-rupture Rate	3.9097846E-11

Poulter, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	354
Co-rupture Rate	4.669491E-11

Mistake - Rolleston, 10.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	6,662
Co-rupture Rate	6.3248975E-5

Cape Foulwind 1, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	240
Co-rupture Rate	3.7856146E-6

Clarence: Southwest, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	12,093
Co-rupture Rate	4.914576E-5

Mungo, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,201
Co-rupture Rate	0.0

Kakapo, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	55,530
Co-rupture Rate	1.8367276E-4

Hope: Hope River, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?	true
Directly Connected?	false
Co-rupture Count	93,838
Co-rupture Rate	3.6939557E-4
