Middle Range Details

PropertyValue
Rupture Count741
Ruptures Above Sect Min Mag736
Ruptures w/ Nonzero Rates66
Magnitude Range[6.76, 8.06]
Length Range[21, 351] km
Total Rate1.492932E-4 /yr
Multi-Fault Rate1.492932E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults46

Table Of Contents

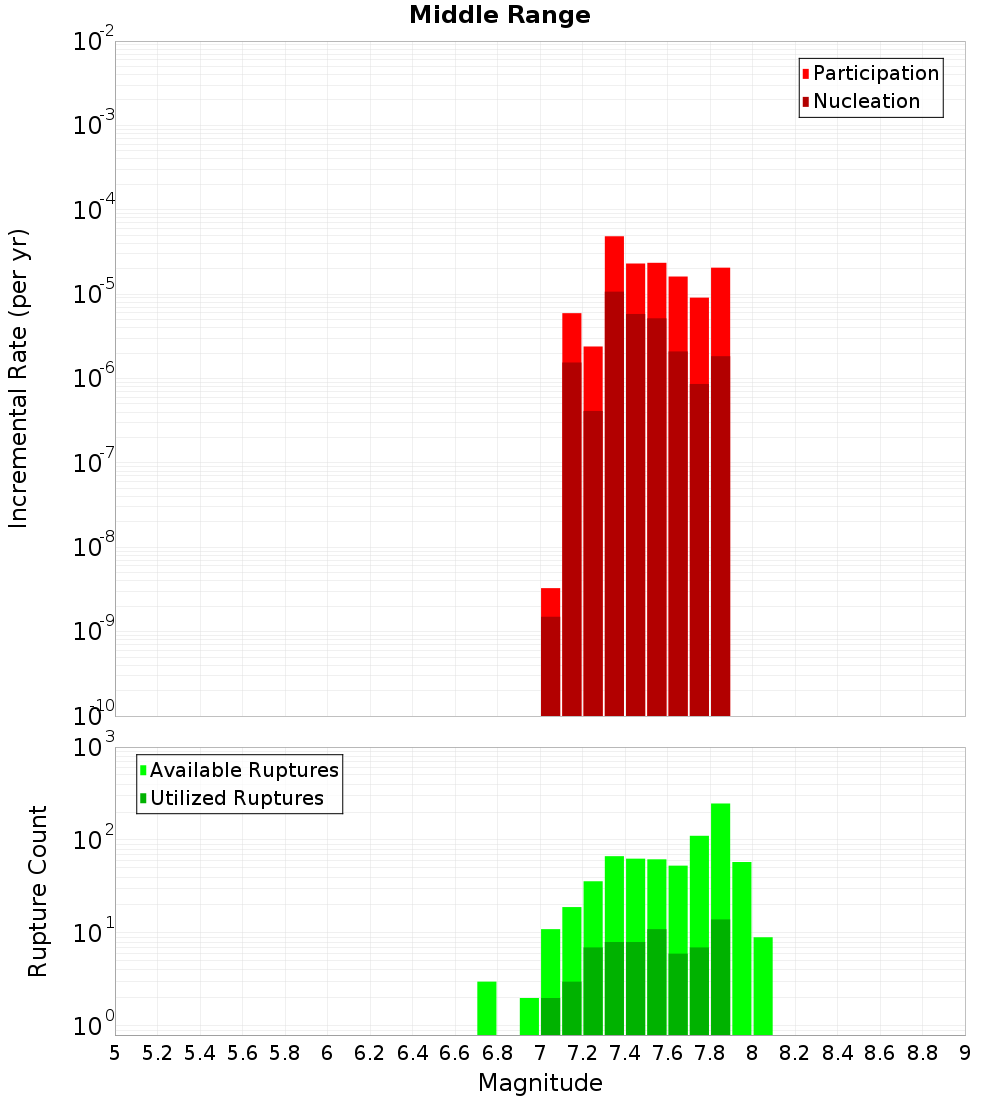

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

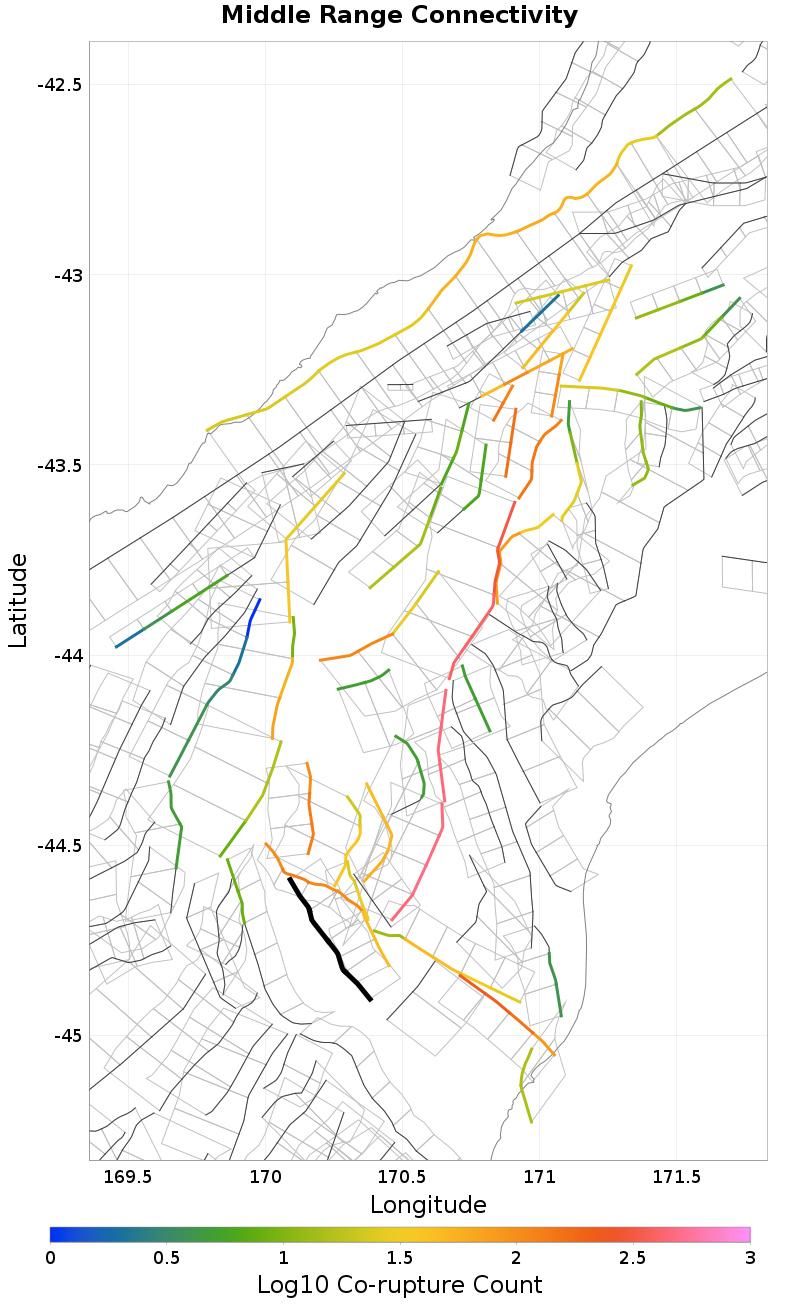

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awahokomo, 0.05 km away
Fern Gully, 0.08 km away
Kirkliston, 0.16 km away
Mt Sutton, 0.17 km away
Waitangi, 0.35 km away
Gibson, 0.38 km away
Falstone, 5.24 km away
Grampian, 6.8 km away
Black Hill, 7.62 km away
Stonewall, 9.97 km away
Waitaki, 13.04 km away
Dryburgh, 14.1 km away
Hawkdun, 14.46 km away

Awahokomo, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.20983295E-5

Fern Gully, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate3.713519E-5

Kirkliston, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count485
Co-rupture Rate5.4127293E-5

Mt Sutton, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate2.9656845E-5

Waitangi, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate6.644275E-5

Gibson, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate6.0654555E-5

Falstone, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate2.4874802E-5

Grampian, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate6.0712237E-6

Black Hill, 7.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate1.00320485E-5

Waitaki, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?true
Co-rupture Count219
Co-rupture Rate8.4561456E-5

Dryburgh, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDEuMFQ1bTdN
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
