Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 206 |
| Ruptures Above Sect Min Mag | 199 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.93, 8.19] |
| Length Range | [22, 373] km |
| Total Rate | 7.9166075E-6 /yr |
| Multi-Fault Rate | 7.9166075E-6 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

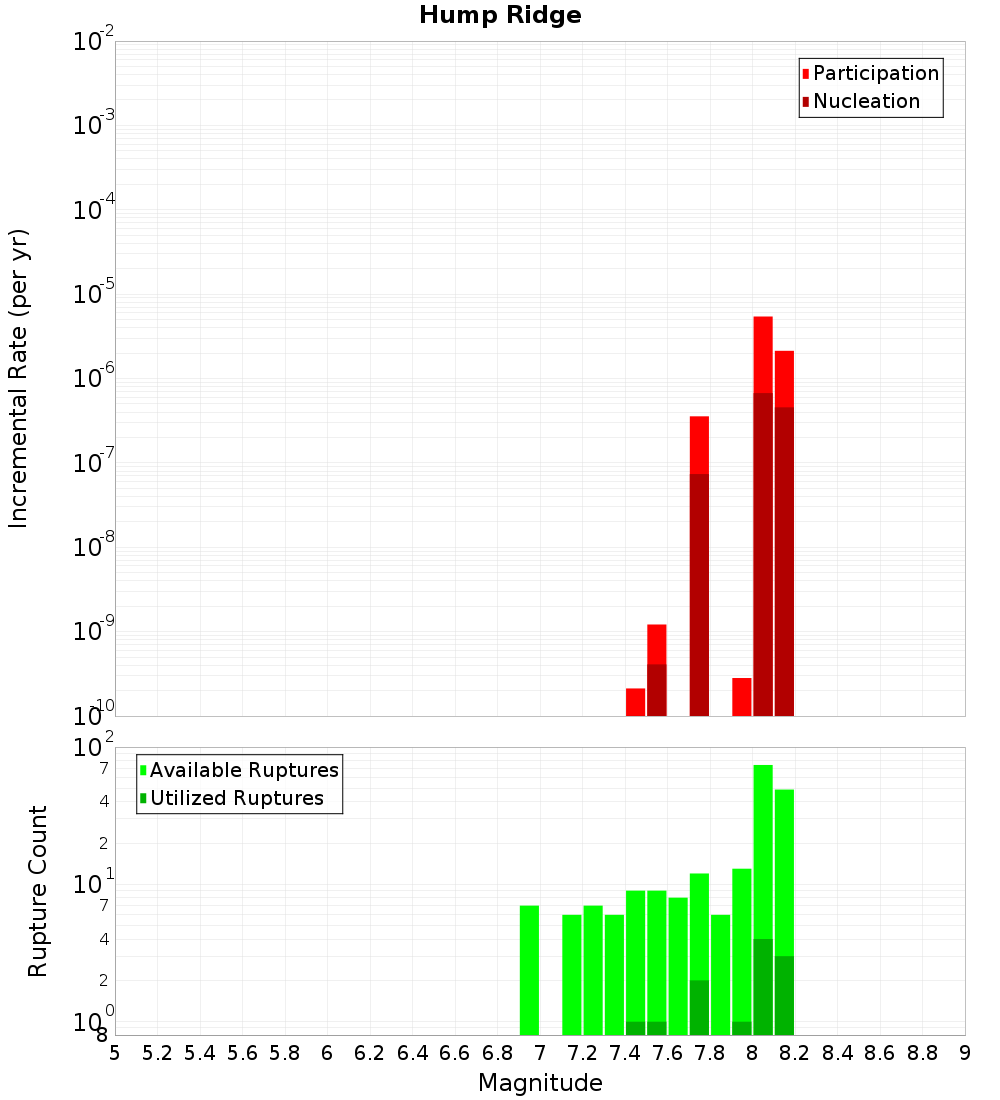

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

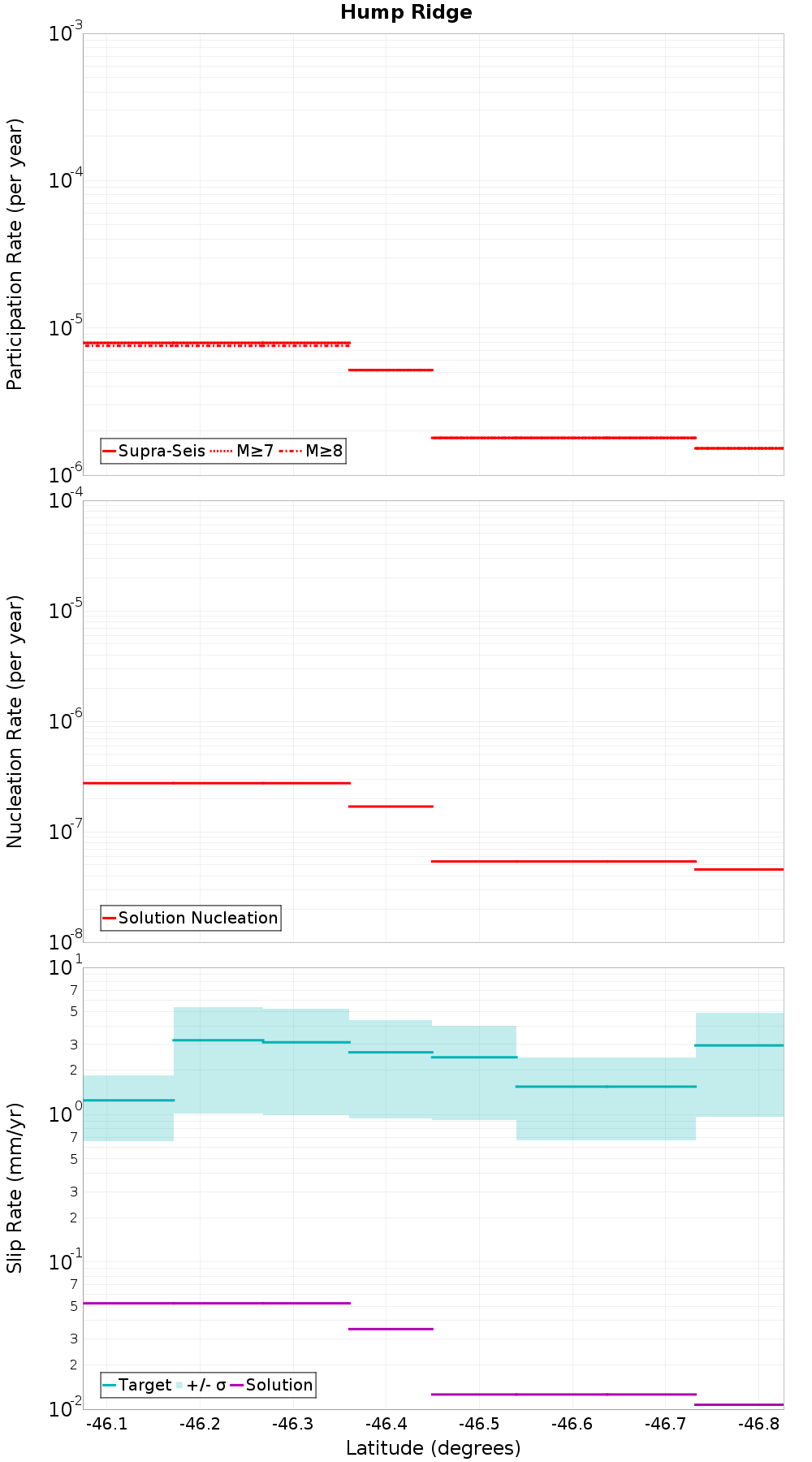

Along-Strike Values

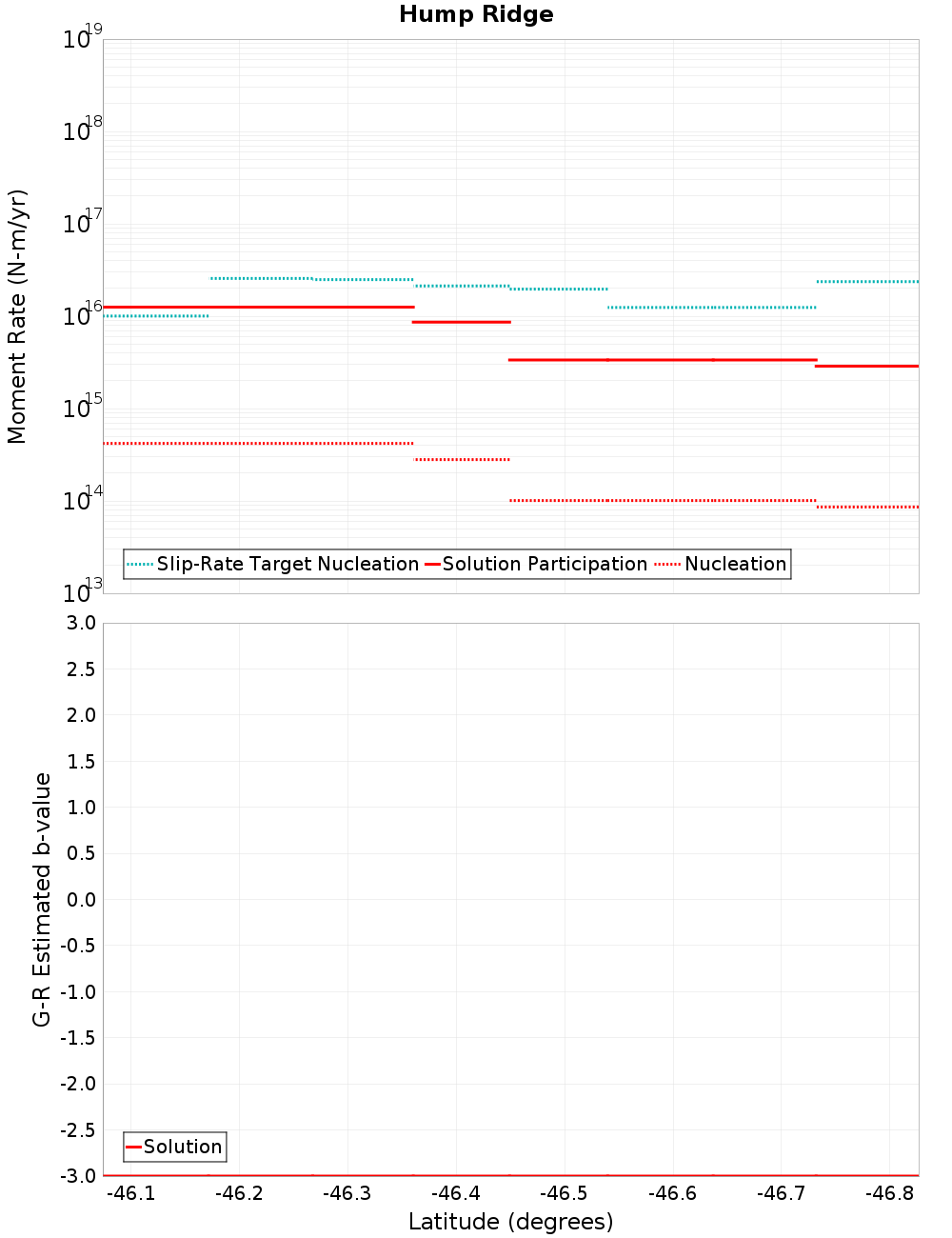

Moment-Rates and b-Values

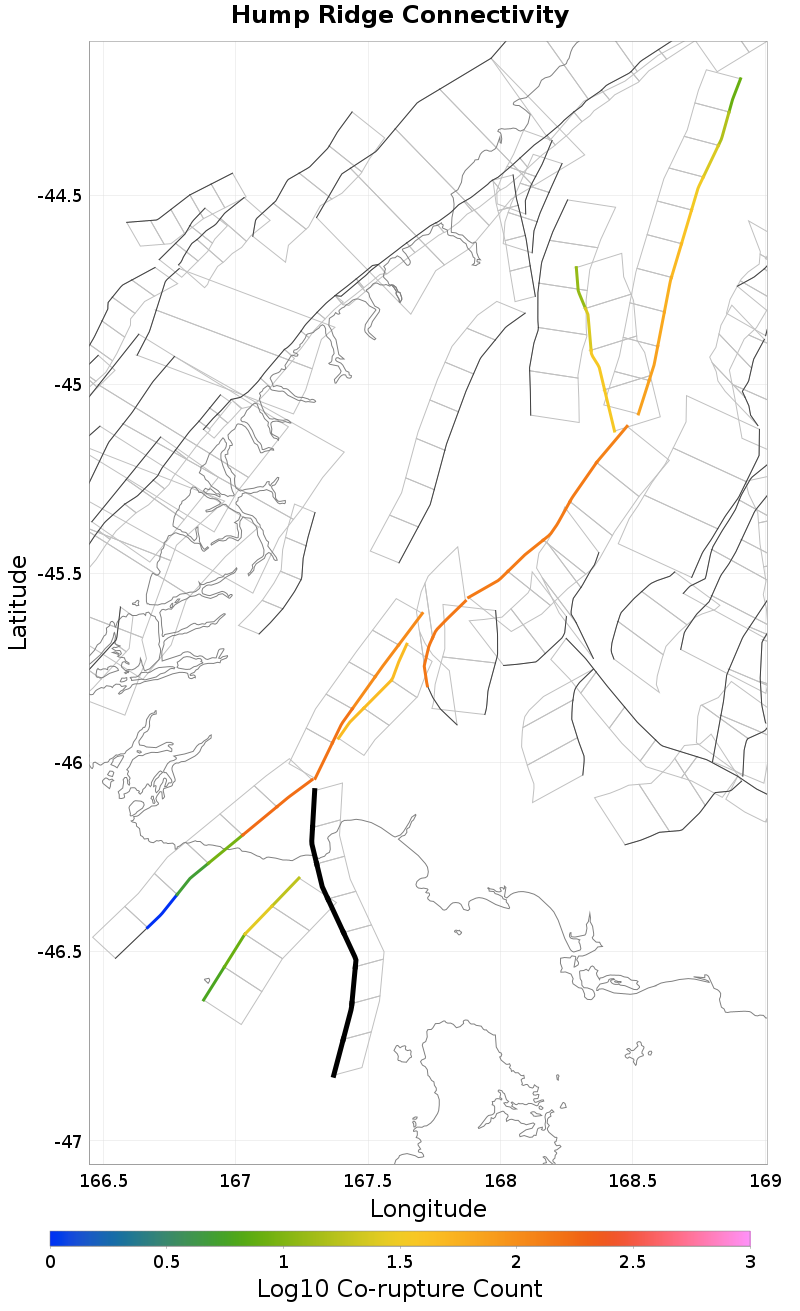

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.34 km away |
| Monowai, 10.25 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 7.916396E-6 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 154 |
| Co-rupture Rate | 7.9151805E-6 |
Solander, 5.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 2.2208856E-6 |
Monowai, 10.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 3.164332E-6 |
