Kahurangi Details
| Property | Value |
|---|---|
| Rupture Count | 1,816 |
| Ruptures Above Sect Min Mag | 1,807 |
| Ruptures w/ Nonzero Rates | 62 |
| Magnitude Range | [6.86, 8.22] |
| Length Range | [21, 453] km |
| Total Rate | 4.7813475E-5 /yr |
| Multi-Fault Rate | 4.781223E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 26 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

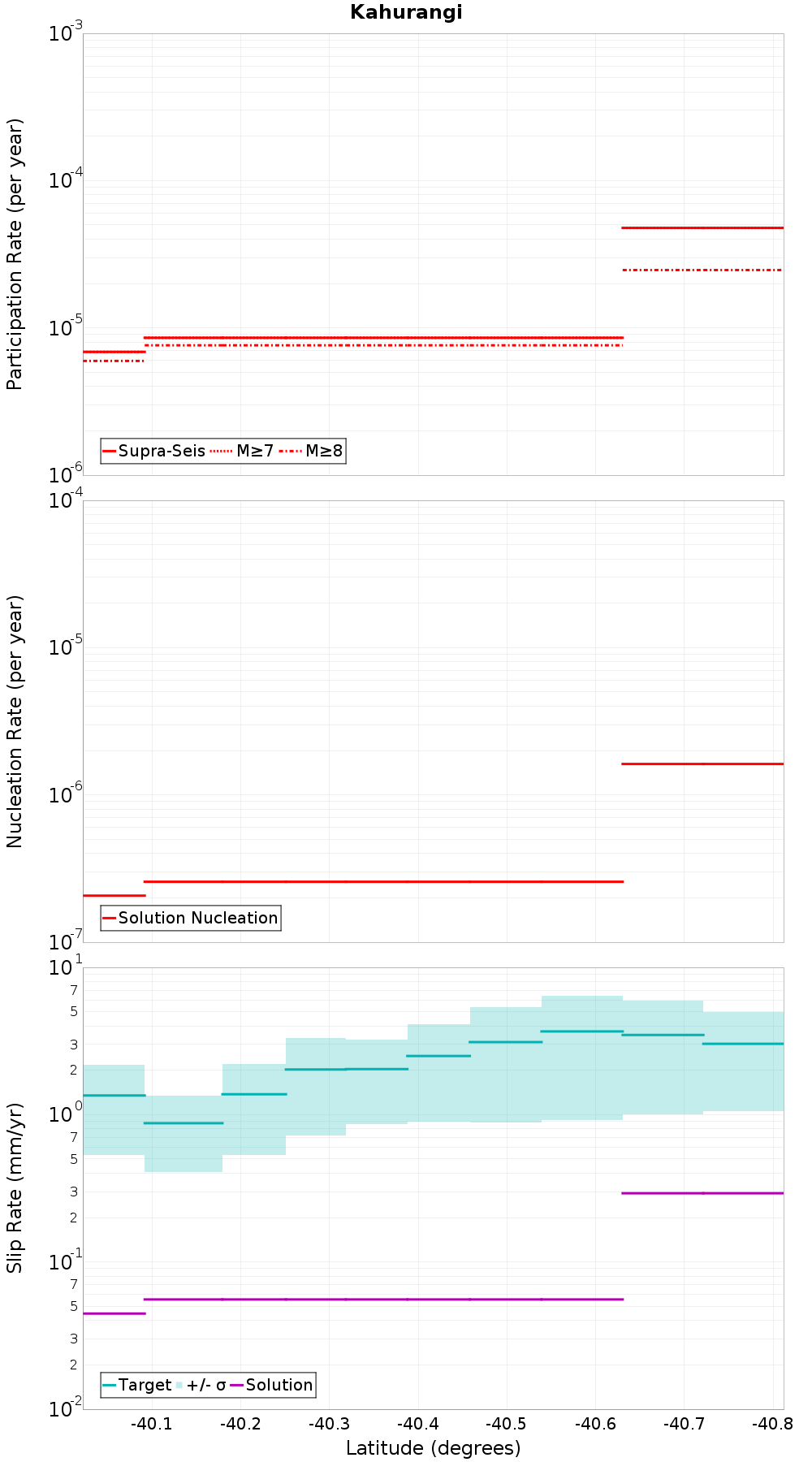

Along-Strike Values

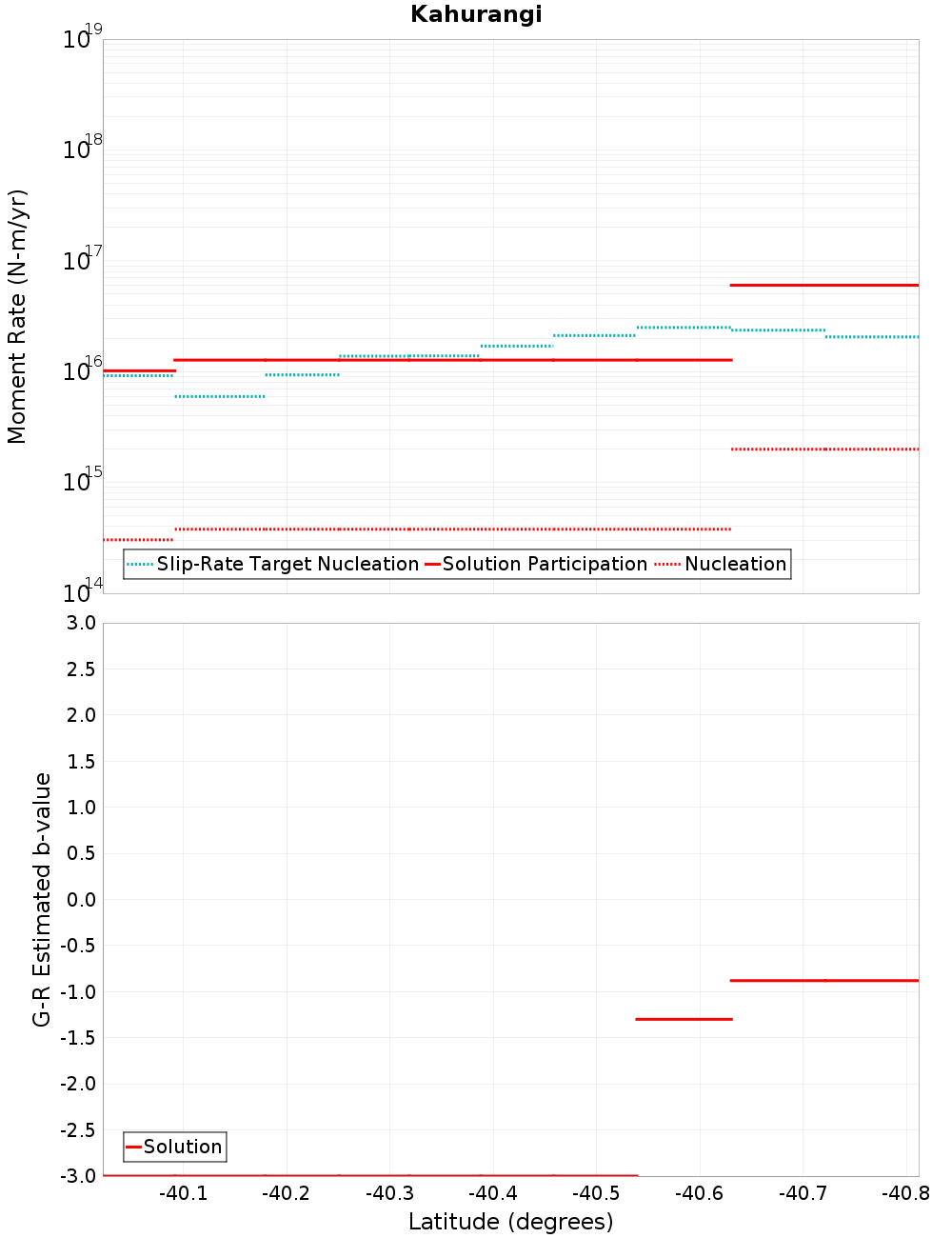

Moment-Rates and b-Values

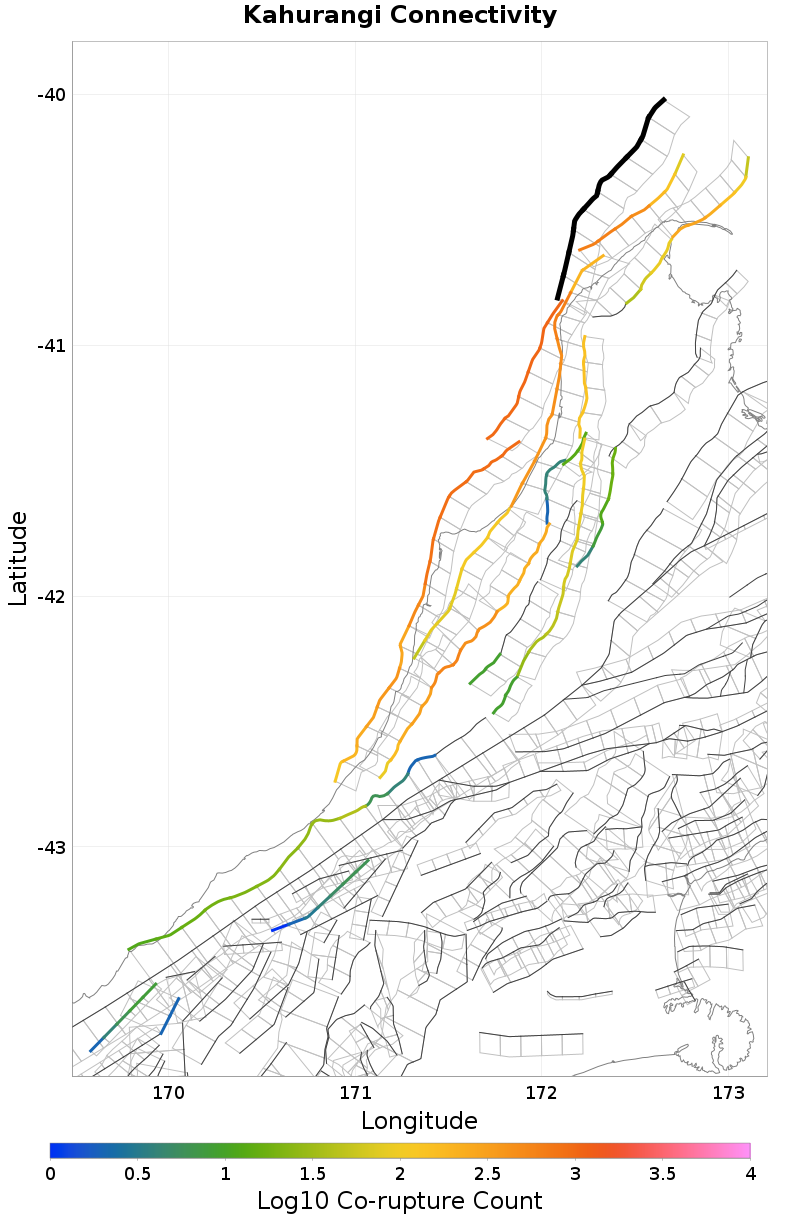

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.32 km away |
| Cape Foulwind 4, 0.34 km away |
| Wakamarama, 0.36 km away |
| Kongahau, 0.37 km away |
| Kohaihai, 11.99 km away |
Farewell, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 3.9252354E-5 |
Cape Foulwind 4, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,072 |
| Co-rupture Rate | 4.6925914E-5 |
Wakamarama, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 1.7540227E-9 |
Kongahau, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 647 |
| Co-rupture Rate | 8.861464E-7 |
Kohaihai, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 147 |
| Co-rupture Rate | 5.288272E-7 |
