Kairakau North Details
| Property | Value |
|---|---|
| Rupture Count | 49 |
| Ruptures Above Sect Min Mag | 48 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.73, 7.65] |
| Length Range | [18, 139] km |
| Total Rate | 6.745645E-5 /yr |
| Multi-Fault Rate | 6.745645E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

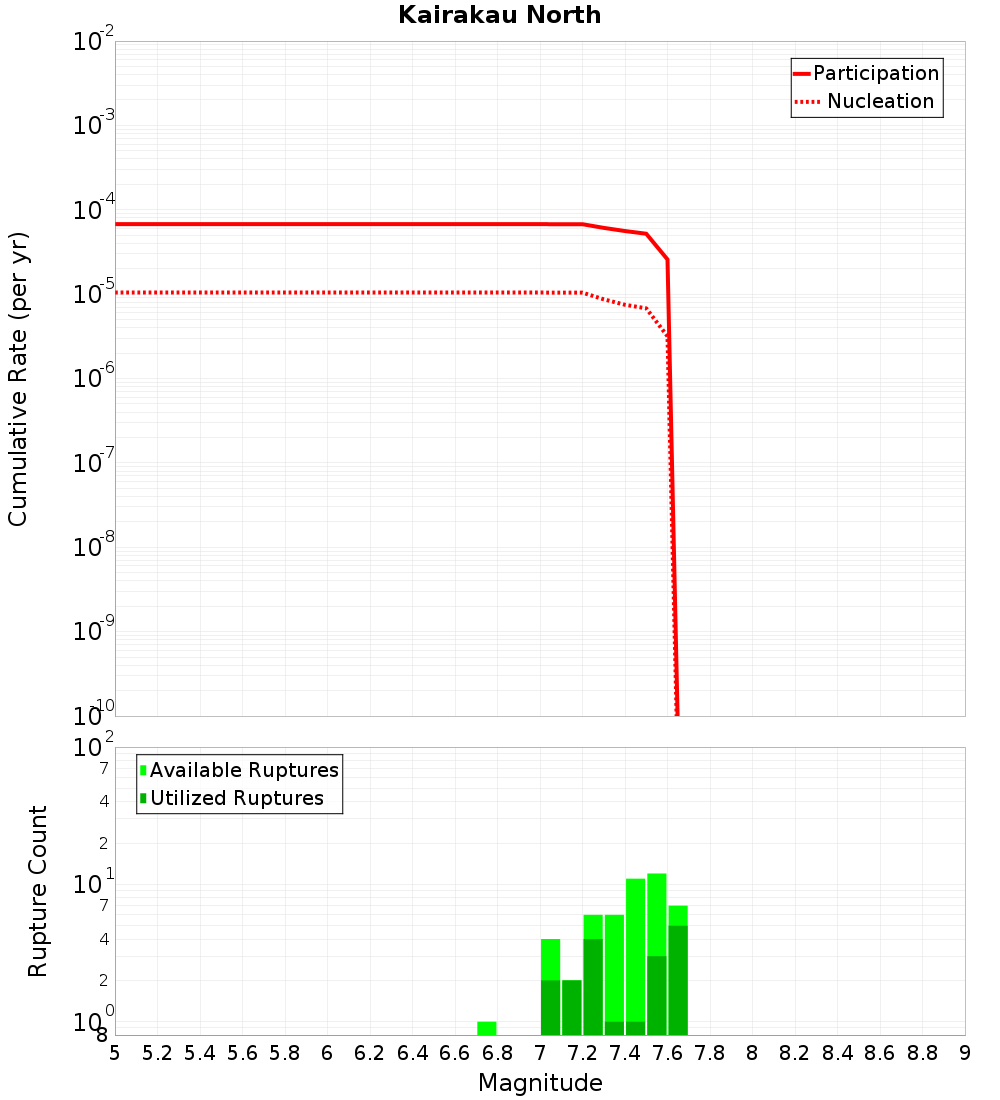

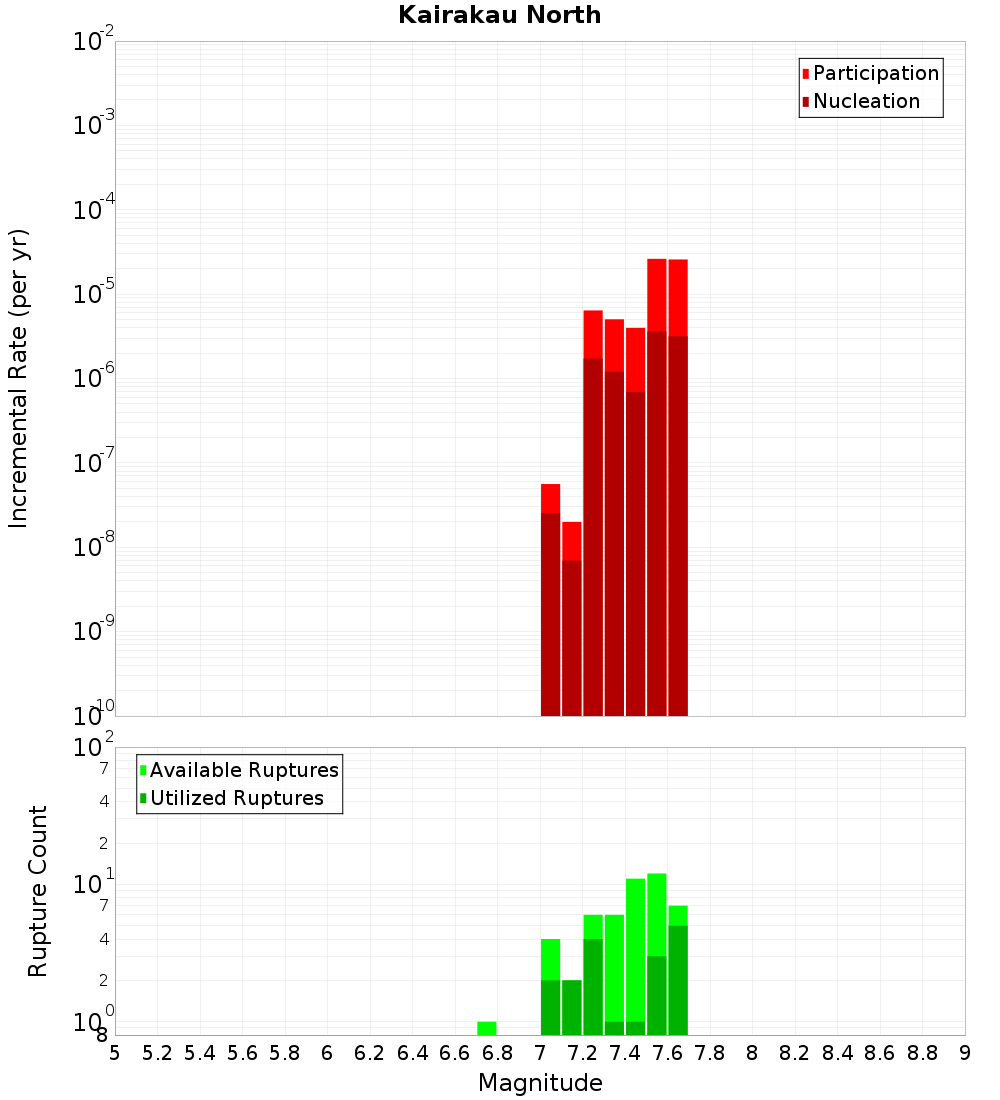

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

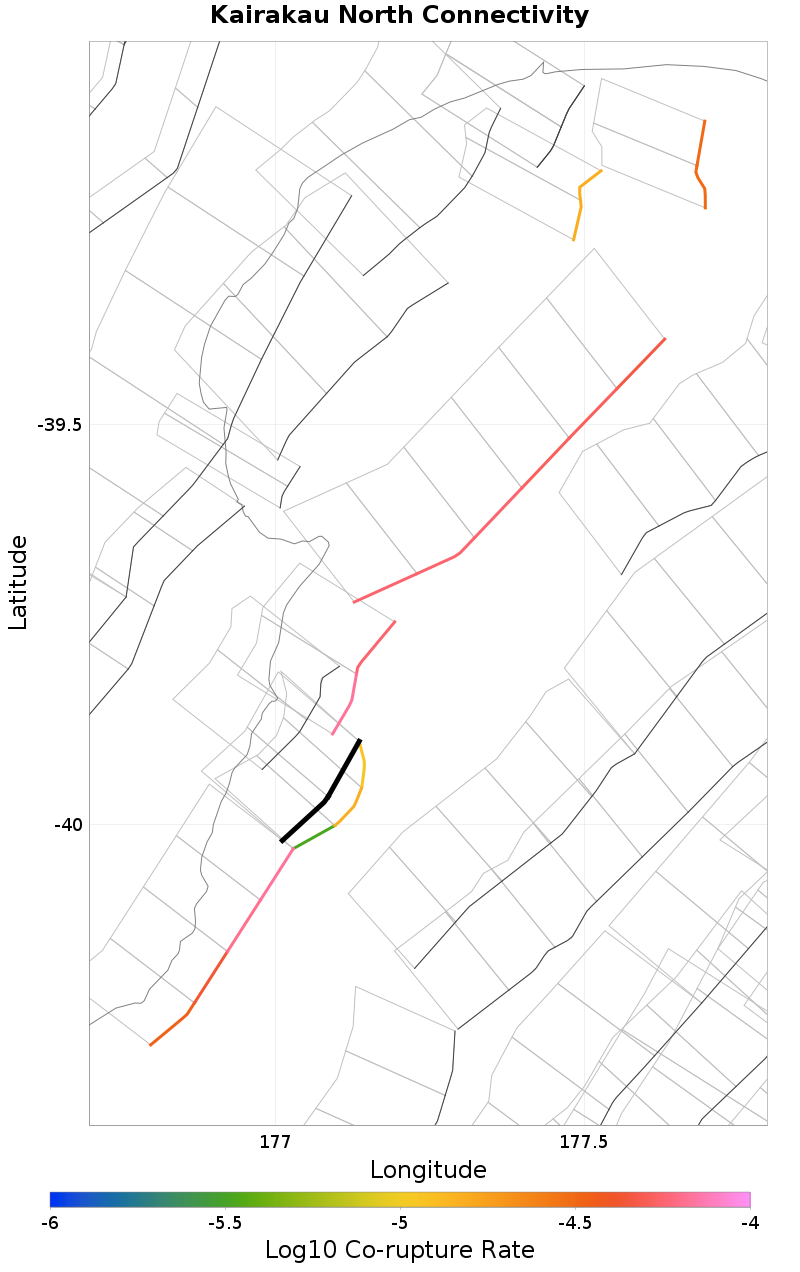

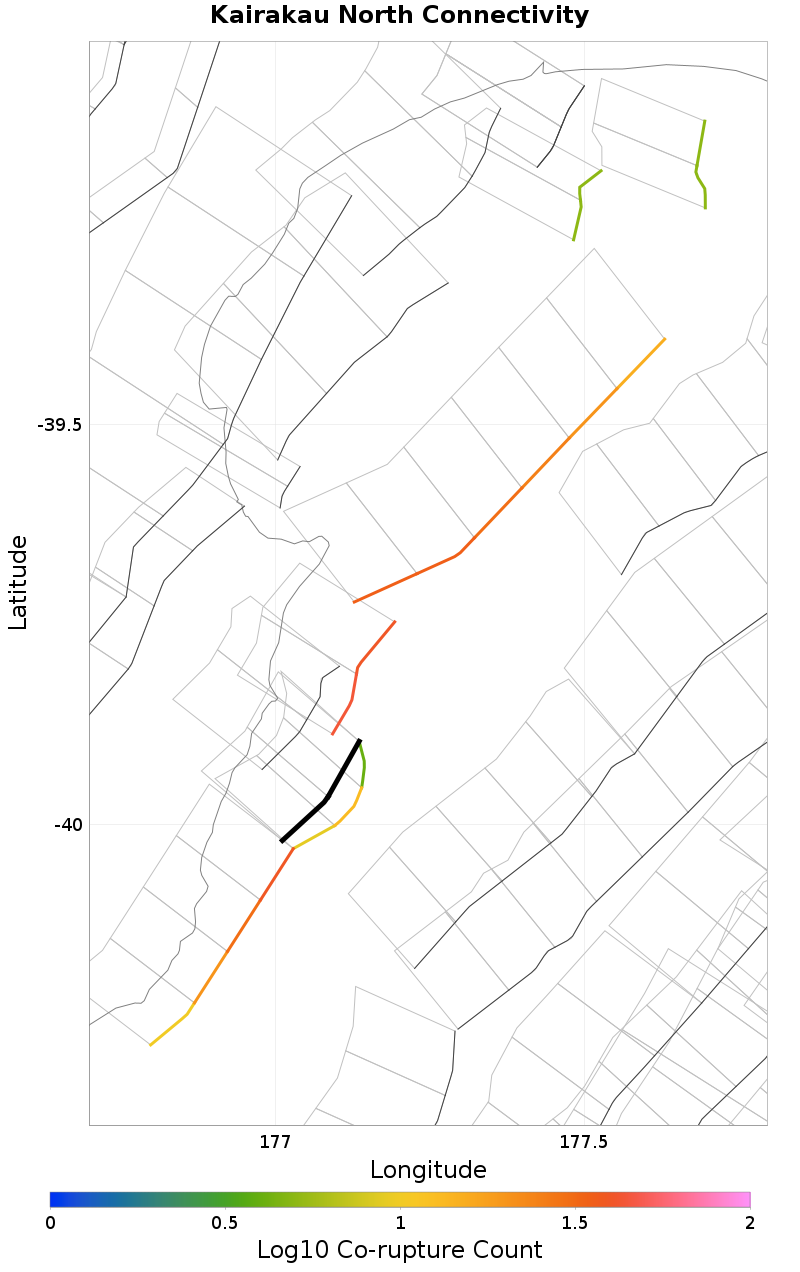

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau South, 1.29 km away |
| Waimarama 3 & 4, 2.42 km away |
| Waimarama 1 & 2, 5.05 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 1.4692489E-5 |
Kairakau South, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 6.745624E-5 |
Waimarama 3 & 4, 2.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 44 |
| Co-rupture Rate | 6.738057E-5 |
Waimarama 1 & 2, 5.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
