Liebig North Details

PropertyValue
Rupture Count20,223
Ruptures Above Sect Min Mag20,220
Ruptures w/ Nonzero Rates24
Magnitude Range[6.97, 8.50]
Length Range[23, 752] km
Total Rate9.9630764E-5 /yr
Multi-Fault Rate9.9630764E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults195

Table Of Contents

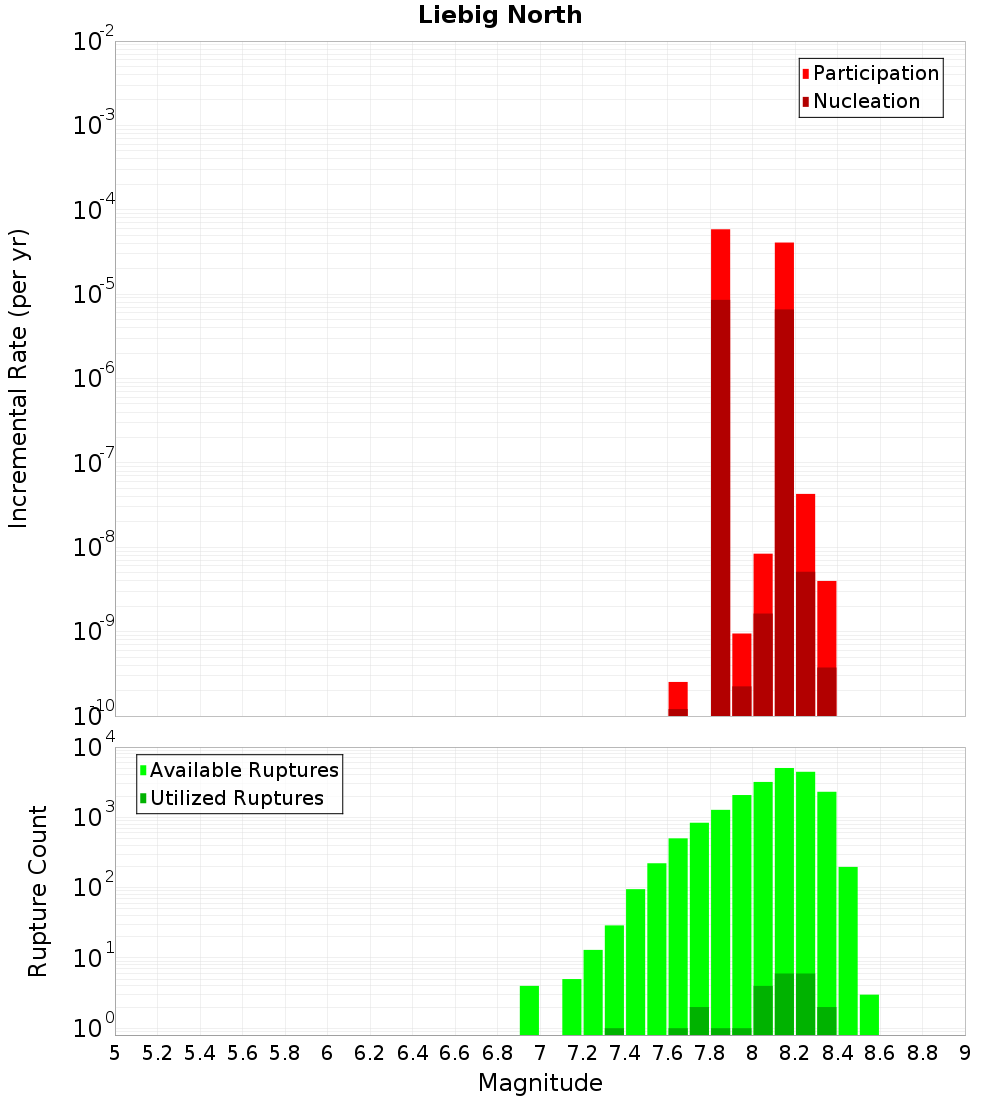

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

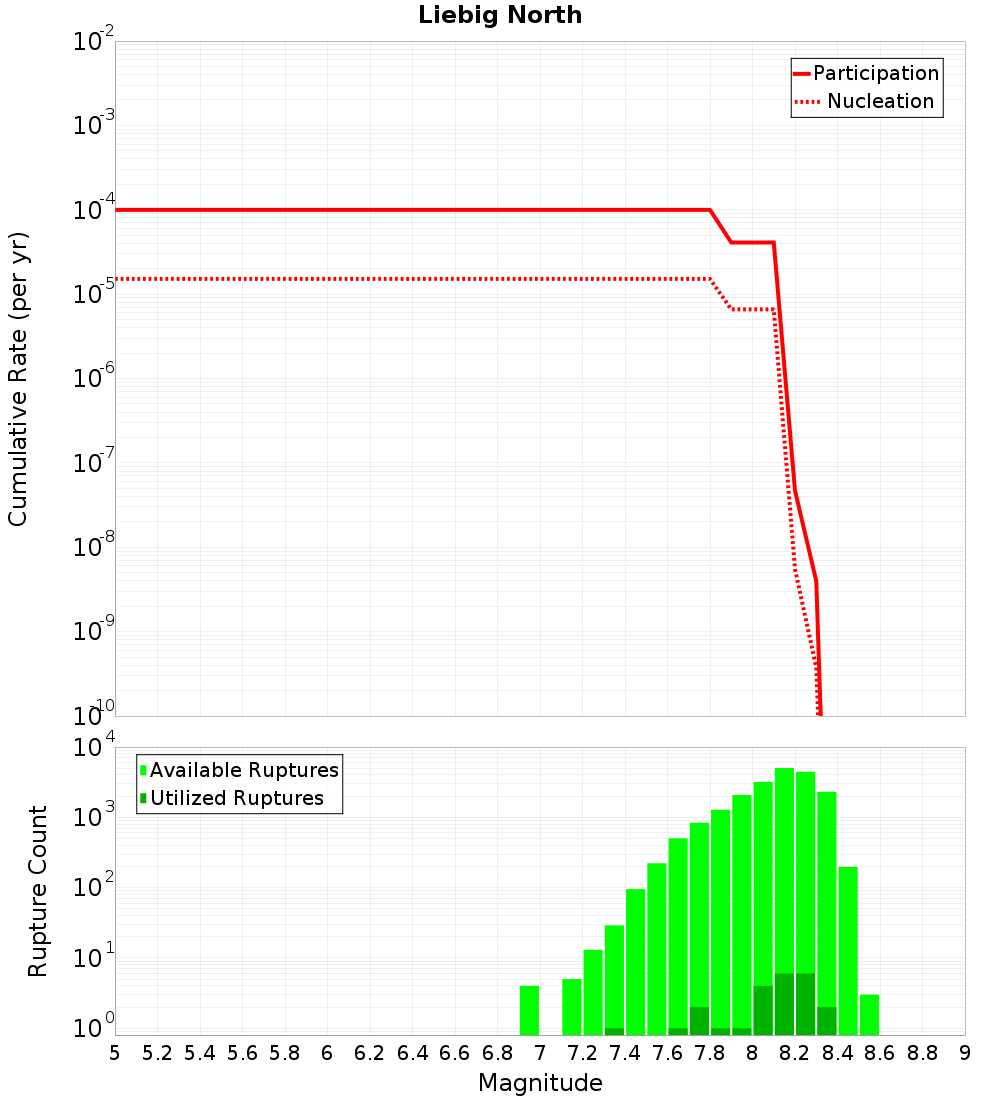

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

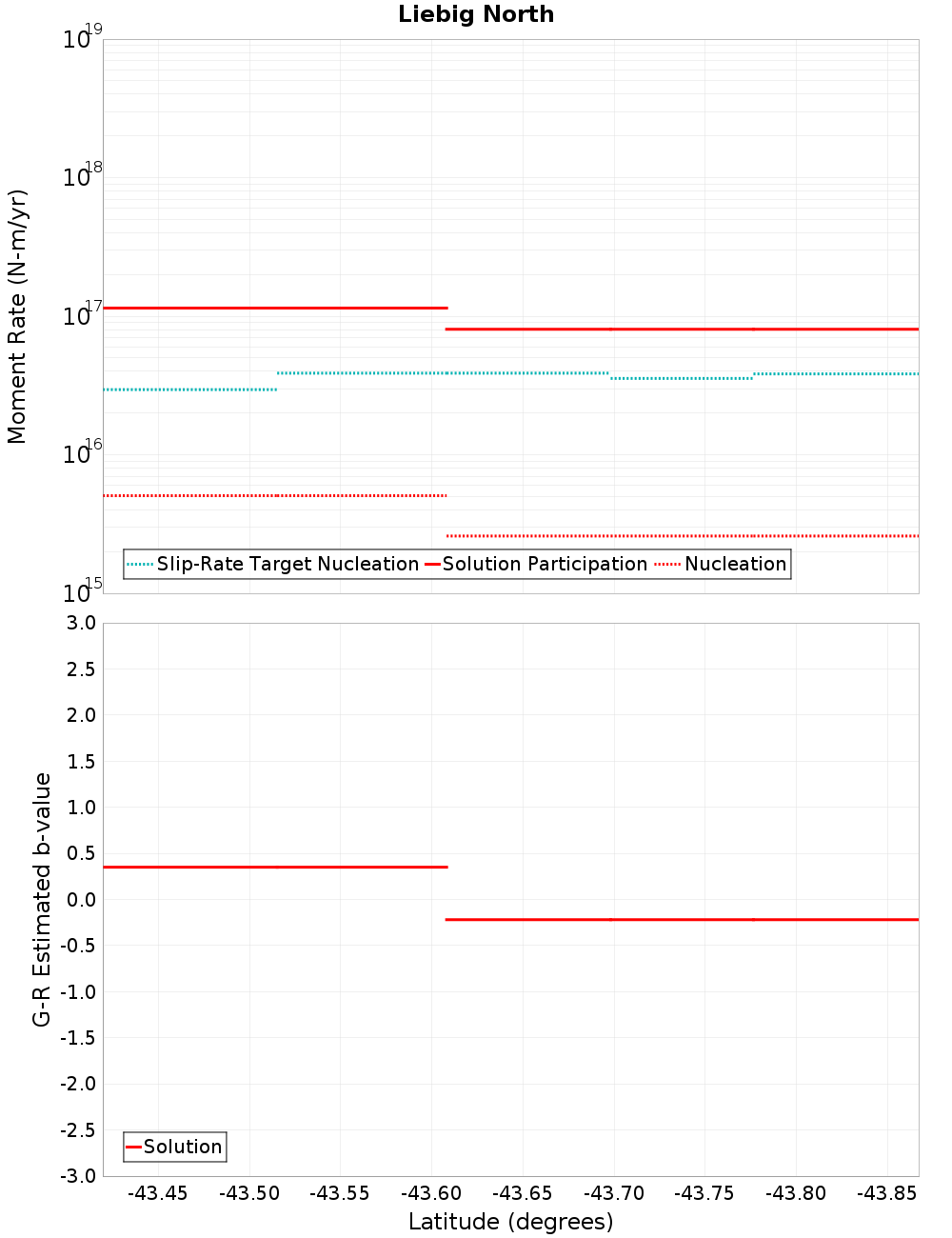

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Jacksons to Kaniere, 0.21 km awayMt Adams, 7.09 km away
Gunn Glacier, 0.27 km awayLord Range, 9.33 km away
Straight Creek, 0.33 km awayLandsborough 2, 10.63 km away
Mt Roon, 0.47 km awayLilybank, 11 km away
Hohonu South, 1.16 km awayVeil Stream, 11.19 km away
Murchison 1 - Ice Lake, 3.29 km awayBlack Blob - Haast Ridge, 11.49 km away
Macaulay 2, 5.03 km awayBarrier Range, 12.61 km away
Great Groove, 6.25 km awayHopkins, 12.8 km away
Ostler North, 6.85 km awayHuxley, 14.98 km away

Alpine: Jacksons to Kaniere, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count13,451
Co-rupture Rate9.963068E-5

Gunn Glacier, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,711
Co-rupture Rate7.570676E-12

Straight Creek, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,117
Co-rupture Rate0.0

Mt Roon, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate8.5328536E-11

Hohonu South, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count6,588
Co-rupture Rate2.4433324E-9

Murchison 1 - Ice Lake, 3.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,436
Co-rupture Rate0.0

Macaulay 2, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Great Groove, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count878
Co-rupture Rate7.570676E-12

Ostler North, 6.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count10,493
Co-rupture Rate4.09291E-5

Mt Adams, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count1,352
Co-rupture Rate1.2036084E-9

Lord Range, 9.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count1,827
Co-rupture Rate1.211179E-9

Landsborough 2, 10.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count455
Co-rupture Rate7.570676E-12

Lilybank, 11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Veil Stream, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Black Blob - Haast Ridge, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count941
Co-rupture Rate5.8698817E-5

Barrier Range, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count884
Co-rupture Rate2.4433324E-9

Hopkins, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate0.0

Huxley, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count146
Co-rupture Rate0.0
