Little Valley Details

PropertyValue
Rupture Count6,037
Ruptures Above Sect Min Mag6,036
Ruptures w/ Nonzero Rates89
Magnitude Range[7.21, 8.39]
Length Range[29, 539] km
Total Rate6.909706E-5 /yr
Multi-Fault Rate6.909706E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults67

Table Of Contents

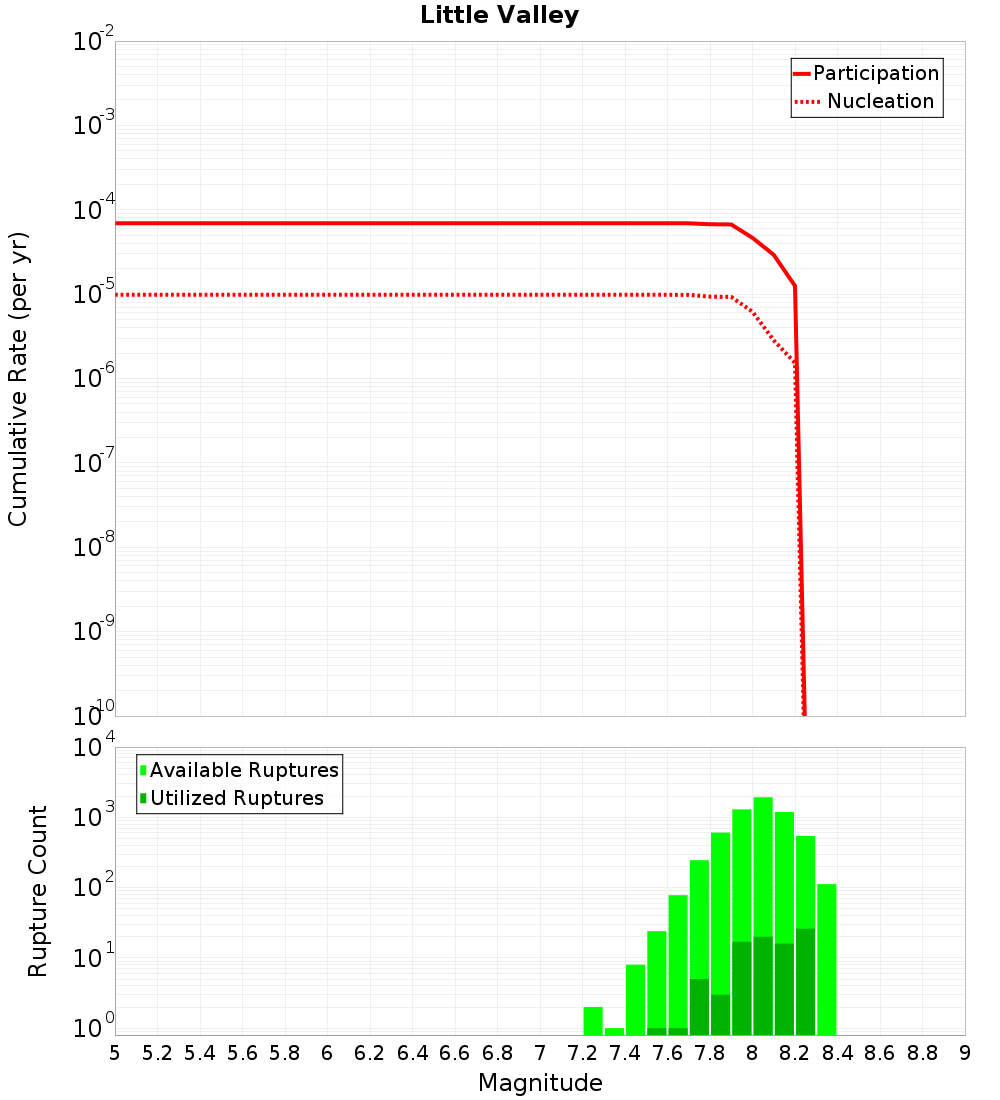

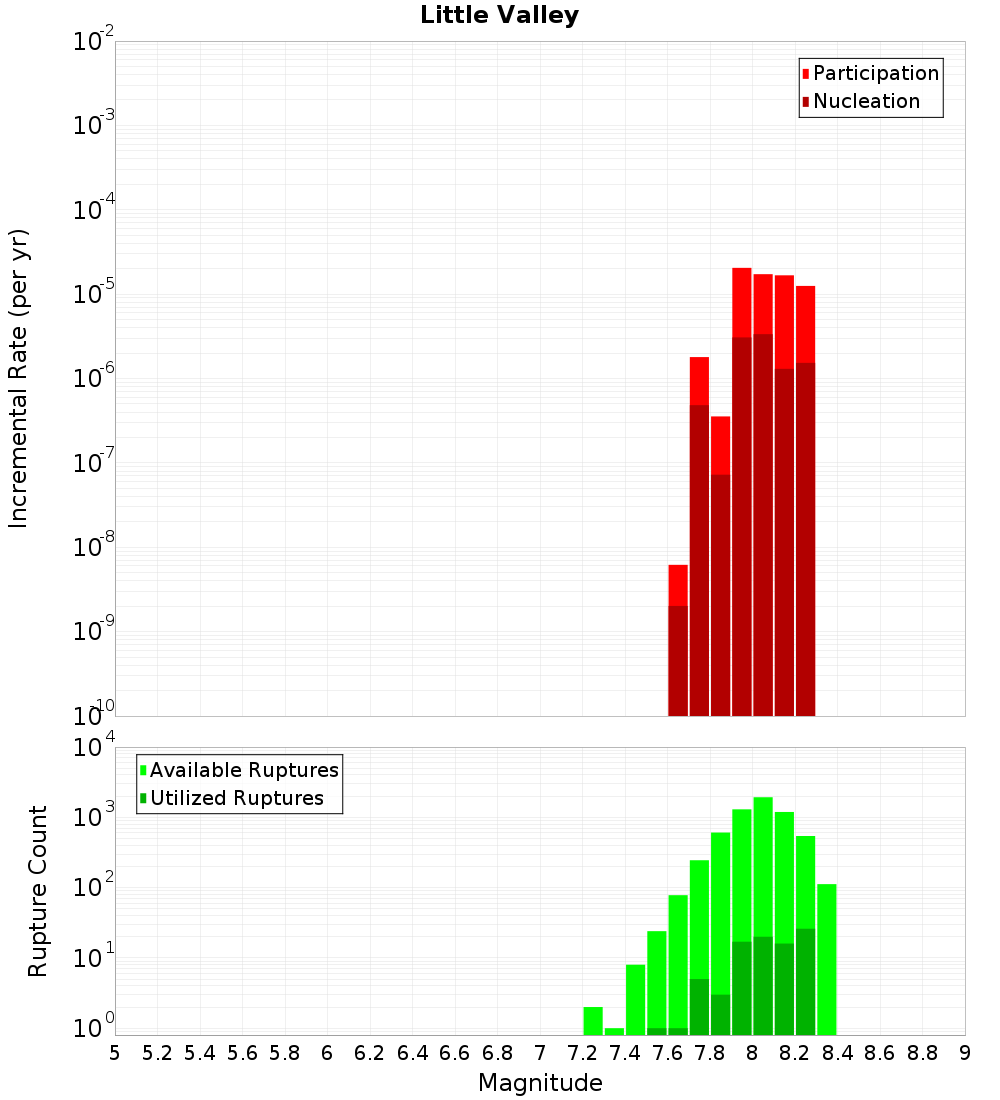

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

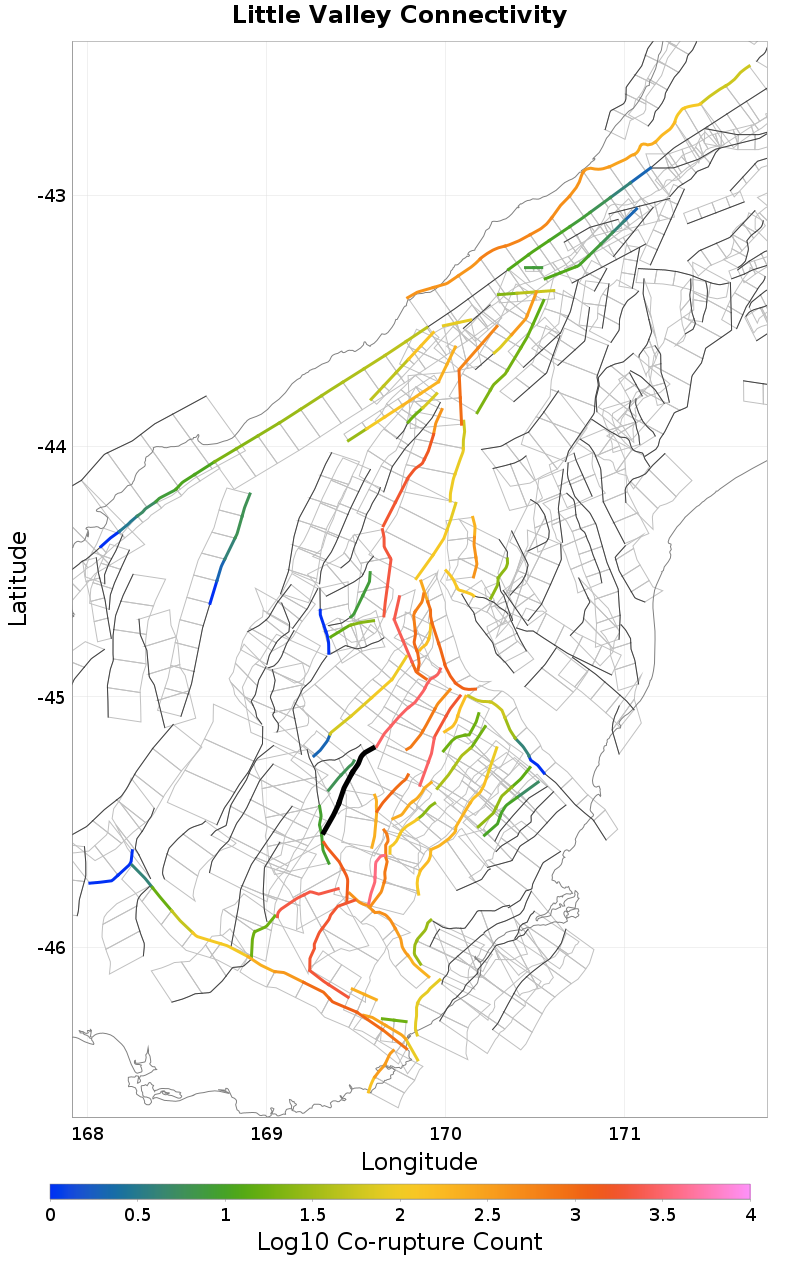

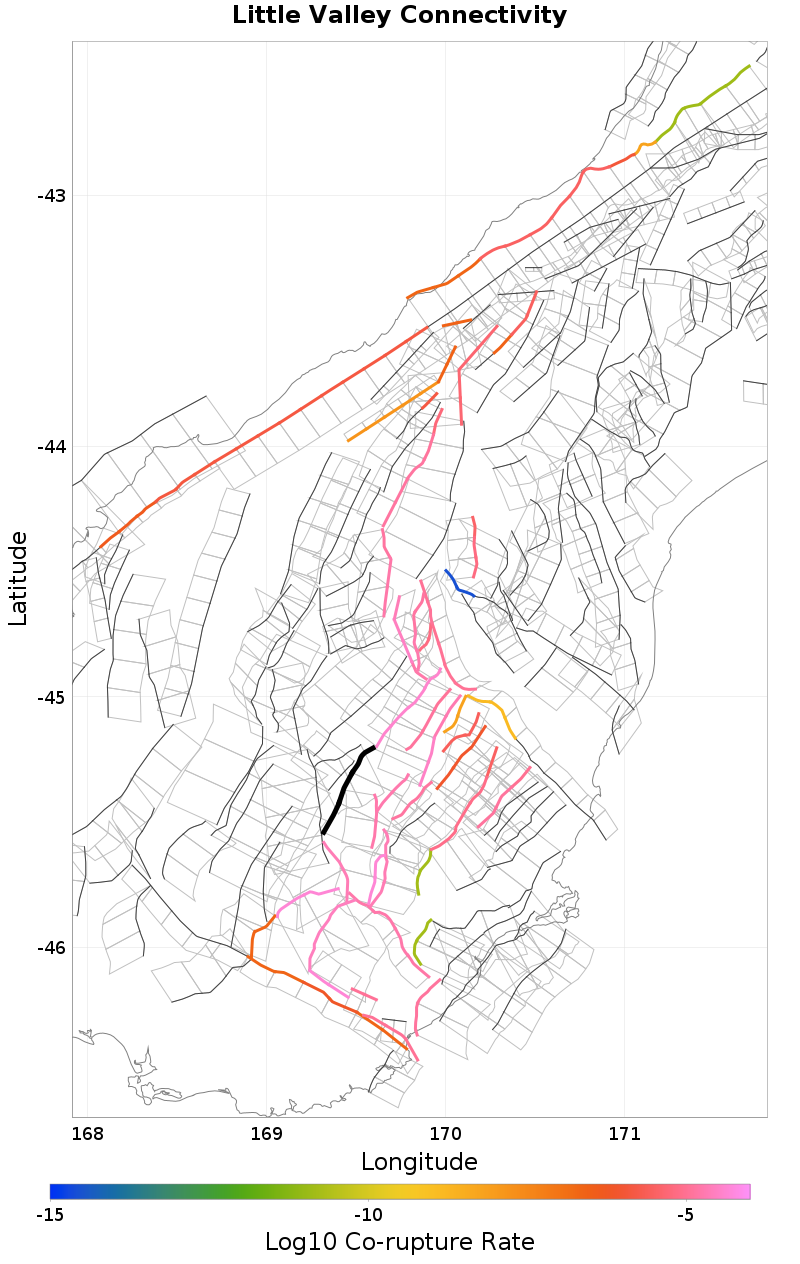

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lake Onslow, 0.26 km away
Gimmerburn, 0.27 km away
Backbone, 0.41 km away
Hyde South - The Twins, 0.64 km away
Old Man, 1.09 km away
Raggedy - Blackstone, 1.46 km away
Galloway Shanty, 2.19 km away
Galloway, 2.76 km away
Hyde North, 4.16 km away
Teviot, 4.3 km away
Long Valley, 5.17 km away
Garibaldi, 6.64 km away
Beaumont River, 10.65 km away
Pylap, 11.65 km away

Lake Onslow, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate1.7052063E-5

Gimmerburn, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count2,869
Co-rupture Rate3.1766125E-5

Backbone, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count3,678
Co-rupture Rate4.423473E-5

Hyde South - The Twins, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate1.5004694E-11

Old Man, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Raggedy - Blackstone, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count3,048
Co-rupture Rate3.733094E-5

Galloway Shanty, 2.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate0.0

Galloway, 2.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 4.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count205
Co-rupture Rate7.708292E-6

Teviot, 4.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,305
Co-rupture Rate2.2178521E-5

Long Valley, 5.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,068
Co-rupture Rate1.7758117E-5

Garibaldi, 6.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count715
Co-rupture Rate1.23670125E-5

Beaumont River, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count706
Co-rupture Rate2.0942669E-5

Pylap, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count242
Co-rupture Rate1.3234378E-5
