Matiri West Details

PropertyValue
Rupture Count5,811
Ruptures Above Sect Min Mag5,809
Ruptures w/ Nonzero Rates69
Magnitude Range[6.96, 8.47]
Length Range[23, 813] km
Total Rate5.377324E-5 /yr
Multi-Fault Rate5.377324E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults88

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

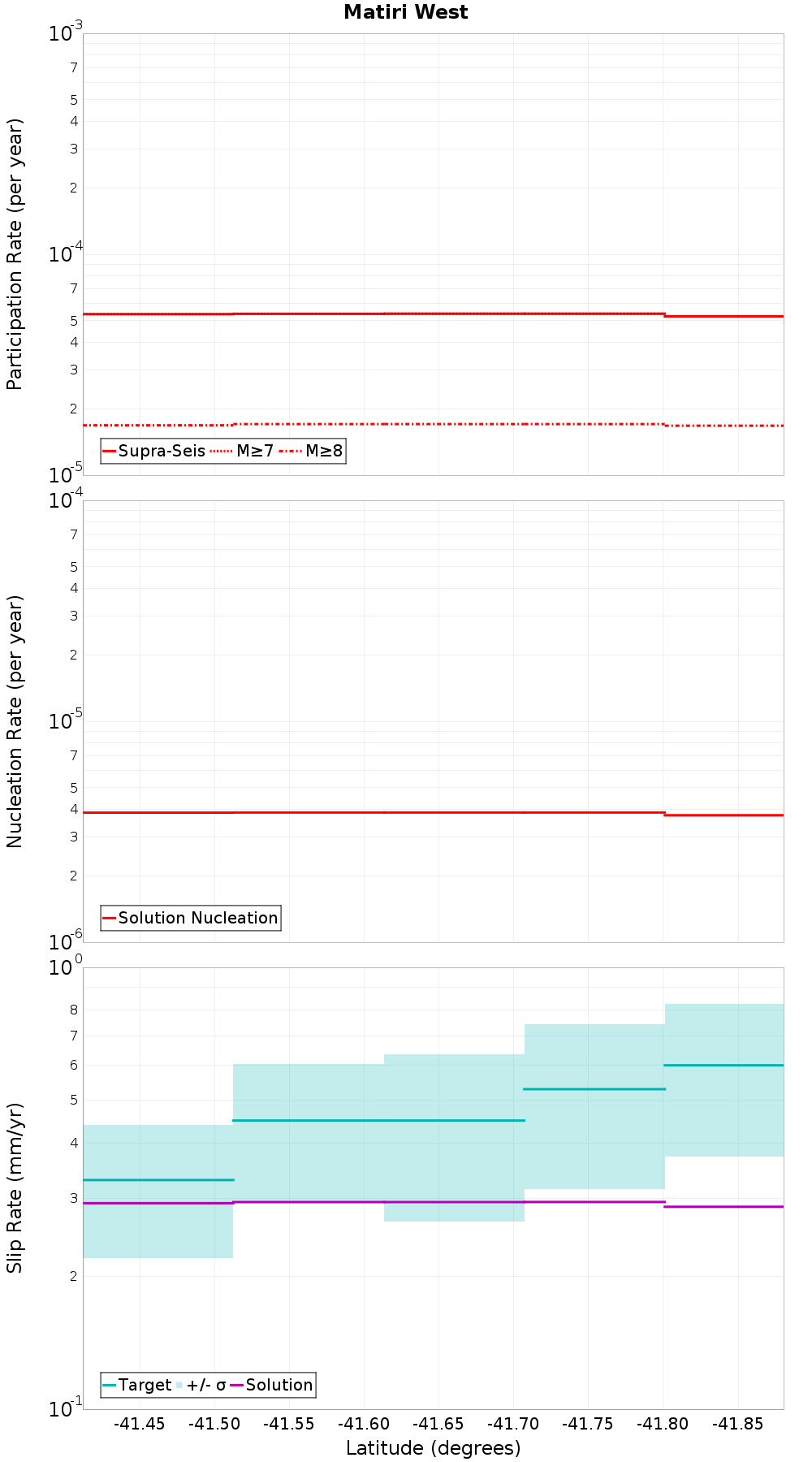

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

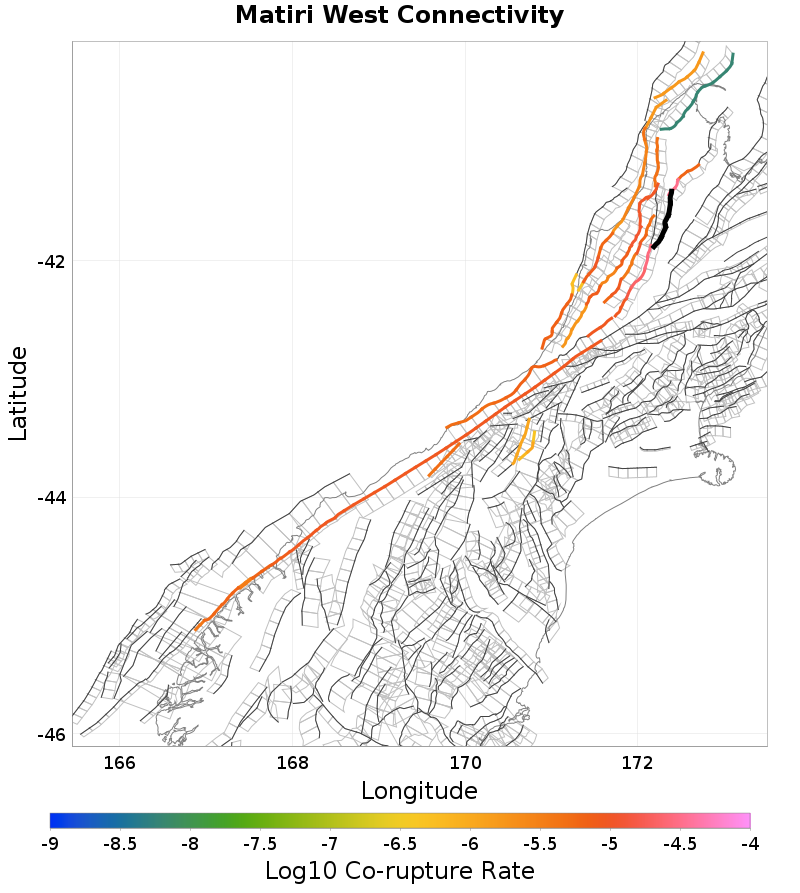

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kohaihai South, 0.15 km away
Lyell, 0.19 km away
White Creek, 0.2 km away
Karamea South, 0.33 km away
Glasgow, 1.09 km away
Kohaihai, 1.42 km away
Kongahau, 10.55 km away
Karamea, 12.45 km away
Lyell South, 13.9 km away

Kohaihai South, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count440
Co-rupture Rate9.73045E-6

Lyell, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count1,026
Co-rupture Rate1.02480635E-5

White Creek, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count4,314
Co-rupture Rate2.749213E-5

Karamea South, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count720
Co-rupture Rate3.2069755E-5

Glasgow, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count602
Co-rupture Rate1.0631462E-5

Kohaihai, 1.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count640
Co-rupture Rate4.5575134E-6

Kongahau, 10.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count933
Co-rupture Rate4.5770794E-6

Karamea, 12.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count282
Co-rupture Rate6.112824E-6

Lyell South, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count1,069
Co-rupture Rate8.728359E-6
