Needles Details

Property	Value
Rupture Count	129,569
Ruptures Above Sect Min Mag	129,560
Ruptures w/ Nonzero Rates	414
Magnitude Range	[6.68, 8.57]
Length Range	[17, 1,083] km
Total Rate	1.9526048E-4 /yr
Multi-Fault Rate	1.9526048E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	296

Table Of Contents

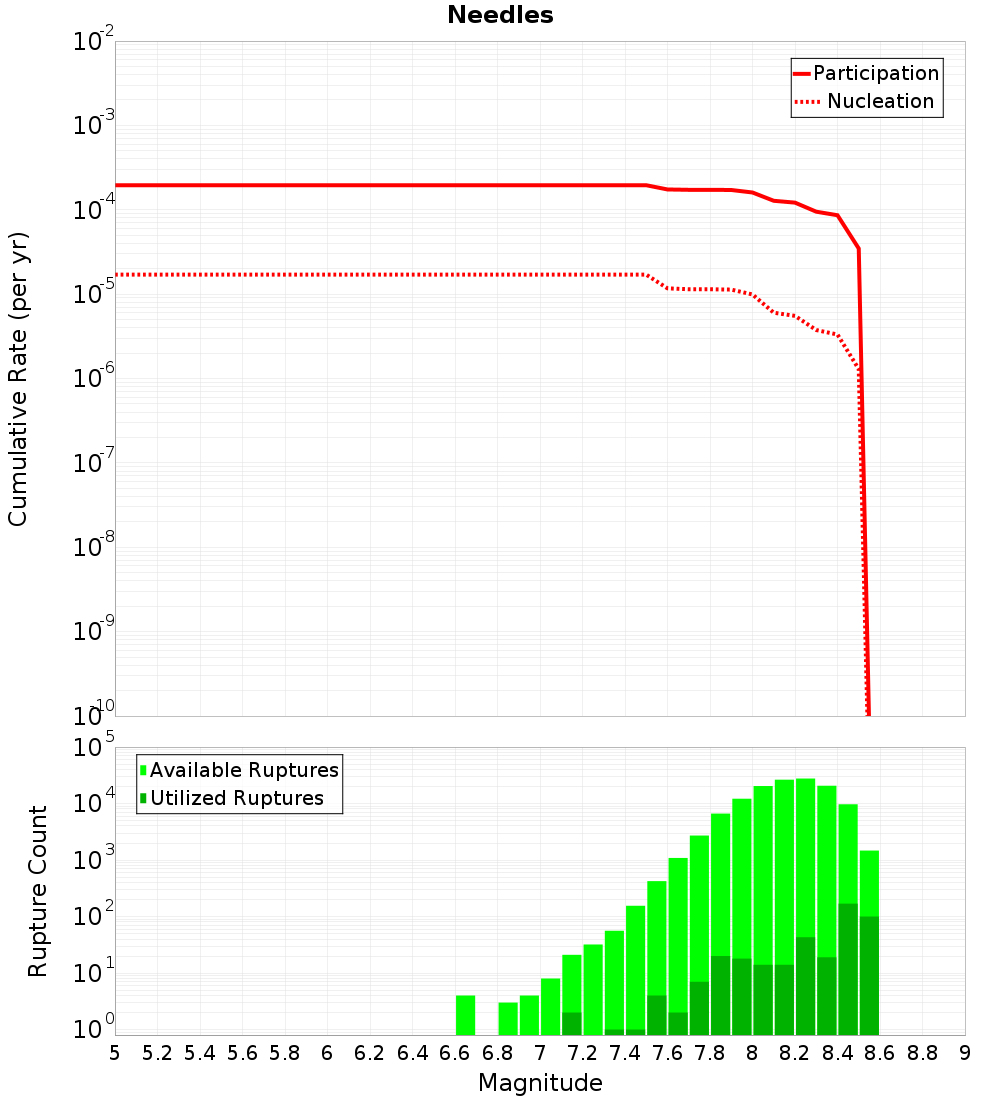

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

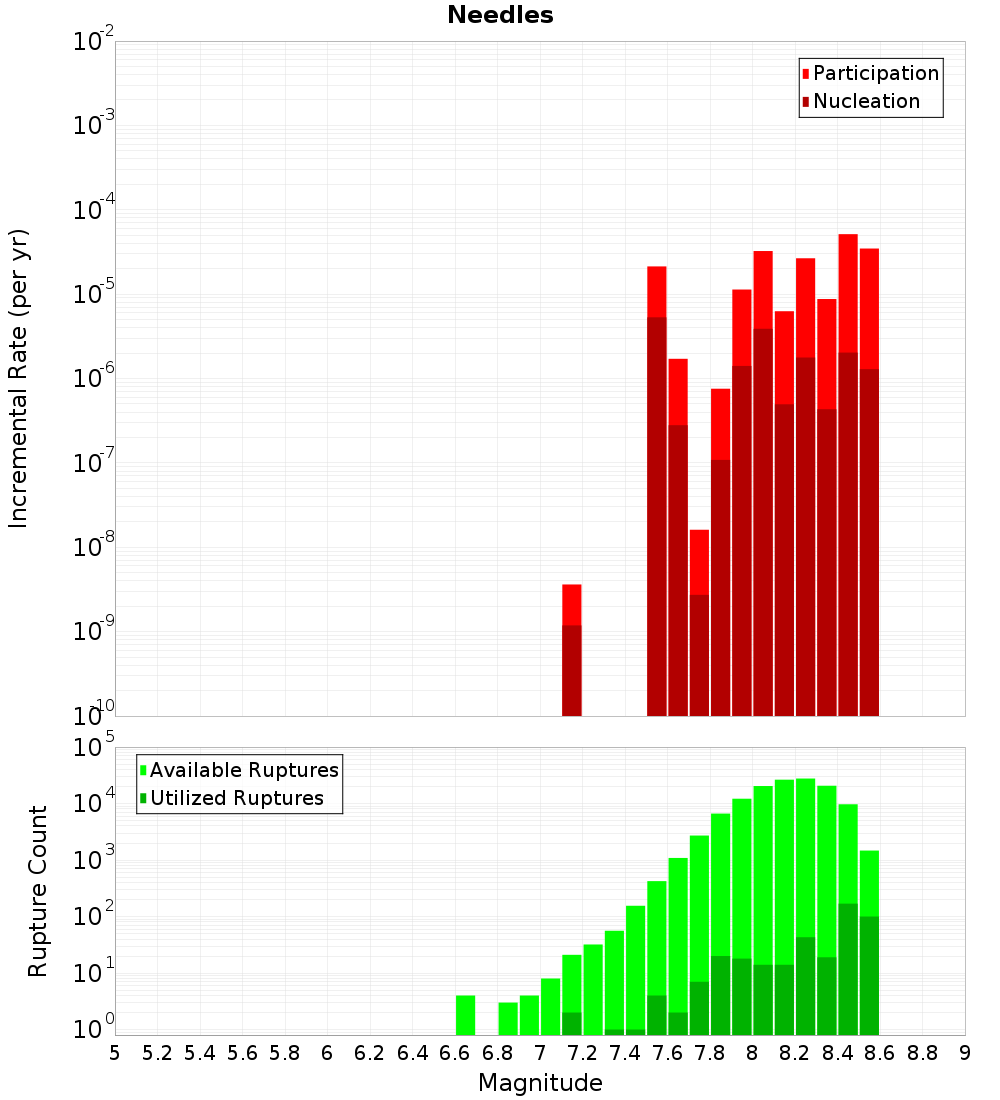

Magnitude-Frequency Distribution

Incremental	Cumulative

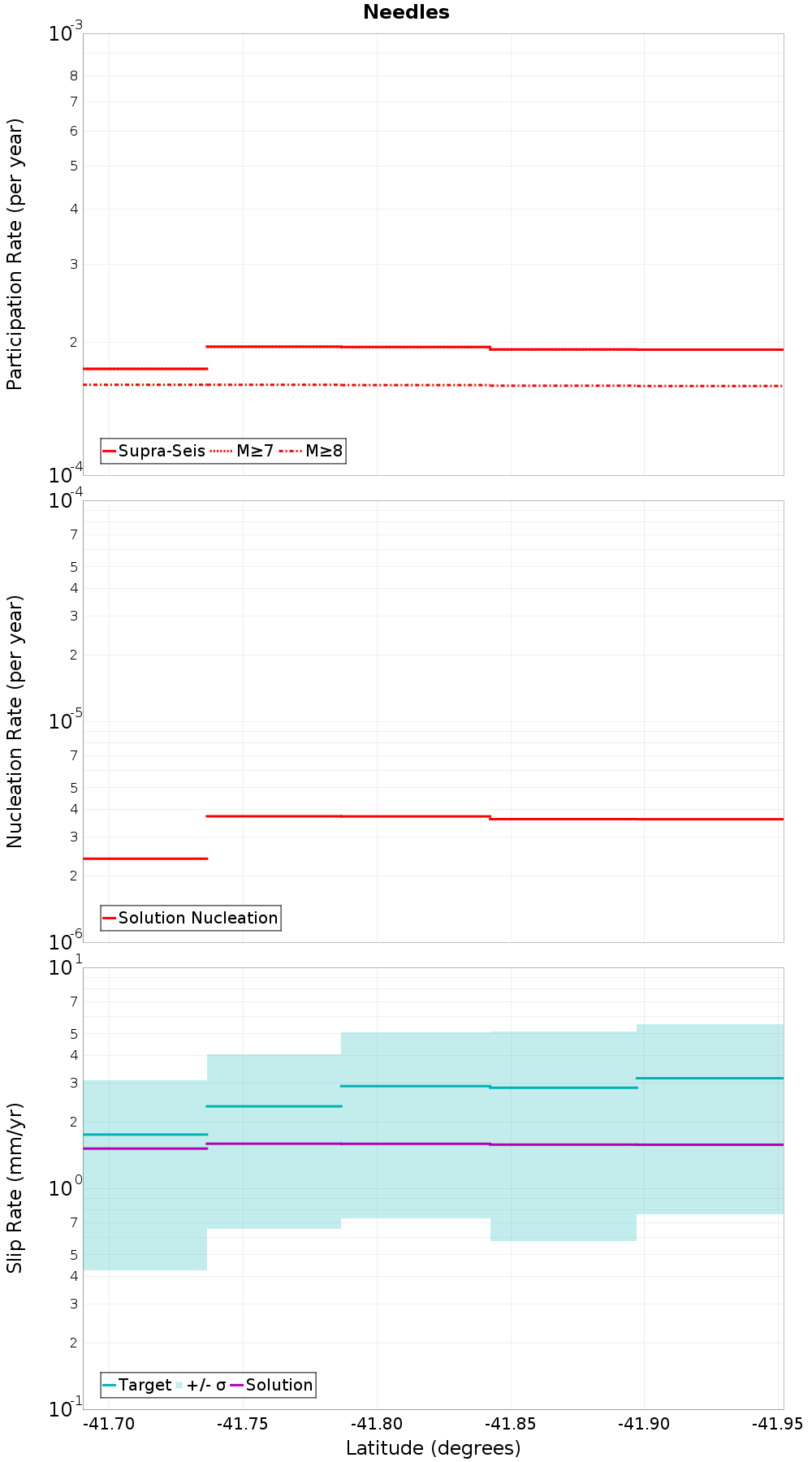

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
London Hill, 0 km away
BooBoo, 0.17 km away
Needles East 2, 0.22 km away
Vernon 4, 3.69 km away
Wairarapa: Needles, 4.57 km away
Chancet, 6.52 km away
Cloudy 3, 9.38 km away
Wharanui, 10.35 km away
Clarence: Northeast, 11.97 km away
Upper Slope, 14.3 km away
Vernon 3, 14.87 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	110,881
Co-rupture Rate	1.9228218E-4

London Hill, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	4,349
Co-rupture Rate	4.0846114E-8

BooBoo, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	83,122
Co-rupture Rate	8.0362115E-5

Needles East 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,520
Co-rupture Rate	2.4553955E-7

Vernon 4, 3.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	false
Co-rupture Count	216
Co-rupture Rate	0.0

Wairarapa: Needles, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	38,614
Co-rupture Rate	9.3604576E-5

Chancet, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	831
Co-rupture Rate	1.6705257E-11

Cloudy 3, 9.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	false
Co-rupture Count	776
Co-rupture Rate	9.681279E-7

Wharanui, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	false
Co-rupture Count	284
Co-rupture Rate	6.1813055E-11

Upper Slope, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	false
Co-rupture Count	605
Co-rupture Rate	3.8886714E-8

Vernon 3, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
