Rapuwai Details
| Property | Value |
|---|---|
| Rupture Count | 748 |
| Ruptures Above Sect Min Mag | 746 |
| Ruptures w/ Nonzero Rates | 32 |
| Magnitude Range | [6.88, 8.23] |
| Length Range | [20, 506] km |
| Total Rate | 8.712092E-5 /yr |
| Multi-Fault Rate | 8.712092E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

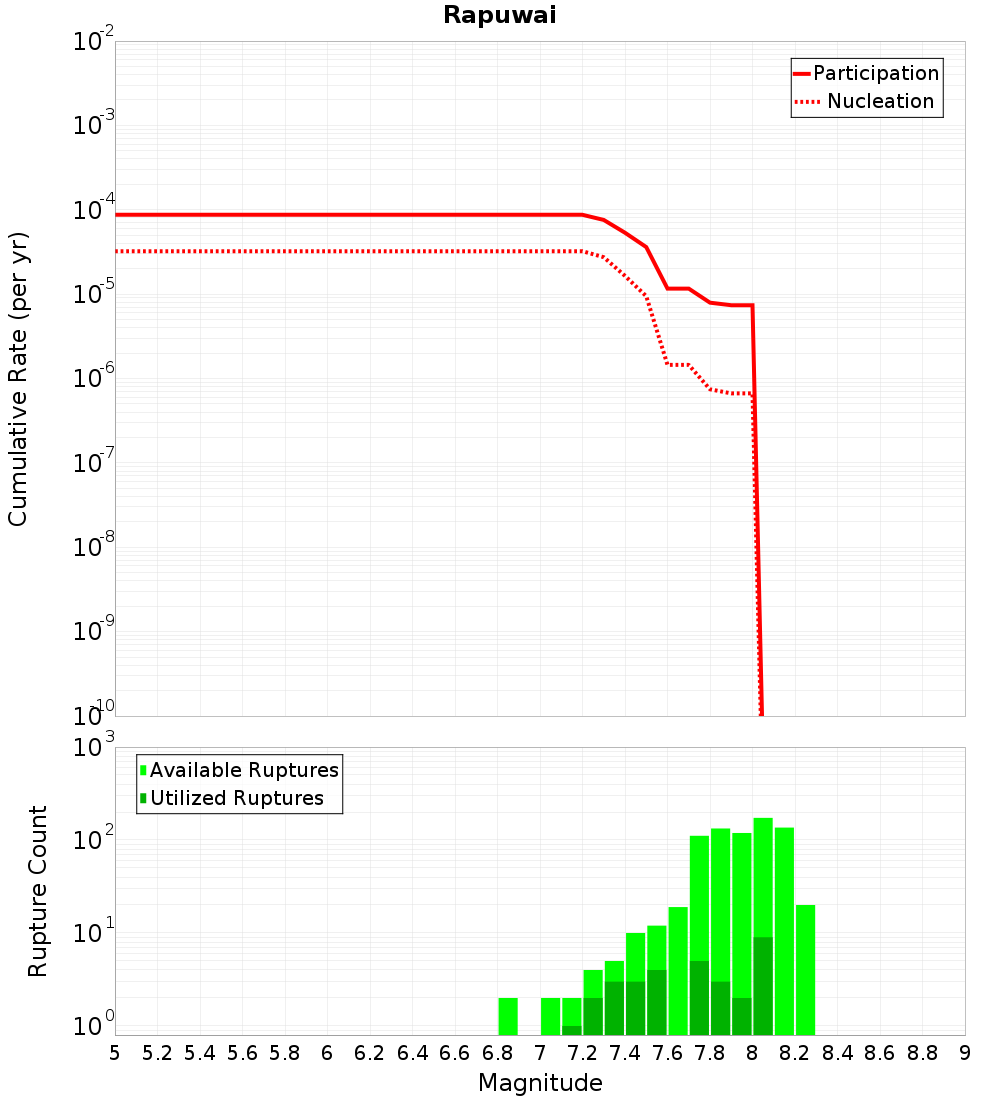

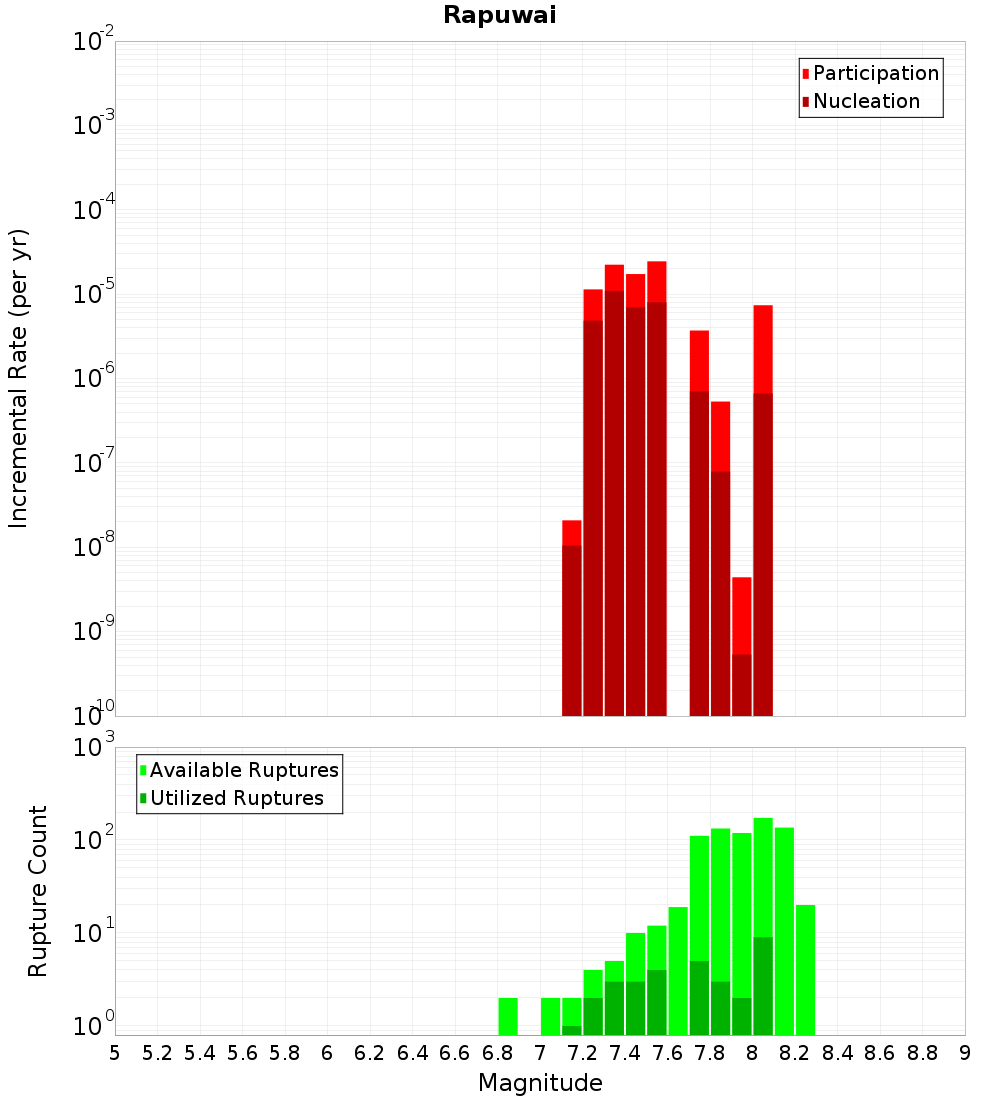

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

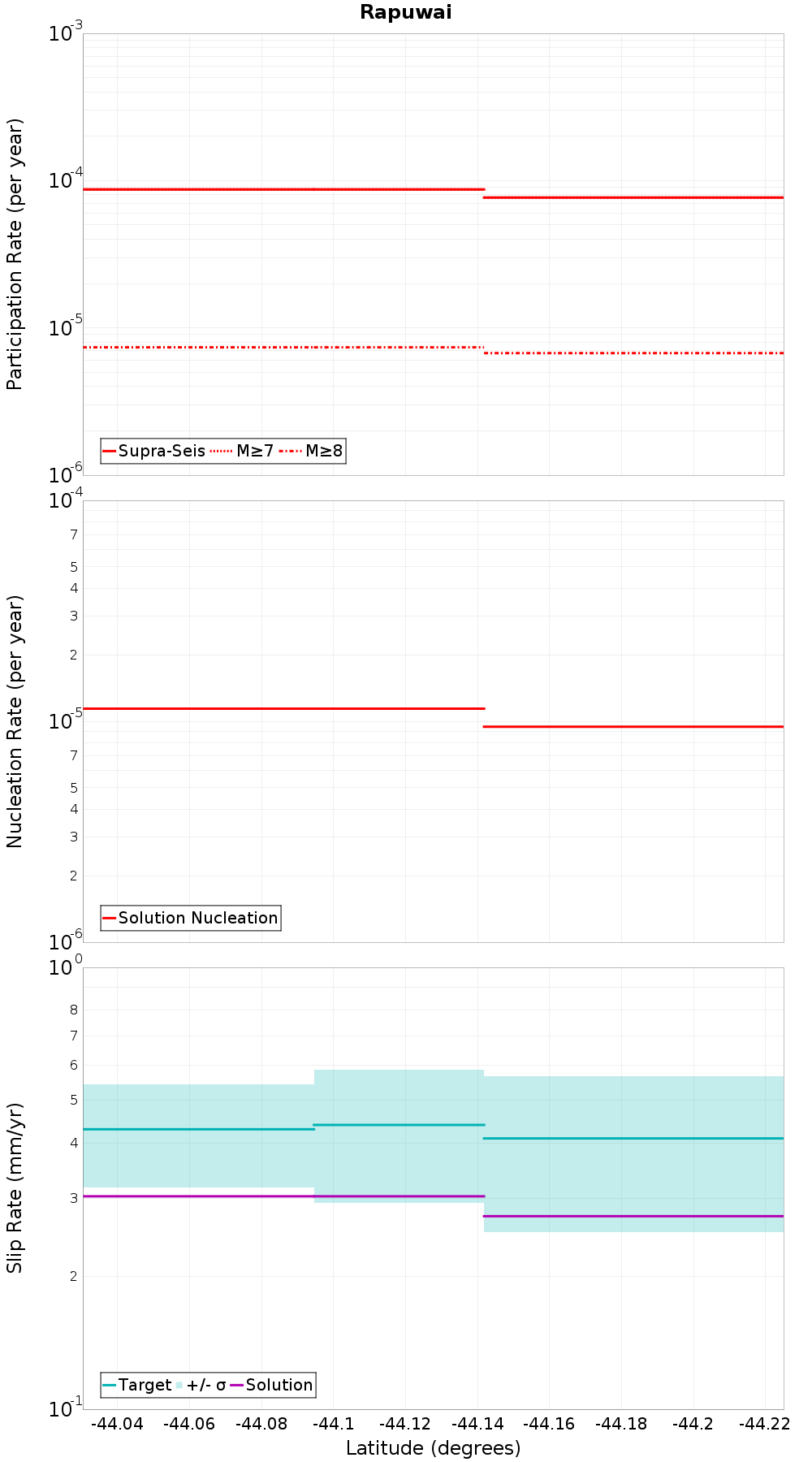

Along-Strike Values

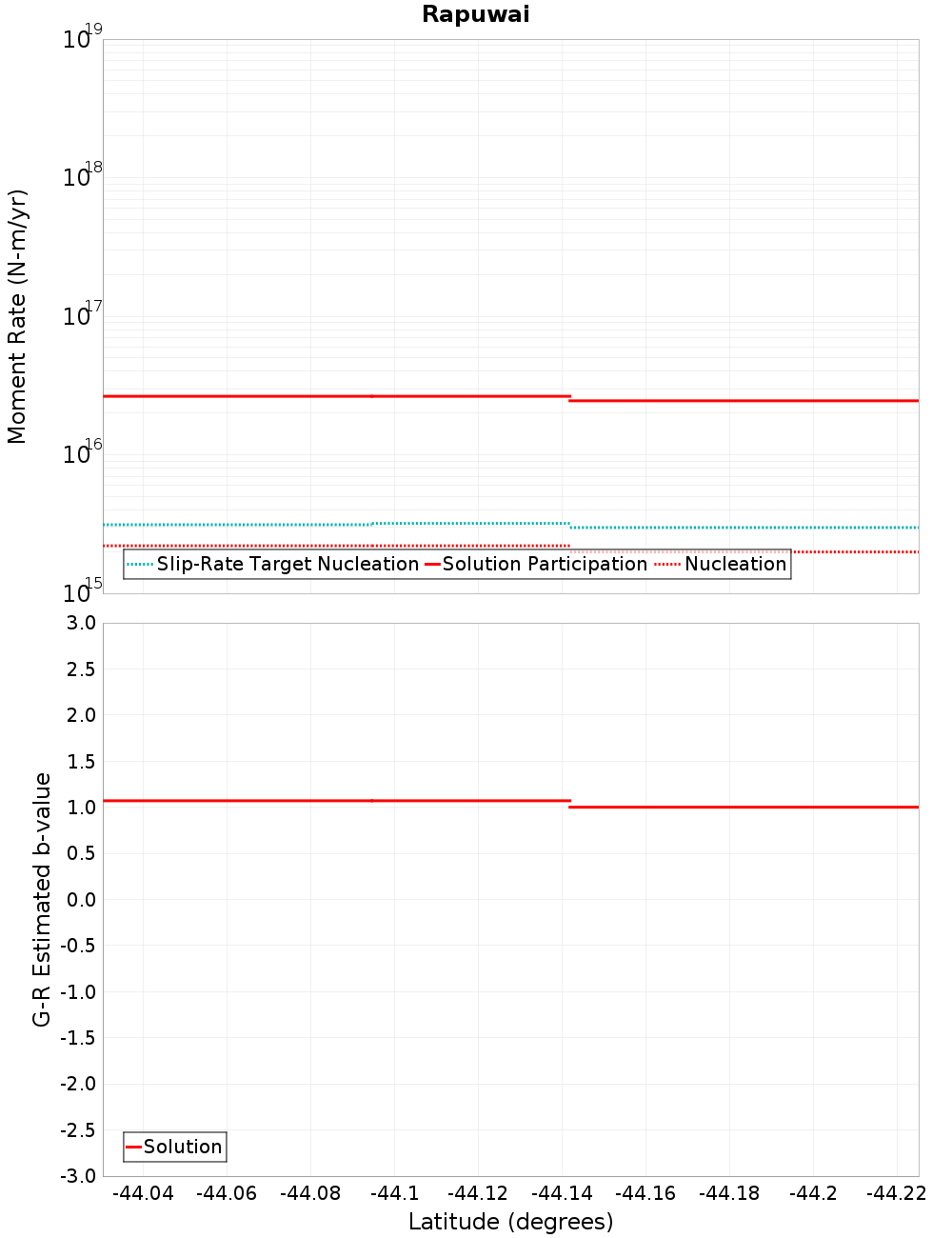

Moment-Rates and b-Values

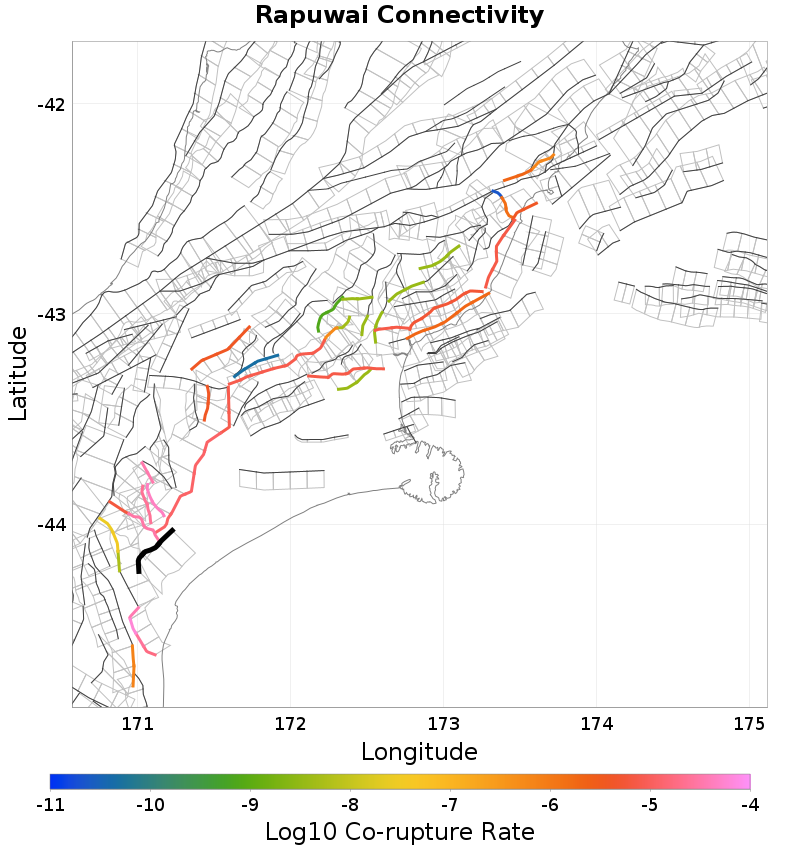

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Sugarloaf, 0.81 km away |
| Brothers, 3.77 km away |
| Hutt Peel, 4.18 km away |
| Maungati, 4.77 km away |
| Edith, 8.93 km away |
| Catherine, 10.69 km away |
| Albury, 14.9 km away |
Sugarloaf, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 2.9963954E-5 |
Brothers, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 172 |
| Co-rupture Rate | 3.2223575E-8 |
Hutt Peel, 4.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 719 |
| Co-rupture Rate | 1.1623113E-5 |
Maungati, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 180 |
| Co-rupture Rate | 6.0632065E-5 |
Edith, 8.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.5533856E-5 |
Catherine, 10.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 2.3748027E-5 |
Albury, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
