Titri Central Details

Property	Value
Rupture Count	32
Ruptures Above Sect Min Mag	32
Ruptures w/ Nonzero Rates	17
Magnitude Range	[7.23, 7.81]
Length Range	[30, 121] km
Total Rate	9.68131E-5 /yr
Multi-Fault Rate	9.68131E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	9

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

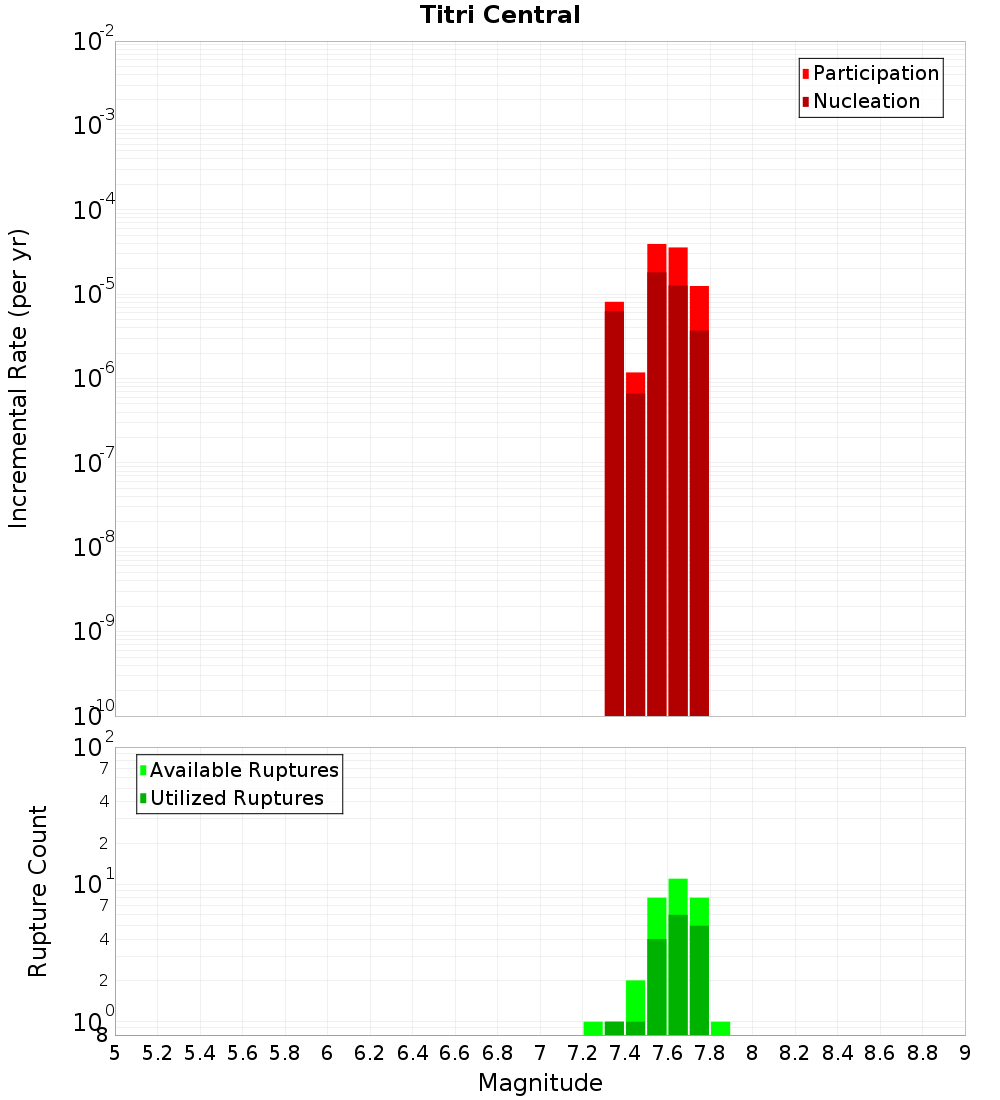

Magnitude-Frequency Distribution

Incremental	Cumulative

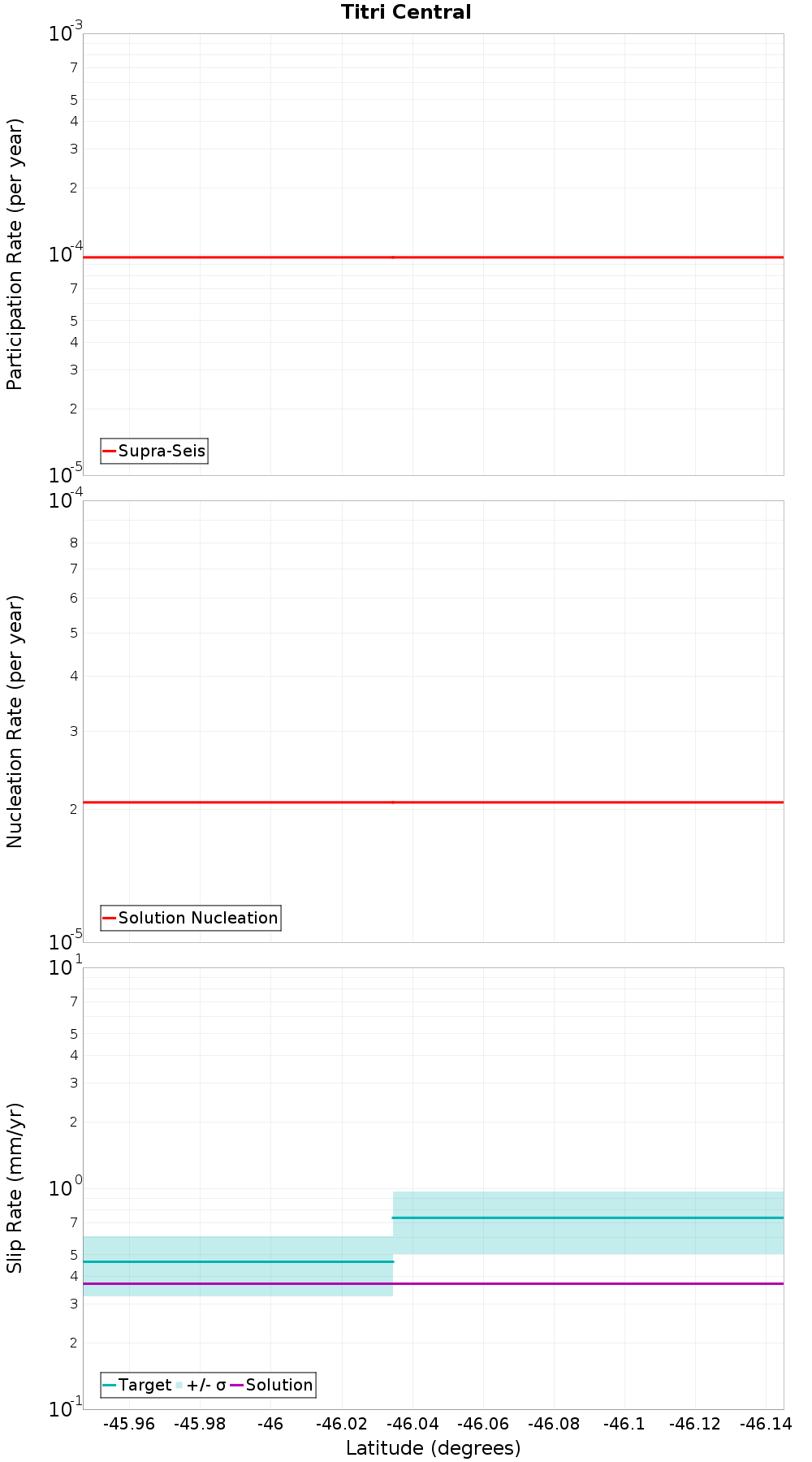

Along-Strike Values

Moment-Rates and b-Values

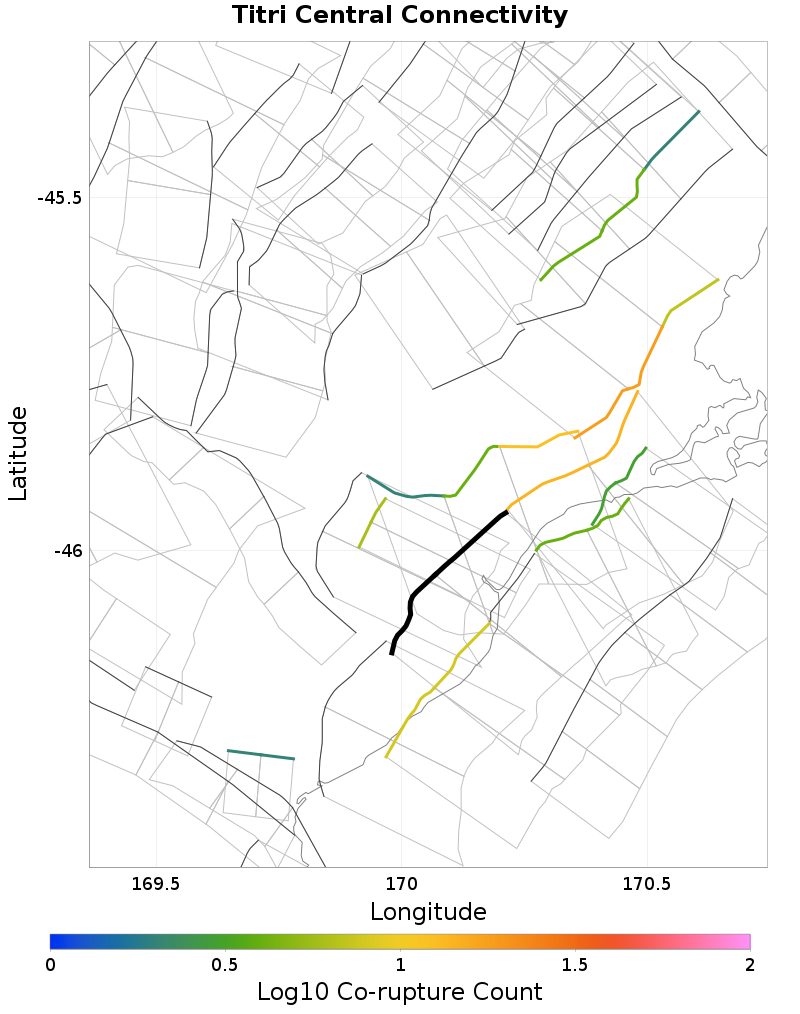

Connectivity

Nearby Sections

Fault Section
Titri North, 0.04 km away
Titri South, 0.8 km away
Maungatua - North Taieri, 3.9 km away
Green Island, 5.04 km away
Akatore, 5.37 km away
Tuapeka, 6.22 km away
Waitahuna 1, 7.53 km away
Waitahuna 2, 8.29 km away
Kaikorai, 10.97 km away

Titri North, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	3.9118026E-5

Titri South, 0.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	2.1389244E-5

Green Island, 5.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	8.969704E-6

Akatore, 5.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	3.8194932E-5

Tuapeka, 6.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 1, 7.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	3.7735208E-5

Kaikorai, 10.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	8.969704E-6
