Uruti Point Details

PropertyValue
Rupture Count746
Ruptures Above Sect Min Mag736
Ruptures w/ Nonzero Rates88
Magnitude Range[6.44, 8.39]
Length Range[12, 683] km
Total Rate1.26714E-4 /yr
Multi-Fault Rate1.26714E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults64

Table Of Contents

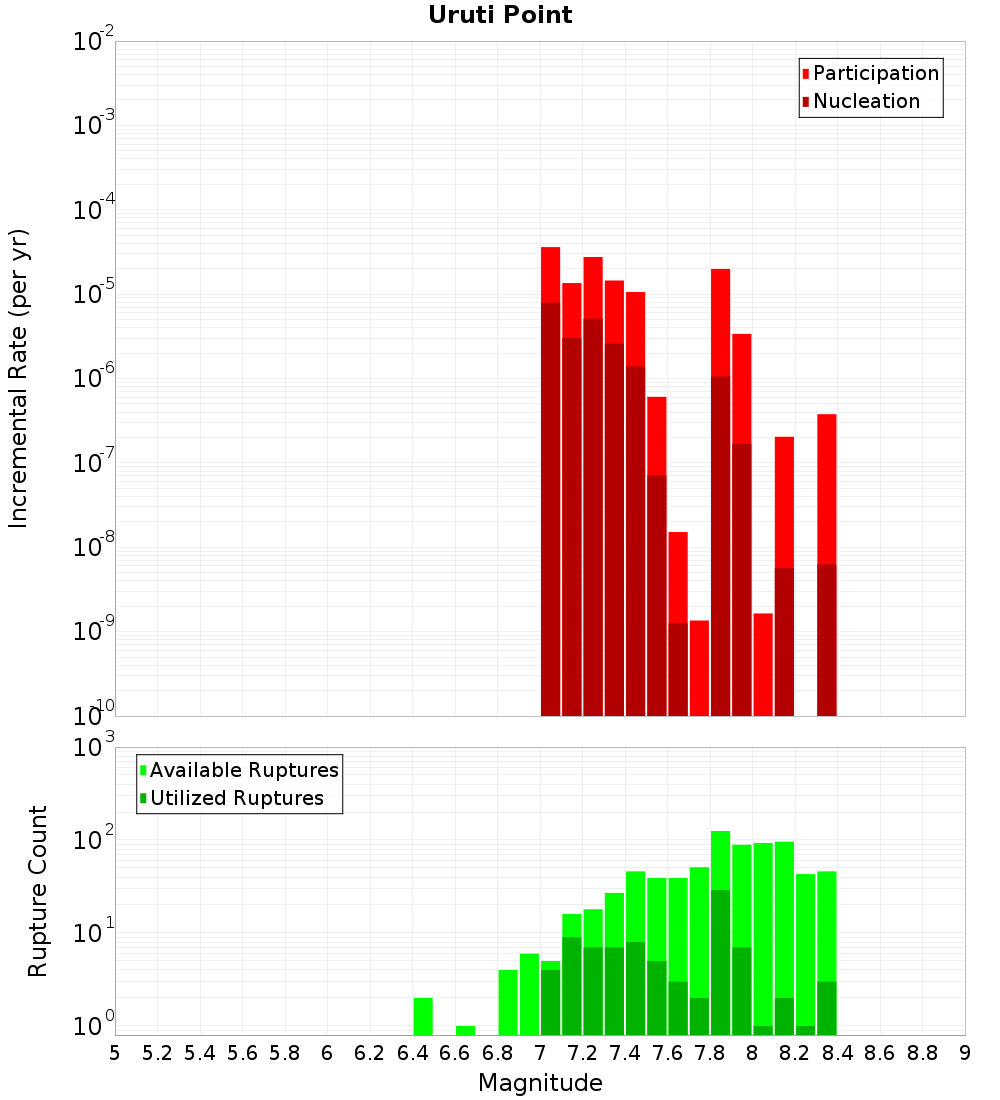

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

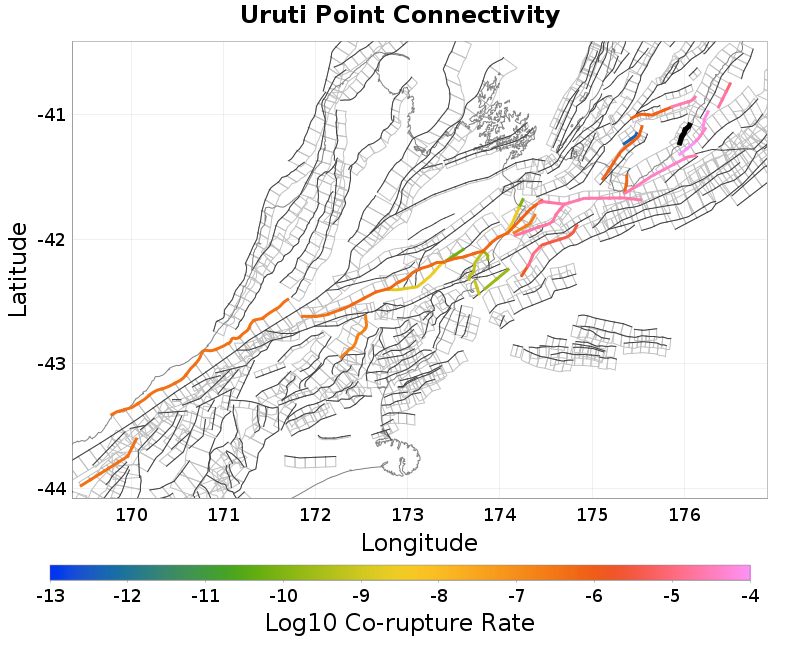

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riversdale, 0.21 km away
Riversdale North, 3.14 km away
Palliser - Kaiwhata, 3.65 km away
Kaumingi, 8.91 km away
Honeycomb, 9.07 km away
Mataikona, 11.39 km away
Carterton, 11.99 km away
Whareama Bank, 12.24 km away

Riversdale, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate9.890132E-5

Riversdale North, 3.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate6.927036E-5

Palliser - Kaiwhata, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count671
Co-rupture Rate4.3314325E-5

Kaumingi, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Honeycomb, 9.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0

Carterton, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?true
Directly Connected?true
Co-rupture Count204
Co-rupture Rate2.7370344E-5

Whareama Bank, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
