Waihi South Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 2 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.66, 7.03] |
| Length Range | [16, 42] km |
| Total Rate | 2.8795557E-5 /yr |
| Multi-Fault Rate | 2.8795557E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

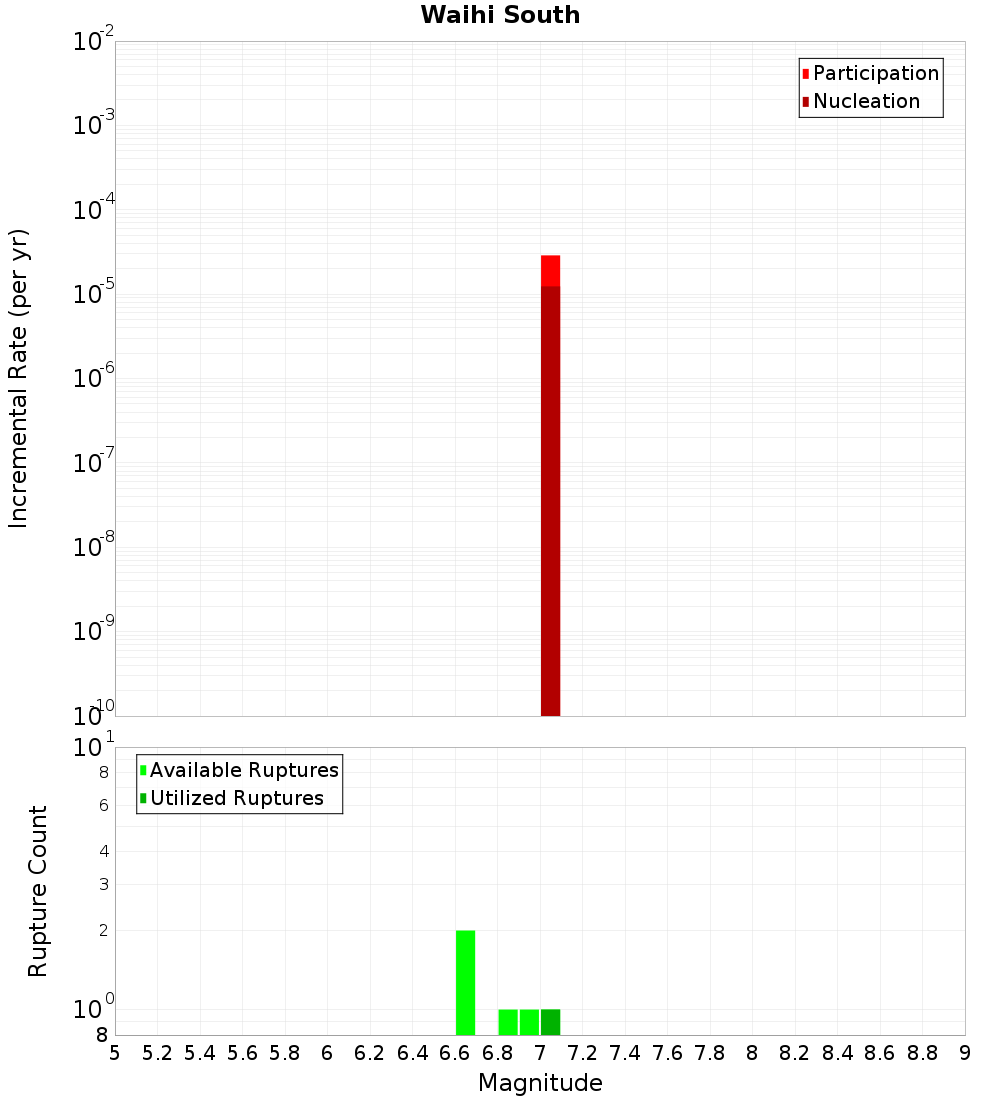

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

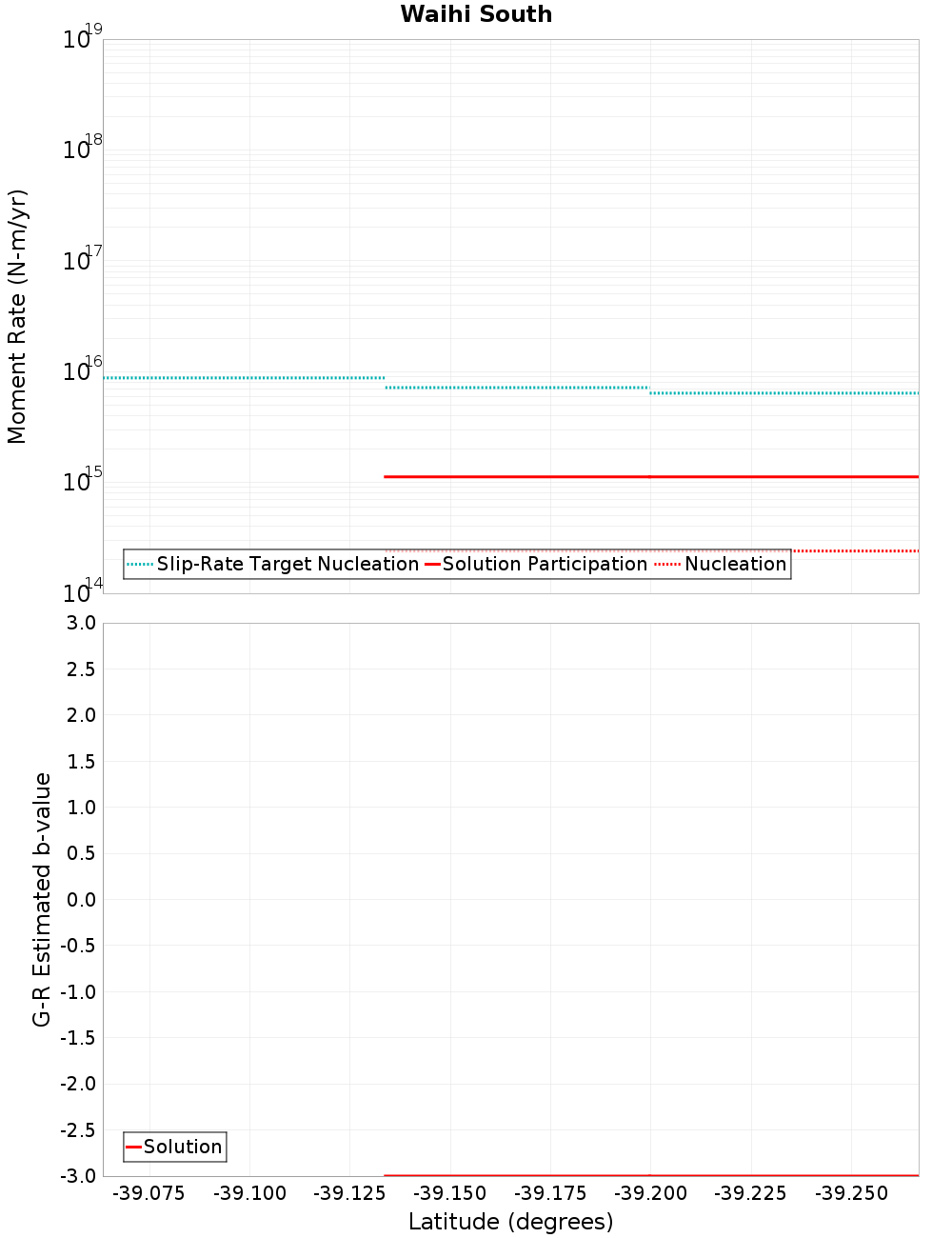

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Poutu, 0.2 km away |
| Waihi West, 0.46 km away |
| Rangipo Central, 11.89 km away |
| Rangipo South, 12.47 km away |
Poutu, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.8795557E-5 |
Waihi West, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangipo Central, 11.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangipo South, 12.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDMuMHlrcnRz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
