Alpine: George landward Details
| Property | Value |
|---|---|
| Rupture Count | 41,528 |
| Ruptures Above Sect Min Mag | 41,527 |
| Ruptures w/ Nonzero Rates | 78 |
| Magnitude Range | [6.73, 8.58] |
| Length Range | [16, 1,083] km |
| Total Rate | 6.1361503E-4 /yr |
| Multi-Fault Rate | 6.1361503E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 197 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

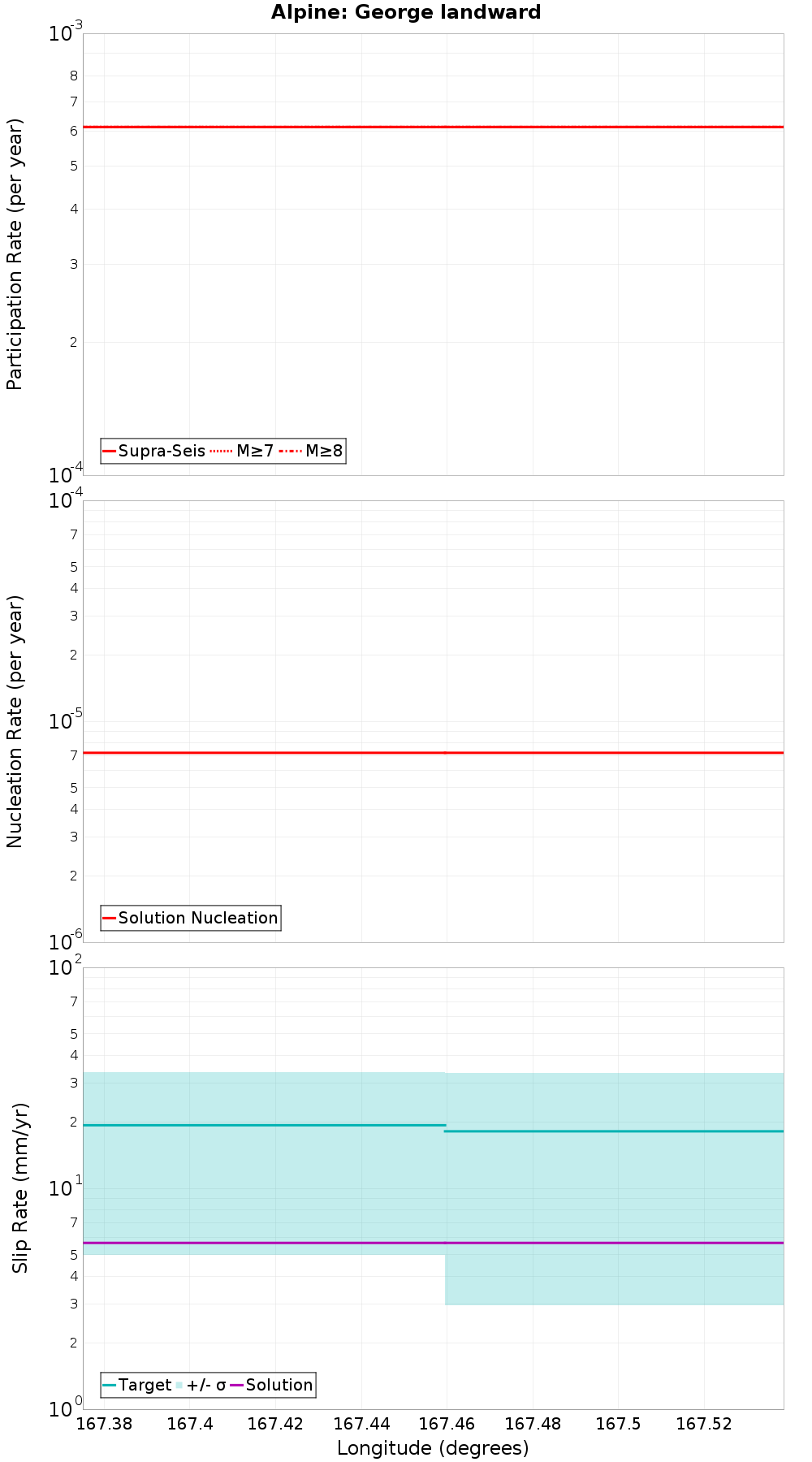

Along-Strike Values
Moment-Rates and b-Values

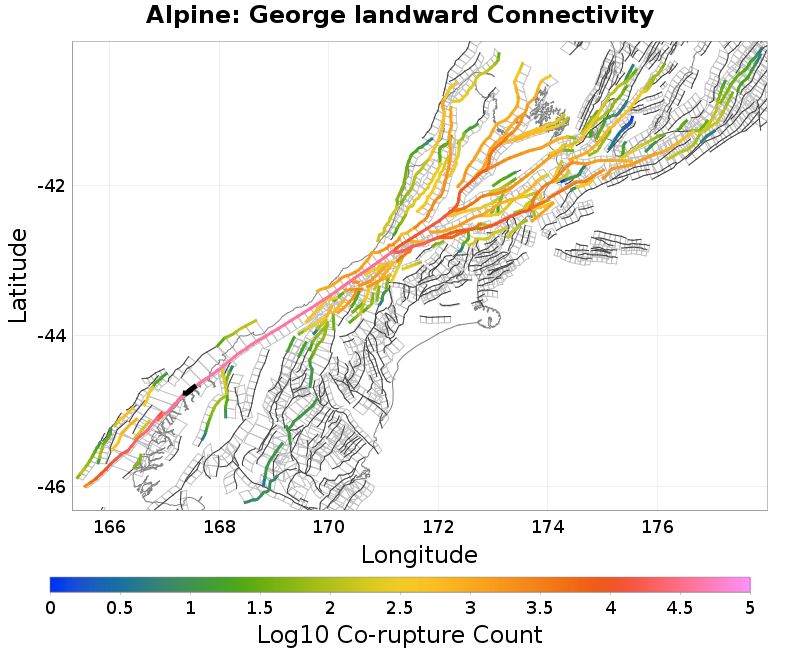

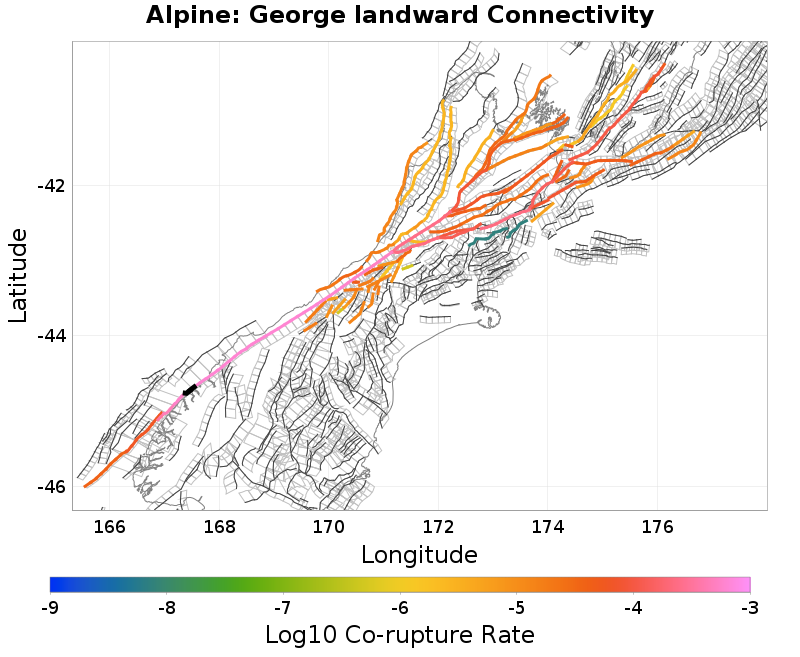

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George seaward, 0 km away |
| Alpine: George to Jacksons, 0 km away |
| Alpine: Caswell - South George, 0.03 km away |
| Madagascar, 0.41 km away |
| Central Wedge 1 & 2 & 3, 7.52 km away |
Alpine: George seaward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 395 |
| Co-rupture Rate | 0.0 |
Alpine: George to Jacksons, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 41,451 |
| Co-rupture Rate | 6.1361503E-4 |
Alpine: Caswell - South George, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39,021 |
| Co-rupture Rate | 5.6815526E-4 |
Madagascar, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Central Wedge 1 & 2 & 3, 7.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 330 |
| Co-rupture Rate | 0.0 |
