Conway Trough West Details

Property	Value
Rupture Count	599
Ruptures Above Sect Min Mag	595
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.70, 8.17]
Length Range	[18, 418] km
Total Rate	1.2215626E-4 /yr
Multi-Fault Rate	1.2215626E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	56

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

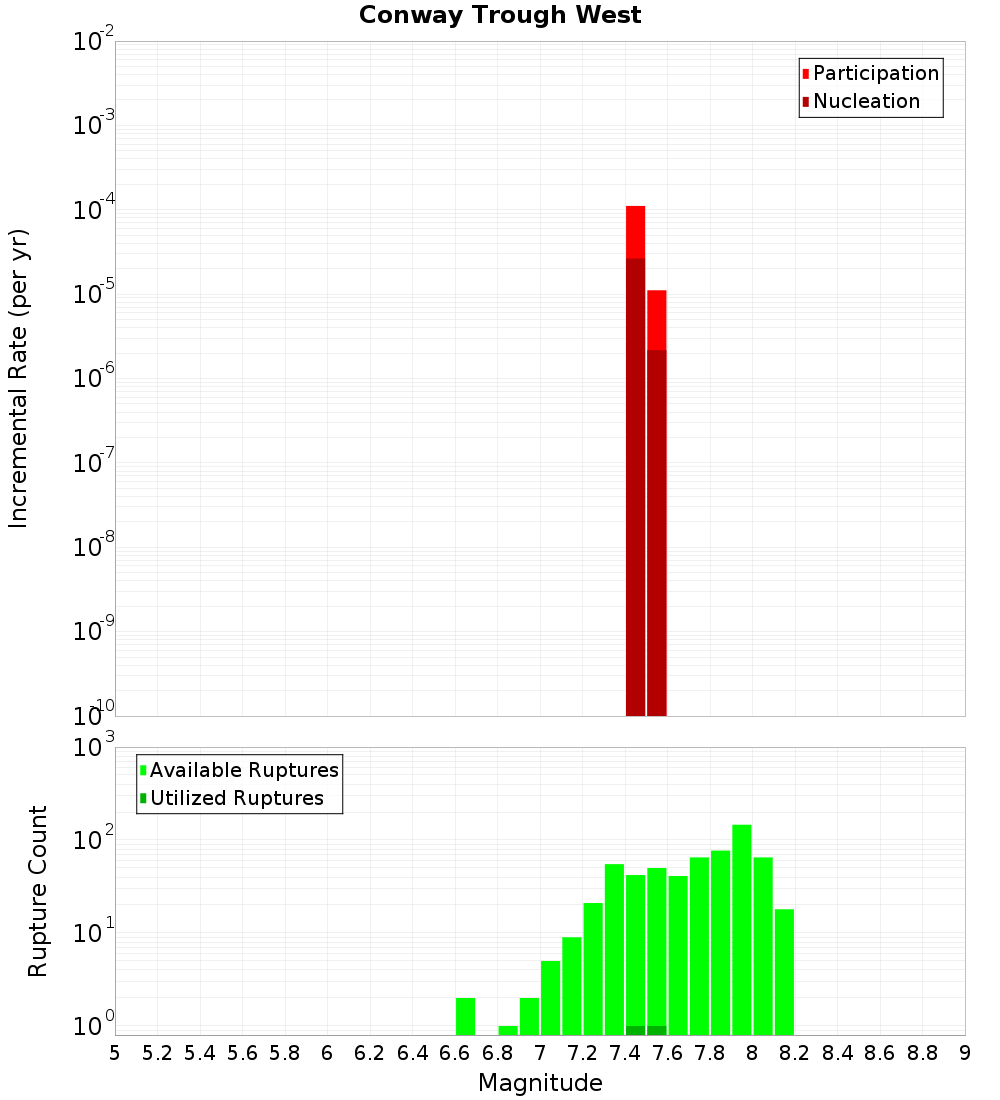

Magnitude-Frequency Distribution

Incremental	Cumulative

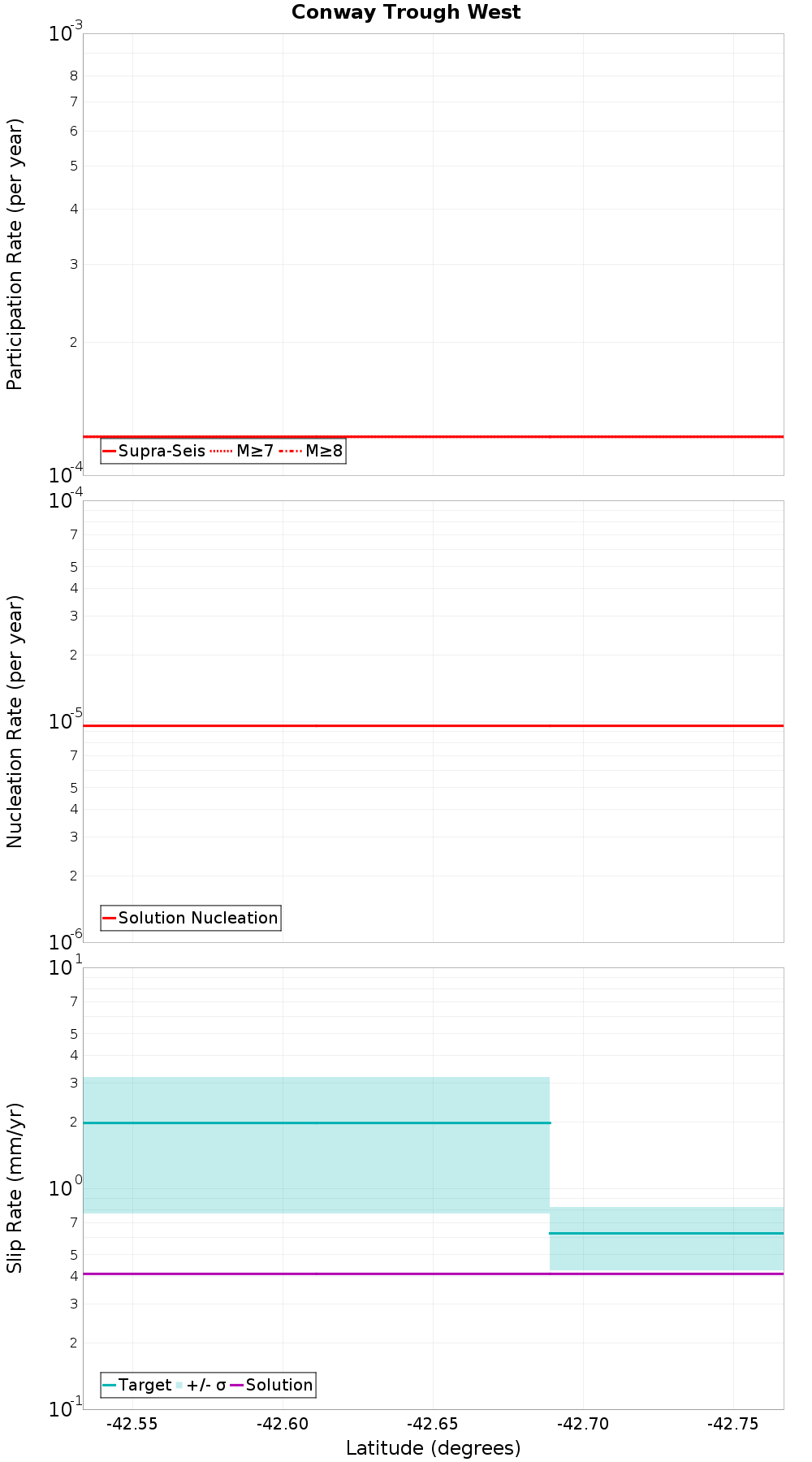

Along-Strike Values

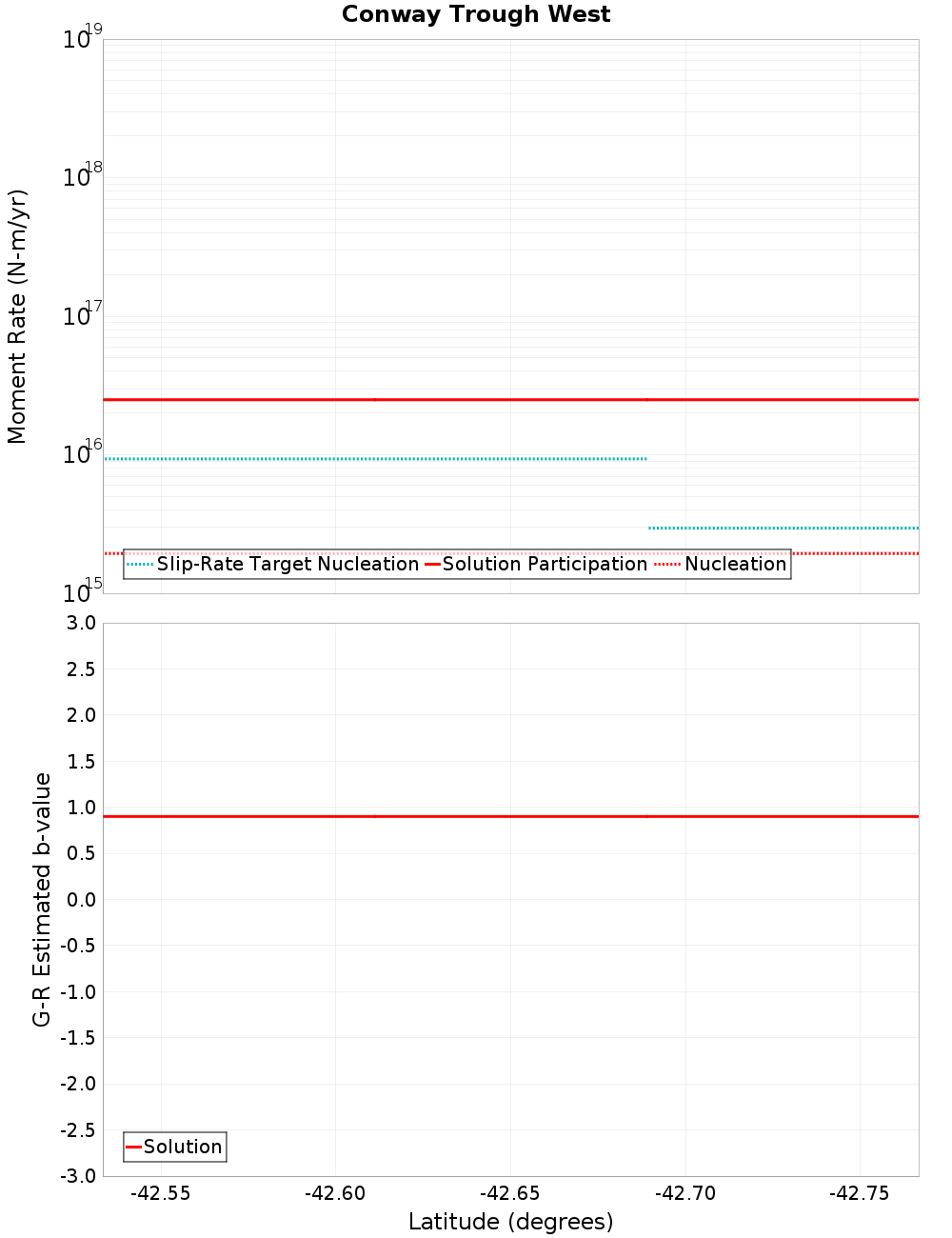

Moment-Rates and b-Values

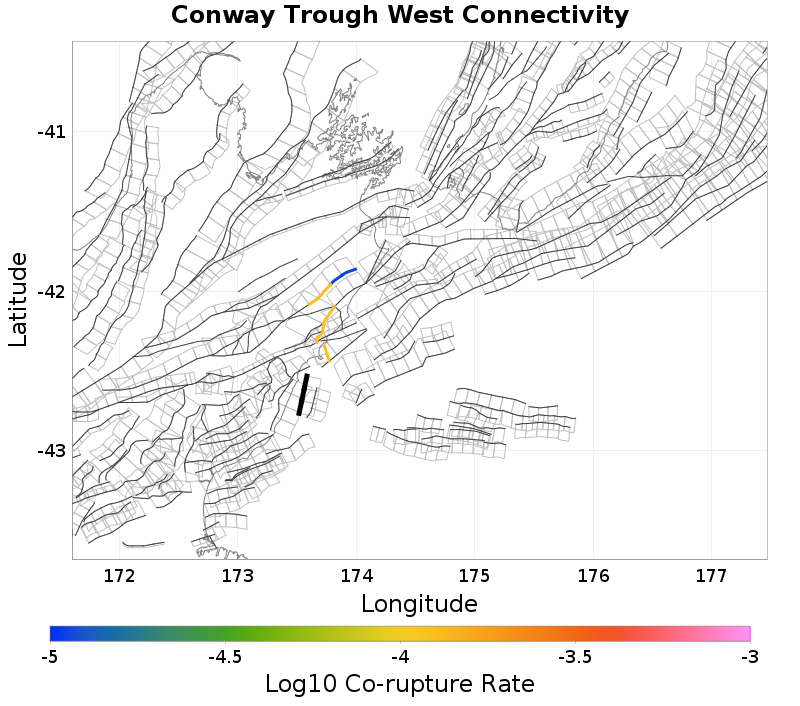

Connectivity

Nearby Sections

Fault Section
Hawkswood, 4.07 km away
Conway Trough East, 5.06 km away
Hundalee, 5.24 km away
Kaikoura 2, 10 km away
StoneJug, 10.85 km away
Offshore Splay Thrust, 10.93 km away
Marlborough Slope 2, 12.27 km away
Point Gibson, 14.94 km away

Hawkswood, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	0.0

Conway Trough East, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Hundalee, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikoura 2, 10 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	true
Directly Connected?	true
Co-rupture Count	498
Co-rupture Rate	1.2215626E-4

StoneJug, 10.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Offshore Splay Thrust, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Marlborough Slope 2, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Point Gibson, 14.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?	true
Directly Connected?	true
Co-rupture Count	69
Co-rupture Rate	0.0
