Hawke Bay 4 Details
| Property | Value |
|---|---|
| Rupture Count | 94 |
| Ruptures Above Sect Min Mag | 93 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.72, 7.90] |
| Length Range | [13, 205] km |
| Total Rate | 6.148551E-5 /yr |
| Multi-Fault Rate | 6.148551E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 14 |
Table Of Contents

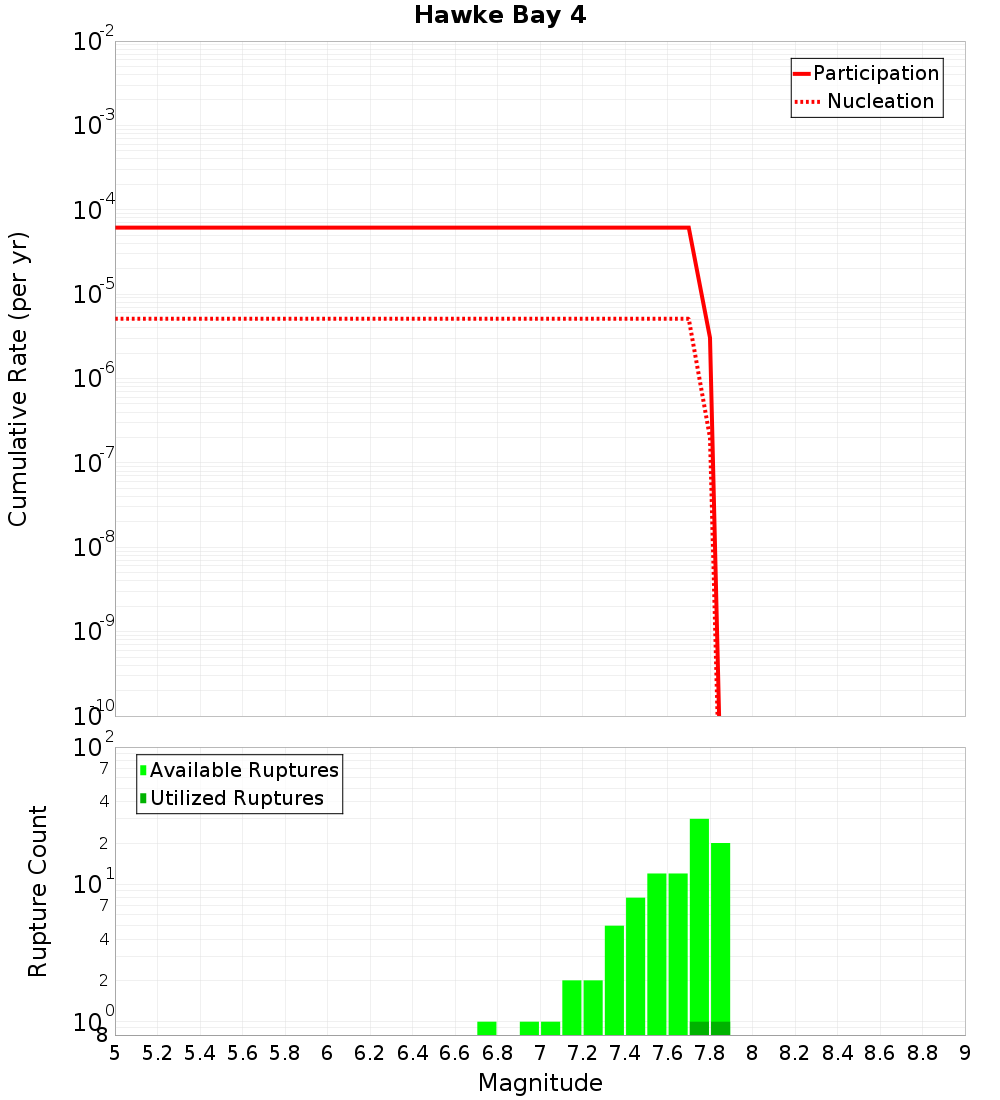

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

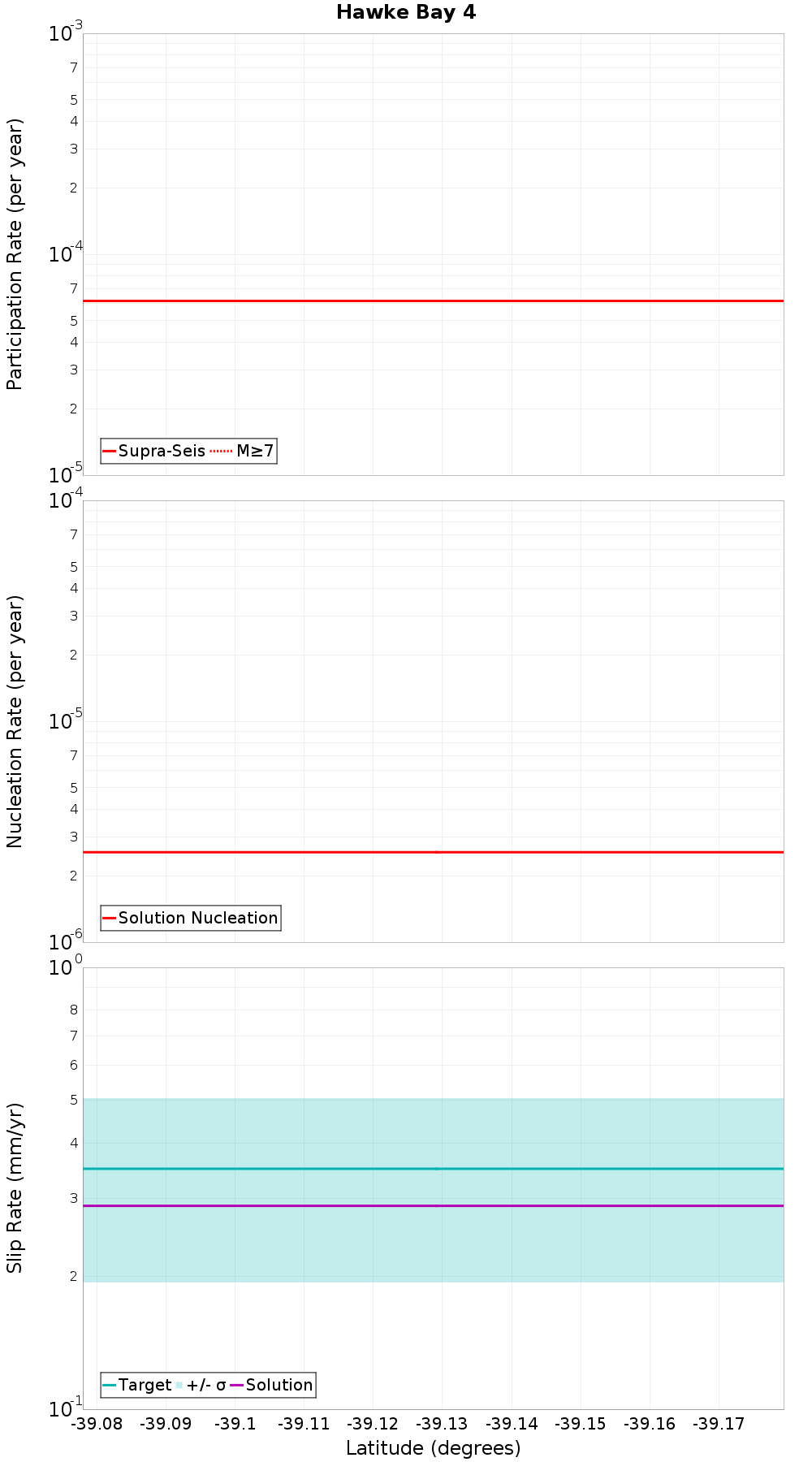

Along-Strike Values

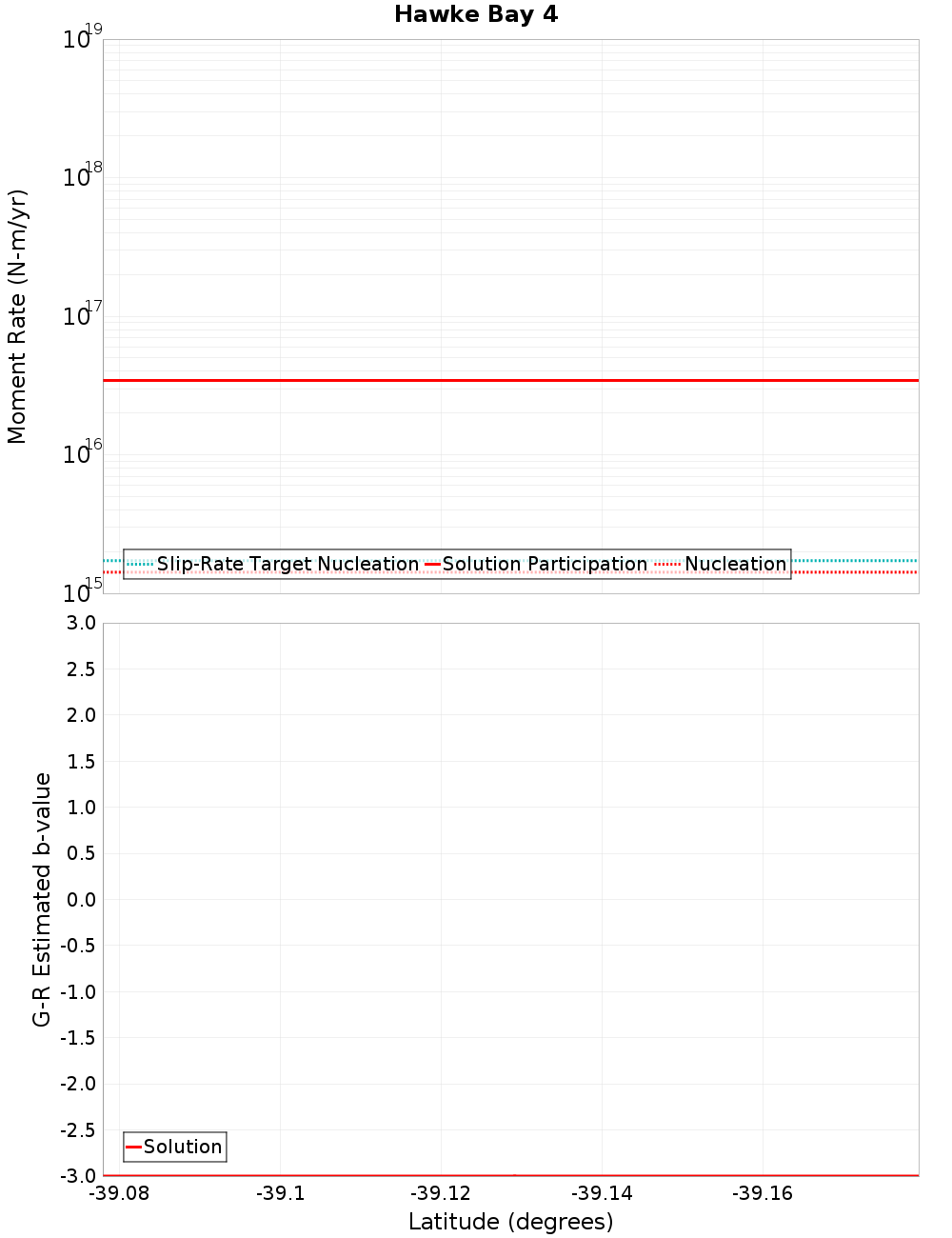

Moment-Rates and b-Values

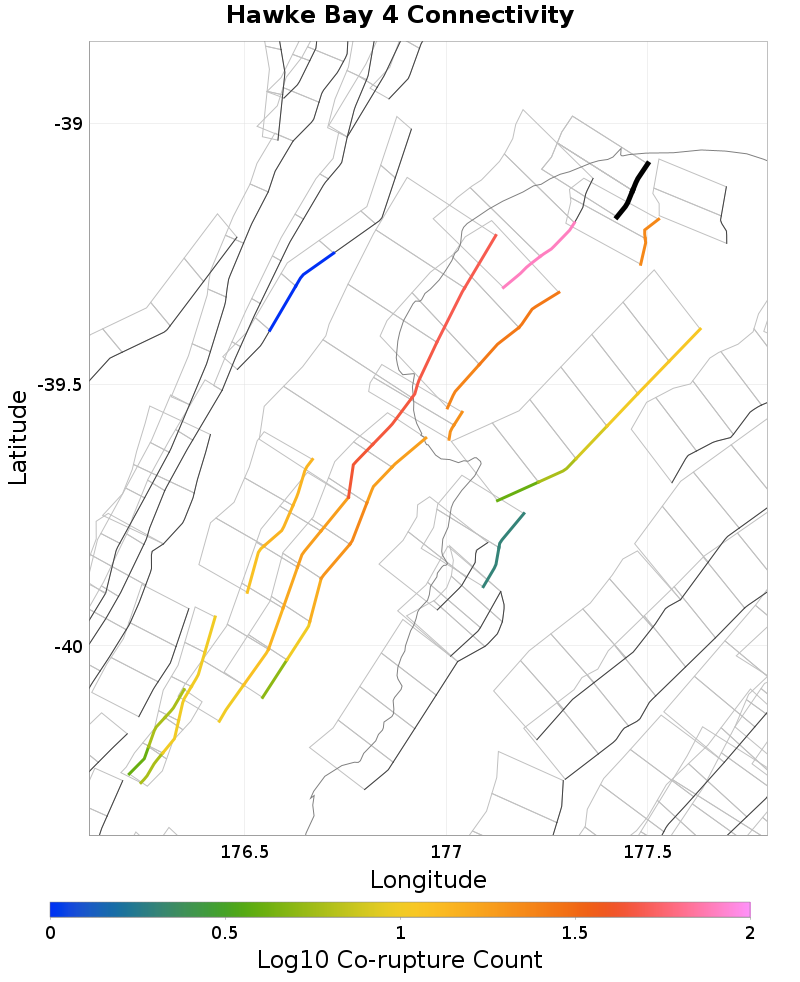

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 0 km away |
| Hawke Bay 5 & 11, 4.13 km away |
| Hawke Bay 1, 4.42 km away |
| Hawke Bay 7, 11.21 km away |
Hawke Bay 4, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 6.148551E-5 |
Hawke Bay 5 & 11, 4.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 23 |
| Co-rupture Rate | 5.844857E-5 |
Hawke Bay 1, 4.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 79 |
| Co-rupture Rate | 6.148551E-5 |
Hawke Bay 7, 11.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
