Ruahine: South Details

PropertyValue
Rupture Count27,227
Ruptures Above Sect Min Mag27,225
Ruptures w/ Nonzero Rates15
Magnitude Range[6.99, 8.54]
Length Range[24, 940] km
Total Rate1.4243794E-4 /yr
Multi-Fault Rate1.4243794E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults124

Table Of Contents

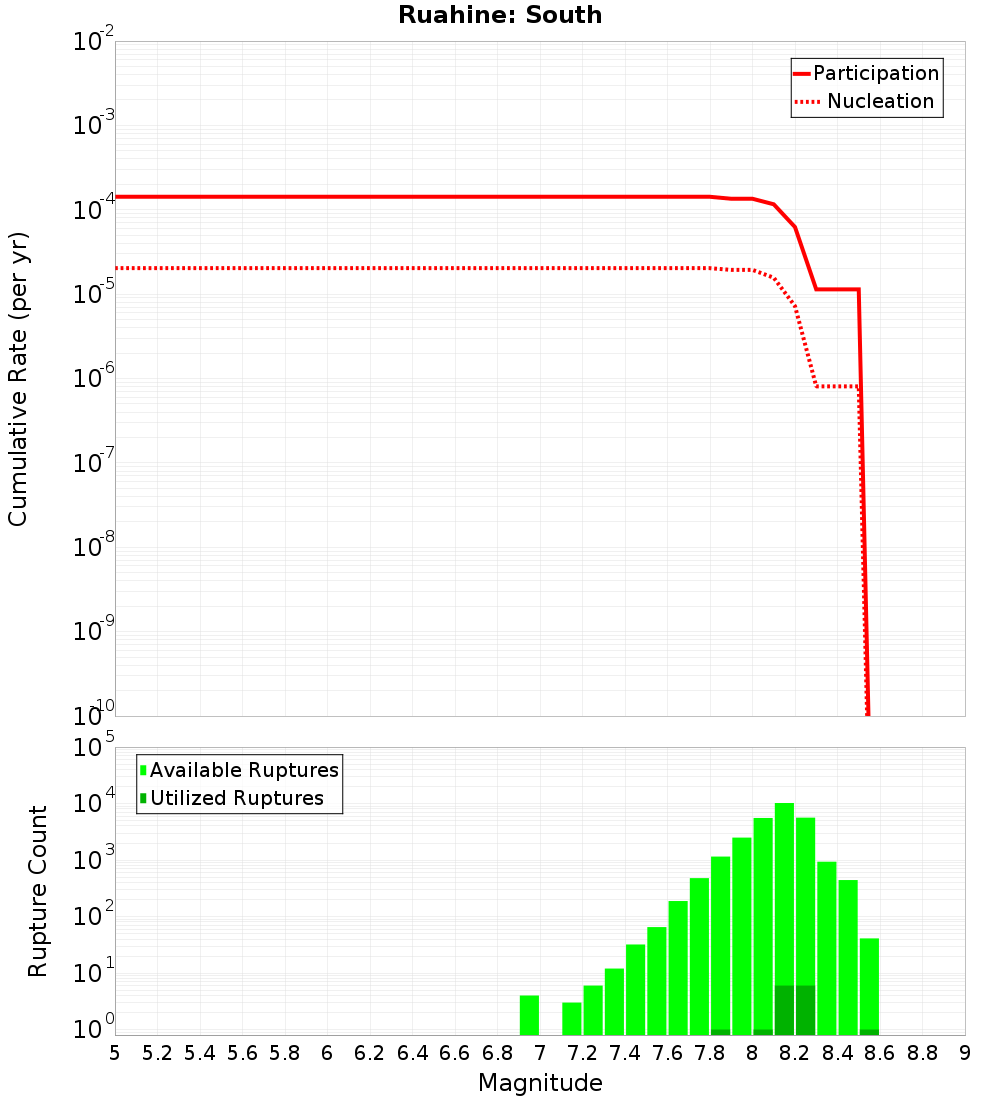

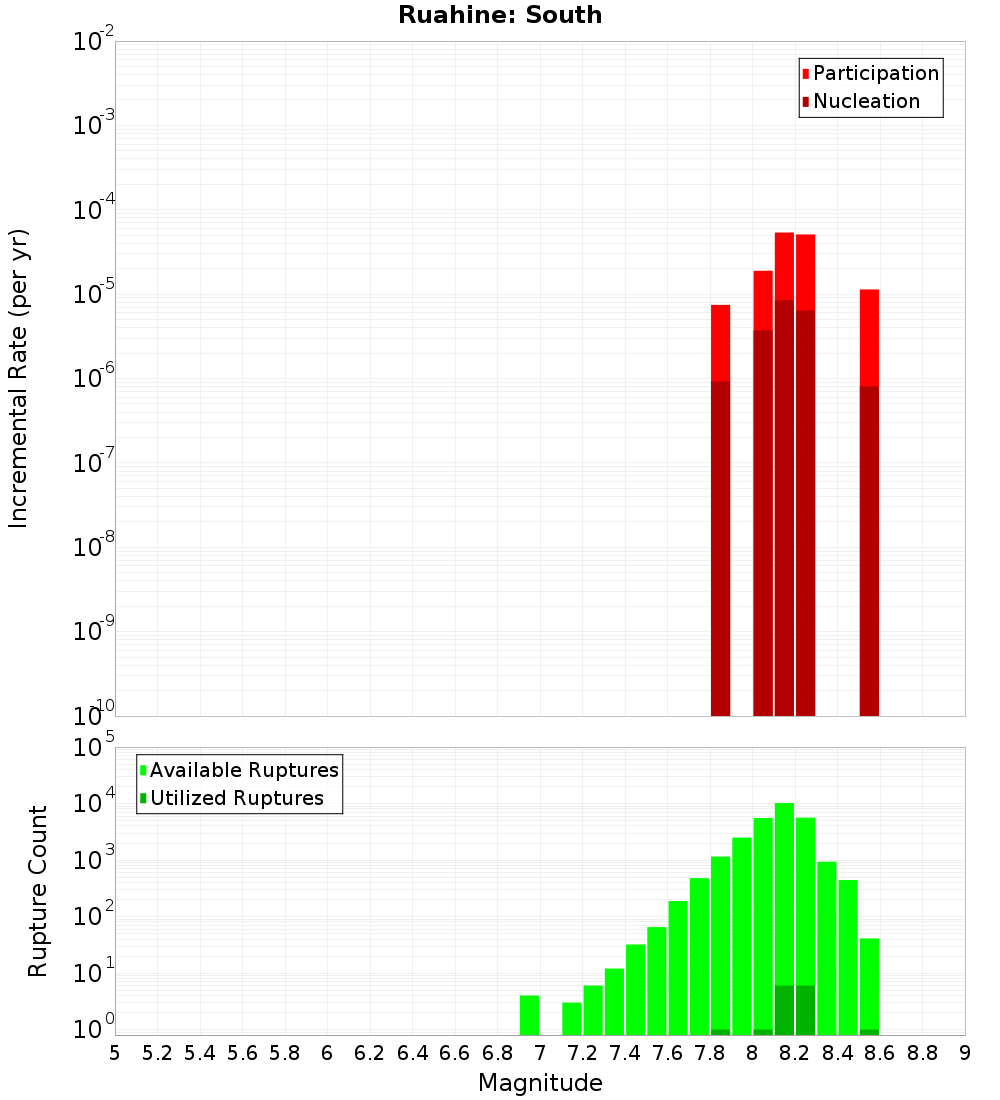

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.22 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.96 km away
Ruataniwha, 9.88 km away
Maunga, 13.35 km away
Wakarara, 14.38 km away
Tokomaru, 14.4 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count24,167
Co-rupture Rate1.4243794E-4

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count9,685
Co-rupture Rate3.5944373E-5

Ruahine: Central, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count15,161
Co-rupture Rate9.9036E-5

Rangefront, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count664
Co-rupture Rate0.0

Woodville, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count121
Co-rupture Rate0.0

Pohangina, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count231
Co-rupture Rate7.457566E-6

Pahiatua, 5.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?true
Co-rupture Count755
Co-rupture Rate0.0

Ruataniwha, 9.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Maunga, 13.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?false
Co-rupture Count159
Co-rupture Rate0.0

Wakarara, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?false
Co-rupture Count302
Co-rupture Rate0.0

Tokomaru, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MDYuMHVGYUNa
Connected?true
Directly Connected?false
Co-rupture Count298
Co-rupture Rate0.0
