Clarence: Southwest Details

PropertyValue
Rupture Count54,236
Ruptures Above Sect Min Mag54,232
Ruptures w/ Nonzero Rates226
Magnitude Range[7.05, 8.65]
Length Range[23, 973] km
Total Rate1.10991015E-4 /yr
Multi-Fault Rate1.10991015E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults272

Table Of Contents

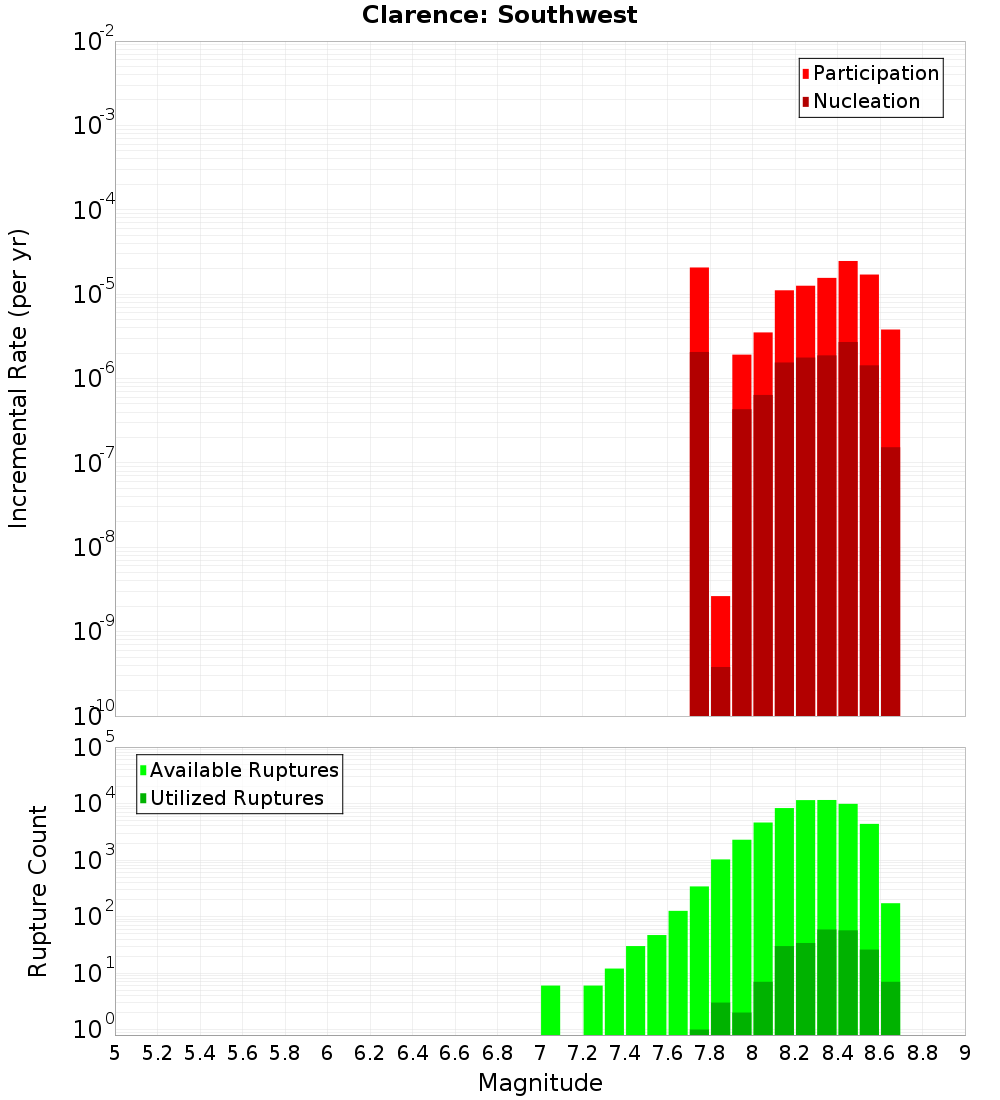

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

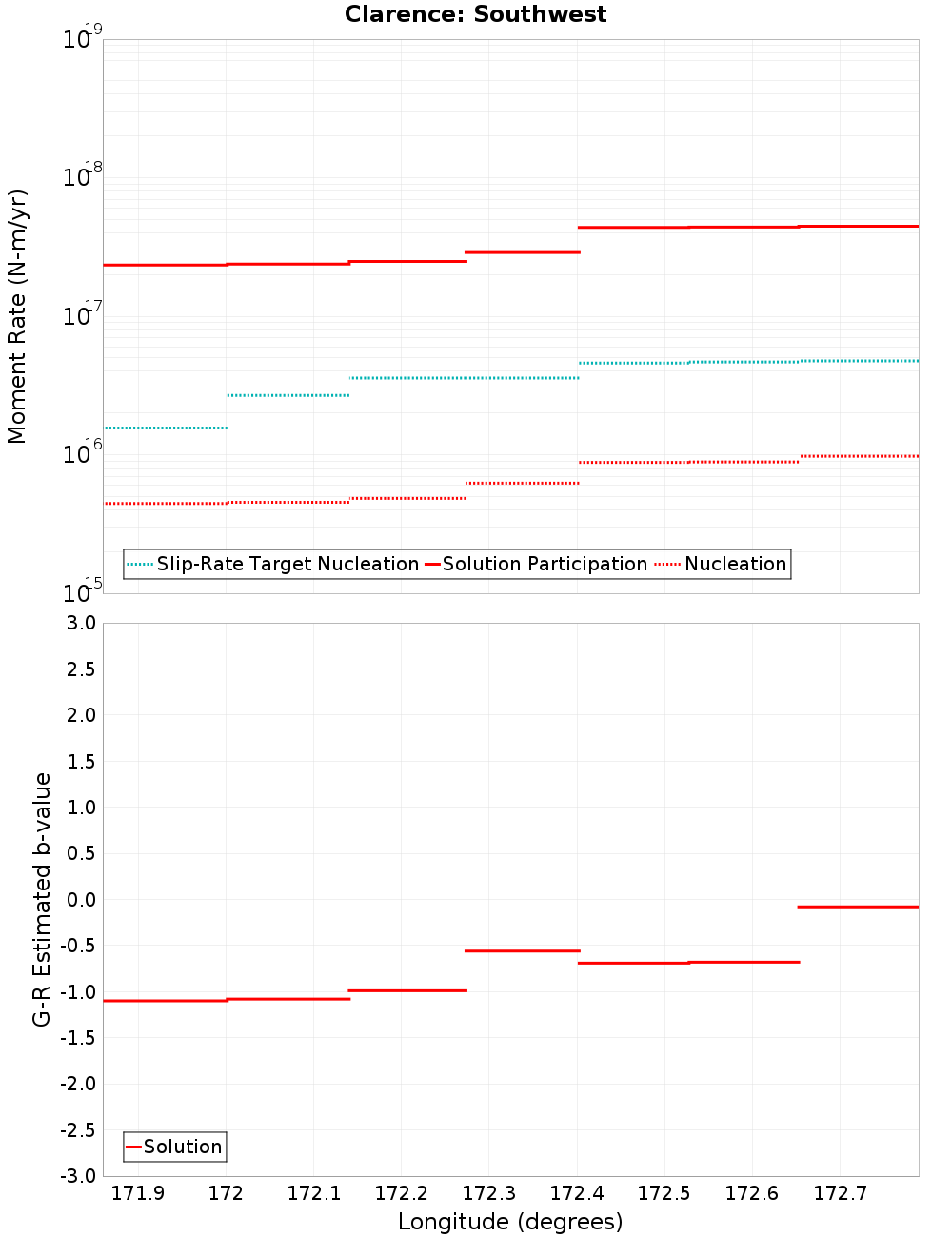

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayEsk North, 8.47 km away
Alpine: Kaniere to Springs Junction, 0.21 km awayKakapo, 8.64 km away
Elliott, 0.33 km awayHanmer, 11.45 km away
Fowlers, 2.09 km awayHope: Kakapo-2-Hamner, 12.23 km away
Hohonu North, 2.62 km awayHope: Hanmer NW, 12.23 km away
Alpine: Springs Junction to Tophouse, 5.45 km awayKelly, 13.14 km away
Hope: Hope River, 5.56 km awayAcheron, 13.66 km away
White Creek - buried, 5.99 km awayHope: Taramakau, 13.86 km away
Hope: Hurunui, 8.29 km awayHope: Hamner SW, 14.55 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count33,298
Co-rupture Rate5.4300268E-5

Alpine: Kaniere to Springs Junction, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count6,935
Co-rupture Rate3.5287827E-5

Elliott, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count11,825
Co-rupture Rate5.174563E-5

Fowlers, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count2,428
Co-rupture Rate8.2965875E-7

Hohonu North, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count19,318
Co-rupture Rate1.5189705E-6

Alpine: Springs Junction to Tophouse, 5.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count1,099
Co-rupture Rate0.0

Hope: Hope River, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count9,098
Co-rupture Rate2.076655E-5

White Creek - buried, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count468
Co-rupture Rate0.0

Hope: Hurunui, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count10,149
Co-rupture Rate2.1342548E-5

Esk North, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count2,363
Co-rupture Rate1.6548793E-5

Kakapo, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count2,127
Co-rupture Rate5.7665574E-7

Hanmer, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?true
Co-rupture Count4,418
Co-rupture Rate2.0695845E-5

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count206
Co-rupture Rate0.0

Hope: Hanmer NW, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Kelly, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count12,093
Co-rupture Rate2.9035979E-5

Acheron, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count817
Co-rupture Rate2.7643198E-5

Hope: Taramakau, 13.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?true
Directly Connected?false
Co-rupture Count796
Co-rupture Rate0.0

Hope: Hamner SW, 14.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTIuMHg2ZlVm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
