Alpine: George to Jacksons Details

PropertyValue
Rupture Count118,125
Ruptures Above Sect Min Mag118,116
Ruptures w/ Nonzero Rates155
Magnitude Range[6.96, 8.68]
Length Range[21, 1,083] km
Total Rate0.0026215794 /yr
Multi-Fault Rate0.0010767509 /yr (41.07%)
Directly-Connected Faults7
All Co-Rupturing Faults211

Table Of Contents

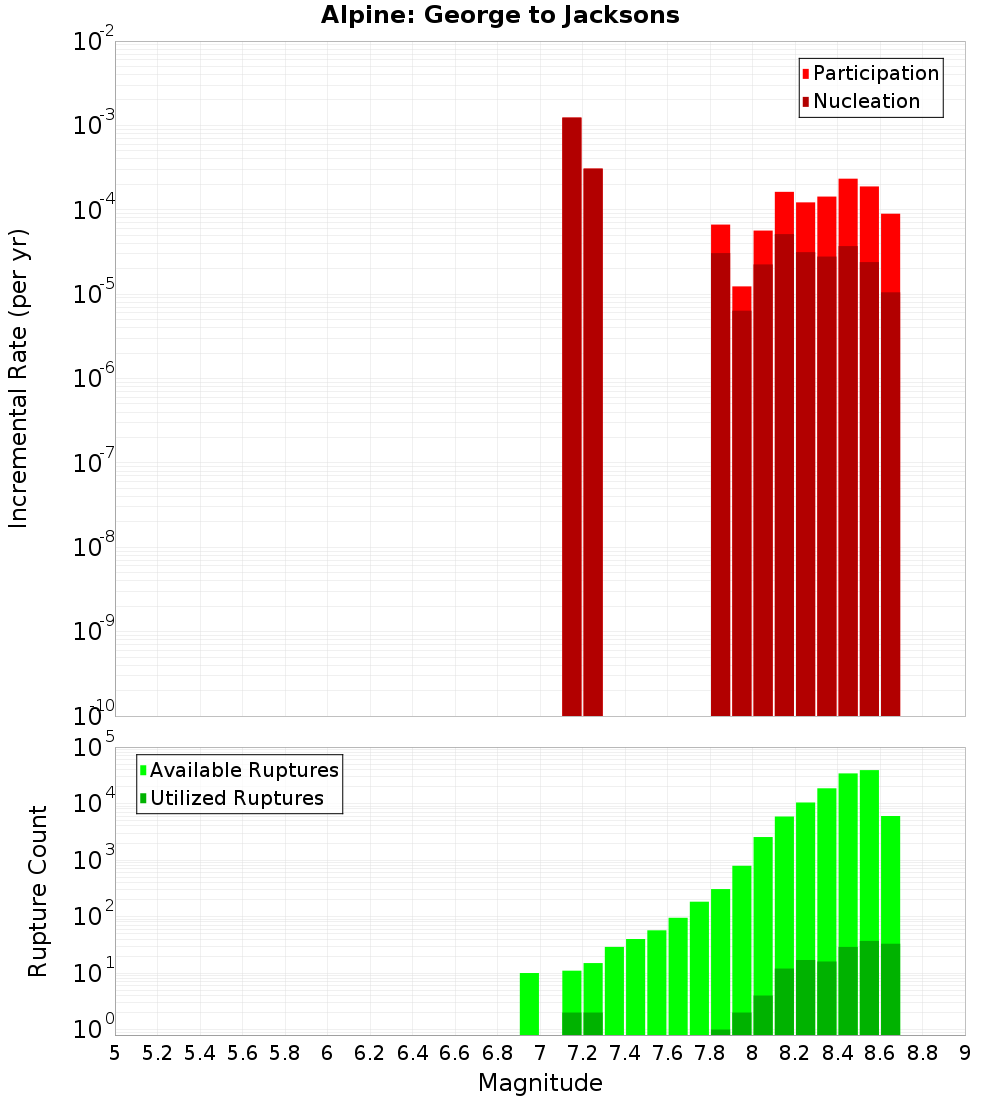

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

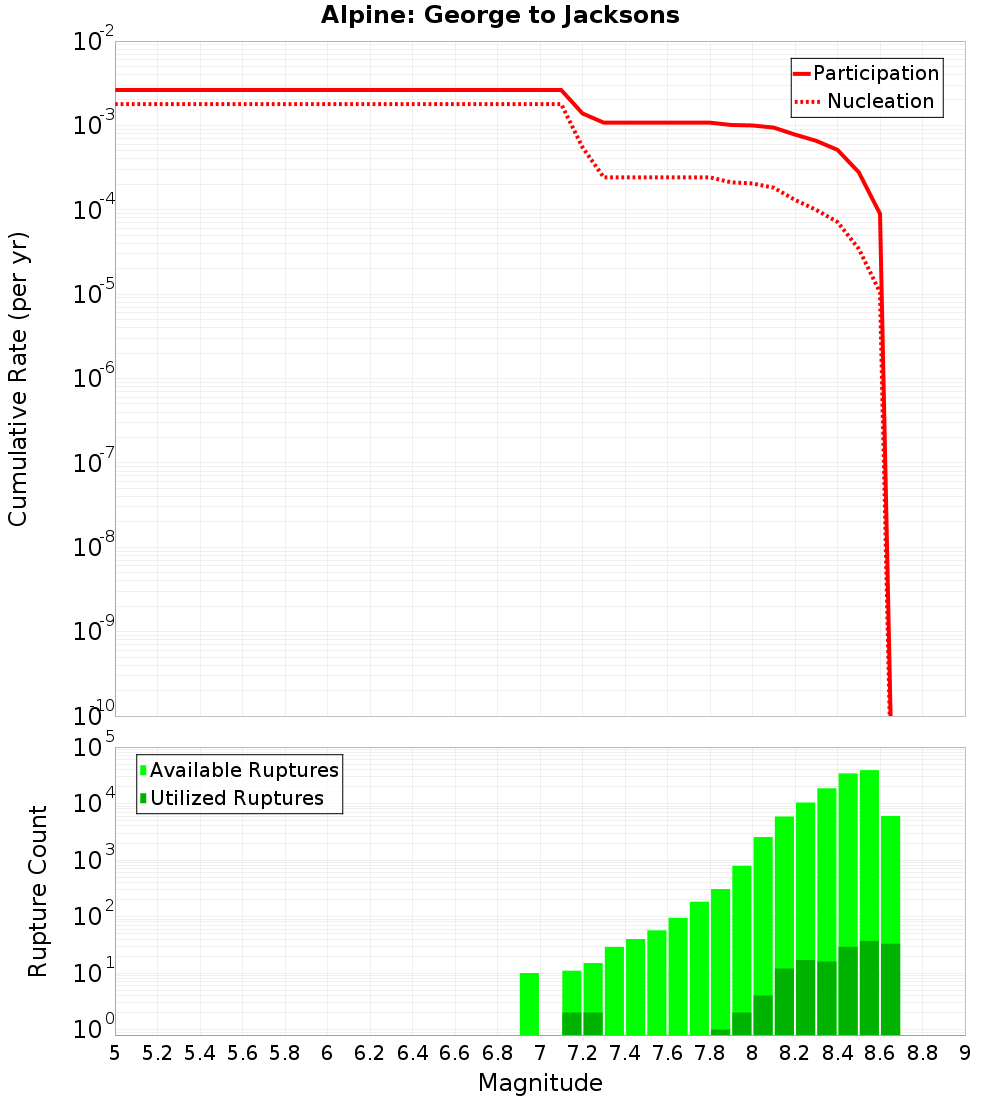

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

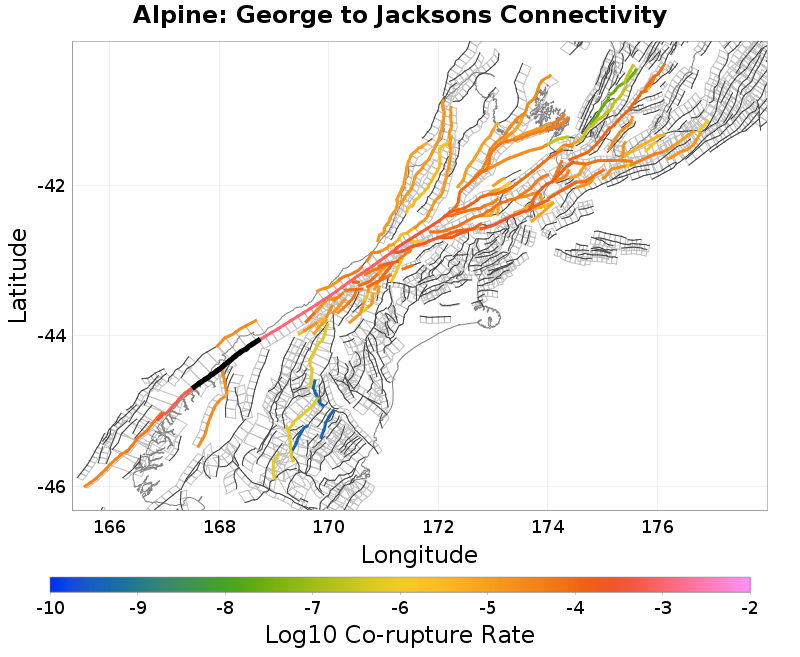

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Hollyford, 0.11 km away
Skippers, 0.12 km away
Madagascar, 0.19 km away
Darran, 0.27 km away
Barn, 0.78 km away
Moonlight North, 9.42 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count40,145
Co-rupture Rate1.735642E-4

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count115,597
Co-rupture Rate0.0010539278

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count41,451
Co-rupture Rate5.543851E-4

Hollyford, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count1,257
Co-rupture Rate0.0

Skippers, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count1,683
Co-rupture Rate0.0

Madagascar, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?false
Co-rupture Count236
Co-rupture Rate0.0

Darran, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count9,073
Co-rupture Rate2.2138387E-5

Barn, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?true
Directly Connected?true
Co-rupture Count687
Co-rupture Rate2.2823171E-5

Moonlight North, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTMuMHBqcDky
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
