F14 - North Details
| Property | Value |
|---|---|
| Rupture Count | 10,638 |
| Ruptures Above Sect Min Mag | 10,635 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.76, 8.25] |
| Length Range | [21, 591] km |
| Total Rate | 2.2276008E-5 /yr |
| Multi-Fault Rate | 2.2276008E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 49 |
Table Of Contents

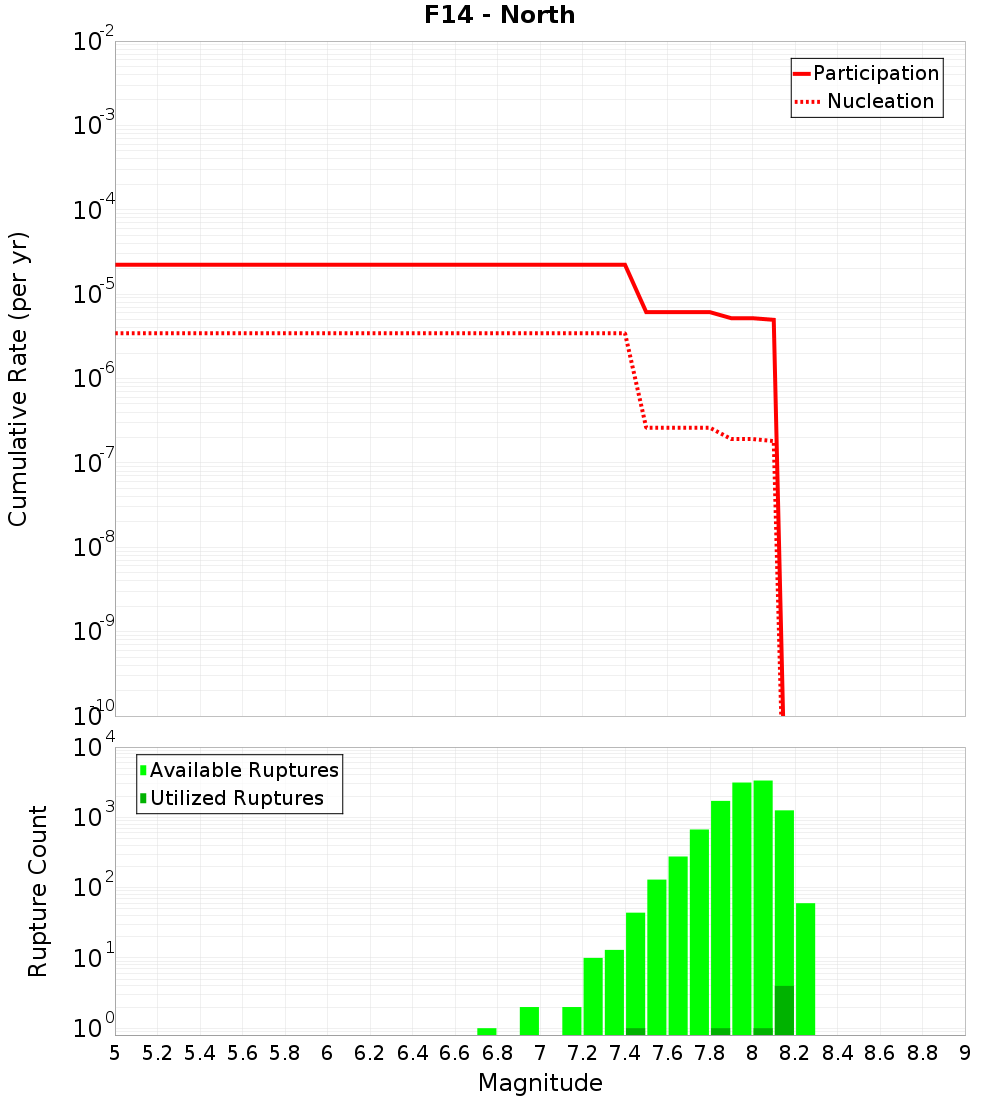

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

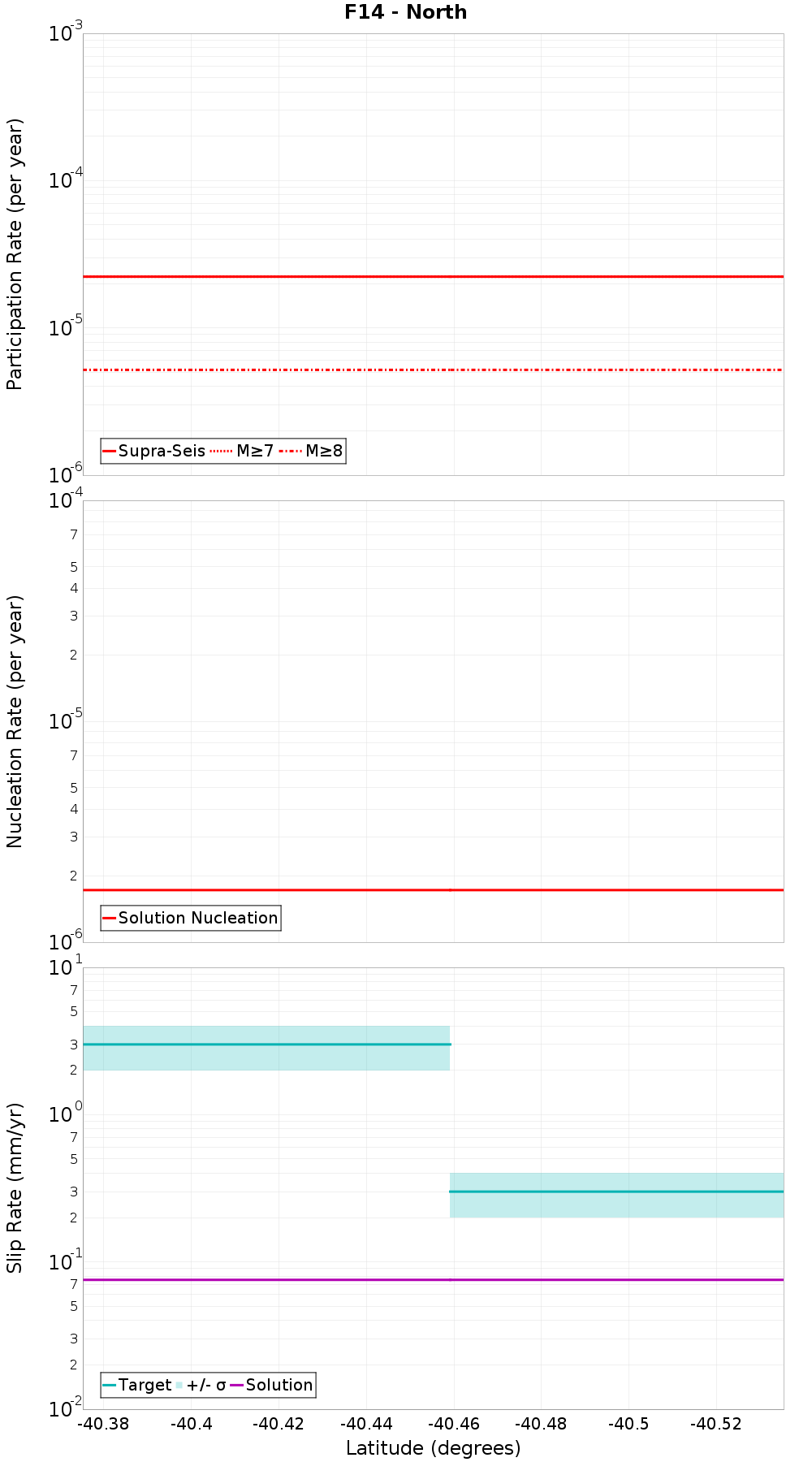

Along-Strike Values
Moment-Rates and b-Values

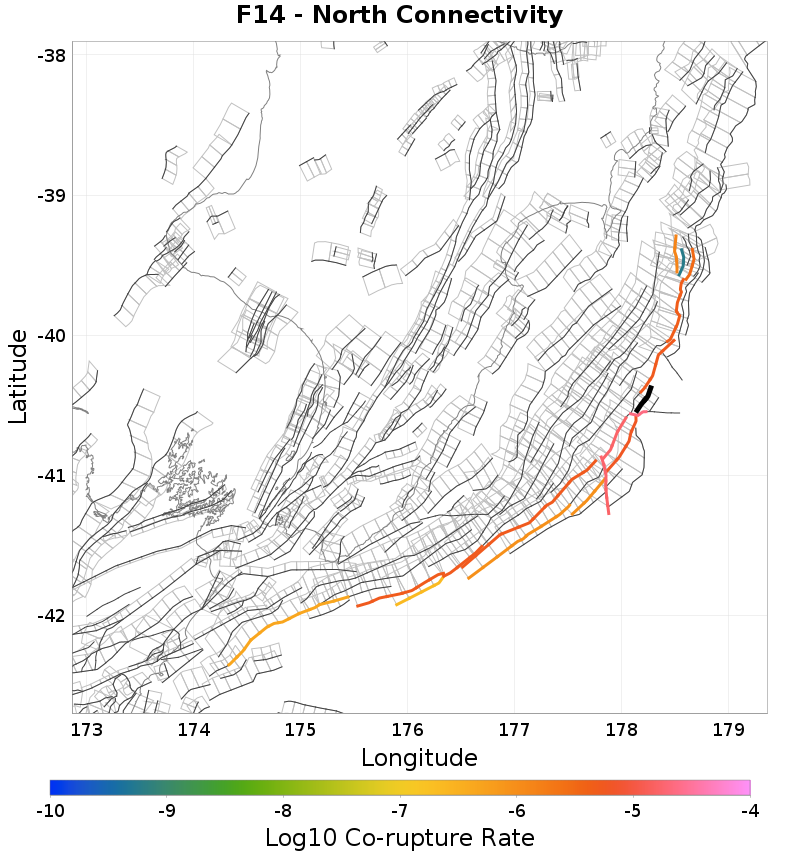

Connectivity
 |  |
|---|
Nearby Sections
Akitio Ridge, 2.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11,337 |
| Co-rupture Rate | 2.1575219E-5 |
BKSmt-North, 3.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,153 |
| Co-rupture Rate | 2.2276008E-5 |
F16 - Central, 4.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,943 |
| Co-rupture Rate | 5.8838164E-6 |
F16 - North, 4.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 0.0 |
Akitio Trough West, 8.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Bennett Knoll, 12.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 75 |
| Co-rupture Rate | 0.0 |
Rock Garden - Ritchie East, 13.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MTguMFFTNVBE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,275 |
| Co-rupture Rate | 4.5194756E-6 |
