Pukerua - Shepherds Gully: 3 Details

PropertyValue
Rupture Count763
Ruptures Above Sect Min Mag758
Ruptures w/ Nonzero Rates5
Magnitude Range[6.68, 8.43]
Length Range[17, 942] km
Total Rate6.373716E-5 /yr
Multi-Fault Rate6.373716E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults60

Table Of Contents

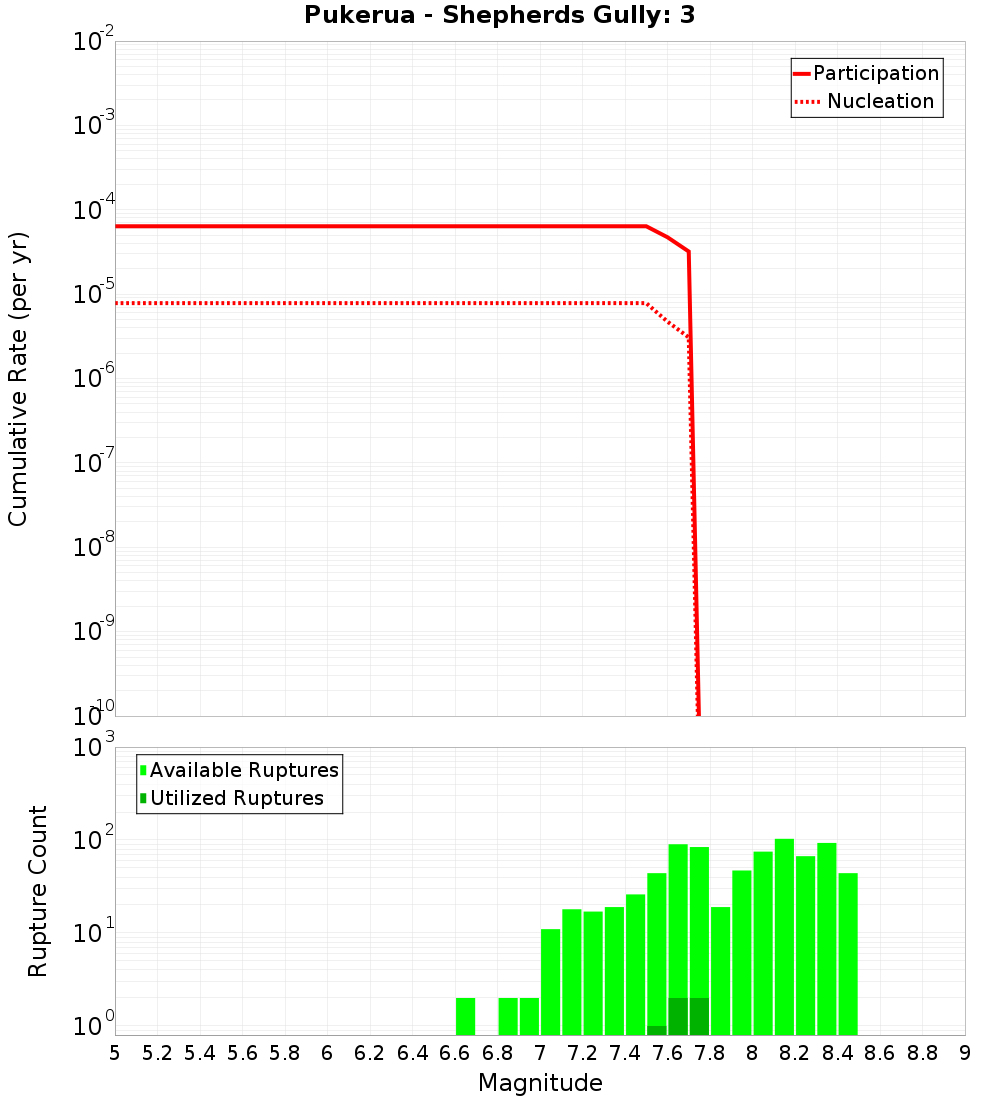

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

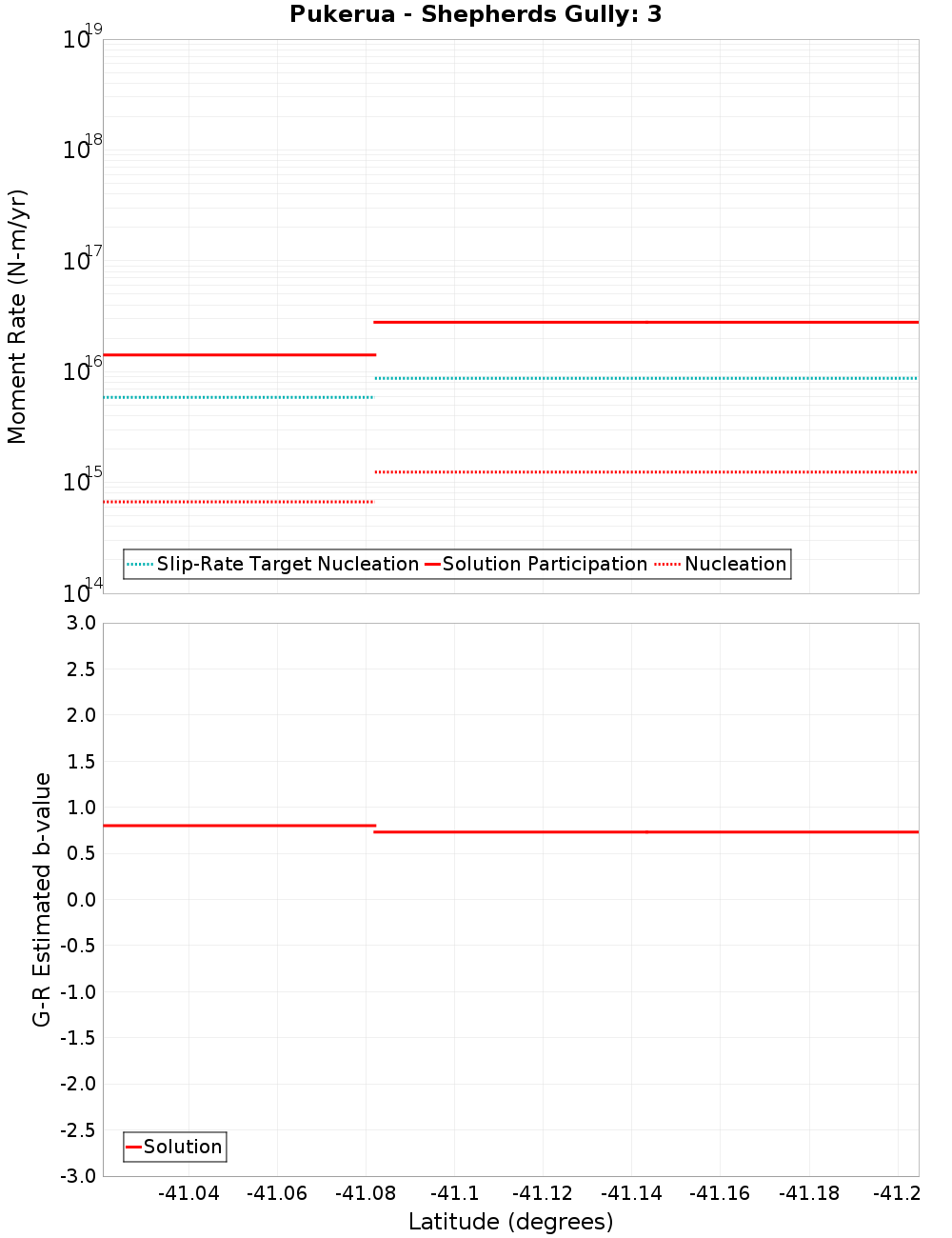

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pukerua - Shepherds Gully: 2, 0 km awayWellington Hutt Valley: 3, 8.98 km away
Shepherds Gully - Mana, 3.11 km awayWellington Hutt Valley: 4, 8.98 km away
Ohariu, 3.18 km awayAotea - Evans Bay, 10.27 km away
Otaheke South, 4.95 km awayAkatarawa, 10.57 km away
Moonshine, 5.97 km awayFisherman 1, 13.16 km away
Whitemans Valley, 6.28 km awayWharekauhau, 13.68 km away
Pukerua - Shepherds Gully: 1, 7.39 km awayOtaki Forks: 1, 14.24 km away
Okupe 1, 7.9 km awayWellington Hutt Valley: 2, 14.41 km away
Gibbs, 7.94 km away

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?true
Co-rupture Count553
Co-rupture Rate4.7012956E-5

Shepherds Gully - Mana, 3.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate1.6724209E-5

Ohariu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate0.0

Otaheke South, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate2.8180246E-5

Moonshine, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Whitemans Valley, 6.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count517
Co-rupture Rate4.7012956E-5

Okupe 1, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate4.9514256E-5

Gibbs, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Akatarawa, 10.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 1, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.902911E-5

Wharekauhau, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Otaki Forks: 1, 14.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 14.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0
