White Creek - buried Details
| Property | Value |
|---|---|
| Rupture Count | 34,205 |
| Ruptures Above Sect Min Mag | 34,204 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.74, 8.47] |
| Length Range | [19, 1,039] km |
| Total Rate | 4.0094812E-5 /yr |
| Multi-Fault Rate | 4.0094812E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 118 |
Table Of Contents

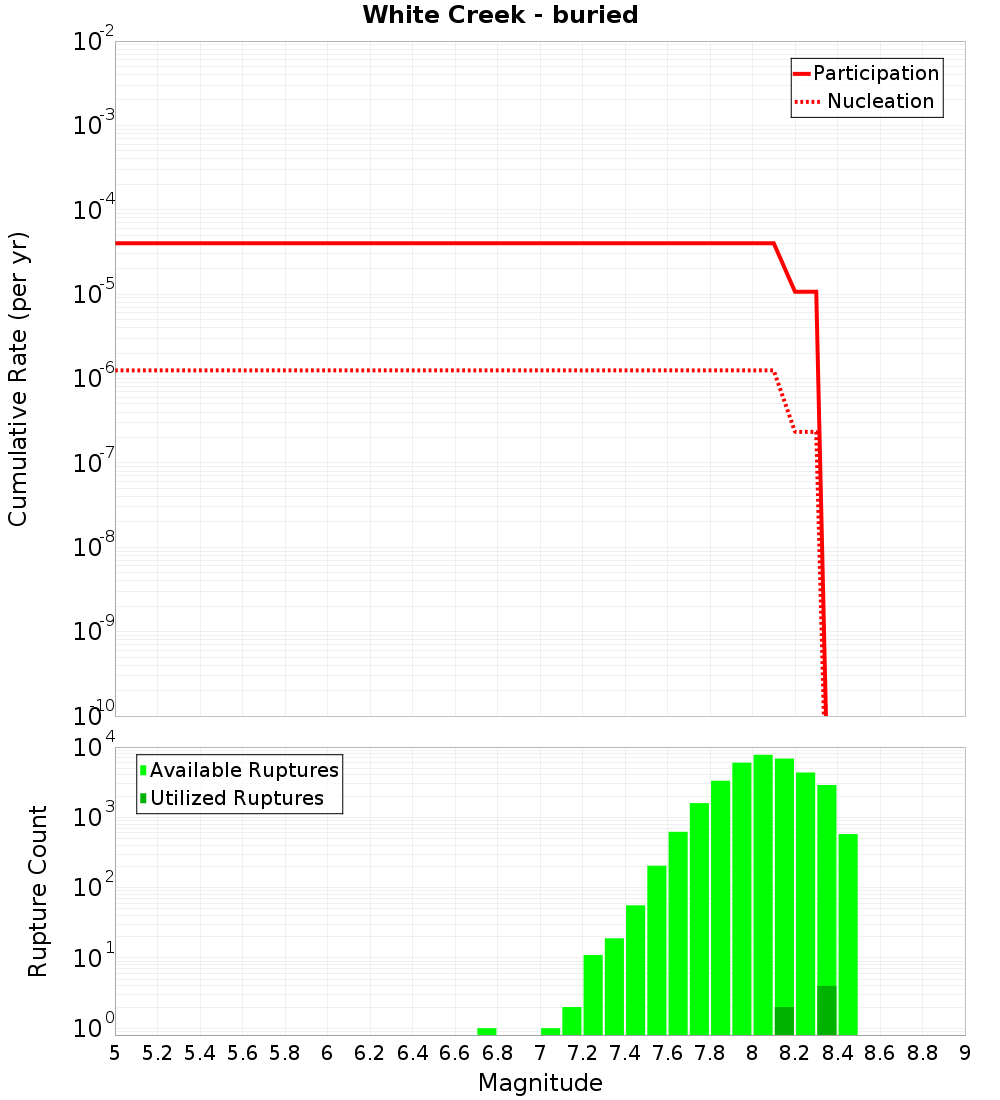

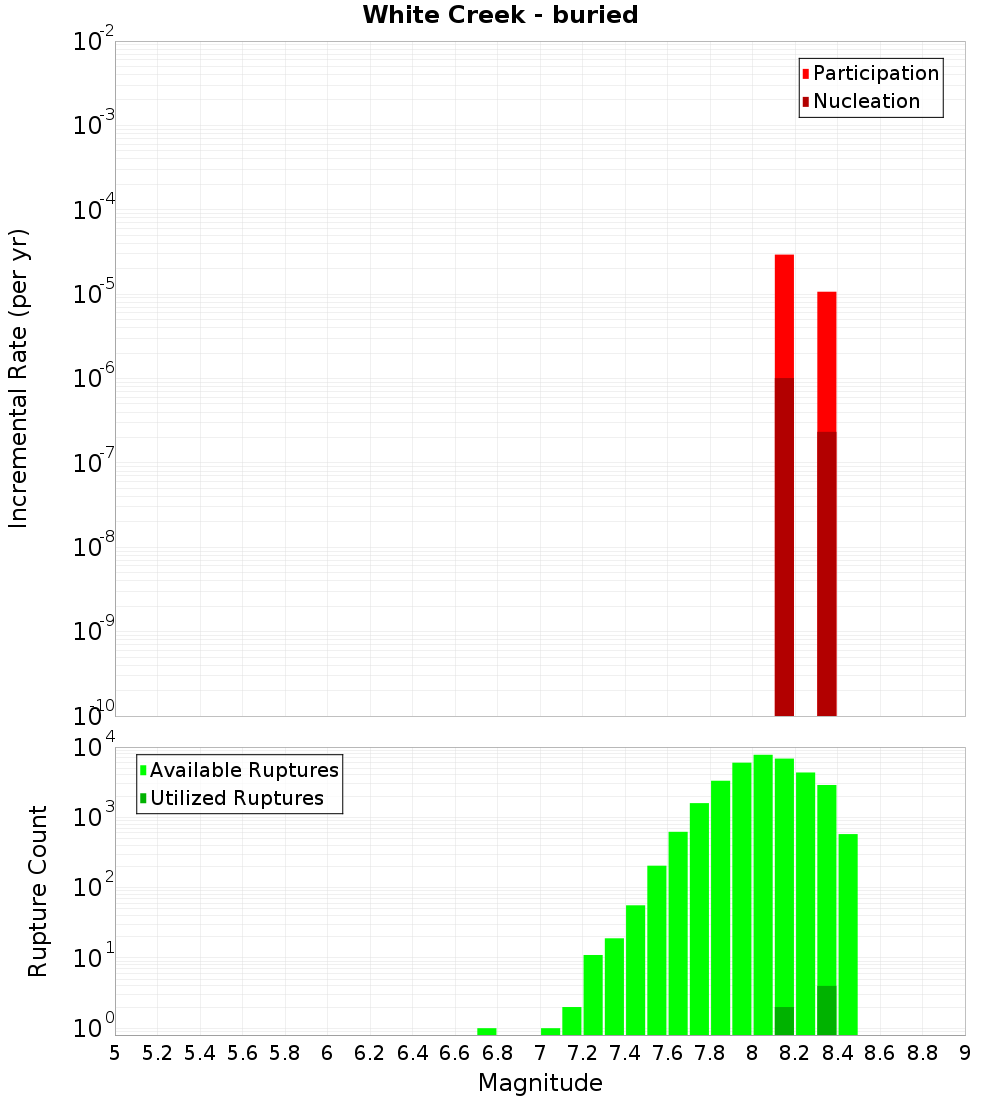

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

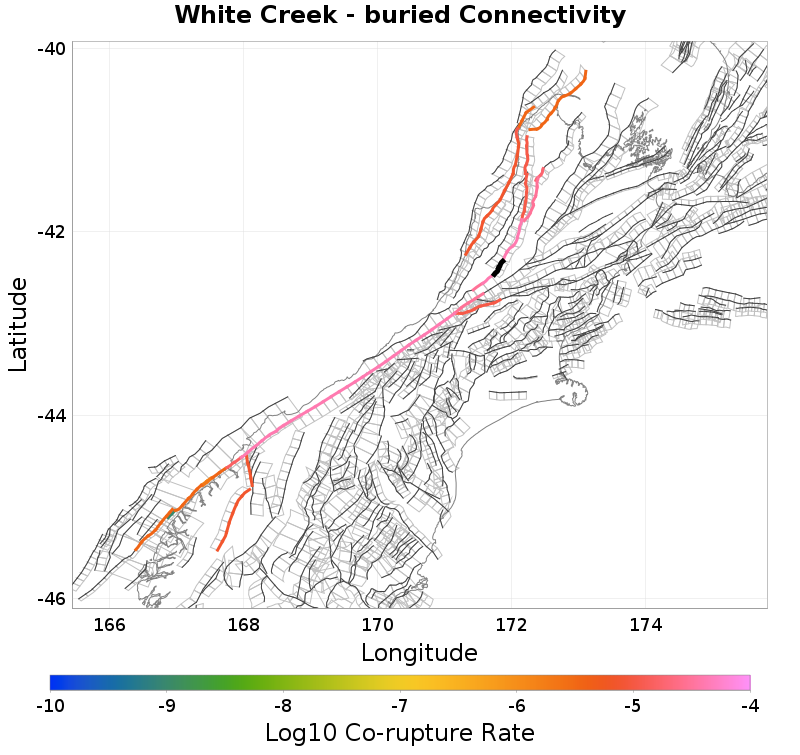

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.99 km away |
| Hohonu North, 4.1 km away |
| Clarence: Southwest, 5.99 km away |
| Lyell South, 7.38 km away |
| Alpine: Kaniere to Springs Junction, 12.02 km away |
White Creek, 0.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 33,293 |
| Co-rupture Rate | 4.0094812E-5 |
Hohonu North, 4.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34,042 |
| Co-rupture Rate | 4.0094812E-5 |
Clarence: Southwest, 5.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 468 |
| Co-rupture Rate | 0.0 |
Lyell South, 7.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5,726 |
| Co-rupture Rate | 0.0 |
Alpine: Kaniere to Springs Junction, 12.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjMuMDRUSk5w | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5,130 |
| Co-rupture Rate | 2.9414708E-5 |
