Gable End North Details

PropertyValue
Rupture Count285
Ruptures Above Sect Min Mag267
Ruptures w/ Nonzero Rates76
Magnitude Range[6.50, 7.69]
Length Range[15, 220] km
Total Rate2.1087486E-4 /yr
Multi-Fault Rate2.1087486E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults12

Table Of Contents

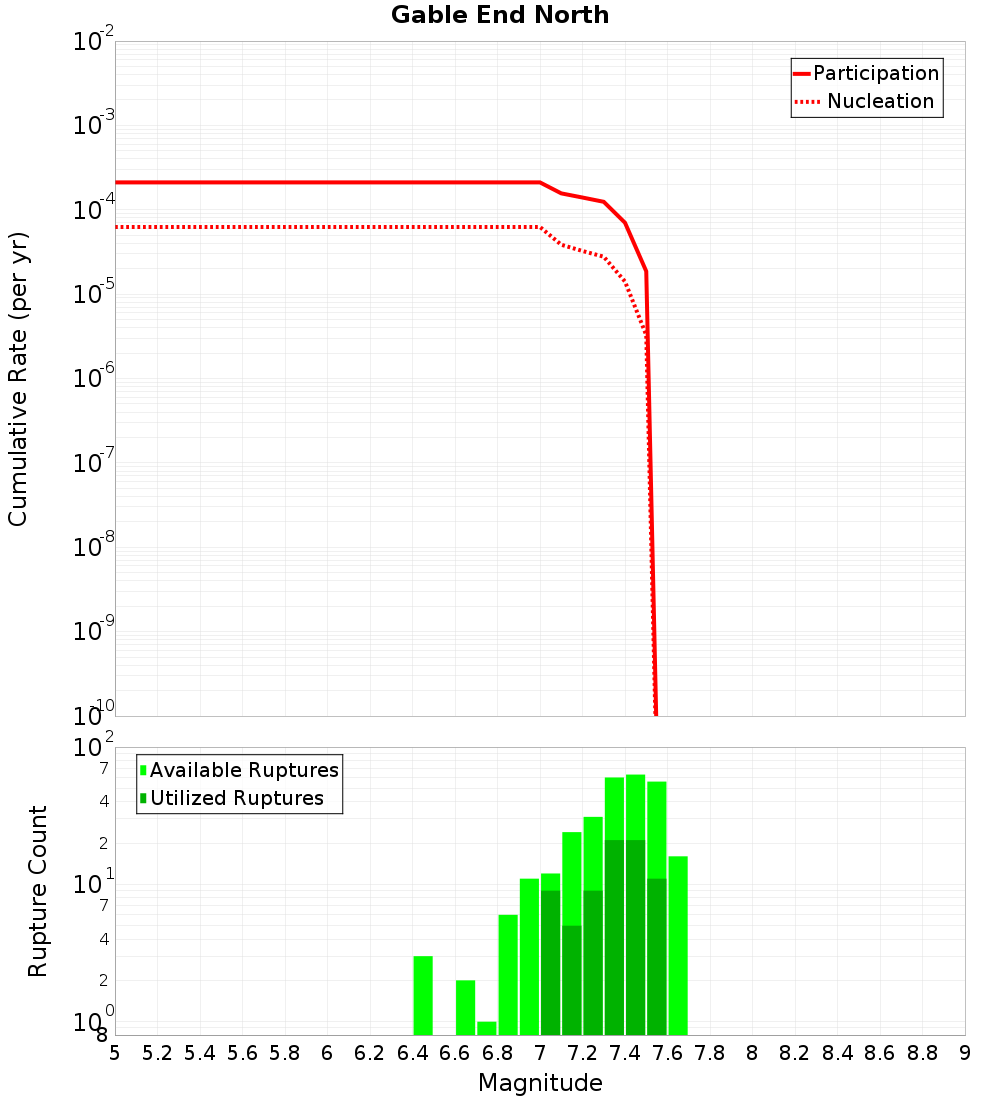

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakarae, 0.43 km away
Ariel Bank 2, 0.91 km away
Ariel Bank, 2.16 km away
Te Ikaarongamai, 3.76 km away
Gable End South, 5.88 km away
Ariel East, 11.01 km away

Pakarae, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank 2, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate7.888201E-5

Ariel Bank, 2.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate9.140317E-5

Te Ikaarongamai, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate4.972618E-5

Gable End South, 5.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate8.6447886E-5

Ariel East, 11.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate6.5596774E-5
