Glasgow Details

Property	Value
Rupture Count	3,683
Ruptures Above Sect Min Mag	3,681
Ruptures w/ Nonzero Rates	120
Magnitude Range	[6.86, 8.30]
Length Range	[22, 699] km
Total Rate	4.1763367E-5 /yr
Multi-Fault Rate	4.1763367E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

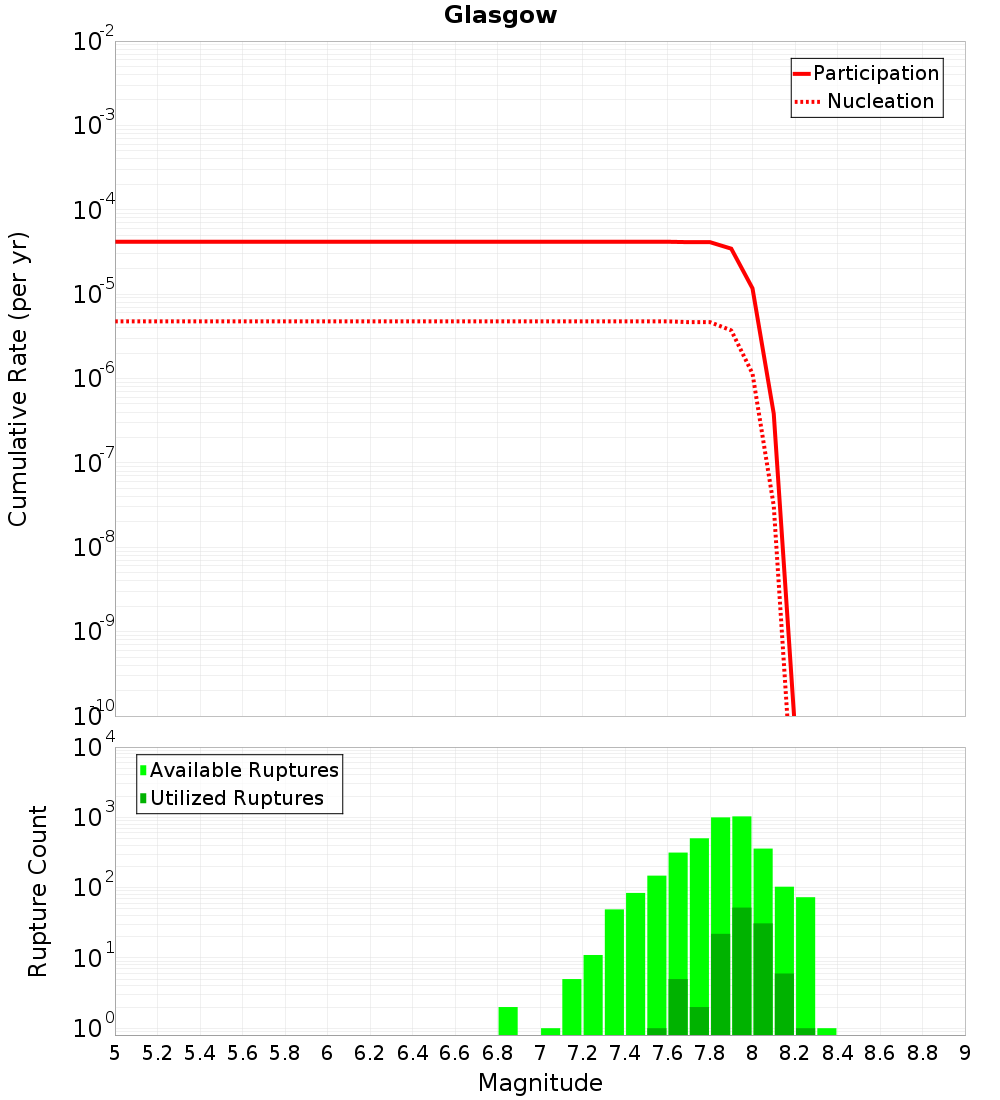

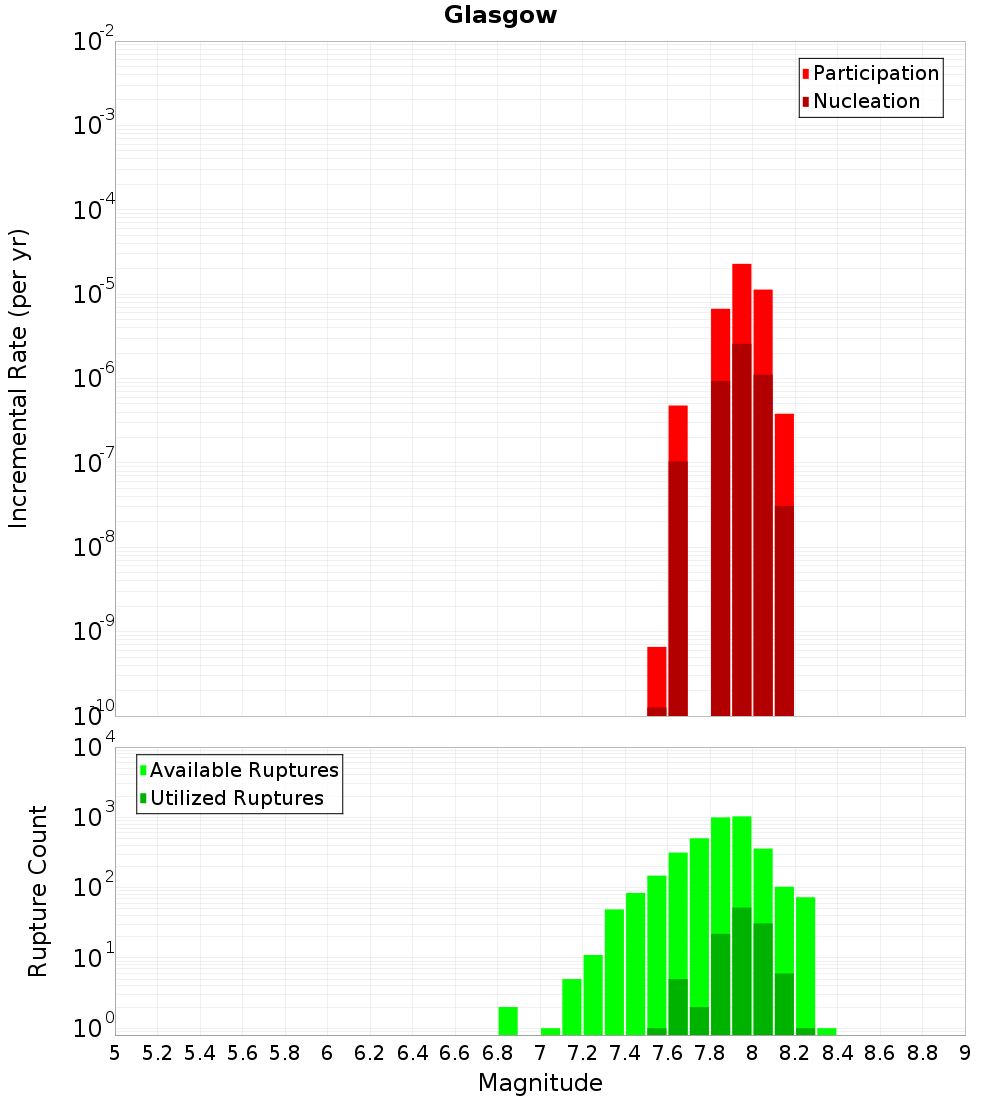

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

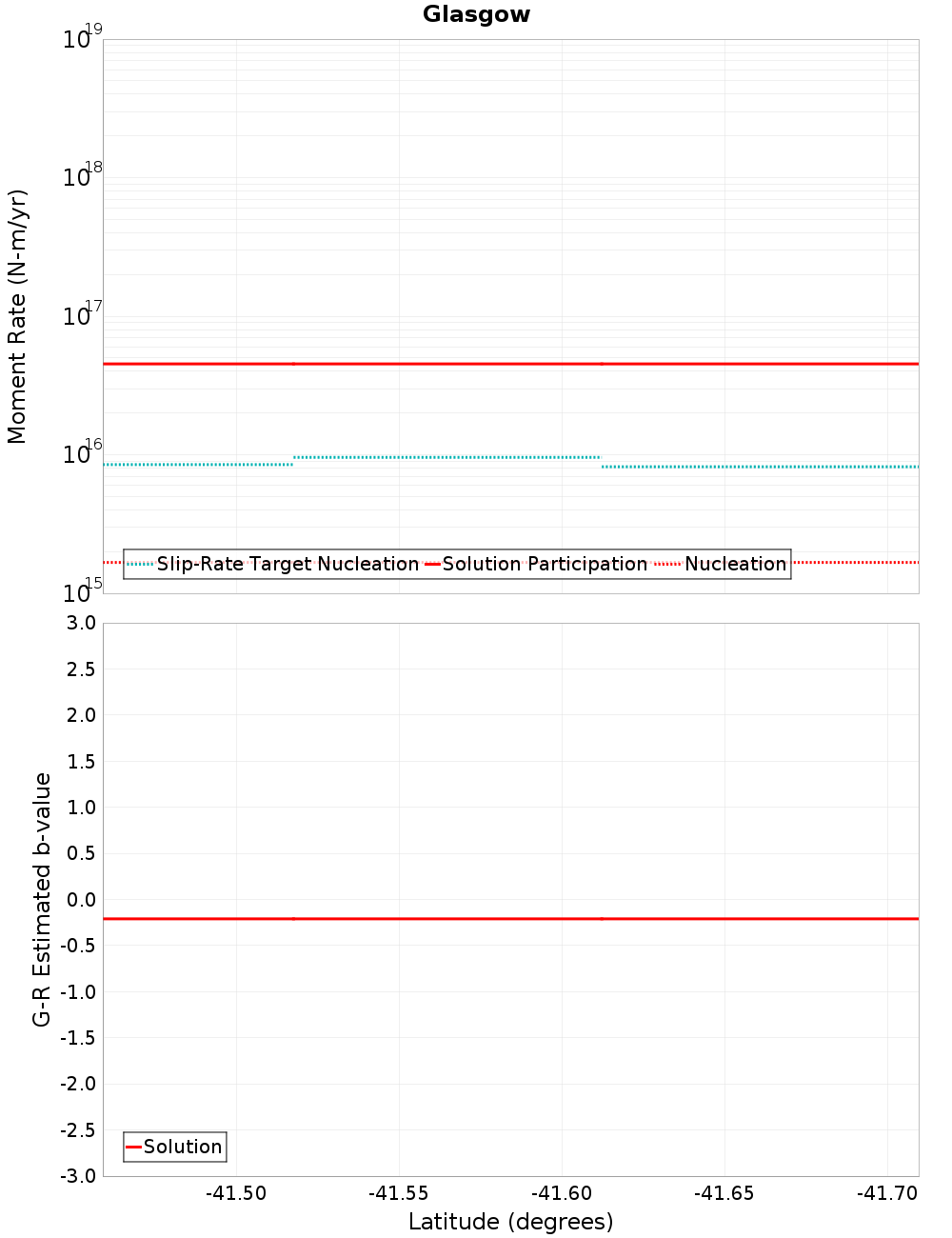

Moment-Rates and b-Values

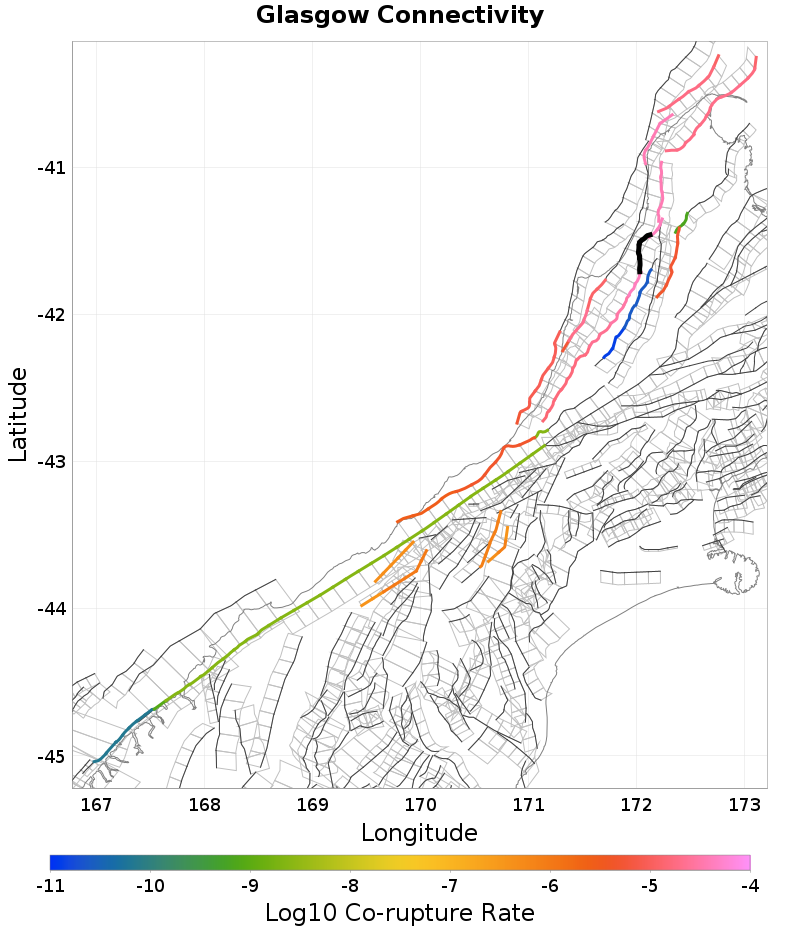

Connectivity

Nearby Sections

Fault Section
Kohaihai South, 0.11 km away
Inangahua, 0.13 km away
Matiri West, 1.09 km away
White Creek, 2.98 km away
Lyell, 6.15 km away
Kongahau, 6.47 km away
Kohaihai, 12.23 km away
Karamea South, 14.11 km away

Kohaihai South, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,659
Co-rupture Rate	4.1760453E-5

Inangahua, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	true
Co-rupture Count	3,050
Co-rupture Rate	4.1763342E-5

Matiri West, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	true
Co-rupture Count	603
Co-rupture Rate	5.040473E-6

White Creek, 2.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	true
Co-rupture Count	349
Co-rupture Rate	0.0

Lyell, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	true
Co-rupture Count	405
Co-rupture Rate	2.4117802E-11

Kongahau, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,930
Co-rupture Rate	3.6720572E-5

Kohaihai, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	false
Co-rupture Count	2,020
Co-rupture Rate	3.672064E-5

Karamea South, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MjUuMEVVYmlN
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	6.59318E-10
