AmberBlyth Details
| Property | Value |
|---|---|
| Rupture Count | 5,586 |
| Ruptures Above Sect Min Mag | 5,581 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.81, 8.24] |
| Length Range | [20, 530] km |
| Total Rate | 7.5792435E-5 /yr |
| Multi-Fault Rate | 7.5792435E-5 /yr (100.00%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 69 |
Table Of Contents

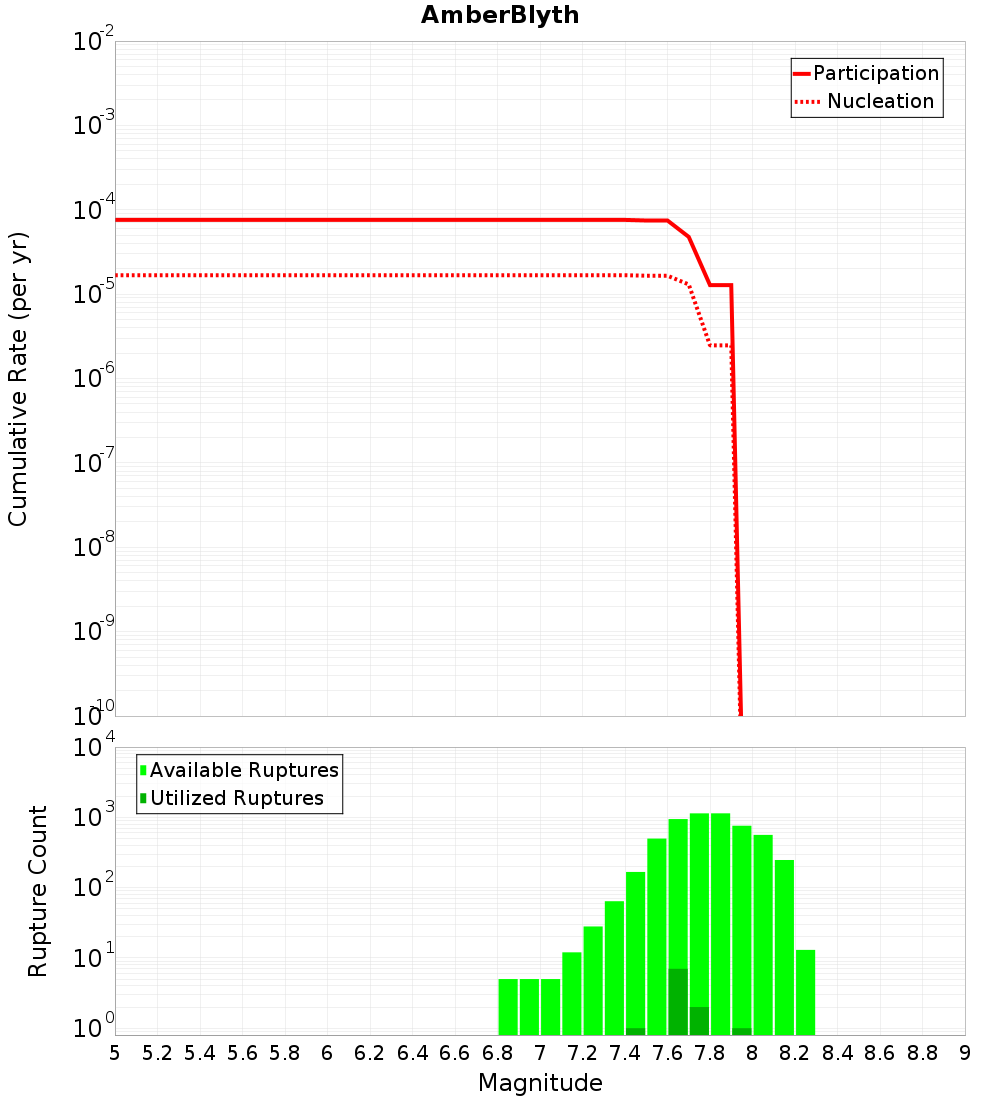

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

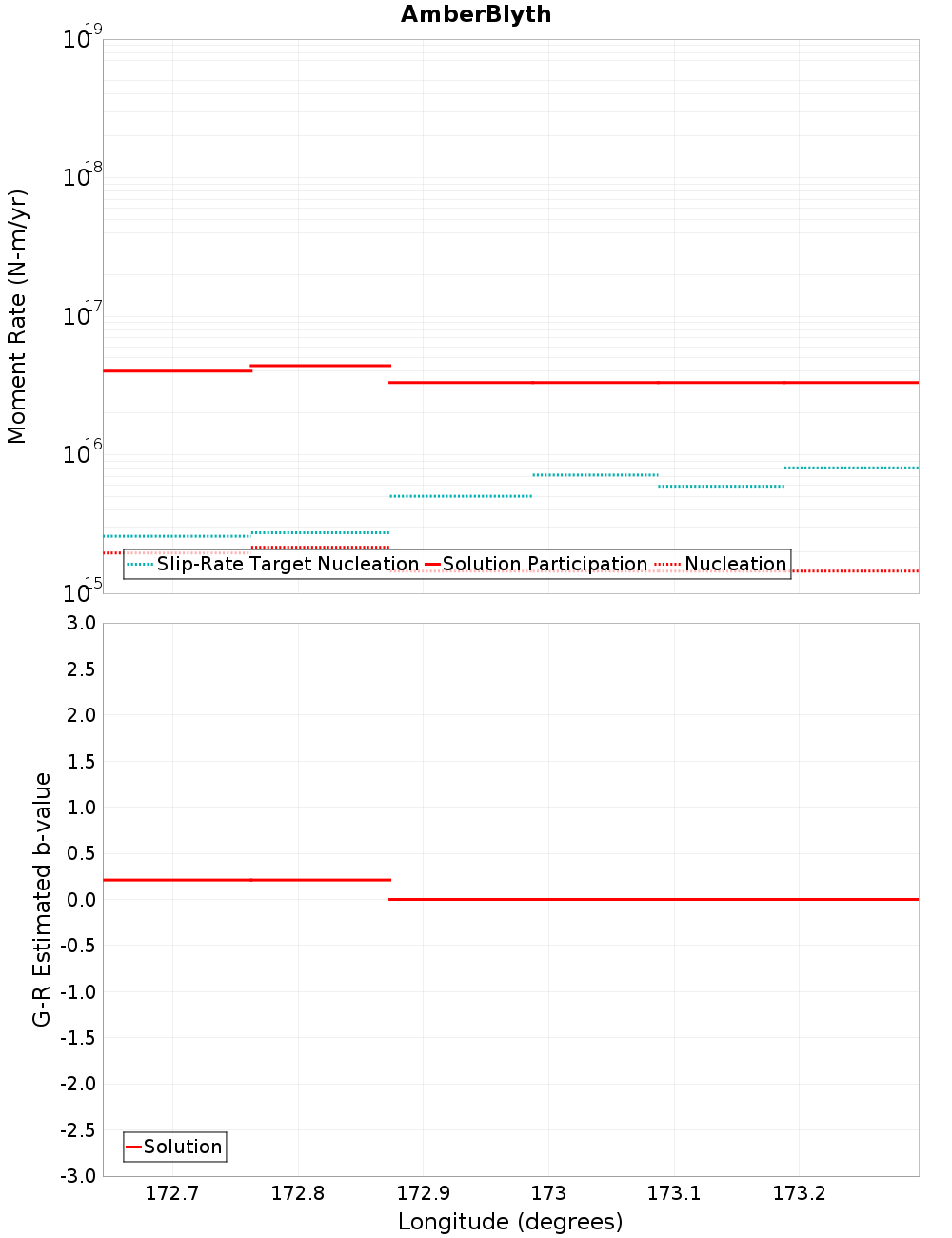

Moment-Rates and b-Values

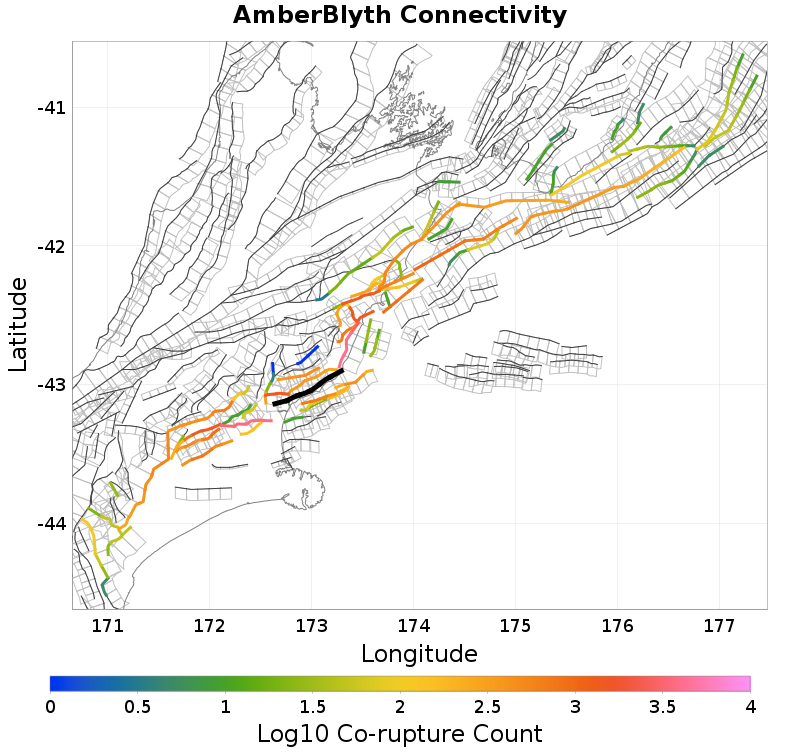

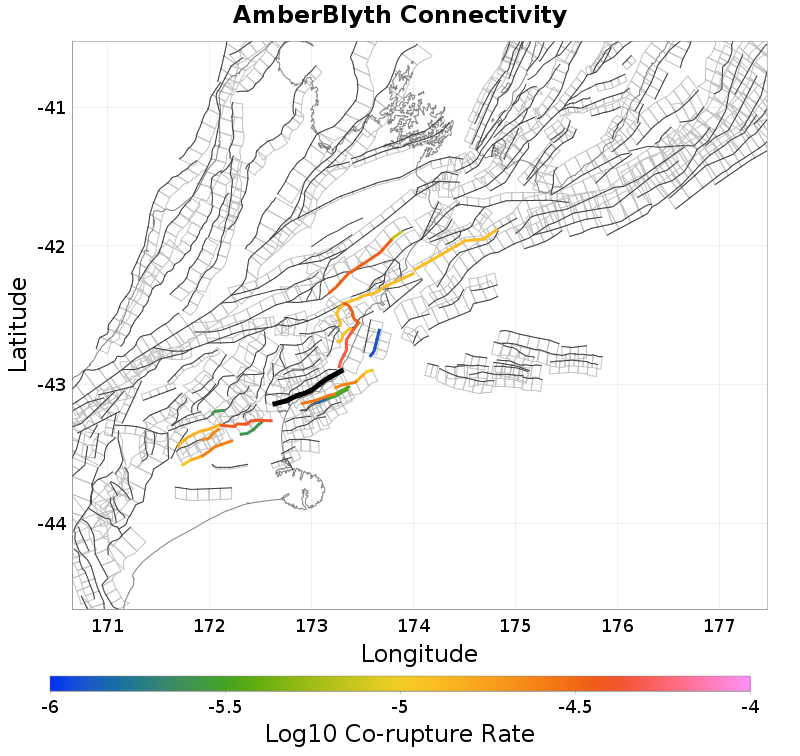

Connectivity
 |  |
|---|
Nearby Sections
OmihiLwrHuru, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 360 |
| Co-rupture Rate | 0.0 |
Motunau, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 706 |
| Co-rupture Rate | 2.8129889E-5 |
Hawkswood, 3.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,028 |
| Co-rupture Rate | 4.766255E-5 |
Boby Stream, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,556 |
| Co-rupture Rate | 0.0 |
Point Gibson, 4.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 450 |
| Co-rupture Rate | 2.54105E-5 |
North Canterbury Shelf 2, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 76 |
| Co-rupture Rate | 0.0 |
Leithfield - NCVI - NCVII, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 167 |
| Co-rupture Rate | 2.9153111E-6 |
Doctors, 5.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 296 |
| Co-rupture Rate | 0.0 |
North Canterbury Shelf 11, 7.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 200 |
| Co-rupture Rate | 3.5721782E-6 |
Starvation - Ashley, 7.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,803 |
| Co-rupture Rate | 3.969713E-5 |
Kaiwara South, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 454 |
| Co-rupture Rate | 0.0 |
Waikuku, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
Alexander, 11.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Canterbury Shelf 4, 12.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Lawry, 14.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 60 |
| Co-rupture Rate | 0.0 |
Pegasus Bay, 14.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
