Ariel Bank Details

Property	Value
Rupture Count	302
Ruptures Above Sect Min Mag	292
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.51, 7.79]
Length Range	[13, 220] km
Total Rate	8.840963E-5 /yr
Multi-Fault Rate	8.840963E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	11

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

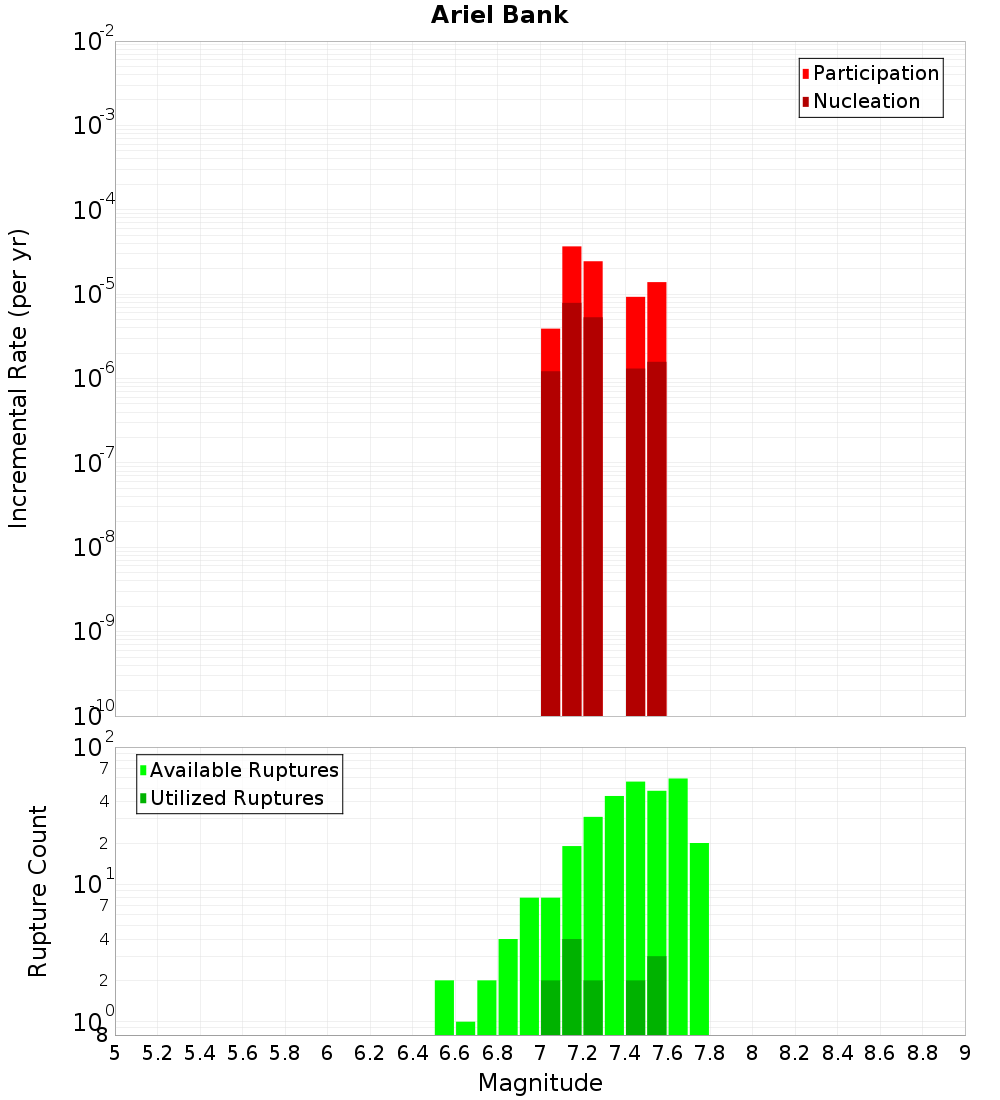

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

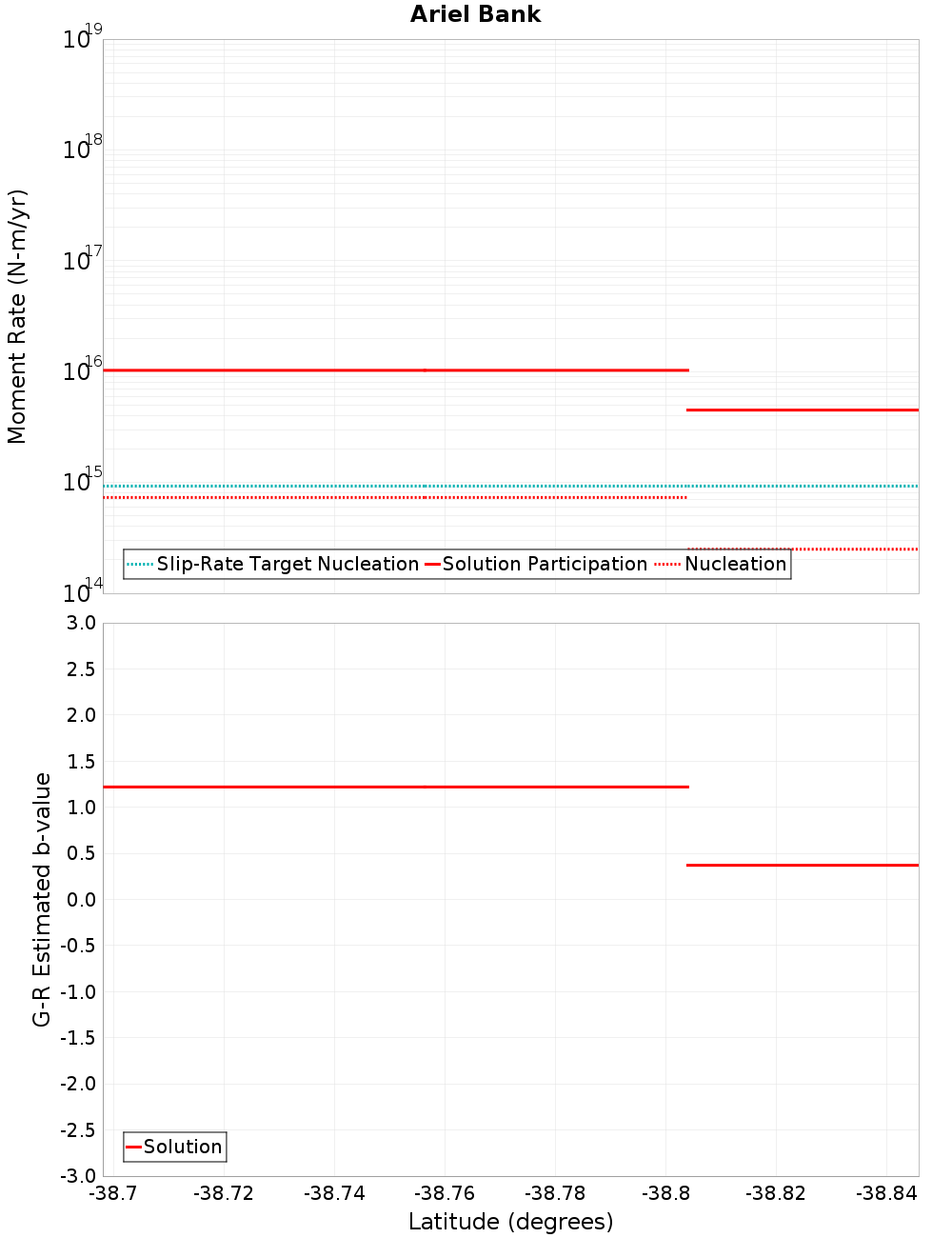

Moment-Rates and b-Values

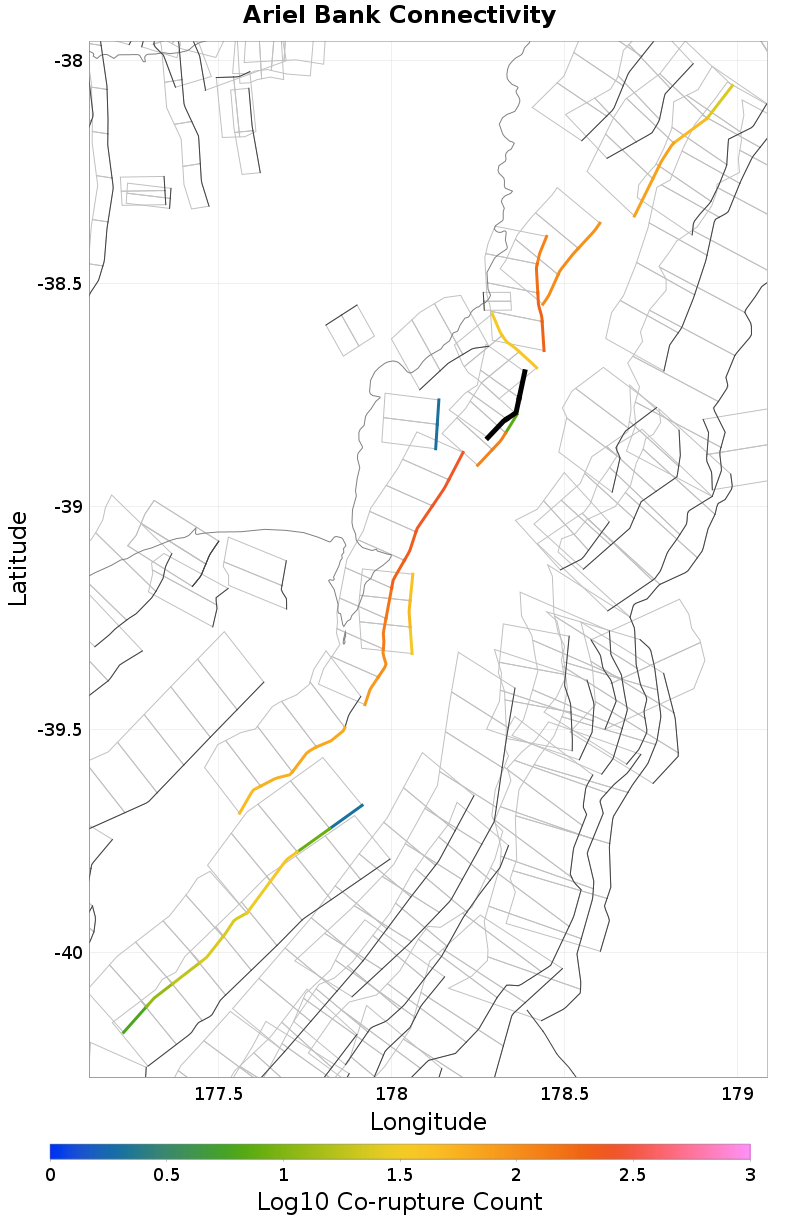

Connectivity

Nearby Sections

Fault Section
Te Ikaarongamai, 0.16 km away
Ariel East, 0.49 km away
Gable End North, 2.16 km away
Lachlan 3, 6.88 km away
Gable End South, 7.03 km away
Poverty Bay, 9.05 km away
Pakarae, 9.65 km away

Te Ikaarongamai, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	37
Co-rupture Rate	4.071259E-5

Ariel East, 0.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	128
Co-rupture Rate	6.2216466E-5

Gable End North, 2.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	197
Co-rupture Rate	4.7697155E-5

Lachlan 3, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	4.7697038E-5

Gable End South, 7.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poverty Bay, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.4529409E-5

Pakarae, 9.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
