Ariel East Details

PropertyValue
Rupture Count224
Ruptures Above Sect Min Mag220
Ruptures w/ Nonzero Rates11
Magnitude Range[6.42, 7.79]
Length Range[11, 220] km
Total Rate9.9334706E-5 /yr
Multi-Fault Rate9.9334706E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults11

Table Of Contents

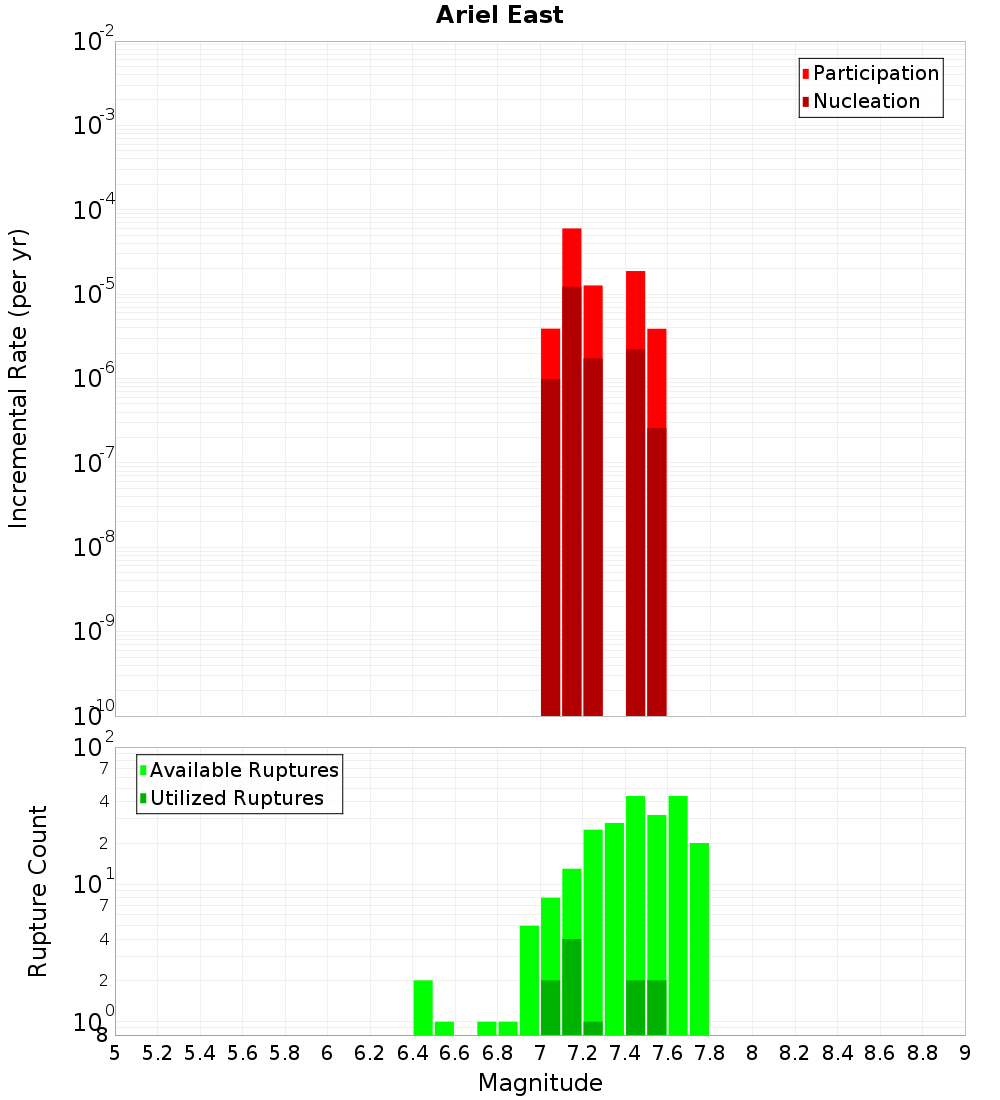

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

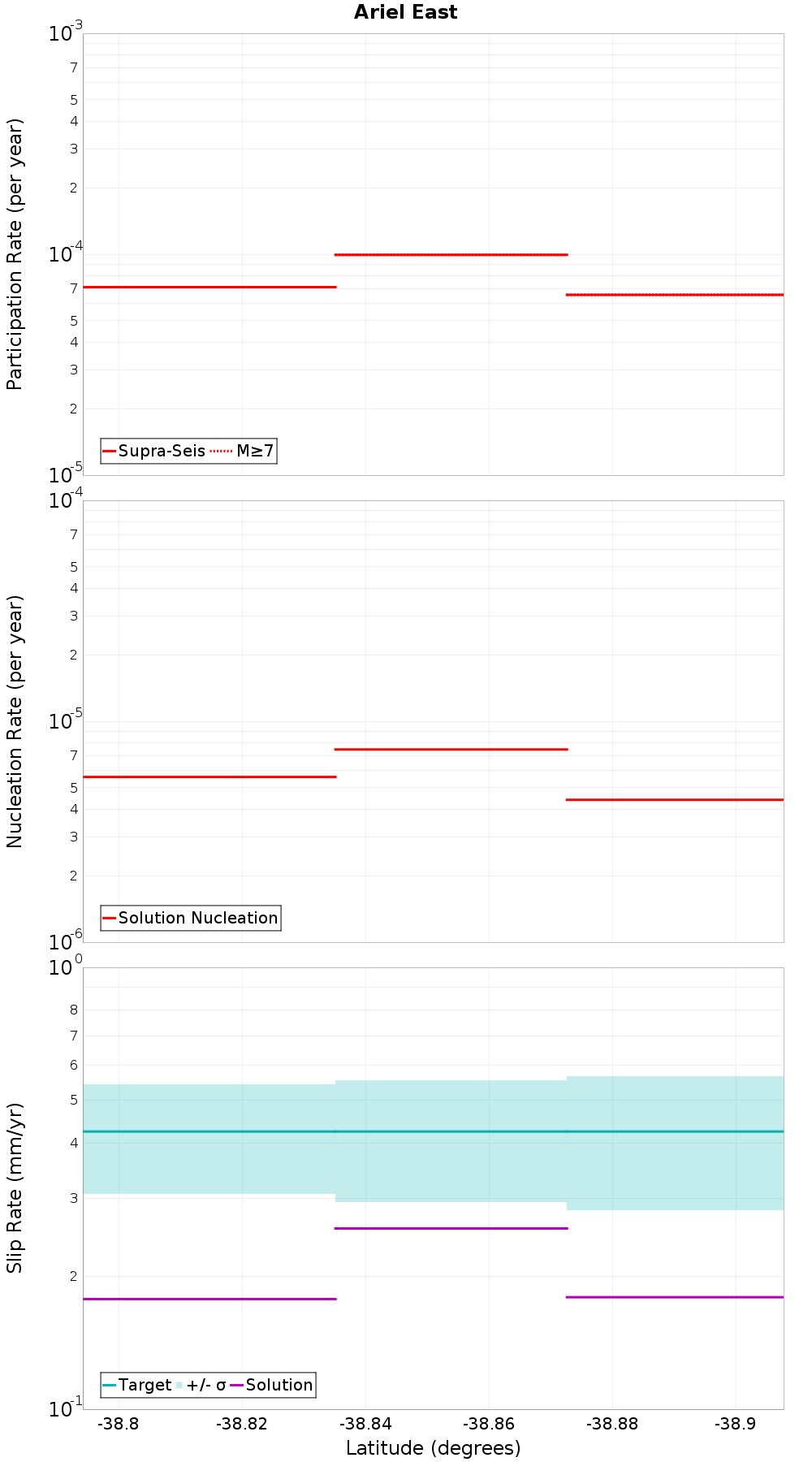

Along-Strike Values

(top)

Along-strike plot

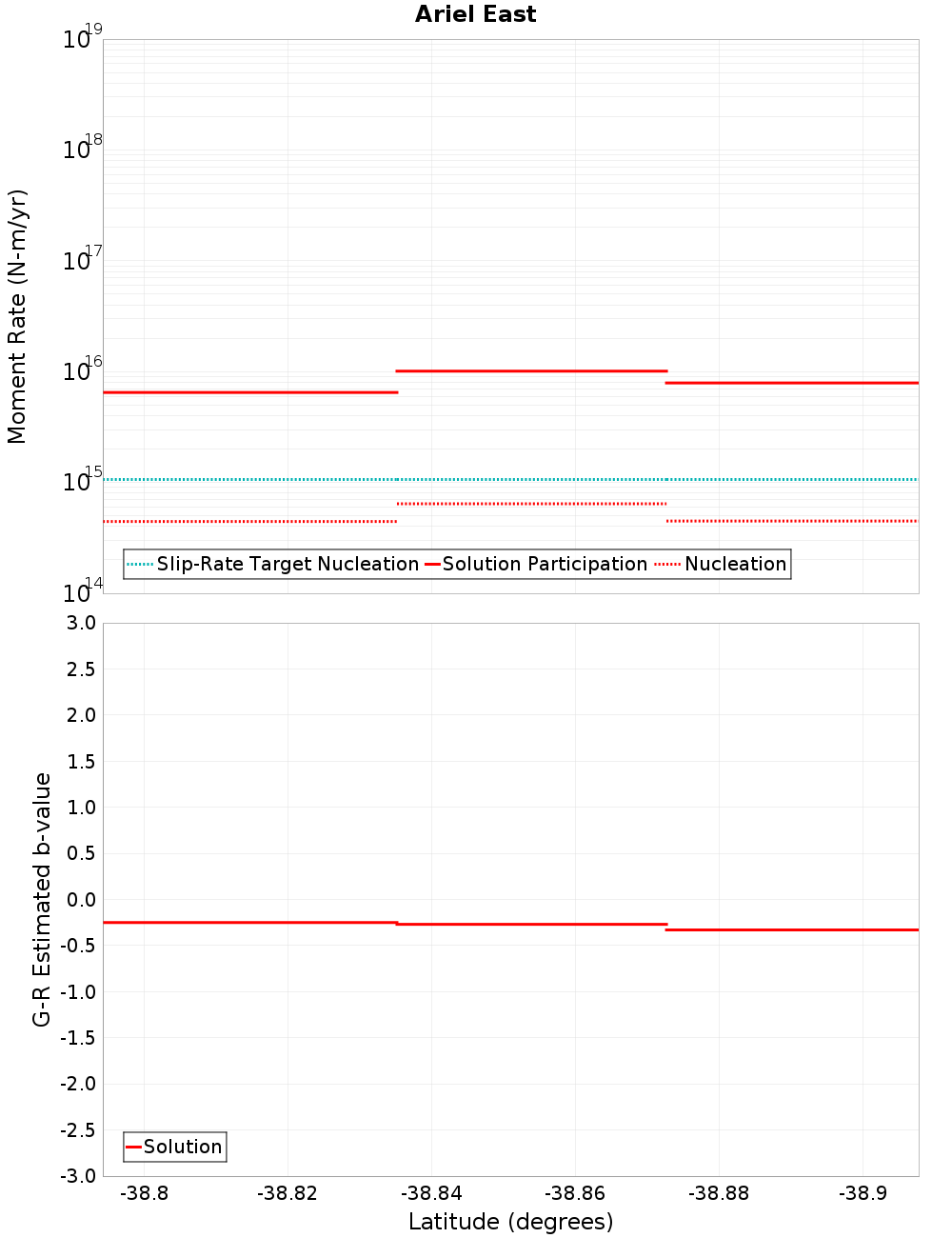

Moment-Rates and b-Values

(top)

Along-strike plot

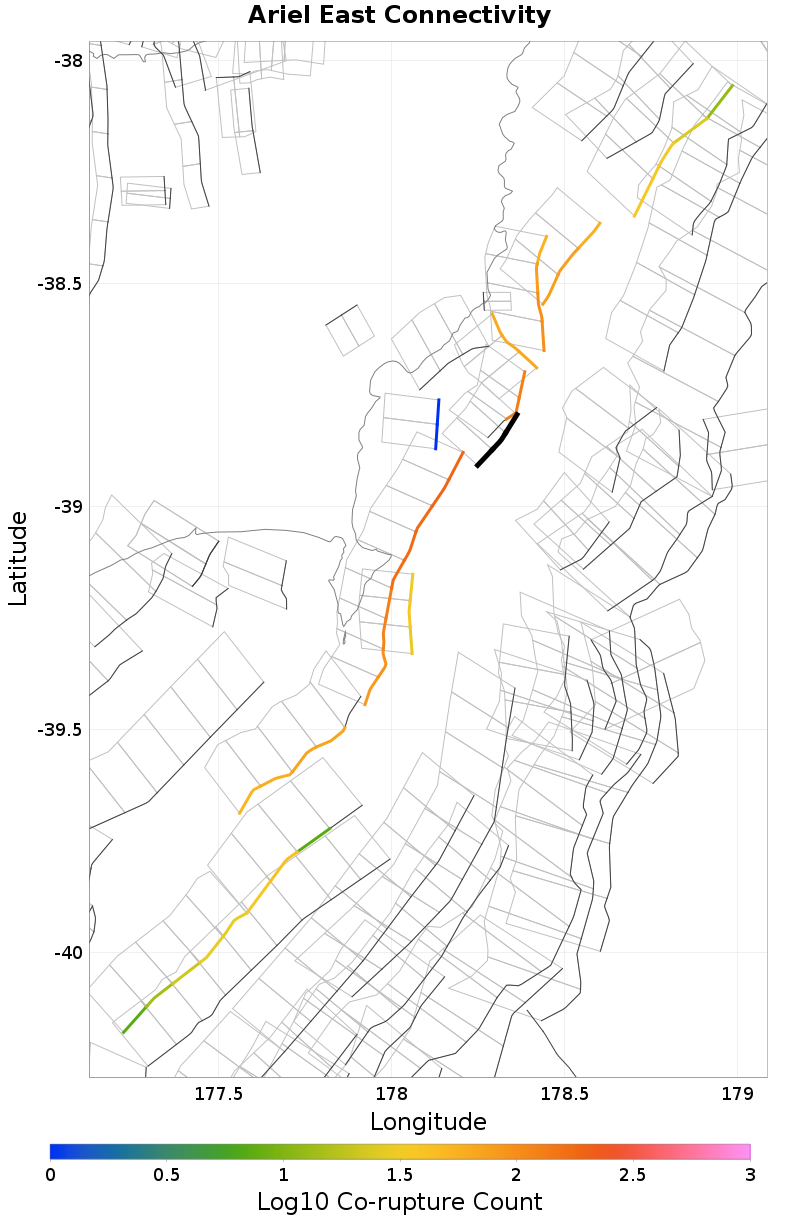

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.3 km away
Ariel Bank, 0.49 km away
Lachlan 3, 3.12 km away
Poverty Bay, 7.85 km away
Gable End North, 11.01 km away
Gable End South, 13.12 km away

Te Ikaarongamai, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate7.7830715E-5

Ariel Bank, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count128
Co-rupture Rate6.2216466E-5

Lachlan 3, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate3.5347814E-5

Poverty Bay, 7.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.2680409E-5

Gable End North, 11.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate2.1504115E-5

Gable End South, 13.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
