BKSmt-West Details

PropertyValue
Rupture Count13,803
Ruptures Above Sect Min Mag13,783
Ruptures w/ Nonzero Rates10
Magnitude Range[6.46, 8.50]
Length Range[13, 727] km
Total Rate7.295709E-5 /yr
Multi-Fault Rate7.295709E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults63

Table Of Contents

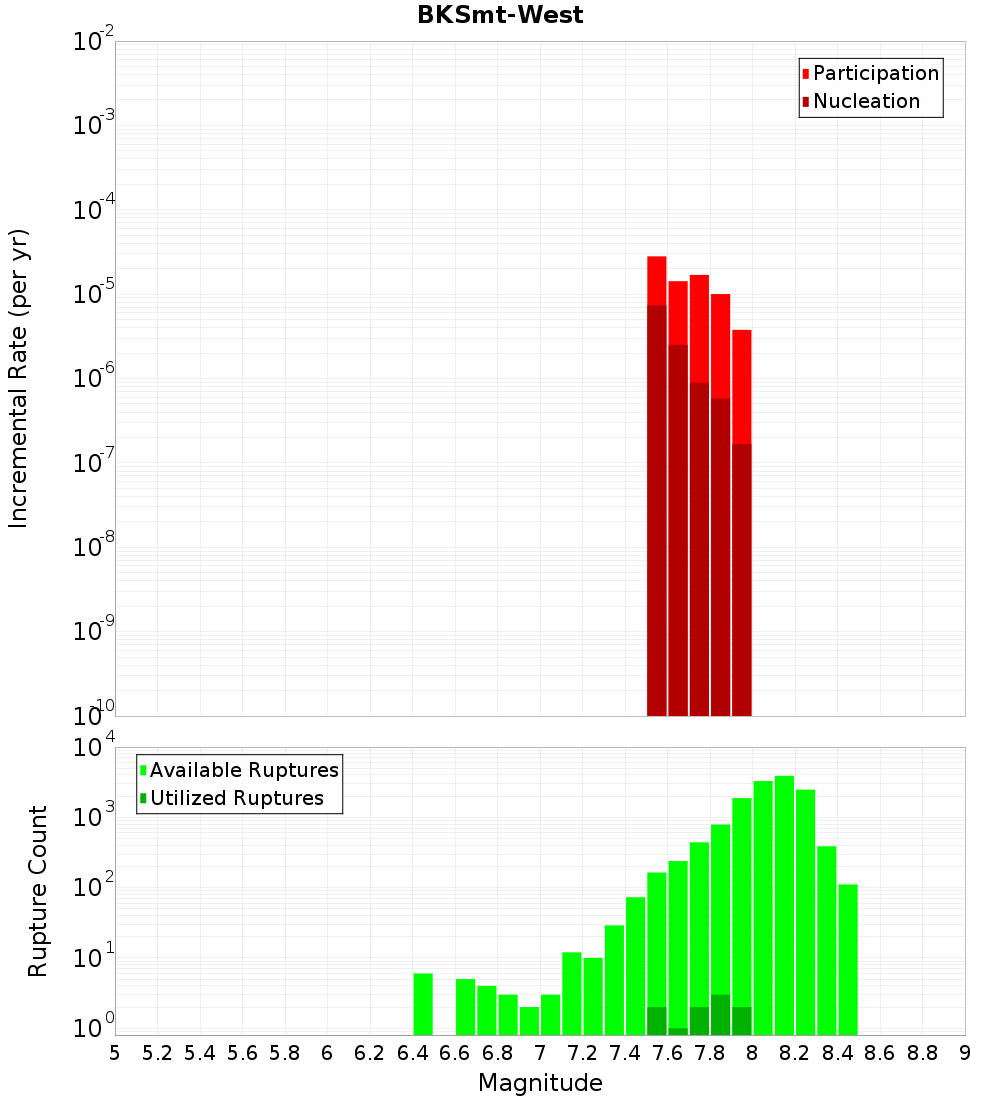

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

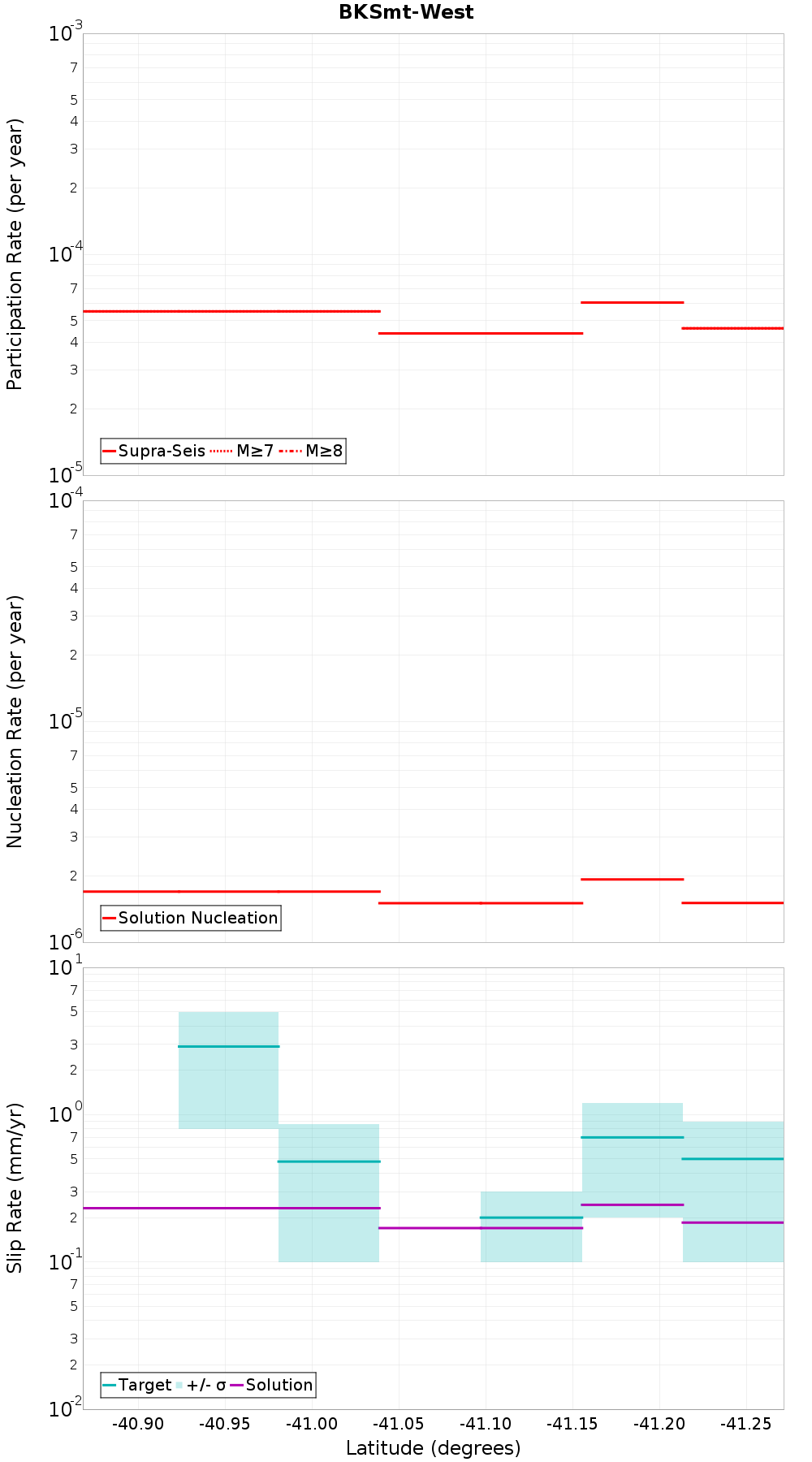

Along-Strike Values

(top)

Along-strike plot

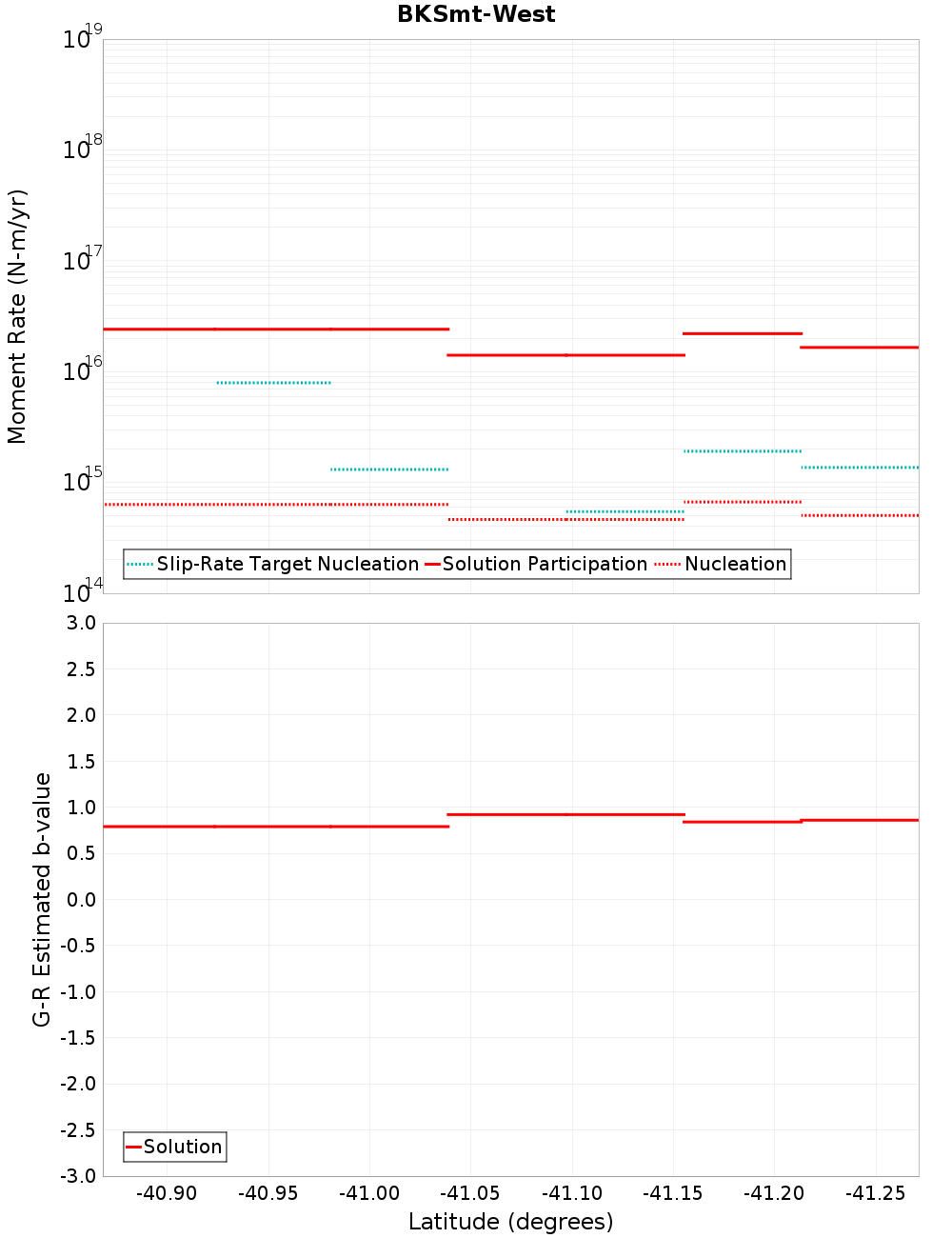

Moment-Rates and b-Values

(top)

Along-strike plot

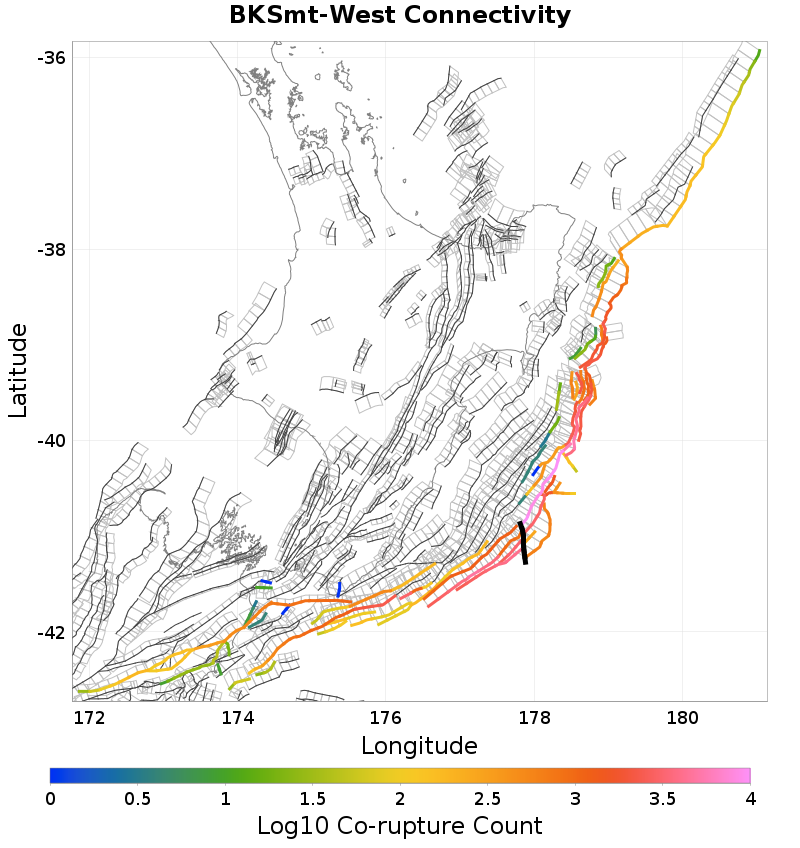

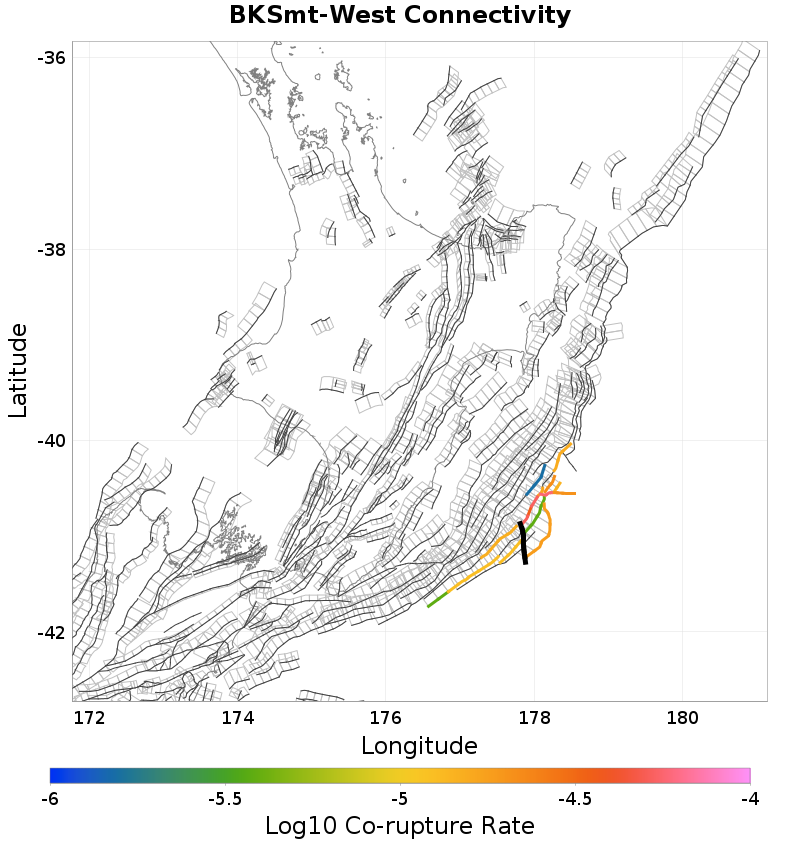

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
F17 - Central, 0.12 km away
F16 - Central, 0.19 km away
Bennett Knoll, 0.21 km away
F17 - South, 0.41 km away
Akitio Ridge, 0.5 km away
Aorangi Ridge, 0.57 km away
F16 - South, 0.87 km away
Aorangi Trough, 5.26 km away

F17 - Central, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate0.0

F16 - Central, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count3,044
Co-rupture Rate3.7703794E-6

Bennett Knoll, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count713
Co-rupture Rate1.8150447E-5

F17 - South, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count4,158
Co-rupture Rate0.0

Akitio Ridge, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count12,668
Co-rupture Rate8.312949E-5

Aorangi Ridge, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count5,120
Co-rupture Rate1.2546358E-5

F16 - South, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count3,131
Co-rupture Rate1.2546358E-5

Aorangi Trough, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count1,247
Co-rupture Rate1.50451E-5
