Lilybank Details

Property	Value
Rupture Count	5,743
Ruptures Above Sect Min Mag	5,740
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.82, 8.36]
Length Range	[18, 641] km
Total Rate	7.3703966E-5 /yr
Multi-Fault Rate	7.3703966E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	145

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

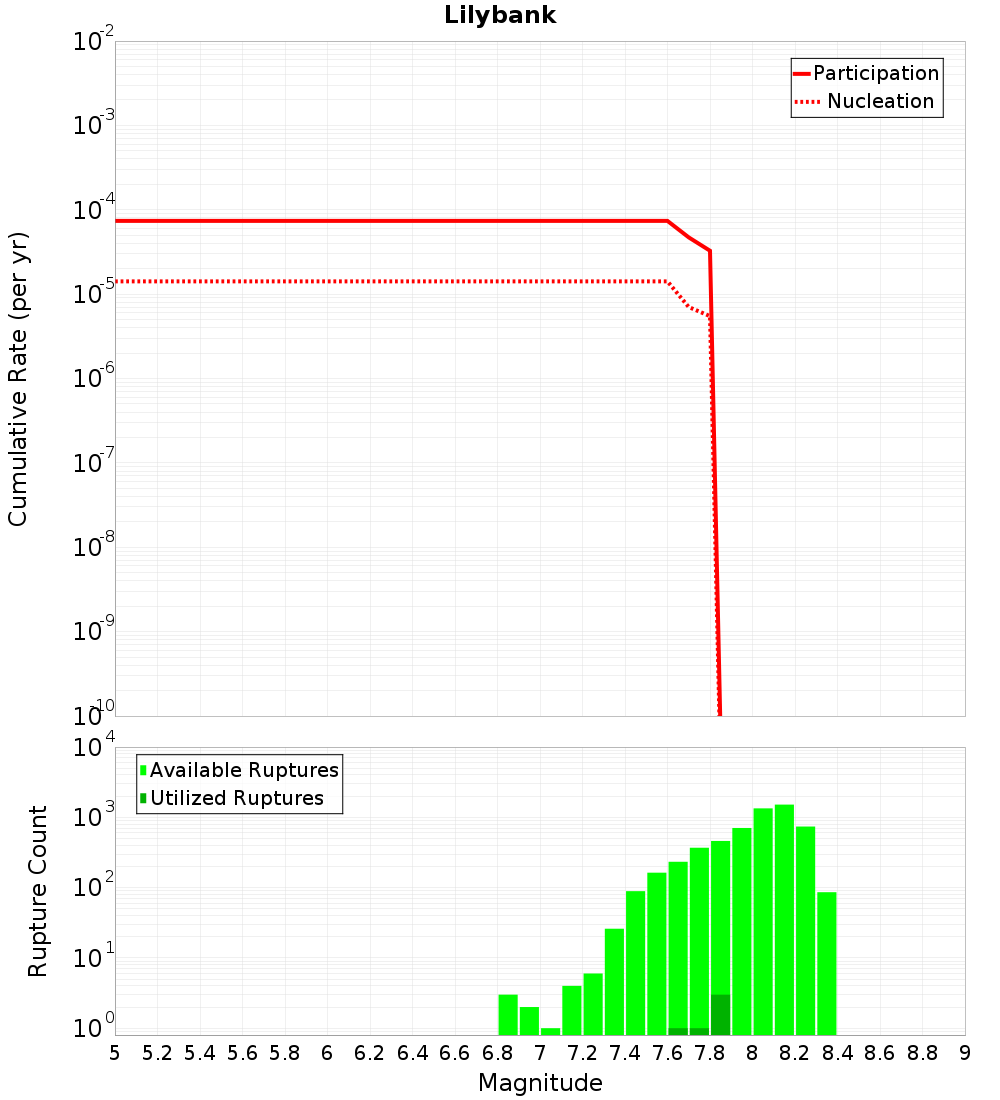

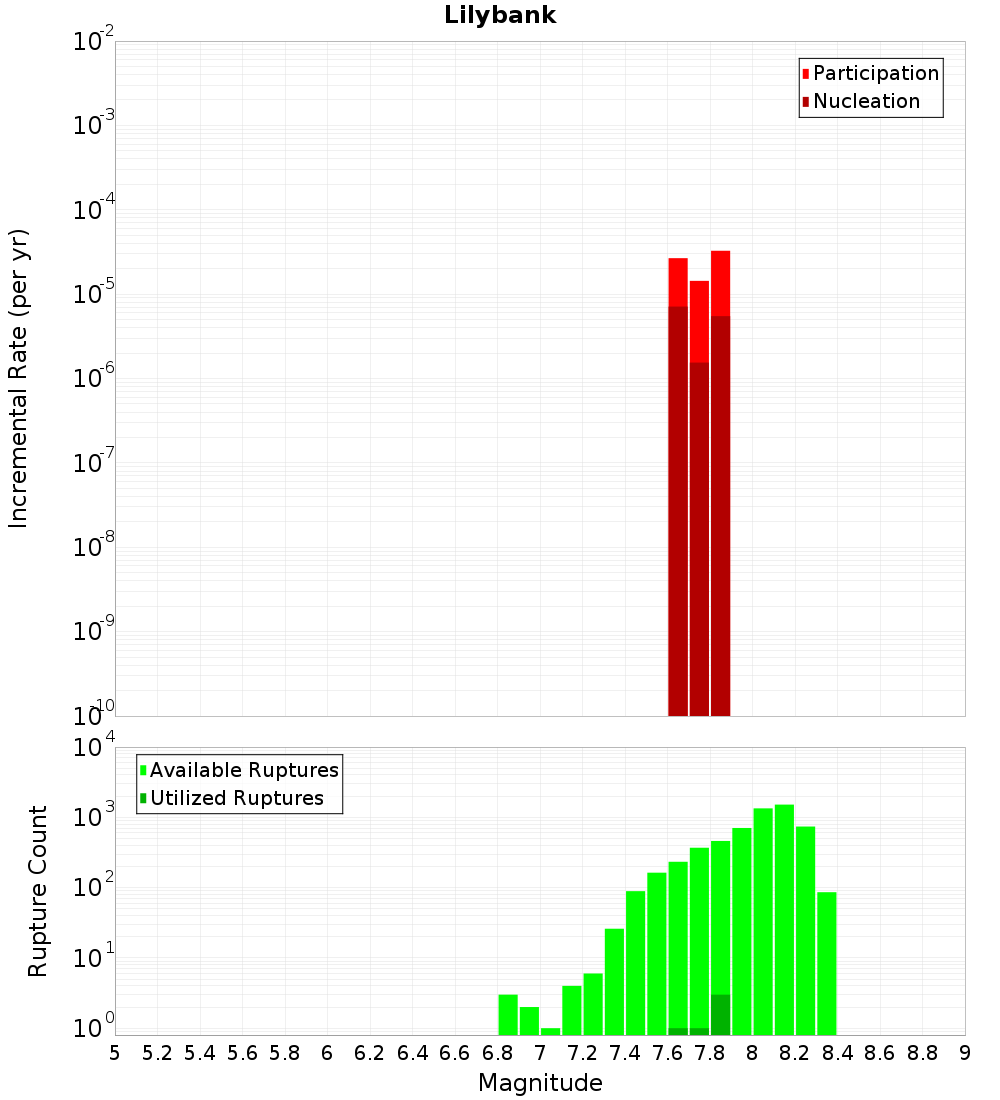

Magnitude-Frequency Distribution

Incremental	Cumulative

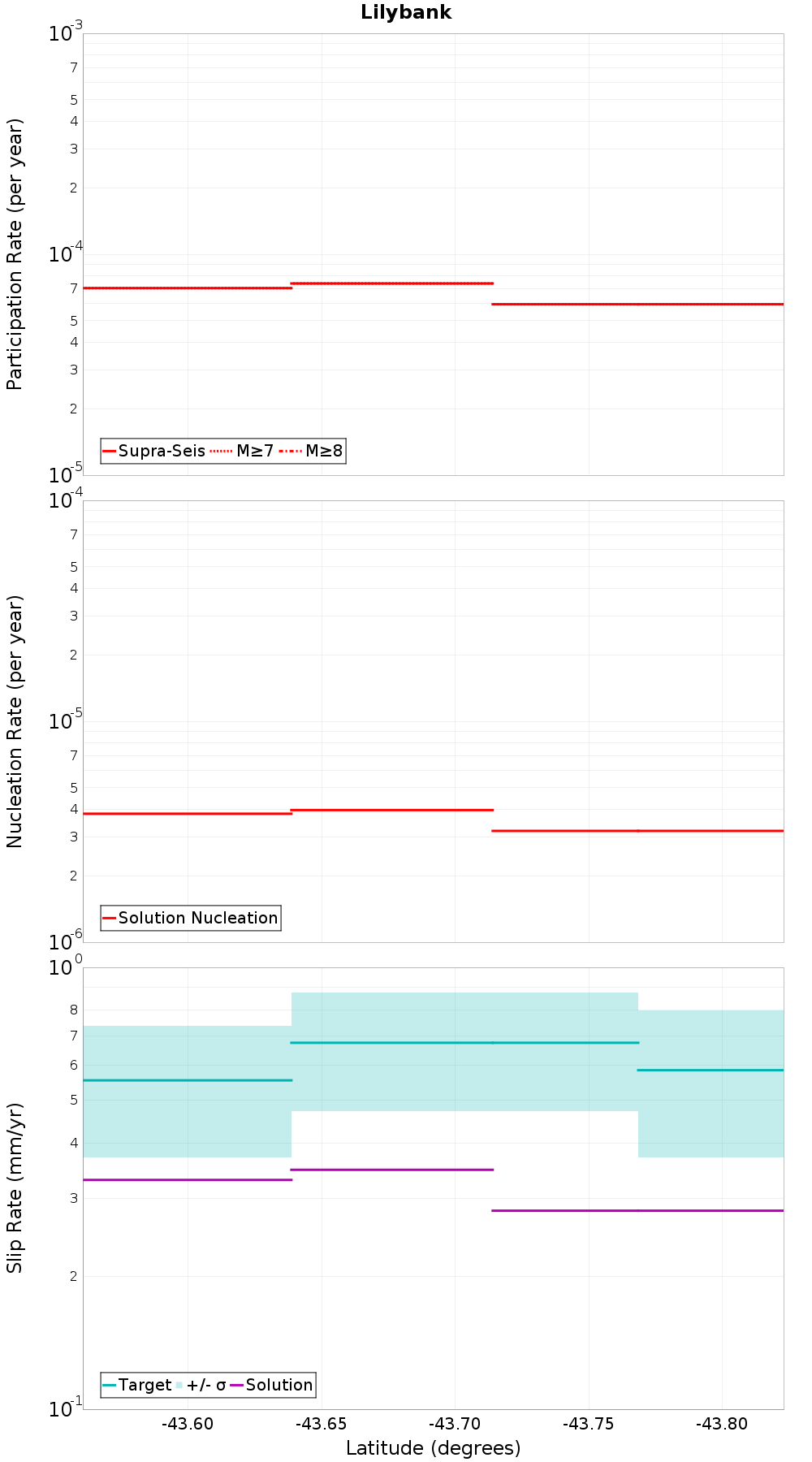

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Two Thumb Stream, 0.1 km away
Macaulay 2, 0.83 km away
Veil Stream, 1.08 km away
Fox Peak, 7.55 km away
Irishman Creek, 9.55 km away
Liebig North, 11 km away
Gunn Glacier, 11.55 km away
Potts Range, 13.51 km away
Straight Creek, 14.07 km away

Two Thumb Stream, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	3,316
Co-rupture Rate	7.02586E-5

Macaulay 2, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	0.0

Veil Stream, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	5,672
Co-rupture Rate	6.467691E-5

Fox Peak, 7.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Irishman Creek, 9.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	170
Co-rupture Rate	3.2663127E-5

Liebig North, 11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gunn Glacier, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Potts Range, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Straight Creek, 14.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
