North Mernoo Fa-2 Details
| Property | Value |
|---|---|
| Rupture Count | 69 |
| Ruptures Above Sect Min Mag | 63 |
| Ruptures w/ Nonzero Rates | 0 |
| Magnitude Range | [6.61, 7.50] |
| Length Range | [15, 117] km |
| Total Rate | 0.0 /yr |
| Multi-Fault Rate | 0.0 /yr (NaN) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 8 |
Table Of Contents
Along-Strike Values
Moment-Rates and b-Values

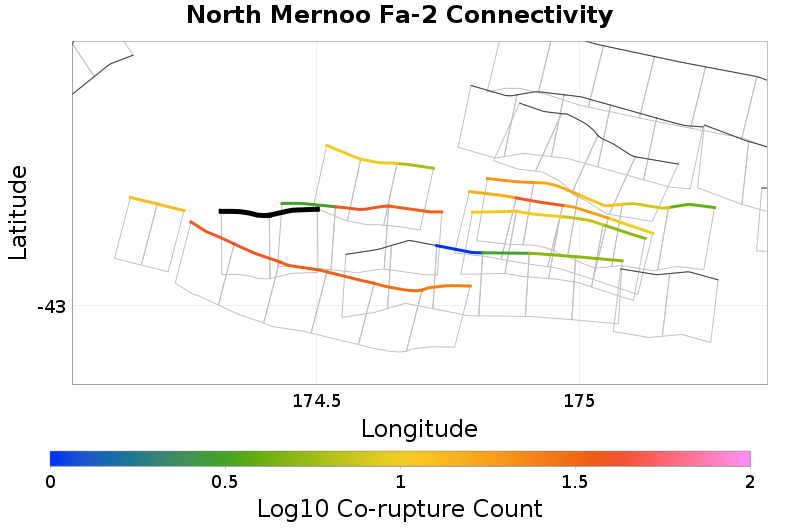

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| North Mernoo Fa-1, 0.62 km away |
| North Mernoo E2-1, 3.22 km away |
| North Mernoo E2-2, 5.75 km away |
| North Mernoo F1, 6.9 km away |
| North Mernoo 15, 7.65 km away |
North Mernoo Fa-1, 0.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 37 |
| Co-rupture Rate | 0.0 |
North Mernoo E2-1, 3.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
North Mernoo E2-2, 5.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
North Mernoo F1, 6.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
North Mernoo 15, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
