Pisa Details

PropertyValue
Rupture Count32,941
Ruptures Above Sect Min Mag32,940
Ruptures w/ Nonzero Rates9
Magnitude Range[7.24, 8.56]
Length Range[32, 856] km
Total Rate4.5386798E-5 /yr
Multi-Fault Rate4.5386798E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults108

Table Of Contents

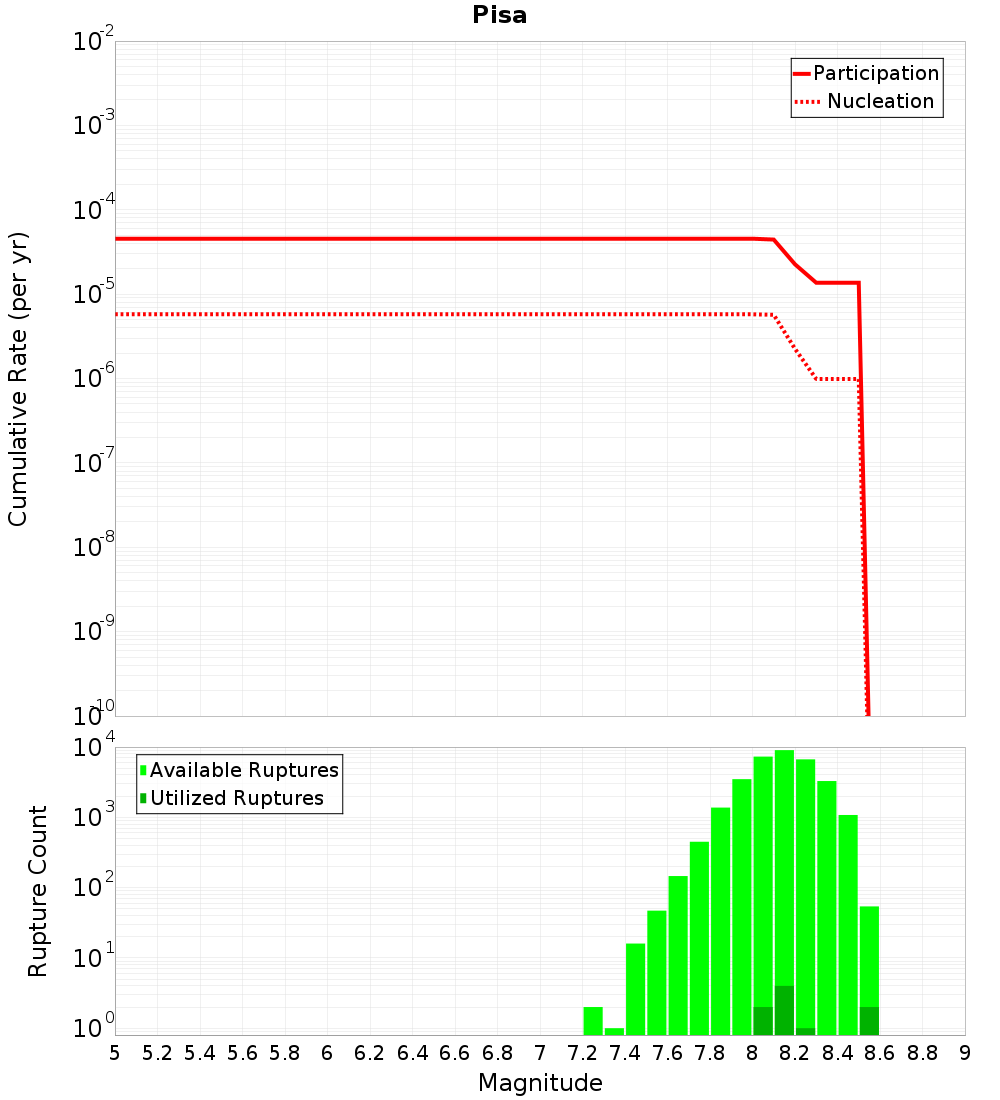

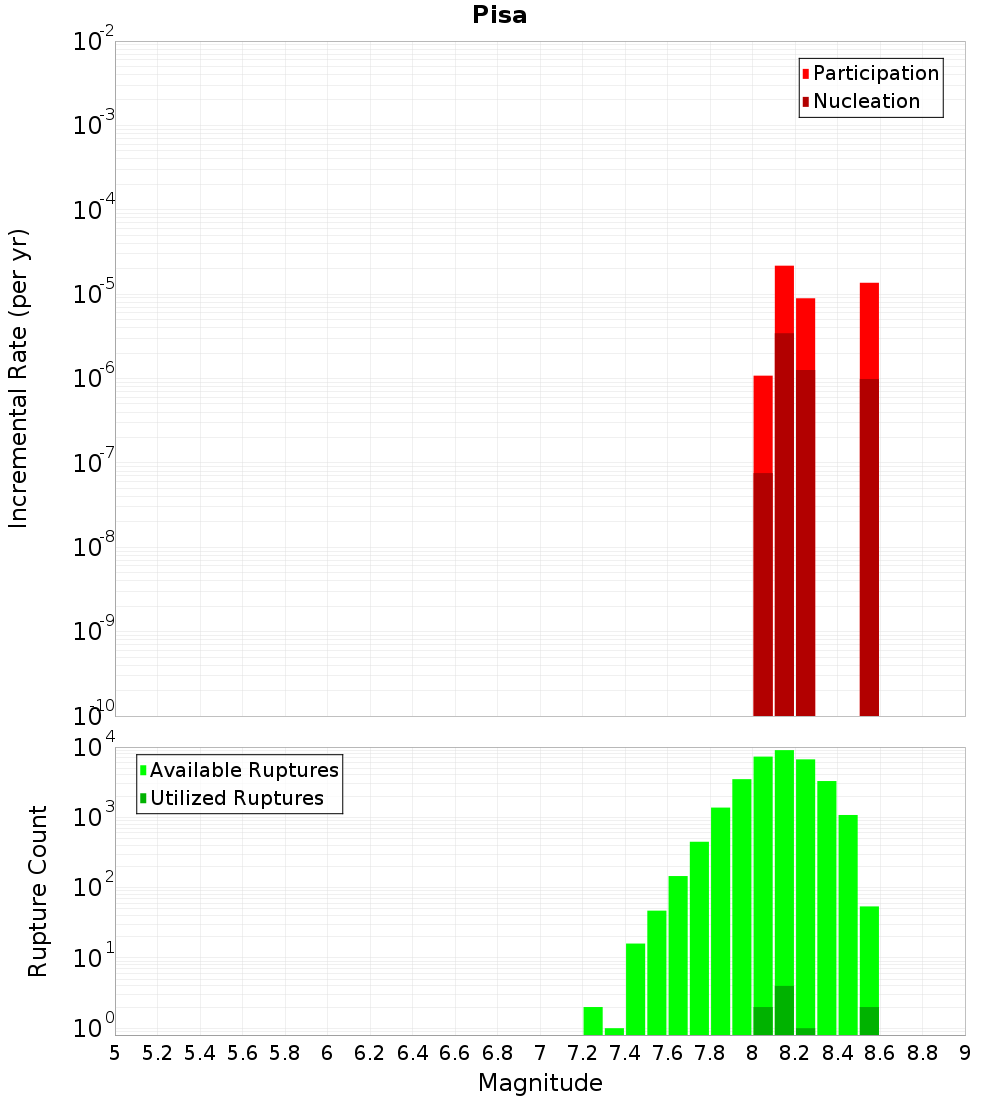

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

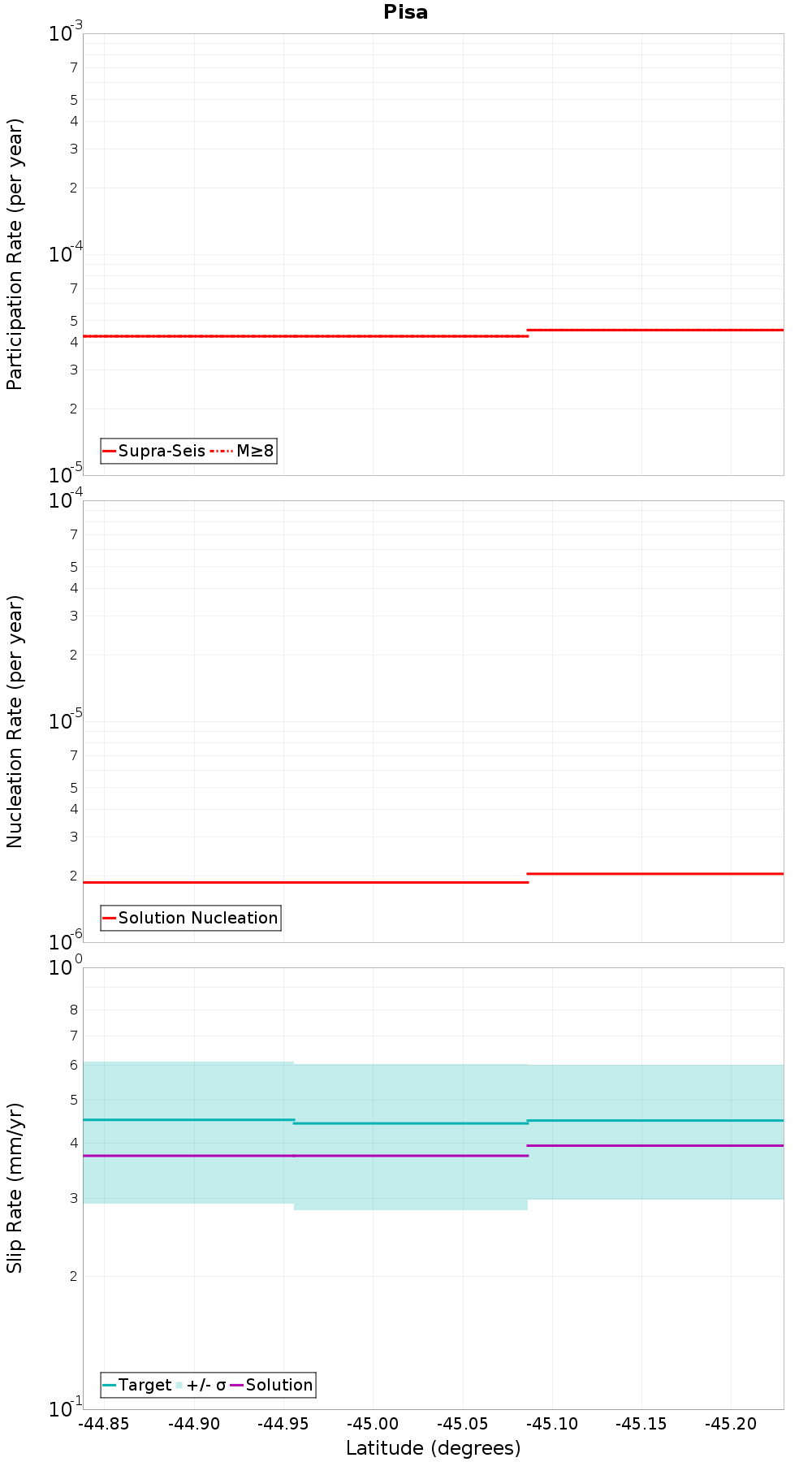

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

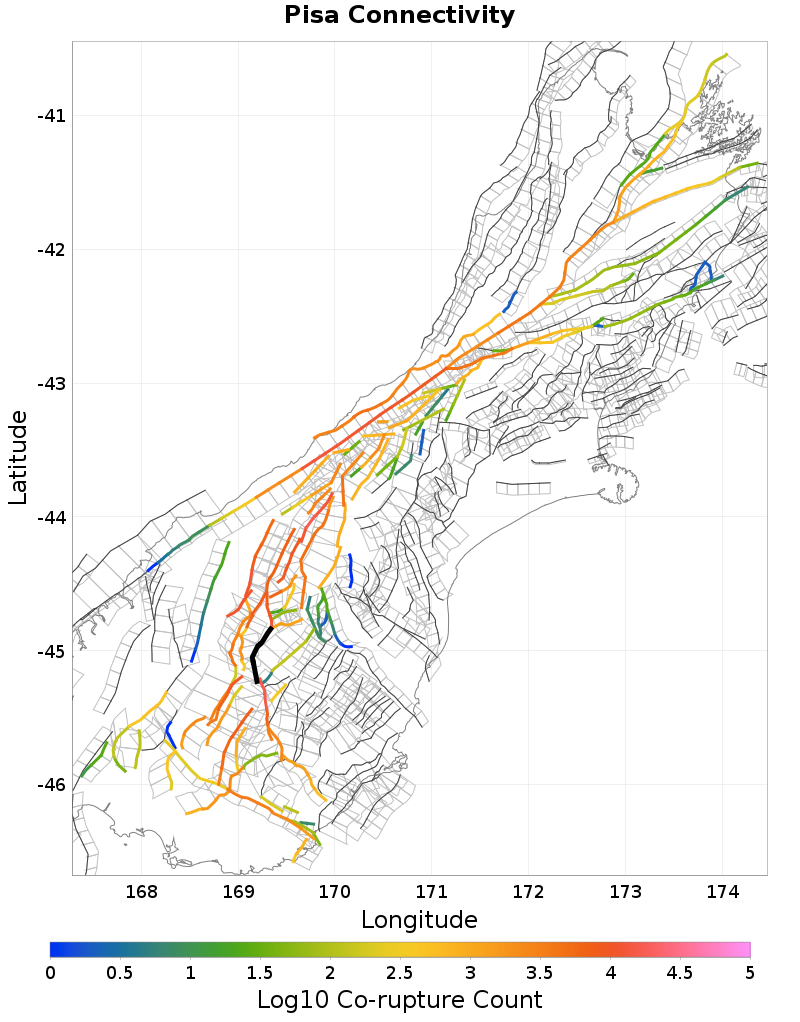

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Roaring Meg, 0.11 km awayGoodger, 7.45 km away
Motatapu, 0.11 km awayGalloway, 7.93 km away
Paddys Ridge, 0.16 km awayNW Cardrona North, 8.52 km away
Grandview, 1.55 km awayGarvie, 9.29 km away
Old Man, 1.67 km awayCardrona - Hawea, 9.89 km away
Roaring Lion, 1.94 km awayNevis, 11.08 km away
Cluden, 1.98 km awayLindis River, 12.27 km away
NW Cardrona South, 2.33 km awayGalloway Shanty, 13.28 km away
Dunstan, 4.44 km away

Roaring Meg, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count1,922
Co-rupture Rate1.3379178E-6

Motatapu, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count11,318
Co-rupture Rate1.3911436E-5

Paddys Ridge, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count5,859
Co-rupture Rate1.5174552E-6

Grandview, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count11,423
Co-rupture Rate2.6607246E-5

Old Man, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count16,245
Co-rupture Rate1.5929647E-5

Roaring Lion, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count9,543
Co-rupture Rate3.3003438E-5

Cluden, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count1,268
Co-rupture Rate2.2753218E-6

NW Cardrona South, 2.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count4,442
Co-rupture Rate1.7851876E-6

Dunstan, 4.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate0.0

Goodger, 7.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate0.0

Galloway, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 8.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count2,391
Co-rupture Rate1.0753396E-6

Garvie, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count1,529
Co-rupture Rate2.5711134E-7

Cardrona - Hawea, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count7,589
Co-rupture Rate2.5927948E-6

Nevis, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count2,921
Co-rupture Rate1.0442597E-5

Lindis River, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count434
Co-rupture Rate2.2753218E-6

Galloway Shanty, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate2.5711134E-7
